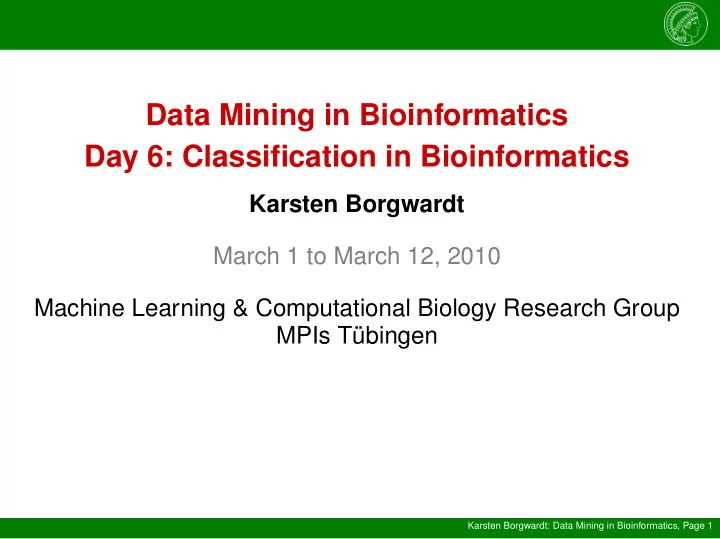

Data Mining in Bioinformatics Day 6: Classification in Bioinformatics

Karsten Borgwardt March 1 to March 12, 2010 Machine Learning & Computational Biology Research Group MPIs Tübingen

Protein function prediction via graph kernels

ISMB 2005 Joint work with Cheng Soon Ong and S.V.N. Vishwanathan, Stefan Schönauer, Hans-Peter Kriegel and Alex Smola Ludwig-Maximilians-Universität Munich, Germany and National ICT Australia, Canberra Karsten M. Borgwardt

2

Content

Introduction

• The problem: protein function prediction
• The method: Support Vector Machines (SVM)

Our approach to function prediction

• Protein graph model
• Protein graph kernel
• Experimental evaluation

Technique to analyze our graph model

• Hyperkernels

Discussion

Karsten Borgwardt et al. - Protein function prediction via graph kernels

3

Current approaches to protein function prediction

similar sequences similar function similar structures similar motifs similar chemical properties similar surface clefts similar phylogenetic profiles similar interaction partners

Karsten Borgwardt et al. - Protein function prediction via graph kernels

4

Current approaches to protein function prediction

similar sequences similar function similar structures similar motifs similar chemical properties similar surface clefts similar phylogenetic profiles similar interaction partners

Karsten Borgwardt et al. - Protein function prediction via graph kernels

5

Are new data points (x) red or black? The blue decision boundary allows to predict class membership

• f new data points.

Support Vector Machines

Karsten Borgwardt et al. - Protein function prediction via graph kernels

6

Kernel trick

mapping Ф kernel function The kernel trick allows to introduce a separating hyperplane in feature space. input space feature space

Karsten Borgwardt et al. - Protein function prediction via graph kernels

7

protein structure and/or protein sequence e.g. Cai et al. (2004) , Dobson and Doig (2003)

• hydrophobicity
• polarity
• polarizability
• van der Waals volume
• fraction of amino acid types
• fraction of surface area
• disulphide bonds
• size of largest surface pocket

Feature vectors for function prediction

8

Our approach

Sequence + Structure + Chemical properties Graph model

SVMs + Graph models Protein function

Karsten Borgwardt et al. - Protein function prediction via graph kernels

9

protein secondary structure sequence structure

Protein graph model

Karsten Borgwardt et al. - Protein function prediction via graph kernels

10

Node attributes

• hydrophobicity
• polarity
• polarizability
• van der Waals volume
• length
• helix, sheet, loop

Protein graph model

Edge attributes

• type (sequence, structure)
• length

Karsten Borgwardt et al. - Protein function prediction via graph kernels

11

Protein graph kernel

(Kashima et al. (2003) and Gärtner et al. (2003))

compares walks of identical length l

Walks are similar, if along both walks

• types of secondary structure elements (SSEs) are the same
• distances between SSEs are similar
• chemical properties of SSEs are similar

k walk v1,... ,vl,w1,... ,wl=∑

i =1 l −1

kstepvi ,vi1 ,wi ,wi1

S S S S S S

12

Example: Protein kernel

Protein A Protein B

Similar (H,10,S,1,S,3,H) (H,9,S,1,S,3,H)

13

Example: Protein kernel

Dissimilar (H,10,S,1,S) (S,3,H,5,S)

Protein A Protein B S S S S S S

14

Kernel type accuracy SD Vector kernel 76.86 1.23 Optimized vector kernel 80.17 1.24 Graph kernel 77.30 1.20 Graph kernel without structure 72.33 5.32 Graph kernel with global info 84.04 3.33 DALI classifier 75.07 4.58

10-fold cross-validation on 1128 proteins from dataset by Dobson and Doig (2003); 59 % are enzymes.

Evaluation: enzymes vs. non-enzymes

Karsten Borgwardt et al. - Protein function prediction via graph kernels

15

Which structural or chemical attribute is most important for correct classification? For this purpose, we employ hyperkernels (Ong et. al, 2003). Hyperkernels find an optimal linear combination of input kernel matrices :

minimizing training error and fulfilling regularization constraints

Attribute selection

Karsten Borgwardt et al. - Protein function prediction via graph kernels

∑

i=1 m

β i K i

16

Our approach:

• Calculate kernel matrix for 600 proteins on

graph model with only ONE single attribute!

• Repeat this for all attributes
• Normalize these kernel matrices
• Determine hyperkernel combination
• Weights then reflect contribution of individual

attributes to correct classification

Attribute selection

17

Attribute selection

0.00 0.13 0.00 0.00 0.01 0.00 Total Polarizability 0.00 0.01 0.00 0.00 0.14 0.00 Total Polarity 0.00 0.01 0.00 0.00 0.13 0.00 Total Hydrophobicity 0.00 0.00 0.00 0.00 0.00 0.00 Total van der Waals 0.00 0.00 0.00 0.00 0.40 0.00 3d length 0.00 0.12 0.00 0.00 0.00 0.00 3-bin Polarizability 1.00 0.00 0.00 0.00 0.01 0.00 3-bin Polarity 0.00 0.00 0.00 0.00 0.00 0.00 3-bin Hydrophobicity 0.00 0.00 0.00 0.00 0.00 0.00 3-bin van der Waals 0.00 0.73 1.00 1.00 0.31 1.00 Amino acid length EC 6 EC 5 EC 4 EC 3 EC 2 EC 1 Attribute

Karsten Borgwardt et al. - Protein function prediction via graph kernels

18

Discussion

• Novel combined approach to protein function prediction

integrating sequence, structure and chemical information

• Reaches state-of-the-art classification accuracy on less

information; higher accuracy levels on same amount of information

• Hyperkernels for finding most interesting protein

characteristics

Karsten Borgwardt et al. - Protein function prediction via graph kernels

Karsten Borgwardt et al. - Protein function prediction via graph kernels 19

Discussion

• More detailed graph models (amino acids, atoms) might be

more interesting, yet raise computational difficulties (graphs too large!) Two directions of future research:

• Efficient, yet expressive graph kernels for structure
• Integrating more proteomic information, e.g. surface

pockets, into our graph model

Karsten Borgwardt et al. - Protein function prediction via graph kernels 20

The End

Thank you! Questions?
