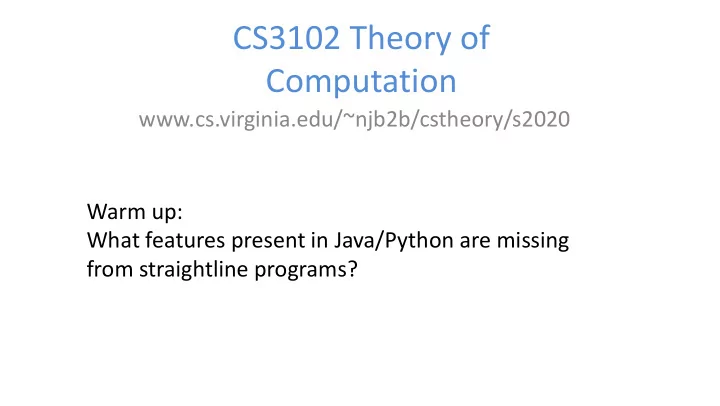

  1. CS3102 Theory of Computation www.cs.virginia.edu/~njb2b/cstheory/s2020 Warm up: What features present in Java/Python are missing from straightline programs?

  2. Logistics • Exercise 1 due this afternoon – Didn’t submit? You have 48 hours to do so with a 25% penalty • Quiz 2 due today • Exercise 2 is out. – Some stuff due Thursday, the rest due Tuesday 2

  3. Last Time • Boolean Circuits as a model of computing • Straightline Programs as a model of computing • Proved NAND-Straightline = NAND-Circ = AON-Circ = AON-straightline 3

  4. Majority with Boolean Circuits # Gates = # Lines x[0] x[1] x[2] 4

  5. NAND Straightline = AON Straightline NAND -> AON AON -> NAND ​ x = NOT(a) x = NAND(a,b) x = OR(a,b )​ Becomes Becomes Becomes ​ x= NAND(a,a) temp = AND(a,b) t1 = NAND(a,a) x = NOT(temp) t2 = NAND(b,b) x = AND(a,b) x= NAND(t1,t2) Becomes temp= NAND(a,b) x=NAND(temp,temp) 5

  6. Syntactic Sugar • "Full-featured" programming languages are identical to simple ones • We can add new features without changing the underlying computing model • These features can make programs easier to reason about and more readable 6

  7. User-Defined Procedures 7

  8. "Translating" Procedures • Adding procedures does not change computing model • We can convert a program with procedures into a program without them 8

  9. Procedure for translating procedures • Paste code from procedure • Use arguments in place of parameters • Rename variables from the procedure to be "fresh" Before After 9

  10. How many gates? • How many NAND gates does this use to compute MAJ? 10

  11. Conditionals • Values of some variables might depend on a condition • Code • Translated 11

  12. Translating Conditionals • Pre-compute each of the possible values • Use a procedure to determine which to assign 12

  13. Lookup • Indexing into a bitstring • The 𝑀𝑝𝑝𝑙𝑣𝑞 function of order 𝑙 : 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙 : 0,1 2 𝑙 +𝑙 → 0,1 Defined such that for 𝑦 ∈ 0,1 2 𝑙 , 𝑗 ∈ 0,1 𝑙 : 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙 𝑦, 𝑗 = 𝑦 𝑗 13

  14. 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙 𝑙 = 3 i : x : 0 1 0 0 1 1 1 0 0 1 0 Last 𝑙 bits of input First 2 𝑙 bits of input Considered as an index Considered as a bitstring 14

  15. Theorem There is a NAND-Cricuit that computes 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙 : 0,1 2 𝑙 +𝑙 → {0,1} Moreover, the number of gates required is at most 4 ⋅ 2 𝑙 15

  16. Proof idea • Consider index 𝑗 • If the first bit of 𝑗 is 0, then the bit we're looking for is in the first half of 𝑦 • Do lookup for 𝑙 − 1 𝑗 : 𝑦 : 0 1 0 0 1 1 1 0 0 1 0 𝑗 : 𝑦 : 0 1 0 0 1 0 16

  17. Defining 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙 For 𝑙 ≥ 2, 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙 (𝑦 0 , … , 𝑦 2 𝑙 −1 , 𝑗 0 , … , 𝑗 𝑙−1 ) is equal to: 𝐽𝐺(𝑗 0 , 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙−1 𝑦 2 𝑙−1 , … , 𝑦 2 𝑙 −1 , 𝑗 1 , … , 𝑗 𝑙−1 , 𝑀𝑃𝑃𝐿𝑉𝑄 𝑙−1 (𝑦 0 , … , 𝑦 2 𝑙−1 −1 , 𝑗 1 , … , 𝑗 𝑙−1 ) 17

  18. Base Case Next Step 18

  19. LOOKUP2 LOOKUP3 and 4 19

  20. Counting Gates Show this uses at most 4 ⋅ 2 𝑙 gates (lines of code) 20

  21. Counting Gates Show this uses at most 4 ⋅ 2 𝑙 gates (lines of code) 21

  22. Computing Every Finite Function • Next we'll show that NAND is universal • Any finite function can be computed by some NAND-straightline program (equivalently, a NAND-circuit) 22

  23. Idea Input Output We will have one variable to represent each 000 0 possible input. We'll do a lookup with the 001 0 actual input to select the proper output 010 1 011 0 100 1 101 1 110 0 111 0 23

  24. Straightline Code for F Input Output 000 0 001 0 010 1 011 0 100 1 101 1 110 0 111 0 24

  25. Getting 0 and 1 25

  26. Computing any function • Make a variable to represent each possible input • Assign its value to match the correct output • Use LOOKUP to select the proper output for the given input 26

  27. How many gates? • How many gates does this construction take? You can compute any finite function 𝑔: 0,1 𝑜 → 0,1 𝑛 with a NAND Circuit using no more than 𝑑 ⋅ 𝑛 ⋅ 2 𝑜 gates 2 𝑜 Note: This can be imporved to 𝑑 ⋅ 𝑛 ⋅ 𝑜 (theorem 4.16 in TCS) 27

  28. Counting gates 1. Create variables for each input 2. Assign 0,1 to each input 3. Do the LOOKUP 28

  29. What does this mean? • Your laptop is a 64-bit machine. Given enough transistors, it can compute any function 𝑔: 0,1 64 → 0,1 64 29
