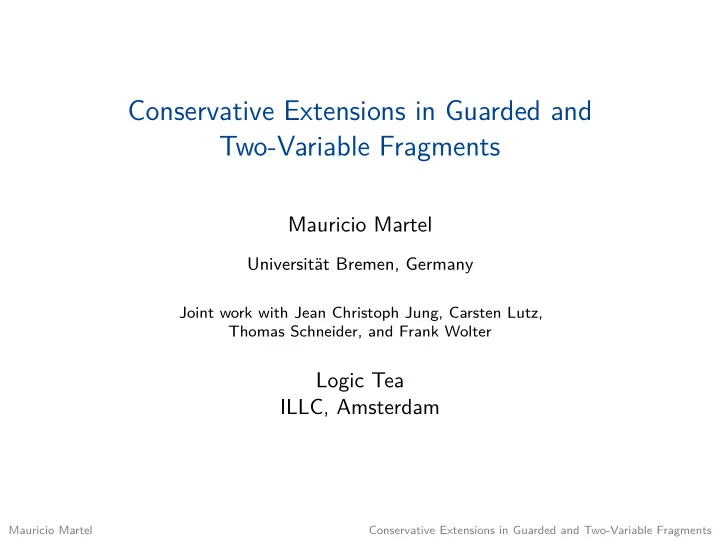

SLIDE 1

Conservative Extensions in Guarded and Two-Variable Fragments

Mauricio Martel

Universität Bremen, Germany

Joint work with Jean Christoph Jung, Carsten Lutz, Thomas Schneider, and Frank Wolter

Logic Tea ILLC, Amsterdam

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments

SLIDE 2

Conservative Extensions

Fundamental notion in mathematical logic to relate different theories

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 1

SLIDE 3

Conservative Extensions

Fundamental notion in mathematical logic to relate different theories Also used in computer science:

for formalizing modularity in software specification
for composing subgoals in higher-order theorem proving
for formalizing various notions in ontology engeneering

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 1

SLIDE 4

Conservative Extensions

Fundamental notion in mathematical logic to relate different theories Also used in computer science:

for formalizing modularity in software specification
for composing subgoals in higher-order theorem proving
for formalizing various notions in ontology engeneering

Remarkably positive results for modal logics and description logics:

turn out to be decidable in many relevant cases
often possible to provide natural and insightful model-theoretic

characterizations

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 1

SLIDE 5

Conservative Extensions

Fundamental notion in mathematical logic to relate different theories Also used in computer science:

for formalizing modularity in software specification
for composing subgoals in higher-order theorem proving
for formalizing various notions in ontology engeneering

Remarkably positive results for modal logics and description logics:

turn out to be decidable in many relevant cases
often possible to provide natural and insightful model-theoretic

characterizations Natural question: how far do these extend? To GF? To FO2?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 1

SLIDE 6

Overview

It is known that conservative extensions are

undecidable in FO
decidable in many modal and description logics

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 2

SLIDE 7

Overview

It is known that conservative extensions are

undecidable in FO
decidable in many modal and description logics

We show that conservative extensions are

undecidable in GF
undecidable in FO2
decidable and 2ExpTime-complete in GF2 = GF ∩ FO2

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 2

SLIDE 8

Decidable Fragments of FO

FO2 is the two-variable fragment of FO Example: ∀xyRxy

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 3

SLIDE 9

Decidable Fragments of FO

FO2 is the two-variable fragment of FO Example: ∀xyRxy In GF quantification is restricted to the pattern ∀ y(α( x, y) → ϕ( x, y)) ∃ y(α( x, y) ∧ ϕ( x, y)) Example: ∃xy(Rxyz ∧ Pxy ∧ Qyz)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 3

SLIDE 10

Decidable Fragments of FO

FO2 is the two-variable fragment of FO Example: ∀xyRxy In GF quantification is restricted to the pattern ∀ y(α( x, y) → ϕ( x, y)) ∃ y(α( x, y) ∧ ϕ( x, y)) Example: ∃xy(Rxyz ∧ Pxy ∧ Qyz) GF2 = GF ∩ FO2 Example: ∀x(Rxy → Pxy)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 3

SLIDE 11

Conservative Extensions

A theory T2 is said to be a (deductive) conservative extension of a theory T1 if the language of T2 extends the language of T1:

Any consequence of T1 is also a consequence of T2; and
Any consequence of T2, which uses only symbols from T1, is

also a consequence of T1.

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 4

SLIDE 12

Conservative Extensions

A theory T2 is said to be a (deductive) conservative extension of a theory T1 if the language of T2 extends the language of T1:

Any consequence of T1 is also a consequence of T2; and
Any consequence of T2, which uses only symbols from T1, is

also a consequence of T1.

Observation. Conservative extensions can be used to define the

notion of a module for ontologies: a subtheory is a module if the whole ontology is a conservative extension of the subtheory

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 4

SLIDE 13

Conservative Extensions

A theory T2 is said to be a (deductive) conservative extension of a theory T1 if the language of T2 extends the language of T1:

Any consequence of T1 is also a consequence of T2; and
Any consequence of T2, which uses only symbols from T1, is

also a consequence of T1.

Observation. Conservative extensions can be used to define the

notion of a module for ontologies: a subtheory is a module if the whole ontology is a conservative extension of the subtheory Similar for other applications such as ontology versioning and forgetting a set of symbols Σ

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 4

SLIDE 14

Conservative Extensions in Fragments of FO

Sentence ϕ1 extended to ϕ1 ∧ ϕ2, and ϕ2 may use fresh symbols

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 5

SLIDE 15

Conservative Extensions in Fragments of FO

Sentence ϕ1 extended to ϕ1 ∧ ϕ2, and ϕ2 may use fresh symbols

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1

Equivalently, ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if,

ϕ1 ∧ ϕ2 ∧ ¬ψ is UNSAT ⇒ ϕ1 ∧ ¬ψ is UNSAT

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 5

SLIDE 16

Conservative Extensions in Fragments of FO

Sentence ϕ1 extended to ϕ1 ∧ ϕ2, and ϕ2 may use fresh symbols

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1

Equivalently, ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if,

ϕ1 ∧ ϕ2 ∧ ¬ψ is UNSAT ⇒ ϕ1 ∧ ¬ψ is UNSAT ϕ1 ∧ ψ is SAT ⇒ ϕ1 ∧ ϕ2 ∧ ψ is SAT

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 5

SLIDE 17

Conservative Extensions in Fragments of FO

Sentence ϕ1 extended to ϕ1 ∧ ϕ2, and ϕ2 may use fresh symbols

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1

Equivalently, ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if,

ϕ1 ∧ ϕ2 ∧ ¬ψ is UNSAT ⇒ ϕ1 ∧ ¬ψ is UNSAT ϕ1 ∧ ψ is SAT ⇒ ϕ1 ∧ ϕ2 ∧ ψ is SAT

Deciding conservative extensions mean, given two sentences

ϕ1, ϕ2, to decide whether ϕ1 ∧ ϕ2 is a conservative extension

f ϕ1

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 5

SLIDE 18

Σ-Entailment

In applications, it is useful to consider a vocabulary Σ of interest

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 6

SLIDE 19

Σ-Entailment

In applications, it is useful to consider a vocabulary Σ of interest We study conservative extensions in a slightly more general form:

ϕ1 |

=Σ ϕ2 (“Σ-entails”), if ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from Σ

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 6

SLIDE 20

Σ-Entailment

In applications, it is useful to consider a vocabulary Σ of interest We study conservative extensions in a slightly more general form:

ϕ1 |

=Σ ϕ2 (“Σ-entails”), if ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from Σ

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 6

SLIDE 21

Σ-Entailment

In applications, it is useful to consider a vocabulary Σ of interest We study conservative extensions in a slightly more general form:

ϕ1 |

=Σ ϕ2 (“Σ-entails”), if ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from Σ

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 6

SLIDE 22

Σ-Entailment

In applications, it is useful to consider a vocabulary Σ of interest We study conservative extensions in a slightly more general form:

ϕ1 |

=Σ ϕ2 (“Σ-entails”), if ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from Σ

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 if

ϕ1 ∧ ϕ2 | = ψ ⇒ ϕ1 | = ψ for all sentences ψ that use symbols from ϕ1 Then

ϕ1 ∧ ϕ2 is a conservative extension of ϕ1 iff

ϕ1 | =Σ=sig(ϕ1) ϕ1 ∧ ϕ2

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 6

SLIDE 23

Examples

Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R}

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 7

SLIDE 24

Examples

Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R} ϕ1 = ∀x∃y(Rxy → x = y)

R

R . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 7

SLIDE 25

Examples

Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R} ϕ1 = ∀x∃y(Rxy → x = y)

R

R . . . ϕ2 = ∀x((∃yRxy ∧ Ay) ∧ (∃yRxy ∧ ¬Ay))

R

R . . . . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 7

SLIDE 26

Examples

Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R} ϕ1 = ∀x∃y(Rxy → x = y)

R

R . . . ϕ2 = ∀x((∃yRxy ∧ Ay) ∧ (∃yRxy ∧ ¬Ay))

R

R . . . . . . ϕ1 | =Σ ϕ2 since GF2 cannot count the number of successors

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 7

SLIDE 27

Examples

Consider sentences ϕ′

1, ϕ2 in GF2 and Σ = {R}

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 8

SLIDE 28

Examples

Consider sentences ϕ′

1, ϕ2 in GF2 and Σ = {R}

ϕ′

1 = ∀x∃yRxy

R

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 8

SLIDE 29

Examples

Consider sentences ϕ′

1, ϕ2 in GF2 and Σ = {R}

ϕ′

1 = ∀x∃yRxy

R

|

R

R . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 8

SLIDE 30

Examples

Consider sentences ϕ′

1, ϕ2 in GF2 and Σ = {R}

ϕ′

1 = ∀x∃yRxy

R

|

R

R . . . ϕ2 = ∀x((∃yRxy ∧ Ay) ∧ (∃yRxy ∧ ¬Ay))

R

R . . . . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 8

SLIDE 31

Examples

Consider sentences ϕ′

1, ϕ2 in GF2 and Σ = {R}

ϕ′

1 = ∀x∃yRxy

R

|

R

R . . . ϕ2 = ∀x((∃yRxy ∧ Ay) ∧ (∃yRxy ∧ ¬Ay))

R

R . . . . . . ϕ′

1 |

=Σ ϕ2 because there is a sentence ψ = ∀xy(Rxy → x = y) s.t. ϕ′

1 ∧ ψ is SAT but ϕ2 ∧ ψ is UNSAT

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 8

SLIDE 32

Modal and Description Logics

Both modal and description logics are fragments of FO

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 9

SLIDE 33

Modal and Description Logics

Both modal and description logics are fragments of FO The description logic ALC (or the modal logic K) is defined as ∀xϕ(x) with ϕ(x) built from ¬, ∧, ∃y(Rxy ∧ ϕ(y))

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 9

SLIDE 34

Modal and Description Logics

Both modal and description logics are fragments of FO The description logic ALC (or the modal logic K) is defined as ∀xϕ(x) with ϕ(x) built from ¬, ∧, ∃y(Rxy ∧ ϕ(y)) Conservative extensions can be characterized model-theoretically using Σ-bisimulations: (A, a) ∼Σ (B, b)

a• a′•

b
b′

∼ ∼

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 9

SLIDE 35

Modal and Description Logics

Consider the description logic ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 10

SLIDE 36

Modal and Description Logics

Consider the description logic ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Similar characterizations for many other modal/description logics

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 10

SLIDE 37

Modal and Description Logics

Consider the description logic ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Similar characterizations for many other modal/description logics This model-theoretic characterization enables decision procedures based on tree automata:

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 10

SLIDE 38

Modal and Description Logics

Consider the description logic ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Similar characterizations for many other modal/description logics This model-theoretic characterization enables decision procedures based on tree automata: Given two sentences ϕ1 and ϕ2 and a signature Σ we can construct a tree automaton A such that ϕ1 | =Σ ϕ2 iff L(A) = ∅

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 10

SLIDE 39

Modal and Description Logics

Consider the description logic ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Similar characterizations for many other modal/description logics This model-theoretic characterization enables decision procedures based on tree automata: Given two sentences ϕ1 and ϕ2 and a signature Σ we can construct a tree automaton A such that ϕ1 | =Σ ϕ2 iff L(A) = ∅ The problem turns out to be 2ExpTime-complete

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 10

SLIDE 40

Conservative Extensions vs. Satisfiability

Regarding decidability, conservative extensions seem to behave similarly to the satisfiability problem:

given a sentence ϕ, is ϕ satisfiable in some model A?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 11

SLIDE 41

Conservative Extensions vs. Satisfiability

Regarding decidability, conservative extensions seem to behave similarly to the satisfiability problem:

given a sentence ϕ, is ϕ satisfiable in some model A?

Satisfiability is undecidable in FO and decidable in

modal and description logics (PSpace-complete)
guarded fragment (2ExpTime-complete)
two-variable fragment (NExpTime-complete)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 11

SLIDE 42

Conservative Extensions vs. Satisfiability

Regarding decidability, conservative extensions seem to behave similarly to the satisfiability problem:

given a sentence ϕ, is ϕ satisfiable in some model A?

Satisfiability is undecidable in FO and decidable in

modal and description logics (PSpace-complete)
guarded fragment (2ExpTime-complete)
two-variable fragment (NExpTime-complete)

Conservative extensions are undecidable in FO and decidable in

modal and description logics (2ExpTime-complete)
guarded fragment and two-variable fragment?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 11

SLIDE 43

Conservative Extensions vs. Satisfiability

Regarding decidability, conservative extensions seem to behave similarly to the satisfiability problem:

given a sentence ϕ, is ϕ satisfiable in some model A?

Satisfiability is undecidable in FO and decidable in

modal and description logics (PSpace-complete)
guarded fragment (2ExpTime-complete)
two-variable fragment (NExpTime-complete)

Conservative extensions are undecidable in FO and decidable in

modal and description logics (2ExpTime-complete)
guarded fragment and two-variable fragment?

Why are conservative extensions in modal and description logics decidable and how far does the decidability extend?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 11

SLIDE 44

Guarded and Two-Variable Fragments

Theorem[JungLutzMartelSchneiderWolterICALP17]

Conservative extensions are undecidable in ever logic that

contains GF3 or FO2 (such as the guarded negation fragment)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 12

SLIDE 45

Guarded and Two-Variable Fragments

Theorem[JungLutzMartelSchneiderWolterICALP17]

Conservative extensions are undecidable in ever logic that

contains GF3 or FO2 (such as the guarded negation fragment)

Conservative extensions and Σ-entailment are decidable and

2ExpTime-complete in GF2 = GF ∩ FO2

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 12

SLIDE 46

Guarded and Two-Variable Fragments

Theorem[JungLutzMartelSchneiderWolterICALP17]

Conservative extensions are undecidable in ever logic that

contains GF3 or FO2 (such as the guarded negation fragment)

Conservative extensions and Σ-entailment are decidable and

2ExpTime-complete in GF2 = GF ∩ FO2 The GF2 result is based on a model-theoretic characterization, but it is much more complex than for modal and description logics

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 12

SLIDE 47

Undecidability in GF

Reduction from the halting problem of two-register machines M

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 13

SLIDE 48

Undecidability in GF

Reduction from the halting problem of two-register machines M Construct ϕ1, ϕ2 such that

1 If M halts, then ϕ1 ∧ ϕ2 is not a GF2-conservative extensions

f ϕ1

2 If there exists a Σ-structure that satisfies ϕ1 which cannot be

extended to a model of ϕ2, then M halts

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 13

SLIDE 49

Undecidability in GF

Reduction from the halting problem of two-register machines M Construct ϕ1, ϕ2 such that

1 If M halts, then ϕ1 ∧ ϕ2 is not a GF2-conservative extensions

f ϕ1

2 If there exists a Σ-structure that satisfies ϕ1 which cannot be

extended to a model of ϕ2, then M halts Important: ϕ2 uses ternary guard that is not in Σ

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 13

SLIDE 50

Undecidability in GF

Reduction from the halting problem of two-register machines M Construct ϕ1, ϕ2 such that

1 If M halts, then ϕ1 ∧ ϕ2 is not a GF2-conservative extensions

f ϕ1

2 If there exists a Σ-structure that satisfies ϕ1 which cannot be

extended to a model of ϕ2, then M halts Important: ϕ2 uses ternary guard that is not in Σ Theorem[JungLutzMartelSchneiderWolterICALP17] In any fragment of FO that extends GF3, conservative extensions and Σ-entailment are undecidable

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 13

SLIDE 51

Undecidability in FO2

Reduction from an NxN tiling problem D

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 14

SLIDE 52

Undecidability in FO2

Reduction from an NxN tiling problem D Construct ϕ1, ϕ2 such that

1 D has a solution iff ϕ1 ∧ ϕ2 is not an FO2-conservative

extension of ϕ1

2 If there exists a Σ-structure that satisfies ϕ1 which cannot be

extended to a model of ϕ2, then D has a solution

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 14

SLIDE 53

Undecidability in FO2

Reduction from an NxN tiling problem D Construct ϕ1, ϕ2 such that

1 D has a solution iff ϕ1 ∧ ϕ2 is not an FO2-conservative

extension of ϕ1

2 If there exists a Σ-structure that satisfies ϕ1 which cannot be

extended to a model of ϕ2, then D has a solution Important: ability to use FO2 expressive power in consequences ψ

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 14

SLIDE 54

Undecidability in FO2

Reduction from an NxN tiling problem D Construct ϕ1, ϕ2 such that

1 D has a solution iff ϕ1 ∧ ϕ2 is not an FO2-conservative

extension of ϕ1

2 If there exists a Σ-structure that satisfies ϕ1 which cannot be

extended to a model of ϕ2, then D has a solution Important: ability to use FO2 expressive power in consequences ψ Theorem[JungLutzMartelSchneiderWolterICALP17] In any fragment of FO that extends FO2, conservative extensions and Σ-entailment are undecidable

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 14

SLIDE 55

Guarded Fragment with Two-Variables GF2

We show that conservative extensions are decidable in GF2

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 15

SLIDE 56

Guarded Fragment with Two-Variables GF2

We show that conservative extensions are decidable in GF2 Recall that in ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 15

SLIDE 57

Guarded Fragment with Two-Variables GF2

We show that conservative extensions are decidable in GF2 Recall that in ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation In GF2 we have Σ-GF2 bisimulations: (A, a) ∼Σ (B, b)

a• a′•

b
b′

τ Σ

A(a)

τ Σ

A(a, a′)

τ Σ

B(b)

τ Σ

B(b, b′)

∼

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 15

SLIDE 58

Guarded Fragment with Two-Variables GF2

We show that conservative extensions are decidable in GF2 Recall that in ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation In GF2 we have Σ-GF2 bisimulations: (A, a) ∼Σ (B, b)

a• a′•

b
b′

τ Σ

A(a)

τ Σ

A(a, a′)

τ Σ

B(b)

τ Σ

B(b, b′)

∼

τ Σ

A(a, a′) = τ Σ B(b, b′)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 15

SLIDE 59

Guarded Fragment with Two-Variables GF2

We show that conservative extensions are decidable in GF2 Recall that in ALC: Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation In GF2 we have Σ-GF2 bisimulations: (A, a) ∼Σ (B, b)

a• a′•

b
b′

τ Σ

A(a)

τ Σ

A(a, a′)

τ Σ

B(b)

τ Σ

B(b, b′)

∼ ∼

τ Σ

A(a, a′) = τ Σ B(b, b′)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 15

SLIDE 60

Model-Theoretic Characterization

Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 16

SLIDE 61

Model-Theoretic Characterization

Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Can’t we replace Σ-bisimulations with Σ-GF2-bisimulations?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 16

SLIDE 62

Model-Theoretic Characterization

Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Can’t we replace Σ-bisimulations with Σ-GF2-bisimulations? No: Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R}

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 16

SLIDE 63

Model-Theoretic Characterization

Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Can’t we replace Σ-bisimulations with Σ-GF2-bisimulations? No: Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R} ϕ1 = ∃xAx ∧ ∀x(Ax → ∃y(Rxy ∧ Ay))

R

R . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 16

SLIDE 64

Model-Theoretic Characterization

Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Can’t we replace Σ-bisimulations with Σ-GF2-bisimulations? No: Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R} ϕ1 = ∃xAx ∧ ∀x(Ax → ∃y(Rxy ∧ Ay))

R

R . . . ϕ2 = ϕ1 ∧ ∃x(Ax ∧ Bx) ∧ ∀x(Bx → ∃y(Ryx ∧ By))

R

R . . . . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 16

SLIDE 65

Model-Theoretic Characterization

Theorem[LutzWolterIJCAI11] ϕ1 | =Σ ϕ2 iff every model of ϕ1 can be extended to a model of ϕ2, up to Σ-bisimulation Can’t we replace Σ-bisimulations with Σ-GF2-bisimulations? No: Consider sentences ϕ1, ϕ2 in GF2 and Σ = {R} ϕ1 = ∃xAx ∧ ∀x(Ax → ∃y(Rxy ∧ Ay))

R

R . . . ϕ2 = ϕ1 ∧ ∃x(Ax ∧ Bx) ∧ ∀x(Bx → ∃y(Ryx ∧ By))

R

R . . . . . . Then ϕ1 | =Σ ϕ2, but Σ-GF2-bisimulations fail

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 16

SLIDE 66

Bounded Bisimulations

k-bounded bisimulations: (A, a) ∼k

Σ (B, b) iff (A, a) and (B, b) are Σ-GF2-bisimilar up to

depth k

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 17

SLIDE 67

Bounded Bisimulations

k-bounded bisimulations: (A, a) ∼k

Σ (B, b) iff (A, a) and (B, b) are Σ-GF2-bisimilar up to

depth k Theorem[JungLutzMartelSchneiderWolterICALP17] ϕ1 | =Σ ϕ2 iff for every model A of ϕ1 and every k ≥ 0, there is a model B of ϕ2 such that

1 for every a ∈ A, there is a b ∈ B such that (A, a) ∼Σ (B, b) 2 for every b ∈ B, there is an a ∈ A such that (A, a) ∼k Σ (B, b)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 17

SLIDE 68

Bounded Bisimulations

k-bounded bisimulations: (A, a) ∼k

Σ (B, b) iff (A, a) and (B, b) are Σ-GF2-bisimilar up to

depth k Theorem[JungLutzMartelSchneiderWolterICALP17] ϕ1 | =Σ ϕ2 iff for every model A of ϕ1 and every k ≥ 0, there is a model B of ϕ2 such that

1 for every a ∈ A, there is a b ∈ B such that (A, a) ∼Σ (B, b) 2 for every b ∈ B, there is an a ∈ A such that (A, a) ∼k Σ (B, b)

A

R

R . . .

R

R . . . . . . B

R

R . . .

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 17

SLIDE 69

Bounded Bisimulations

k-bounded bisimulations: (A, a) ∼k

Σ (B, b) iff (A, a) and (B, b) are Σ-GF2-bisimilar up to

depth k Theorem[JungLutzMartelSchneiderWolterICALP17] ϕ1 | =Σ ϕ2 iff for every model A of ϕ1 and every k ≥ 0, there is a model B of ϕ2 such that

1 for every a ∈ A, there is a b ∈ B such that (A, a) ∼Σ (B, b) 2 for every b ∈ B, there is an a ∈ A such that (A, a) ∼k Σ (B, b)

A

R

R . . .

R

R . . . . . . B

R

R . . . But it is not so easy to deal with bounded bisimulations when using tree automata or related techniques

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 17

SLIDE 70

"Marker-Delimited" Bisimulations

Substitute for k-bounded bisimulation between A and B:

decorate A with unary predicate X such that
on every infinite path there are infinitely many X
the distance between two X is at least k
break off bisimulations at second X seen (both back and forth)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 18

SLIDE 71

"Marker-Delimited" Bisimulations

Substitute for k-bounded bisimulation between A and B:

decorate A with unary predicate X such that
on every infinite path there are infinitely many X
the distance between two X is at least k
break off bisimulations at second X seen (both back and forth)

Problem: decoration does not exist when k ≥ 3, not even in forest models

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 18

SLIDE 72

"Marker-Delimited" Bisimulations

Substitute for k-bounded bisimulation between A and B:

decorate A with unary predicate X such that
on every infinite path there are infinitely many X
the distance between two X is at least k
break off bisimulations at second X seen (both back and forth)

Problem: decoration does not exist when k ≥ 3, not even in forest models Solution: we need bounded bisimulations only when traveling upwards, but not when traveling downwards

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 18

SLIDE 73

"Marker-Delimited" Bisimulations

Substitute for k-bounded bisimulation between A and B:

decorate A with unary predicate X such that
on every infinite path there are infinitely many X
the distance between two X is at least k
break off bisimulations at second X seen (both back and forth)

Problem: decoration does not exist when k ≥ 3, not even in forest models Solution: we need bounded bisimulations only when traveling upwards, but not when traveling downwards Then the distance between markers only matters on upwards paths

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 18

SLIDE 74

Automata-Friendly Characterization

Theorem[JungLutzMartelSchneiderWolterICALP17] ϕ1 | =Σ ϕ2 iff for every model A of ϕ1 and every marking X ⊆ A, there is a model B of ϕ2 such that

1 for every a ∈ A, there is a b ∈ B such that (A, a) ∼Σ (B, b) 2 for every b ∈ B, there is an a ∈ A such that (A, a) ∼k Σ (B, b)

where a ∼k

Σ b satifies bisimulation conditions when “going down” in

A, but breaks off after seeing second X when “going up” in A

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 19

SLIDE 75

Automata Constructions

We use two-way alternating parity automata over trees

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 20

SLIDE 76

Automata Constructions

We use two-way alternating parity automata over trees
Input: sentences ϕ1, ϕ2 such that

ϕ1 | =Σ ϕ2 iff L(A1) ∩ L(A2) ∩ L(A3) = ∅

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 20

SLIDE 77

Automata Constructions

We use two-way alternating parity automata over trees
Input: sentences ϕ1, ϕ2 such that

ϕ1 | =Σ ϕ2 iff L(A1) ∩ L(A2) ∩ L(A3) = ∅

A1: accepts all models of ϕ1 of the right shape
A2: accepts all proper markings X ⊆ A
A3: accepts (A, X) ∈ L(A1) ∩ L(A2) iff there is a B satisfying

conditions 1. and 2. of the characterization

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 20

SLIDE 78

Automata Constructions

We use two-way alternating parity automata over trees
Input: sentences ϕ1, ϕ2 such that

ϕ1 | =Σ ϕ2 iff L(A1) ∩ L(A2) ∩ L(A3) = ∅

A1: accepts all models of ϕ1 of the right shape
A2: accepts all proper markings X ⊆ A
A3: accepts (A, X) ∈ L(A1) ∩ L(A2) iff there is a B satisfying

conditions 1. and 2. of the characterization

Theorem. Deciding Σ-entailment in GF2 is in 2ExpTime

(Exponential in |ϕ1| and double exponential in |ϕ2|)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 20

SLIDE 79

Automata Constructions

We use two-way alternating parity automata over trees
Input: sentences ϕ1, ϕ2 such that

ϕ1 | =Σ ϕ2 iff L(A1) ∩ L(A2) ∩ L(A3) = ∅

A1: accepts all models of ϕ1 of the right shape
A2: accepts all proper markings X ⊆ A
A3: accepts (A, X) ∈ L(A1) ∩ L(A2) iff there is a B satisfying

conditions 1. and 2. of the characterization

Theorem. Deciding Σ-entailment in GF2 is in 2ExpTime

(Exponential in |ϕ1| and double exponential in |ϕ2|)

Theorem. Deciding conservative extensions is 2ExpTime-hard

(Reduction from exponentially space-bounded, alternating TMs)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 20

SLIDE 80

Automata Constructions

We use two-way alternating parity automata over trees
Input: sentences ϕ1, ϕ2 such that

ϕ1 | =Σ ϕ2 iff L(A1) ∩ L(A2) ∩ L(A3) = ∅

A1: accepts all models of ϕ1 of the right shape
A2: accepts all proper markings X ⊆ A
A3: accepts (A, X) ∈ L(A1) ∩ L(A2) iff there is a B satisfying

conditions 1. and 2. of the characterization

Theorem. Deciding Σ-entailment in GF2 is in 2ExpTime

(Exponential in |ϕ1| and double exponential in |ϕ2|)

Theorem. Deciding conservative extensions is 2ExpTime-hard

(Reduction from exponentially space-bounded, alternating TMs)

Corollary. Deciding conservative extensions is 2ExpTime-complete

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 20

SLIDE 81

Uniform Interpolation

A logic has Craig interpolation if for all sentences ψ1, ψ2 with

ψ1 | = ψ2 there exists an sentence ψ such that ψ1 | = ψ | = ψ2 and sig(ψ) ⊆ sig(ψ1) ∩ sig(ψ2)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 21

SLIDE 82

Uniform Interpolation

A logic has Craig interpolation if for all sentences ψ1, ψ2 with

ψ1 | = ψ2 there exists an sentence ψ such that ψ1 | = ψ | = ψ2 and sig(ψ) ⊆ sig(ψ1) ∩ sig(ψ2)

A logic has uniform interpolation if the interpolant does not

depend on ψ2, but only on ψ1 and sig(ψ1) ∩ sig(ψ2)

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 21

SLIDE 83

Uniform Interpolation

A logic has Craig interpolation if for all sentences ψ1, ψ2 with

ψ1 | = ψ2 there exists an sentence ψ such that ψ1 | = ψ | = ψ2 and sig(ψ) ⊆ sig(ψ1) ∩ sig(ψ2)

A logic has uniform interpolation if the interpolant does not

depend on ψ2, but only on ψ1 and sig(ψ1) ∩ sig(ψ2)

Observation. Let L be a logic that has Craig interpolation. Then ψ

with ϕ1 | = ψ is a uniform Σ-interpolant of ϕ1 iff ψ | =Σ ϕ1

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 21

SLIDE 84

Uniform Interpolation

A logic has Craig interpolation if for all sentences ψ1, ψ2 with

ψ1 | = ψ2 there exists an sentence ψ such that ψ1 | = ψ | = ψ2 and sig(ψ) ⊆ sig(ψ1) ∩ sig(ψ2)

A logic has uniform interpolation if the interpolant does not

depend on ψ2, but only on ψ1 and sig(ψ1) ∩ sig(ψ2)

Observation. Let L be a logic that has Craig interpolation. Then ψ

with ϕ1 | = ψ is a uniform Σ-interpolant of ϕ1 iff ψ | =Σ ϕ1 GF2 has Craig interpolation, thus

Corollary. The uniform interpolation recognition problem is

2ExpTime-complete in GF2

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 21

SLIDE 85

Uniform Interpolation

A logic has Craig interpolation if for all sentences ψ1, ψ2 with

ψ1 | = ψ2 there exists an sentence ψ such that ψ1 | = ψ | = ψ2 and sig(ψ) ⊆ sig(ψ1) ∩ sig(ψ2)

A logic has uniform interpolation if the interpolant does not

depend on ψ2, but only on ψ1 and sig(ψ1) ∩ sig(ψ2)

Observation. Let L be a logic that has Craig interpolation. Then ψ

with ϕ1 | = ψ is a uniform Σ-interpolant of ϕ1 iff ψ | =Σ ϕ1 GF2 has Craig interpolation, thus

Corollary. The uniform interpolation recognition problem is

2ExpTime-complete in GF2 Another consequence regarding uniform interpolation:

Corollary. There is no decidable extension of FO2 and of GF3 that

has effective uniform interpolation

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 21

SLIDE 86

Conclusions

Our results: Conservative extensions and Σ-entailment are

undecidable in GF3 and extensions
undecidable in FO2 and extensions
decidable and 2ExpTime-complete in GF2 = GF ∩ FO2

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 22

SLIDE 87

Conclusions

Our results: Conservative extensions and Σ-entailment are

undecidable in GF3 and extensions
undecidable in FO2 and extensions
decidable and 2ExpTime-complete in GF2 = GF ∩ FO2

plus: implications for uniform interpolation

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 22

SLIDE 88

Conclusions

Our results: Conservative extensions and Σ-entailment are

undecidable in GF3 and extensions
undecidable in FO2 and extensions
decidable and 2ExpTime-complete in GF2 = GF ∩ FO2

plus: implications for uniform interpolation But then: Why are conservative extensions in modal and description logics decidable and how far does the decidability extend?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 22

SLIDE 89

Conclusions

1 Why are conservative extensions in modal and description

logics decidable?

CEs in GF and FO2 behave very different from satisfiability!
Tree model property seems necessary for decidability of CEs

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 23

SLIDE 90

Conclusions

1 Why are conservative extensions in modal and description

logics decidable?

CEs in GF and FO2 behave very different from satisfiability!
Tree model property seems necessary for decidability of CEs

2 How far does the decidability extend?

GF2 extended with guarded counting quantifiers?
GF2 extended with least/greatest fixed points?
GF2 extended with transitive/equivalence relations?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 23

SLIDE 91

Conclusions

1 Why are conservative extensions in modal and description

logics decidable?

CEs in GF and FO2 behave very different from satisfiability!
Tree model property seems necessary for decidability of CEs

2 How far does the decidability extend?

GF2 extended with guarded counting quantifiers?
GF2 extended with least/greatest fixed points?
GF2 extended with transitive/equivalence relations?
Are CEs decidable in FO2 when the consequences ψ are

formulated in modal logic or something weaker?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 23

SLIDE 92

Conclusions

1 Why are conservative extensions in modal and description

logics decidable?

CEs in GF and FO2 behave very different from satisfiability!
Tree model property seems necessary for decidability of CEs

2 How far does the decidability extend?

GF2 extended with guarded counting quantifiers?
GF2 extended with least/greatest fixed points?
GF2 extended with transitive/equivalence relations?
Are CEs decidable in FO2 when the consequences ψ are

formulated in modal logic or something weaker?

Are CEs decidable in GF when the second formula ϕ2 can only

use fresh relations that are at most binary?

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 23

SLIDE 93

Conclusions

1 Why are conservative extensions in modal and description

logics decidable?

CEs in GF and FO2 behave very different from satisfiability!
Tree model property seems necessary for decidability of CEs

2 How far does the decidability extend?

GF2 extended with guarded counting quantifiers?
GF2 extended with least/greatest fixed points?
GF2 extended with transitive/equivalence relations?
Are CEs decidable in FO2 when the consequences ψ are

formulated in modal logic or something weaker?

Are CEs decidable in GF when the second formula ϕ2 can only

use fresh relations that are at most binary?

Thanks!

Mauricio Martel Conservative Extensions in Guarded and Two-Variable Fragments 23
