Complex Plasma Summer School Goree Dusty Plasmas What is dust? Small particles of solid matter a Size 10 nm to 100 microns Material: dielectric or conductor Where you get dust: Grow it. Buy it. Any shape.

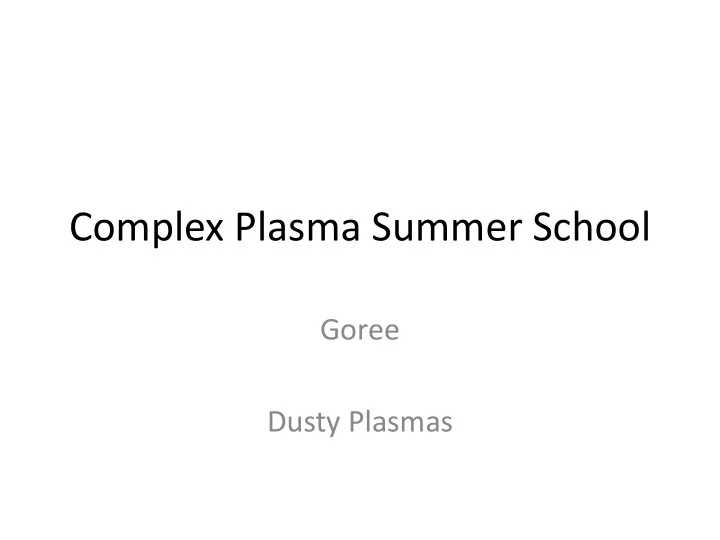

  1. Complex Plasma Summer School Goree Dusty Plasmas

  2. What is dust? • Small particles of solid matter a • Size 10 nm to 100 microns • Material: dielectric or conductor Where you get dust: • – Grow it. – Buy it. • Any shape. – Theorists often assume spheres. – Experimenters can buy spheres image: microParticles GmbH

  3. Dusty plasma Dusty plasma = dust + electrons + ions + gas dust = micron-size particles of solid matter: • absorb electrons & ions, emit photoelectrons • become charged

  4. Dust particle charging • Particles immersed in plasma acquire a charge. • Charge is negative due to higher thermal velocity of electrons a - 10 3 e is a typical charge for sphere a = 1 µ m

  5. DUSTY PLASMAS Natural Man-made • Solar nebula • Combustion • planetary rings • Microelectronic processing • interstellar medium • rocket exhaust • comet tails • fusion devices • noctilucent clouds • lightning

  6. A flame is a very weakly ionized plasma that contains soot particles. An early temperature measurement in a dusty plasma.

  7. Semiconductor Manufacturing Si dust

  8. Semiconductor Processing System dust silane (SiH 4 ) + Ar + O 2 → SiO 2 particles

  9. Rocket Exhaust is a Dusty Plasma Columbia Oct. 20, 1995 • 0.01-10 µ m Al 2 O 3 particles • Charged dust may be trapped in earth’s B field • Particles may reach high altitudes and contribute to seed population for NLC (noctilucent clouds) • Occurrence of NLC has increased over past 30 years!

  10. ASTRONOMY Interstellar medium is partially ionized gas + dust Rosette Nebula

  11. Image: Richard Wainscoat HST Image: NASA Star-forming region: Comet: Gas (ionized by UV) Ion tail (ionized by UV) & dust & dust tail

  12. Noctilucent Clouds • Occur in the summer polar mesosphere (~ 82 km) • 50 nm ice crystals • Associated with unusual radar echoes and reductions in the local ionospheric density

  13. Apollo astronauts see “moon clouds” • dust acquires a positive charge due to solar UV • some grains are lifted the moon’s surface electrostatically levitated dust

  14. Dust Streams from Jupiter Io volcano

  15. Dusty Plasma DUST

  16. Dust Grain Charging • electrons move about 100 times faster than the positive ions • initially, electrons hit the grain first, giving it a negative charge • eventually some + ions are attracted to the grain and some electrons are turned away • in equilibrium, the dust ends up with a negative charge

  17. Book chapter discussion

  18. The Charge on a Dust Grain • Grain is floating → • Currents depend on V S , surface potential • Floating condition determines V S • Charge Q = Ze = 4 πε o a V S , a = grain radius

  19. The Charge on a Dust Grain In typical lab plasmas there is no electron emission Electron thermal speed >> ion thermal speed so the grains charge to a negative potential V S relative to the plasma, until the condition I e = I i is achieved.   a kT eV   = π 2 e S I en exp a   e e   m kT e e Q = (4 πε o a) V S  −  kT eV   = π 2 i S I en 1 a   i i   m kT i i

  20. Typical Lab Plasma For T e = T i = T in a hydrogen plasma V S = − 2.5 (kT/e) If T ≈ 1 eV and a = 1 µ m, Q ≈ − 2000 e Charge/Mass ratio is small because m ≈ 5 × 10 12 m proton

  21. Forces acting on dust particles ∝ volume Gravity ∝ area Drag Forces, Radiation pressure ∝ radius Electric, Lorentz

  22. Forces & levitation side port window in vacuum chamber dust particle suspension QE lower electrode mg side port window in vacuum chamber

  23. Microgravity conditions Equipotential electrode electrode Contours Without gravity: Many particles would positive fill a 3D volume potential electrode electrode

  24. Need for Microgravity: Sedimentation Equipotential electrode electrode Contours (parallel- plate plasma) positive potential QE With gravity: particles sediment to mg high-field region ⇒ 2-D layer electrode electrode

  25. Microgravity Cross-sectional view, parabolic-flight experiment Arp, Goree & Piel, Phys. Rev. E 2012

  26. electrostatic trapping of particles forces QE particles sediment to mg 2D layer

  27. despite gravity… 3D dust clouds Glass box – enhances horizontal E field QE particles fill a mg 3D volume

  28. 3D dust cloud

  29. forces a Forces acting on a particle ← provides levitation ∝ a Coulomb QE Q v × B ← usually tiny in the lab ∝ a Lorentz ← big for high-density plasmas ∝ a 2 Ion drag ← if a laser beam hits particle ∝ a 2 Radiation pressure ← requires gas ∝ a 2 Gas drag ← requires gas ∝ a 2 Thermophoretic force ← tiny unless a > 0.1 µ m ∝ a 3 Gravity

  30. Gas drag (molecular flow regime 4 π = δ 2 f N m c r V 1 ≤ δ ≤ 1.444 gas p 3 Depending on how gas atoms interact with the particle surface δ Millikan coefficient N number density of gas m mass of gas molecule c mean velocity of molecule r microsphere radius Epstein, Phys. Rev. 1924 p V the speed of microsphere Define drag coefficient: f ≡ gas R V

  31. Acceleration of particle by radiation pressure Ashkin, PRL 1970 reflection transmission } contribute to the force

  32. Laser radiation pressure force 1 π n = 2 F q r p I laser c n 1 index of refraction of medium c light speed in vacuum I laser incident laser intensity π 2 r cross-section area of sphere p

  33. Without laser manipulation

  34. Laser manipulation To melt the crystalline lattice & maintain a liquid, we use laser heating video camera video camera video camera (top view) (top view) (top view) Two laser beams: y y y scanning scanning scanning scanning scanning scanning dust particles x x x • Give particles microspheres microspheres mirrors mirrors mirrors mirrors mirrors mirrors random kicks in ± x direction • Move about, drawing Lissajous lower electrode lower electrode lower electrode figures on the suspension RF RF RF 532 nm 532 nm 532 nm 532 nm 532 nm 532 nm Ar laser Ar laser Ar laser Ar laser Ar laser Ar laser laser laser laser laser laser laser beam 2 beam 2 beam 2 beam 1 beam 1 beam 1 beam 2 beam 2 beam 2 beam 1 beam 1 beam 1 Nosenko et al., Phys. Plasmas (2006).

  35. With laser manipulation

  36. Book chapter discussion

  37. Experimental methods

  38. RF glow discharge plasma

  39. RF glow discharge plasma Radio-frequency (RF) high voltage applied to lower electrode. 13.6 MHz 100 V pp

  40. RF glow discharge plasma Radio-frequency (RF) high voltage applied to lower electrode. 13.6 MHz 100 V pp Low-pressure argon gas in a vacuum chamber. • Plasma sustained by electron-impact ionization. • • Electrons are accelerated by the RF electric fields.

  41. Experimental setup E dc lower electrode Sheath above lower electrode has a vertical dc electric field

  42. 2D dusty plasma suspension side port window in vacuum chamber dust particle suspension QE lower electrode mg side port window in vacuum chamber Electric levitation: the suspension of dust particles does not contact any surface.

  43. Dusty plasma parameters Argon RF plasma: Polymer microspheres: 8.1 µ m gas 14 mTorr Argon diameter RF low power, 13.6 MHz suspension size > 5500 particles interparticle distance 0.67 mm

  44. Top-view image of suspension The circular boundary is due to the sheath’s curvature.

  45. Strongly coupled plasmas 2 4 πε Q / r interparti cle potential energy Γ = = 0 particle kinetic energy k T B Our experiment: • start with a solid Γ ≈ 1700 • then heat it, to maintain a liquid, Γ ≈ 68

  46. Experiment

  47. Dusty plasma Dusty plasma = dust + electrons + ions + gas dust = micron-size particles of solid matter: • absorb electrons & ions, emit photoelectrons • become charged Polymer microspheres: in an electron microscope in plasma (image: microParticles GmbH)

  48. Dust acoustic wave

  49. onset of self-excited DDW (412-405 mTorr) ramp down the gas pressure (~ 1 mTorr / sec)

  50. saturated self-excited DDW (382 mTorr)
