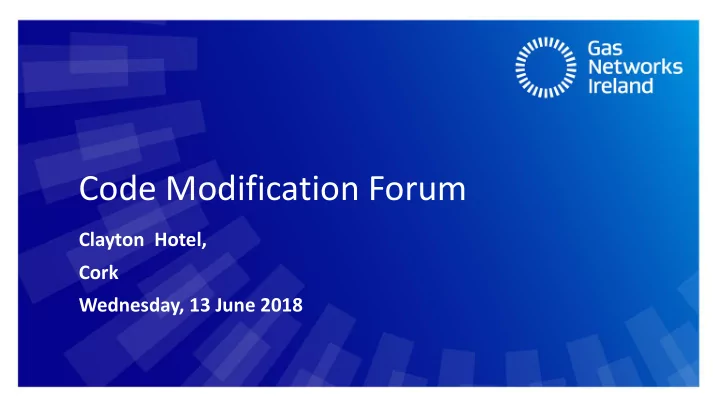

Code Modification Forum Clayton Hotel, Cork Wednesday, 13 June 2018

Agenda (1 of 2) 1. Review of minutes from last meeting 2. Review of Action Items from last meeting 3. GNI Scheduled Maintenance Update 4. Biogas/CNG Update 5. Intra-day Nomination Patterns and Profiles / Cod Mod Proposal A086-Incentives for Intra-day Balancing 6. Code Modification Proposal A087- Implementing a new framework for Suppliers to contract their payment channels for PPM customers 7. Code Modification Proposal A090- Proposed new Invoice Dispute Procedure 2

Agenda (2 of 3) 8. Code Modification Proposal A092- Adjustment of Daily Shipper Imbalance Charges 9. Code Modification Proposal A094 – Changes to Shipper Portfolio Tolerances 10. Update on GNI participation on EBI Trading Platform 11. Modification Rules for IBP 15 Terms 12. Gas /Electricity Interaction interaction 13. Brexit and ROI Gas Market 14. Transparency Data Update 15. AOB Next Code Modification Forum Meeting 3

1. Review of minutes from last meeting 4

2. Review of Action Items from last meeting 5

Code Modification Forum – Open Actions (Slide 1 of 2) ID Action Responsibility Status Priority Transporter Open High C538 Transporter to continue consultation process surrounding intra-day nomination patterns and profiles C559 Transporter to circulate to the CMF Mailing List a work document in relation to Website Transporter Open High Propose to High C560 Transporter to draft and circulate and circulate to Industry worked examples on capacity Transporter close charging Propose to C561 Transporter to issue a Code Modification Proposal to obtain approval of amendments to Transporter High close Cade of Operations enabling GNI trade on a Gas Trading Platform. Subsequently, the Transporter will arrange a telco with Industry and CRU, 7 days after issuing Code Modification Proposal 6

Code Modification Forum 3. GNI Scheduled Maintenance Update 7

Network Maintenance Update 1. Upstream Operator Maintenance GNI have been advised of the following scheduled Maintenance Upstream of Entry Points: Entry/Exit Impact on flows at Planned Timings (Subject Duration Location Nature of Works Points entry/exit points to change) (days) Affected affected NOTHING TO REPORT 8

2017/ 2018 GNI Proposed Maintenance Days Maintenance Programme Gas Year 2017/2018 Entry Date Duration Commentary Points 1 day Corrib Not required 7th Feb 2018 1 day Inch Not required 1 day Corrib SCADA signal validation testing . Now postponed due to deferment of SEPIL transition date 31 May-1June 9 May 1 day Inch Odorant tank refill at Inch. Fuel gas skid connection at Cappagh South. May not affect flow. Now postponed, was scheduled to tie-in with 1 day Corrib maintenance which is now deferred 4th Jul 2018 1 day Inch Not scoped yet 1 day Corrib Not scoped yet 12th Sep 2018 1 day Inch Not scoped yet Note: Dates and maintenance programme may be subject to change 9

2018/ 2019 Maintenance Days Maintenance Programme Gas Year 2018/2019 Date Duration Entry Points Commentary 8th November 2018 1 Inch Deferred in line inspection. Risk to flow during intelligent pigging run 7th March 2019 1 Bellanaboy Station testing, valve check and validations at Cappagh South. 9th May 2019 1 Inch Odourant injection system planned maintenance 4th Jul 2019 1 Moffat Station testing, valve checks and validations at Beattock and Brighouse Bay compressor station 12th Sep 2019 1 Bellanaboy ESD testing at the Corrib Terminal 10

IT Maintenance Update Nature of Works Planned Timings (Subject to change) Duration (days) Systems Affected Nothing to report Please note the above works/timings/duration are subject to change 11

Code Modification Forum 4. Biogas/CNG Update 12

The Causeway Project Reducing emissions and increasing renewables.

14

Learn more at www.causewaystudy.eu 15

Cush RNG Injection Project Code Modification Forum Update 13 June 2018

Agenda  Biomethane Potential in Ireland  The Cush RNG Injection Project  Production site  Injection site  Legal, Safety, Regulatory & Market Development  Next Steps 17

Biomethane Potential in Ireland

Policy Background • Ireland’s renewable energy sources (RES) target is 16% RES by 2020. • Ireland’s Greenhouse Gas (GHG) emissions target is 20% less CO 2 by 2020 relative to 2005. • Road and rail transport contributes ~ 29% of non-ETS GHG emissions. Fig.1 EPA non-ETS GHG emissions forecast for 2020 • Agriculture contributes ~ 46% non-ETS GHG emissions. • Ireland is set to miss both RES and GHG 2020 targets. 19

Renewable Gas Potential in Ireland • “The Member States with the largest potential growth of biogas production between 2014 and 2030 are Ireland and Romania”, (European Commission Report 1 ). 1 Kampman et al. 2016. “Optimal use of biogas from waste streams; An assessment of the potential of biogas from digestion in the EU bey ond 2020”. Available at: https://ec.europa.eu/energy/sites/ener/files/documents/ce_delft_3g84_biogas_beyond_2020_final_report.pdf 20

Biogas Potential in Ireland • Assessment of Costs and Benefits of Biogas and Biomethane;  28% of 2015 natural gas demand can be supplied from biogas.  Additional grass is the largest bio-resource in Ireland (35 PJ).  Levelised Cost Of Energy (LCOE) biomethane range ( € 24 - € 124/MWh) depending on feedstock, scale and discount rate. 21 SEAI, 2017. “Assessment of Costs and Benefits of Biogas and Biomethane”. Available at: https://www.seai.ie/resources/publications/Assessment-of-Cost-and-Benefits-of-Biogas-and-Biomethane-in-Ireland.pdf

Gas Networks Ireland’s Vision for Renewable Gas  Reduce carbon footprint of network through development of Renewable Gas.  20% renewable gas on network by 2030.  20% renewable gas will deliver;  2 million tonnes less CO 2 p.a.  7.4% of Ireland’s Final Energy Consumption.  € 200 million euro p.a. avoided energy imports. GNI, 2017. Network Development Plan 2017. Available at https://www.gasnetworks.ie/corporate/gas-regulation/system-operator/publications/GNI-Network- 22 Development-Plan-2017.pdf

Cush RNG Injection Project

Gas to Grid Project Process Overview Biogas Quality Biogas Biogas Pre- Monitoring Production treatment Location: Existing Pressure Meets Biogas Quality AD facility at Requirements? Reduction Station Gorteen Lower, No Nurney, Co. Biomethane Kildare Yes Flare Biogas Upgrading Process No Biomethane Yes Natural Gas Meets Natural Gas Network Entry Distribution Quality Specification? Yes Facility Network Meets Biogas Quality Requirements? Biomethane Compressor & No Location: Cush Biomethane Network 24 Dispenser Entry Facility

Production Site

Biomethane Production • AD Site; Green Generation, Nurney, Co. Kildare ‒ EPA licence to take in 25,000 t/annum of biodegradable waste plus 25,000 t/annum of pig slurry from farm • Biogas Pre-treatment Process ‒ O 2 dosing control system ‒ Additional activated carbon to control VOCs • Biogas Upgrading Process ‒ Oxygen < 1% ‒ Moisture – 60 0 C at 4 bar ‒ Methane concentration > 98% • Compressor Station & Disperser • Transportation Trailers - ADR compliant 26

Injection Site

Cush Injection Site • The Network Entry Facility will contain;  Propane Injection System  Non-Fiscal & Fiscal Flow Meters  Pressure & Temperature Sensors  Gas Analysers (C6 GC + sensors)  Diverter Valves  Pressure Regulators 28  Odorant Injection System

Biomethane Network Entry Facility GNI will own the following assets;  Remote Operated Valve.  Remote Telemetry Unit.  Connecting pipe to the network Delivery Facility Operator will own and operate other assets within the Biomethane Network Entry Facility Image curtesy of Thyson Technology UK 29

Legal, Safety, Regulatory and Market Development

Key GNI Deliverables  Contracts  Safety  Connected Systems Agreement  Measurement Risk Assessment  Connection Agreement  Safety Integrity Level Assessment  Property Arrangements  Layer of Protection Analysis  Code of Operations Modifications  Impact Evaluation & Risk Assessment  General  Material Change Notice  Oxygen Content  Technical Specification Document  Tariffs  Local Operating Procedures  Interim  Communications Plan  Enduring  Deployment & Commissioning Plan  Staff Training  Systemisation 31
