COBRA TECHNOLOGIES B.V. POROUS CERAMICS Cobra Technologies BV, - PowerPoint PPT Presentation

COBRA TECHNOLOGIES B.V. POROUS CERAMICS Cobra Technologies BV, Rijssen, The Netherlands info@cobratechnologies.nl www.cobraceramicdiscs.com INTRODUCTION The Company Cobra Technologies BV 100% subsidiary of Pervatech BV 1999 Established

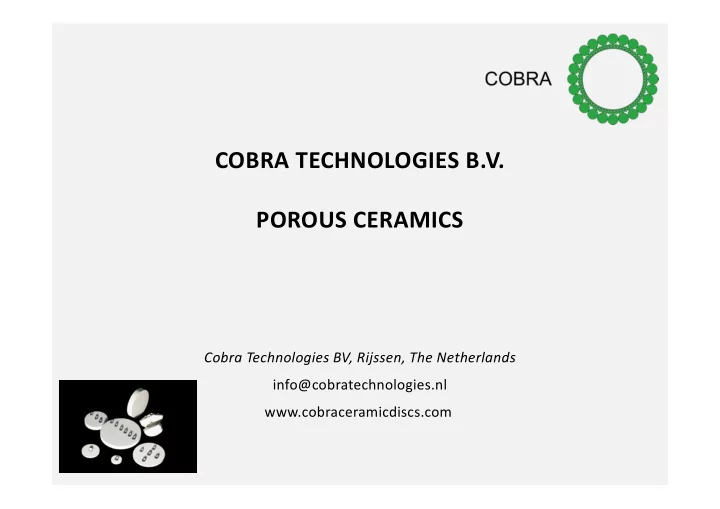

  1. COBRA TECHNOLOGIES B.V. POROUS CERAMICS Cobra Technologies BV, Rijssen, The Netherlands info@cobratechnologies.nl www.cobraceramicdiscs.com

  2. INTRODUCTION The Company Cobra Technologies BV • 100% subsidiary of Pervatech BV 1999 Established in Enter the Netherlands • 2014 Scale-up and re-location to Rijssen (NL) • Long term SCAL collaboration with Laszlo Lombos and Lombos • (ERGO) Associates Ltd. 1999 2014 Products • High quality porous ceramics for: • SCAL Special Core Analysis • Membranes (development & support) • Sensors and analytical equipment • Other

  3. PRODUCTS AND SERVICES Product Process Products Business innovation innovation High-low entry pressures Higher efficiency • Lower SCAL costs • • • Ceramic discs Consistent • Sandwich construction • Fast draining, less • • Hydrophobisation membrane waiting time for data developement • Layered construction generation • Coatings • Special top-layer • Reliable data • New markets for • Dip Coaters innovative products • Customized products Services Our technologies enable customers to • Consultancy innovate their products and processes • Testing • Development

  4. (SPECIAL) CORE ANALYSIS, BASIC PRINCIPLES • Oil and gas industry needs to characterize the quality of fields with regards to exploration yield and Capillary pressure indication. • Special Core Analysis (SCAL) technique : • Two-phase flow • Relative permeability • Capillary pressure Very suitable to test with the high quality, narrow pore size distribution discs from Cobra Technologies BV, which are specifically designed for SCAL procedures either in water-wet or in oil-wet condition.

  5. WHY USE COBRA CERAMICS FOR (SPECIAL) CORE ANALYSIS Products with narrow pore size distribution, enabling application of • conventional and unconventional analytical procedures such as very tight gas sand formations with sharp diagnostic procedure • Due to high quality >99,9% alpha alumina intrinsically highly hydrophilic • Possibility for rendering to oil-wet throughout the whole internal pore structure of the disc, without fractionation in wettability and risk on surface damage threatening the test results Suitable for I-Sw Continuous Injection Technique • • Good reproducibility Use of high quality pure materials, creating high chemical and temperature • resistance Easier compliance by defined repeatable pore size and effective • interconnected pore size structure for highest permeability up to the entry pressure • Cobra offers development capabilities and flexibility • Lower costs at the end by reproducibility and quick/ easy selection of discs

  6. COBRA SCAL PRODUCTS Entry pressure (N2/water) psi (theoretical) Standard products 50nm 835 80nm 507 150nm 275 Sandwich construction (high entry pressure) 1000-4000 (prototype) Layered construction (low entry pressure) 10-150 (development) Development and manufacturing upon request for specific purposes, within the technical limitations for superior high quality.

  7. COBRA CERAMICS FOR OTHER APPLICATIONS • Membrane technology • Uniform pore size distributions in both support and membrane layers, Highly suitable for membrane (development) • • Wide range of coating layers available with regards to material and pore sizes • Polishing possibilities • Sensors & analytical equipment • Good reproducibility • Use of high quality pure materials, creating high chemical and temperature resistance • Used as e.g. pre-filter or humidity controller

  8. PRODUCT INFORMATION • Material & specifications • Characteristics • Pore size distribution • Oil-wet (hydrophobic) discs • Sandwich construction

  9. MATERIAL & SPECIFICATIONS • High purity Aluminium oxide (alumina, Al 2 O 3 ) • Different sizes (diameter, thickness) • Different pore sizes/ entry pressures • Different characteristics (water-wet & oil-wet)

  10. DISC CHARACTERISTICS (1) Diameter 13 – 101,6 mm (<4”) Thickness 2 – 7,5 mm Polishing (option) Ra < 0,1 µm Standard deviations on all sizes: +/- 0,1 mm Pore sizes, narrow pore size distribution 50, 80 and 150 nm Material α-Al 2 O 3 (>99,9%) Modifications (standard hydrophilic/ water-wet) Hydrophobic/ oil-wet Other specifications on request.

  11. DISC CHARACTERISTICS (2) MEMBRANE LAYERS Layer Pore size meso-TiO 2 3,5 – 15 nm micro-TiO 2 ≈1,0 nm meso-ZrO 2 6 nm meso-ZrO 2 3 nm γ-Al 2 O 3 3,5 – 5 nm (hybrid) Silica <0,5 nm

  12. PORE SIZE DISTRIBUTION

  13. HYDROPHOBICITY ON SURFACE AND INSIDE THE STRUCTURE

  14. ROCK HYDROPHOBIZATION

  15. SANDWICH CONSTRUCTION Possibility to manufacture discs with >1000psi entry pressure

  16. PLEASE CONTACT US FOR YOUR SPECIFIC REQUIREMENTS / NEEDS COBRA TECHNOLOGIES BV Cobraceramicdiscs.com info@cobratechnologies.nl
