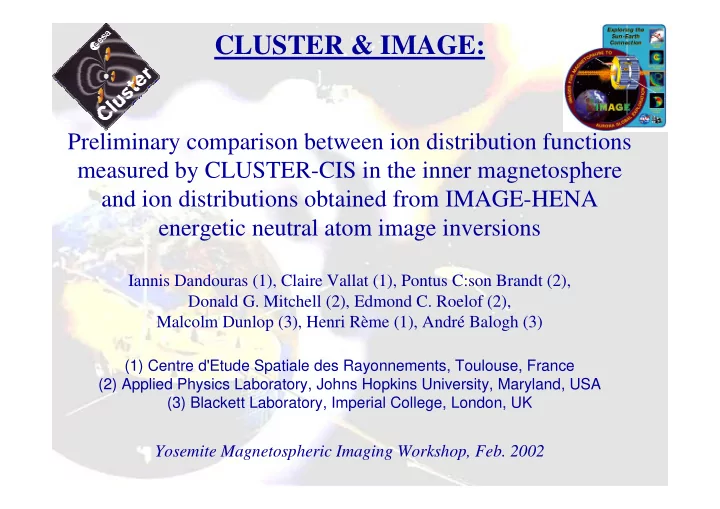

CLUSTER & IMAGE:

Preliminary comparison between ion distribution functions measured by CLUSTER-CIS in the inner magnetosphere and ion distributions obtained from IMAGE-HENA energetic neutral atom image inversions

Iannis Dandouras (1), Claire Vallat (1), Pontus C:son Brandt (2), Donald G. Mitchell (2), Edmond C. Roelof (2), Malcolm Dunlop (3), Henri Rème (1), André Balogh (3)

(1) Centre d'Etude Spatiale des Rayonnements, Toulouse, France (2) Applied Physics Laboratory, Johns Hopkins University, Maryland, USA (3) Blackett Laboratory, Imperial College, London, UK

Yosemite Magnetospheric Imaging Workshop, Feb. 2002

slide-2
SLIDE 2

Orbit

Magnetopause Bow shock Plasmasphere Solar wind

Regions visited by Cluster

  • High eccentricity, high inclination orbit : several plasma domains analyzed.
  • Tetrahedric configuration : temporal and spatial decorrelation.
  • Adaptive geometry of the tetrahedron: according to the plasma cell scales.
slide-3
SLIDE 3

IMAGE CLUSTER

FOV

slide-4
SLIDE 4

CIS : The Instrument

slide-5
SLIDE 5

Solar wind Magnetosheath

CIS Dynamic Range

Lobe

slide-6
SLIDE 6

CODIF: Ion Composition and Distribution Function Analyser

TOF system

2

2               × = TOF L q E q m

L

q E

Main entrance RPA entrance :

≈ 0 eV ≤ ERPA ≤ 25 eV

slide-7
SLIDE 7

Main features and measured parameters of the CIS experiment

slide-8
SLIDE 8

CIS – HENA: EVENTS

slide-9
SLIDE 9

Dst = -28 nT Dst = 6 nT

slide-10
SLIDE 10

Dst = -28 nT

slide-11
SLIDE 11

HENA: ring current with some enhancement around dusk CIS: near the inner edge of the ring current

slide-12
SLIDE 12

For α ≈ 90° ions (27 keV < E < 39 keV) :

From HENA inversions: fi ≈ 6×105 cm-2s-1sr-1keV-1 Measured in situ by CIS: fi ≈ 8.5×104 cm-2s-1sr-1keV-1

slide-13
SLIDE 13
slide-14
SLIDE 14

HENA: recovery ring current CIS: near the outer edge of the ring current; substantial O+ content

slide-15
SLIDE 15

For α ≈ 90° ions (27 keV < E < 39 keV) :

From HENA inversions: fi ≈ 1×105 cm-2s-1sr-1keV-1 Measured in situ by CIS: fi ≈ 3.5×104 cm-2s-1sr-1keV-1

slide-16
SLIDE 16
slide-17
SLIDE 17

HENA: narrow substorm injection on the nightside; low counting statistics elsewhere CIS: low, equatorially gyrating ion fluxes ⇓ Ions not generating ENAs in the HENA FOV

slide-18
SLIDE 18

For α ≈ 90° ions (27 keV < E < 39 keV) :

From HENA inversions: fi ≈ 2×104 cm-2s-1sr-1keV-1 Measured in situ by CIS: fi ≈ 4.3×104 cm-2s-1sr-1keV-1 CAUTION: low counting statistics

slide-19
SLIDE 19

CIS – HENA Ion Flux Comparison

1.0E+02 1.0E+03 1.0E+04 1.0E+05 1.0E+06 4/12/01 5/12/01 6/12/01 7/12/01 Event date Ion Flux (27 - 39 keV) CIS 90° ion flux HENA inv. 90° ion flux

Note : Preliminary calibration values for CIS and for HENA (each by a factor of 2 – 3)

slide-20
SLIDE 20

CONCLUSIONS

  • First comparisons between ion fluxes obtained by HENA energetic neutral atom

image inversions and ion fluxes measured in situ by CIS.

  • Preliminary results show the obtained and measured ion fluxes being very consistent.
  • Complementarity of the two approaches:
  • ENA images allow to put local measurements into a global context.
  • Local measurements provide the full distribution function and give the “ground

truth” for a given pixel of an ENA image.

  • Ion distribution functions show a variety of structures (equatorially gyrating ions,

fine-structured energy bands, etc.) .

  • Coming soon :
  • Analysis of ENA image time series: latitude profile and ion dynamics.
  • ENA image inversions to obtain full pitch-angle distributions.
  • Comparison with the ring current density obtained with the curlometer

technique (FGM ).

  • Analysis of higher energy ion measurements (RAPID).
