Christmas Ornament Display Structure Team 7: Dolores Gallardo Ryan - PowerPoint PPT Presentation

Christmas Ornament Display Structure Team 7: Dolores Gallardo Ryan Palmer Miles Roux Northern Arizona University Department of Mechanical Engineering 1 Topics Introduction Needs Identification Goal Objectives

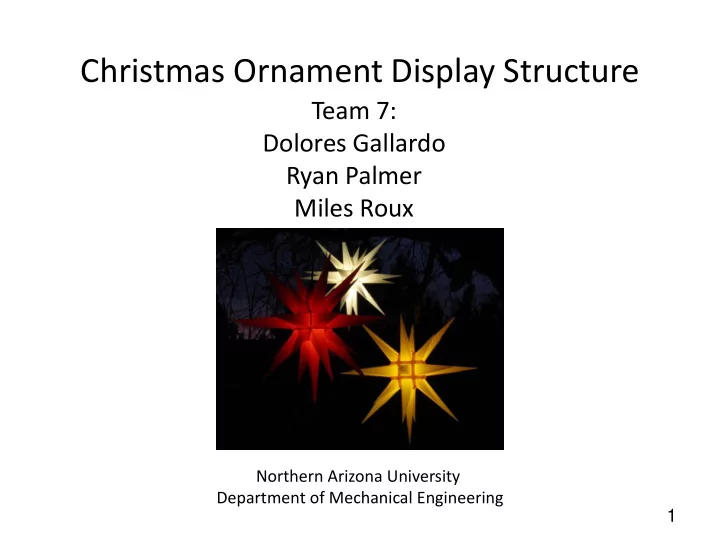

  1. Christmas Ornament Display Structure Team 7: Dolores Gallardo Ryan Palmer Miles Roux Northern Arizona University Department of Mechanical Engineering 1

  2. Topics • Introduction • Needs Identification • Goal • Objectives • Constraints • Testing Environment • Criteria Tree • Quality Function Deployment • House of Quality • Projected Project Timeline 2

  3. Introduction • My Star of Bethlehem LLC • Based in Sedona, Arizona • Specializes in Christmas Ornaments • Marketing to Northern Arizona • Consumer and Commercial • Portable Display Stand 3

  4. Needs Identification Need Statement: Our client does not have a way to easily display their products when marketing locally. 4

  5. Goal Design a better way to display the Christmas ornaments at public venues. 5

  6. Objectives • Durable • Will Not Damage Christmas Ornament • Recyclable • Reliability • Adjustable Height 6

  7. Constraints • Ornament elevated 6 to 8 ft minimum • Can fit in compact car • Stand must not exceed 50 lb • Total cost under $500 • Ornament must be hung or mounted • Assembly time cannot exceed 30 min • Supports 3 different size ornaments • Freestanding 7

  8. Testing Environment • Northern Arizona sales locations Flagstaff Sedona Some objectives require more time then is available for the project. Durability Reliability 8

  9. Criteria Tree 9

  10. Quality Function Deployment Engineering Requirements Modulus of elasticity Material thickness Center of gravity Yeild Strength Deflection Weight Height Cost Customer Requirements Freestanding X X X X X Collapsible X X X X X Lightweight X X X X Easy to assemble and disassemble X X Ornament elevated at least 6 to 8 feet off the ground X X X X X X X X Portable X X X Resistant to weather X X X X X Inexpensive X X X X X Units psi psi in ft lb in in ⁴ $ 10

  11. House of Quality + Engineering Requirements 11

  12. Projected Project Timeline 9/30 10/7 10/14 10/21 10/28 11/4 11/11 11/18 11/25 12/2 Meeting Report 1 Due Meeting Presentation 1 Due Preparation (Report 2/Presentation 2) Meeting Presentation 2 Due Meeting Report 2 Due Preparation (Report 3/Presentation 3) Meeting Presentation 3 Due Meeting Report 3 Due Preparation (Report 4/Presentation 4) Meeting Thankgiving Break (OFF) Meeting Presentation 4 Due Meeting Report 4 Due Communicate with Client 12

  13. References Otte, Dieter. (2012). My Star of Bethlehem ; The Star That Keeps on Giving. Retrieved from http://mystarofbethlehem.com/ 13
