Canadian Experience with Aerial Patrols Utilizing Gimbal Systems to - PowerPoint PPT Presentation

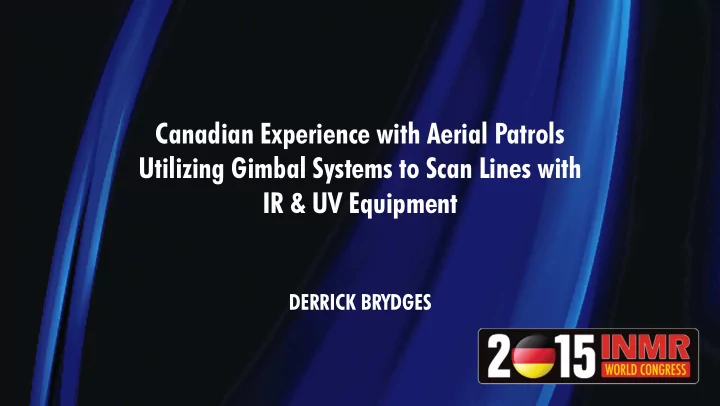

Canadian Experience with Aerial Patrols Utilizing Gimbal Systems to Scan Lines with IR & UV Equipment DERRICK BRYDGES Derrick Brydges Linewise Aerial Solutions INC. derrick.brydges@linewiseaerial.com Equipment Gyro Stabilized Gimbal


  1. Canadian Experience with Aerial Patrols Utilizing Gimbal Systems to Scan Lines with IR & UV Equipment DERRICK BRYDGES

  2. Derrick Brydges Linewise Aerial Solutions INC. derrick.brydges@linewiseaerial.com

  3. Equipment • Gyro Stabilized Gimbal • HD Video • Digital camera • IR camera • UV camera • Remote GeoSystem

  4. Objective • To utilize each camera systems to provide a quantitive analysis regarding any detected anomalies. • Discuss how weather, mechanical parameters can effect the anomaly detections • Operator skill sets used to interpret readings

  5. Utilization of IR/UV and Enhanced Digital Imagery.

  6. Digital camera Enhancement

  7. Marker Ball installed on Fibre cable. Possible detached from inside clamp.

  8. • In the above samples the weather was clear and dry. • During humid damp conditions one would have to factor in increased activity with IR and UV due to this condition.

  9. Corona Ring @ NCI attachment.

  10. • In the above sample there is a 12 inch Corona Ring installed. • Proper Size, proper position ? • Request Engineering Drawings for this assembly.

  11. Digital Enhancement Missing Nut

  12. IR/UV Scan at same Location No IR Activity UV Activity

  13. Digital Enhancement to analyze UV activity

  14. IR/UV

  15. • In the above samples the system operator has to rely on his knowledge of the components, how the are effected by present conditions and what the cameras capture per their design. • In most cases a quantative decision can be made from all the data but if one is not absolutely sure a more detailed ground follow up is recommended.

  16. • I always like to use the term “ where there is smoke usually there will be fire “ • Some of the follow up tools would be a HiDi insulator tester or a lineman climb the structure to obtain a more accurate angle of view on the sheds.
