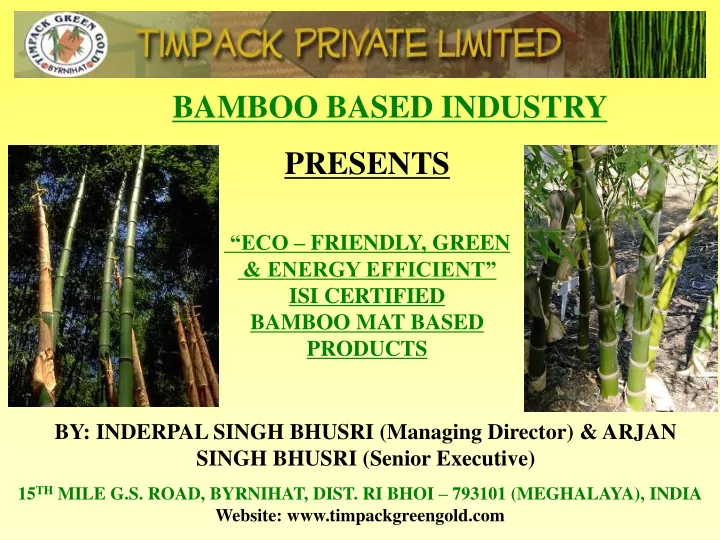

BAMBOO BASED INDUSTRY PRESENTS “ECO – FRIENDLY, GREEN & ENERGY EFFICIENT” ISI CERTIFIED BAMBOO MAT BASED PRODUCTS BY: INDERPAL SINGH BHUSRI (Managing Director) & ARJAN SINGH BHUSRI (Senior Executive) 15 TH MILE G.S. ROAD, BYRNIHAT, DIST. RI BHOI – 793101 (MEGHALAYA), INDIA Website: www.timpackgreengold.com

INTRODUCTION TIMPACK PRIVATE LIMITED :  Well established timber industry in North East India since 1976.  In 2001, it diversified into a Bamboo Based Industry with technology from IPIRTI, Bangalore & BMTPC, Govt. of India and support from Meghalaya Govt. & Planning Commission of India.  To benefit and for the upliftment of thousands of bamboo cutters and mat weavers & to give employment and economic strength to the local population of the North Eastern States of India.

COMPANY’S MOTTO “Promoting Green Revolution in India.” GIVE GREEN A CHANCE!!

MANUFACTURING FACILITIES Our Bamboo Based Factory is located at Byrnihat (Meghalaya) which is 15 km from Guwahati – Assam on the Main National Highway Guwahati – Shillong Road manufacturing Bamboo Mat Corrugated Sheets, Bamboo Mat Ridge Caps, Bamboo Mat Board etc. under one roof . Timpack has benefited from the following location advantages:  Availability of suitable land, water, power, manpower and other infrastructural facilities

 Availability of raw materials such as Raw Bamboo & Bamboo Mats  Proximity to the markets such as Northern Eastern States, Northern India, Eastern India etc  Favourable Central Govt. & State Govt. Industrial Policy including incentives, exemptions & subsidies

TIMPACK ’ S ISI CERTIFIED BAMBOO MAT BASED PRODUCTS BEING MANUFACTURED AT BYRNIHAT FACTORY UNDER THE BRAND NAME OF “ TIMPACK GREENGOLD ”

 BAMBOO MAT CORRUGATED SHEETS – IS:15476-2004 certified & BAMBOO MAT RIDGE CAPS – IS:15476- 2004 certified  BAMBOO MAT BOARD - IS: 13958-1994 certified

BAMBOO MAT CORRUGATED SHEETS & BAMBOO MAT RIDGE CAPS PRODUCT FEATURES:  Impeccable quality ISI: 15476 - 2004 certified product with CM/L No.: 5614666 and BMCS is the first of its kind in the World  Eco-Friendly (GOI report attached) & Highly Energy Efficient (energy audit report of MOEF, GOI attached), Sustainable and Green technologies.  Durable, Light but strong and possess high resilience and with a Service Life of 25 years (life cycle report of MOEF, GOI attached) and manufacturing for more than 15 years.  We obtained the global award from the World Bamboo Organization, USA for the pioneering efforts in successful commercialization of this product (copy attached).  The usage of these products further reduces the impact of climate change for future generations to come and also reduction in the carbon footprint, and additionally, making the Country’s environment eco -friendly and aesthetically beautiful.

FUNCTIONAL PRODUCT FEATURES:  100% Boiling Water Proof (BWP) & PF Bonded  Termite Resistance & Fire Retardant  Fungus Proof & Borer Free  Low Thermal Conductivity  High Load Bearing Capacity  No cracking problem due to impact of falling objects  No surface Rusting  Sound Insulation

OVERVIEW OF THE TYPICAL TECHNICAL DETAILS: BAMBOO MAT CORRUGATED SHEETS – ISI: 15476/ 2004 BMCS - IS: 15476 – 2004 Properties Density 0.89 g/cm³ Water Absorption (24 hrs) 2.9 % Load Bearing Capacity: a) Dry State 5.65 N/mm b) Wet State 4.75 N/mm Fire Resistance a) Flame penetration 14 minutes b) Rate of Burning 22 minutes c) Surface spread of flame, maximum area 2353 mm² of char in mm² Impermeability Conforms Resistance to rolling weight Conforms Cyclic Test No delamination 0.1928 k.cal/m-ºc for BMCS and 0.3422 Thermal Conductivity k.cal/m-ºc for ACCS

PRODUCT REPLACEMENT OPTIONS: BMCS is an eco-friendly alternative for the following:  Asbestos Cement Roofing Sheets  Galvalume / Galvanized Iron Roofing Sheets  Fiber Glass Roofing Sheets  Aluminum Corrugated Sheets PRODUCT APPLICATION AREAS:  Roofing  Walling  Container / Packaging  Sandwich Construction  PREFABRICATED HOUSES

BMCS - PRODUCT SIZES AVAILABLE:  8 ’ X 3½ ’ or ( 2.44m X 1.05m) – 12 Kgs  7’ X 3½ ’ or ( 2.14m X 1.05m) – 10.5 Kgs  6 ’ X 3½ ’ or (1.83m X 1.05m) – 9 Kgs BMRC – PRODUCT SIZES AVAILABLE:  1 ½ ’’ X 3½ ’ or (0.43m X 1.05m) – 2 Kgs (Male & Female Ridge Caps) PRODUCT THICKNESS AVAILABLE:  3.5 MM – 4.0 MM EXTERIOR SIDE – COLOUR COATED OPTIONS AVAILABLE:  GREEN / ORANGE / SKY BLUE / SILVER / WHITE / RED TERRACOTA / MAROON / LEAF BROWN / SPL. GOLDEN BROWN

COMPARISON OF DIFFERENT CORRUGATED ROOFING SHEETS TECHNICAL COMPARISON : S.No. Characteristics Bamboo Mat Asbestos Cement Colour Coated Aluminum Corrugated Corrugated Sheet G.I. Corrugated Corrugated Sheets (6mm) Sheet Sheet (3.5-4.0mm) (0.8mm) (1.2mm) 1 Load Bearing Capacity 5.65 N/mm 5.45 N/mm 4.84 N/mm 1.67 N/mm 2 Fire Rating Retardant Retardant Tendency to Tendency to Twist & Melt Twist & Melt 3 Thermal Conductivity Very Low High Very High Very High 4 Weather effects None None Surface Rusting Surface Rusting 5 Impact of Falling Objects No impact Sheets tend to Sheets tend to Sheets tend to crack get dented get dented 6 Effects of High Winds No impact minimum Unacceptable Rattling sound rattling sound 7 Noise Pollution Very Low Low High High 8 Eco-Friendly Yes No, health hazards No, high energy No, High energy 9 Energy consumption per 22784 MJ 430 MJ 89408 MJ 32541 MJ ton

ITEM SPECIFICATION IN DELHI SCHEDULE OF RATES 2016 issued vide CPWD Correction Slip no: 7 dated 25.07.2017 Code No. Description Unit Rate (Rs.) 26.6A Providing, erecting, laying and fixing in position in Sqm 4430.00 3.5 – 4mm thick bamboo mat corrugated sheet (BMCS) as per IS 15476 – 2004 in roofing with Self Drilling Screws alongwith EPDM washers complete OR with galvanized iron J or L hooks 8mm dia G.I. plain and bitumen washers etc, all complete as per direction of Engineer-in-Charge. Code No. Description Unit Rate (Rs.) Providing and fixing in position ridges of 3.5 – 4mm 26.6B metre 3586.65 thick bamboo mat ridge cap (BMRC) as per IS 15476 – 2004 with Self Drilling Screws alongwith EPDM washers complete OR with galvanized iron J or L hooks 8mm dia G.I. plain and bitumen washers etc, all complete as per direction of Engineer-in- Charge.

PRODUCTION CAPACITY: BAMBOO MAT CORRUGATED SHEETS – ISI: 15476/ 2004 Monthly Yearly Production Capacity 13,000 Sqm 1,56,000 Sqm

INSTRUCTION FOR FITTING THE BAMBOO MAT CORRUGATED SHEETS & MAINTENANCE OF BMCS MUST BE FOLLOWED WITHOUT FAIL 1. The roof slope should be minimum 20 ° OR maximum 40 ° . 2. a) For 2440mm long BMCS, the purlin spacing should be @ 1145mm centre to centre. b) For 2140mm long BMCS, the purlin spacing should be @ 995mm centre to centre. C) For 1830mm long BMCS, the purlin spacing should be @ 840mm centre to centre. 3. Minimum 6” (150mm) end lap to be provided while fitting the BMCS on Purlins. See figure below:

4. The Standard width of BMCS is 1050mm. There are 9 nos. of Crown and 8 nos. of Valley in One BMCS of standard width of 1050mm. See figure below: 5. One Corrugation side lap of 110mm to be provided while fitting the BMCS on Purlins. See figure below:

6. BMCS & BMRC to be fitted with 8mm diameter J Hooks / L Hooks, Bolts, nuts, rubber washers preferably / bituminous washers complete. NAIL should never be used for fitting the BMCS & BMRC. See figure below: 7. The holes for fixing the J Hooks / L Hooks, Bolts, nuts etc. to be made on the APEX (Crest) only and NOT in the Valley . See figure above. 8. Free overhanging of BMCS to be not more than 300mm 9. The BMRC Ridge purlin to be fitted at a distance of 200mm from the Apex of the Truss / Roof. 10. Polyurethane (PU) Coating Green colour / any other colour coated side must face the SUN to resist severe Heat & Rain.

11. Polyurethane (PU) Coating Green colour / any other colour of Exterior quality to be applied after every five years for longer life of the BMCS. It should be procured with the consultation of Timpack Pvt. Ltd., Byrnihat (Meghalaya). 12. BMCS / BMRC cutting should be done with Fine Teeth Carpenter hand saw / electric hand cutting machine and after cutting, the edges to be sealed with any of the following sealants available in the markets: a) Exterior Grade quality Varnish b) Polyurethane Coating of Exterior Grade quality c) Bituminized Rubber sealant. d) Silicon Based sealant.
