GRANITE Air Cooled UHF TV Transmitter (1 to 10.4 KW in a Single Cabinet) PRODUCT PRESENTATION ANYWAVE COMMUNICATION TECHNOLOGIES .a very hard, crystalline, igneous rock consisting mainly of quartz, mica, and feldspar and often used as a

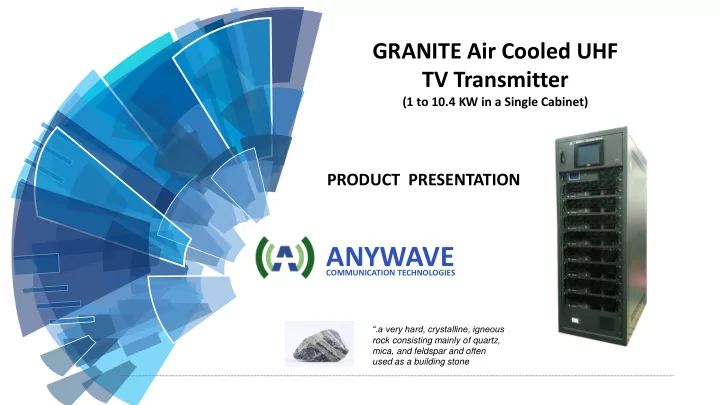

  1. GRANITE Air Cooled UHF TV Transmitter (1 to 10.4 KW in a Single Cabinet) PRODUCT PRESENTATION ANYWAVE COMMUNICATION TECHNOLOGIES “.a very hard, crystalline, igneous rock consisting mainly of quartz, mica, and feldspar and often used as a building stone … “ VERSION 2020.06

  2. 1.3kW ATSC (1.1kW OFDM) to 10.4kW ATSC (8.8kW OFDM). Worldwide digital TV standards including DVB-T/H, DVB-T, DVB-T2, ATSC, ATSC3.0, ISDB-T and DTMB. 8 x BLF888E (Ultra high efficiency, Asymmetrical Broadband Doherty) Transistors provide power densities of 1.3kW (ATSC) per amplifier. ANYWAVE COMMUNICATION TECHNOLOGIES

  3. Transmitter efficiency up to 45% (amplifier efficiency > 50%). ANYWAVE COMMUNICATION TECHNOLOGIES

  4. Individual variable speed control for each fan to user configurable target temperature. Intelligent fan monitoring: should any fan fail, or the dust filter is blocked, an alarm will be triggered and power will be reduced. Easy maintenance: replacing the fans only requires a single screw driver and can be completed in 10 minutes. ANYWAVE COMMUNICATION TECHNOLOGIES

  5. Two high capacity power supplies which are easily replaceable, hot swappable from the front panel without shutting No tools are needed to replace the down the PA unit. power supplies. AC voltage and current, DC voltage and current, temperature, and fan status can be monitored from the web interface. ANYWAVE COMMUNICATION TECHNOLOGIES

  6. Oversized single-piece heat-sink provides even heat distribution and enhanced heat transfer. Anywave Design. Compared to most others, it has much better effective heat transfer. ANYWAVE Typical Design. COMMUNICATION TECHNOLOGIES

  7. Graphene Enhanced Thermal Management technology Graphene’s heat conductivity is 4 times better than copper and 8 times better than aluminum. Without Graphene With Graphene Cooler operation means better performance, higher reliability, and longer life. ANYWAVE COMMUNICATION TECHNOLOGIES

  8. Even heat distribution and heat removal, no critical hot spots … designed to last! Less wasted heat equals lower operating costs. ANYWAVE COMMUNICATION TECHNOLOGIES

  9. Opti titune ™ Technolo logy Optitune™ automatically optimizes performance and efficiency at any power level. Self-running, automatic, adaptive phase and gain matching of all PA modules and or racks. ANYWAVE COMMUNICATION TECHNOLOGIES

  10. Optitune™ a utomatically balances entire system in gain and phase within 10 minutes for maximum output power and highest efficiency. Typical system efficiency improvement up to 4%. ANYWAVE COMMUNICATION TECHNOLOGIES

  11. Easy access to all sides with removable panels. No dangerous voltages Modular: Self contained, Self protected. Easy installation, Small footprint. Highest Power Density. ANYWAVE 8-PA Cabinet Rear View COMMUNICATION TECHNOLOGIES

  12. 1 to 10 PA’s MULTI-WAY COMBINER MULTI-WAY SPLITTER DIGITAL EXCITER RF, LOW BAND ASI CONTROLLER AND PASS PASS or IP PRE-AMP FILTER FILTER INPUT DIGITAL EXCITER (optional) 8 Amplifiers provides 10.4 kW In a single rack. RF POWER AMPLIFIER φ dB 25 various sensors in each PA unit, 216 sensors and over 10 DUAL INTEGRATED HOT PLUGGABLE AC/DC POWER SUPPLY micro controllers in an 8 PA rack. ANYWAVE COMMUNICATION TECHNOLOGIES

  13. Touch “Amplifier” Monitor Individual Transistor Monitor Fan Speeds Currents CONTROLLER ANYWAVE COMMUNICATION TECHNOLOGIES

  14. EXCITER • Innovative DDRF™ (Direct Digital RF) broadband automatic balancing technology achieves near perfect RF performance • Superior linear and non-linear pre-correction • Up to 15 dB shoulder improvements • Up to 10 dB MER (SNR) improvements • In band flatness: < ± 0.5 dB • Graphical Test & Measurement GUI • Modification of incoming PSIP information ANYWAVE COMMUNICATION TECHNOLOGIES

  15. ANY1022 (option) Real time signal quality monitoring including spectrum, constellation, MER, frequency response, impulse response, group delay, CCDF, etc. ANYWAVE COMMUNICATION TECHNOLOGIES

  16. • Web Browser Remote control • SNMP MIBS • E-mail alerts * * Email alerts (optional) for • Forward Power Low • • Parallel I/O Reflected Power High • Room Temperature High ANYWAVE COMMUNICATION TECHNOLOGIES

  17. ABOUT ANYWAVE  1990’s Key involvement in the development of ATSC  2006 Assisted in the development of CMMB  2007 Anywave Founded  2010 Unique algorithms for amplifier linearization  2013 Patents for On-Channel Digital Repeaters  2015 Doherty modulation Amplifiers for LPTV and MPTV  2017 Broadband Low and Medium Hi-Efficiency Amplifiers  2018 10kW Air Cooled transmitter in one rack  2018 80kW High Power Liquid Cooled Transmitter ANYWAVE COMMUNICATION TECHNOLOGIES

  18. ANYWAVE FULFILLMENT, SERVICE, & SUPPORT  5,000 sq. ft. Warehouse – Chicago area (Vernon Hills)  Order Fulfillment and Transmitter test facility  Equipment service & repair and retuning  Technical Support - Customer Call Center ANYWAVE COMMUNICATION TECHNOLOGIES

  19. FULFILLMENT, SERVICE, & SUPPORT ANYWAVE Two Loading Docks Assembly & Inventory Fulfillment Loading Area Meeting Room Repair & Warehouse / Storage Test Warehouse / Storage Fulfillment & ANYWAVE Call Center COMMUNICATION TECHNOLOGIES

  20. Contact Us…. EM EMAIL IL Sales_us@Anywavecom.com TELEPHONE / FAX for your attention +1 (847) 415 2258 / +1 847 415 2112 WEBSITE www.anywavecom.net ADDRESS Anywave Communication Technologies Inc. 100 N Fairway Drive, Suite 128, Vernon Hills, IL 60061 ANYWAVE COMMUNICATION TECHNOLOGIES
