Aeroqual AQY 1 micro air quality monitoring station Our Vision To - PowerPoint PPT Presentation

Sep 22, 2023 •332 likes •580 views

Aeroqual AQY 1 micro air quality monitoring station Our Vision To make air quality information relevant to people wherever they live, work, and play. 2 Aeroqual in Numbers 2001 2017 Founded by Prof. New global HQ in David Williams and

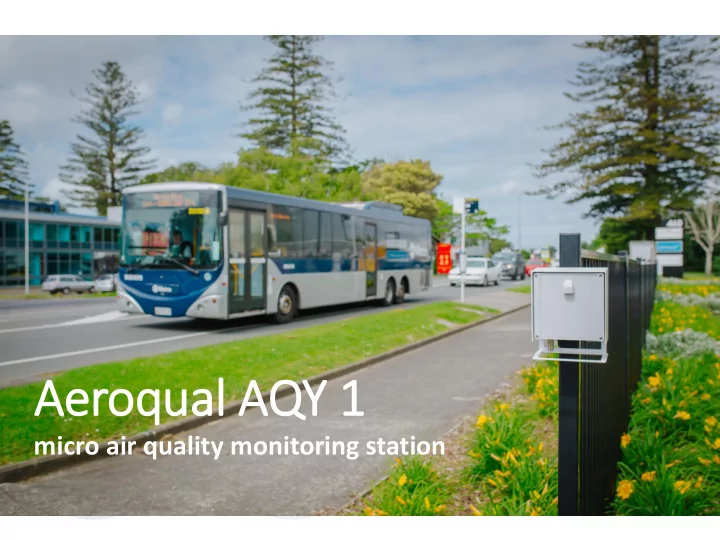

  1. Aeroqual AQY 1 micro air quality monitoring station

  2. Our Vision To make air quality information relevant to people wherever they live, work, and play. 2

  3. Aeroqual in Numbers 2001 2017 Founded by Prof. New global HQ in David Williams and Auckland, New Dr Geoff Henshaw Zealand #1 10,000 Most Innovative More than 10,000 Product, NZ High instruments in use Tech Awards 2016 around the world 7 50 Patents covering No. of countries sensor fabrication, where our products instrument design are used everyday

  4. U.S. EPA R&D Collaboration • 5-year Cooperative Research and Development Agreement signed late 2017 between U.S. EPA and Aeroqual official announcement • Objective: to accelerate new applications, methods and technologies for low-cost air quality monitoring • Aeroqual – contribute air sensor technology, application expertise, and data interpretation experience • U.S. EPA – provide air monitoring infrastructure and air pollution measurement capabilities • Location: U.S. EPA Ambient Monitoring Innovative Research Station (AIRS) in Research Triangle Park, North Carolina, USA

  5. Our Customers

  6. Our Products NEW Product AQM 65 AQS 1 AQY 1 Portable Monitors • EIA - Environmental • EIA • Smart cities • EIA Application • Seasonal pollutant • Community monitoring • Personal exposure impact assessment • Industrial perimeter • Personal exposure • Urban exposure studies mapping • Rapid response • Urban exposure studies • Urban exposure studies Measurement PM 10 , PM 2.5 , PM 1 , TSP, PM 10 , PM 2.5 , PM 1 , TSP, PM 2.5 , NO 2 , O 3 , Temp, RH, PM 10 , PM 2.5 , NO 2 , CO, O 3 , parameters NO 2 , CO, O 3 , SO 2 , NOx, NO 2 , O 3 , VOC, dewpoint SO 2 , VOC, H 2 S, CO 2 , NH 3 , VOC, H 2 S, CO 2 , NH 3 , meteorological, noise CH 4 , NMHC, Cl 2 , Temp, RH meteorological, noise Typical network size 1-10 units 1-20 units 5-1000 units 1 unit Deployment mode Short / Long term, mobile Short / Long term, mobile Short / Long term, mobile Portable Design lifetime 10 years 10 years 2-5 years 2-5 years -35 ° C to +50 ° C -10 ° C to +45 ° C 0 ° C to +40 ° C 0 ° C to +40 ° C Operating range Power supply Mains recommended Mains, solar, battery Mains, solar, battery Mains, battery Calibration Pre-shipment, Pre-shipment, Pre-shipment, Pre-shipment, Field (manual, auto) Field (manual only) Factory / Lab Factory / Lab $20 – 50K $8 – 15K $3 – 4K $1 – 3K Indicative price US$ *all information indicative only, subject to change without notice

  7. New: AQY 1 A micro air quality monitoring station that enables new air monitoring applications, and higher density data when deployed in networks.

  8. AQY – applications Roadside traffic Emergency response / Community groups / Smart city grid networks emissions event monitoring citizen science Schools and childcare Community exposure Mapping smog formation Validation of air quality health and safety studies and distribution models

  9. AQY roadmap Developed under a multi-year R&D project funded by NZ government Field tested in NZ, US and China 2016 - 2018 Designed to give indicative measurement of key pollutants at a very affordable price point Available for pilot scale evaluation Jan – May 2018 Commercial release of full production version 1 June 2018

  10. AQY 1 specifications Parameters O 3 , NO 2 , PM 2.5 , Temp, RH, dewpoint Power 12V DC plug pack, 24W Dimensions 215H x 170W x 123D (mm) Calibration Factory calibration, field calibration optional Comms WIFI, cellular Software Aeroqual Connect / Cloud For complete specifications please use the following link.

  11. AQY – technology • Best in class O 3 sensor uses Aeroqual’s gas sensitive semiconductor (GSS) to rival EPA-approved analysers for sensitivity, stability and selectivity • NO 2 sensor combines patented algorithms with our proprietary O 3 sensor to eliminate cross interferences common to other sensor technologies • Automatic baseline correction (ABC) modulates between sample and zero flow conditions to remove diurnal and seasonal temperature and humidity effects • Light-scattering optical particle sensor combined with algorithms for humidity and temperature compensation • 1 part-per-billion (ppb) detection of O 3 and NO 2 with R 2 correlation 0.98 and 0.82 respectively in head to head tests with U.S. EPA reference methods • Measures and reports data in 1 minute intervals with user selectable averaging • On-board PC can store 5+ years data , plus Wi-Fi, or 3G/4G connectivity

  12. AQY vs other low cost monitors • Proprietary ozone sensor technology that is best in class – nearly all other ozone sensors on the market are cross sensitive to nitrogen dioxide • Patented technique for removing ozone cross interference on the electrochemical NO 2 sensor (all NO 2 sensors on the market are cross sensitive to ozone) • All measurement is done on the AQY device – many other devices rely on data processing in the cloud before outputting a measurement • More than 5 years’ data storage on the device, allowing for fail -safe back-up • Aeroqual Cloud is used for data acquisition and display and remote diagnostics. Software is bundled with the instrument providing a complete product package. • Product is backed by a decade of field experience deploying and supporting sensor-based instruments in a wide range of outdoor ambient applications

  13. AQY – software Manage data, instruments and Aeroqual Connect and Cloud are Set up your FTP, SMS/email alerts, easy to use and keep your data calibration and service for single diagnostics conveniently from secure via 256-bit SSL encryption instruments or networks anywhere in the world Plot and download data in real- Advanced charts features network Use the wind and pollution rose time or historical sets by user view and lets you combine data charts in Aeroqual Plus to present selectable averaging periods sets and annotate for reports professional AQ reports

  14. AQY – data traceability Optional field calibration is performed by co-locating Factory calibration is NIST traceable to Standard Reference Materials (SRM) including certified the AQY with a FRM/FEM monitoring station and calibration gas mixtures and NATA accredited applying a gain or offset to the AQY in the calibration sources configuration software

  15. AQY – support Purchase of an instrument from From our support centre in Auckland, Aeroqual has an authorised service Aeroqual is the start of an ongoing New Zealand we can monitor centre near you, currently serving our relationship that connects you 24/7 instrument health, advise, diagnose, clients in more than 50 countries wherever you are schedule service

  16. Los Angeles AQY network • 100 AQY devices deployed across Los Angeles in partnership with South Coast Air Quality Management District. • First 25 units have been operational since Dec 2017, network complete by March 2018. • A richer picture is emerging of PM 2.5 , O 3 , and NO 2 patterns in the region.

  17. Colocation test: Los Angeles • AQY units measuring O 3 , NO 2 and PM 2.5 were installed at the South Coast Air Quality Management District’s Rubidoux air monitoring station. • AQY data compared to data from the station’s USEPA Federal Reference Method (FRM) and Federal Equivalent Method (FEM) instruments over a 5 months

  18. NO 2 AQY vs FRM – 1 hr average

  19. NO 2 AQY vs FRM – 1 hr average

  20. O 3 AQY vs FRM – 1 hr average

  21. O 3 AQY vs FRM – 1 hr average

  22. PM 2.5 AQY vs FEM – 24hr average

  23. PM 2.5 AQY vs FEM – 24 hr average

  24. Aeroqual Lim imit ited 460 Rosebank Rd, Avondale, Auckland, New Zealand t. +64 9 623 3013 e. sales@aeroqual.com www.aeroqual.com Keep in in touch
