A Lagrangian Heuristic for Robust Train Timetabling 2 1 1 - PowerPoint PPT Presentation

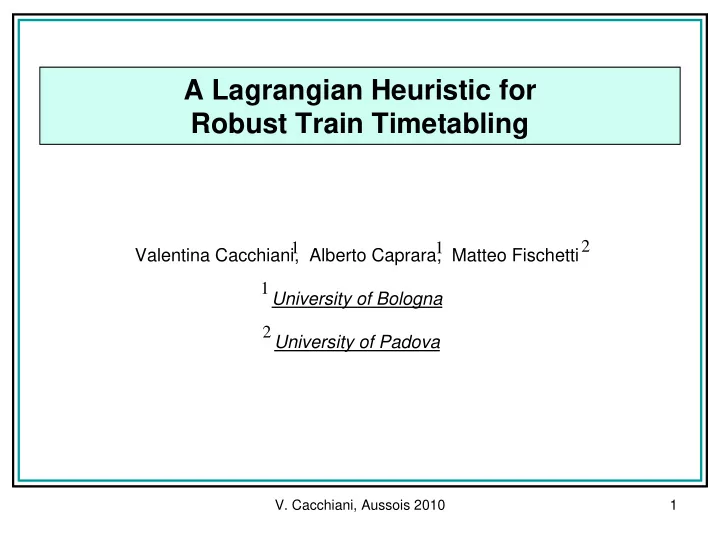

A Lagrangian Heuristic for Robust Train Timetabling 2 1 1 Valentina Cacchiani, Alberto Caprara, Matteo Fischetti 1 University of Bologna 2 University of Padova V. Cacchiani, Aussois 2010 1 Outline Motivation Nominal Problem


  1. A Lagrangian Heuristic for Robust Train Timetabling 2 1 1 Valentina Cacchiani, Alberto Caprara, Matteo Fischetti 1 University of Bologna 2 University of Padova V. Cacchiani, Aussois 2010 1

  2. Outline • Motivation • Nominal Problem • Robust Problem • Computational results V. Cacchiani, Aussois 2010 2

  3. Motivation The Train Timetabling Problem aims at finding an optimal schedule of trains on a railway network, satisfying some track capacity constraints. In the planning phase, the Infrastructure Manager collects the requests of scheduling trains according to suggested timetables from the Train Operators. At an operational level, delays can occur, thus the obtained solution might become infeasible . This motivates the study of approaches that call for robust solutions , i.e. solutions that allow to avoid delay propagation as much as possible. V. Cacchiani, Aussois 2010 3

  4. Nominal Train Timetabling Problem INPUT : • Single Line with a one-way track (approach easy to extend to railway network) MO PC MILAN BOLOGNA RE PR • List T of Trains with “ideal timetables” Ideal Timetables are EUROSTAR 1811: BO 7:35 - MI 9:10 CONFLICTING!!!! REGIONAL 2187: BO 7:30 - MO 7:52 BO 1811 2187 MO 7:54 - RE 8:12 MO RE 8:14 - PR 8:26 PR 8:28 - PC 8:55 7:30 7:35 7:52 V. Cacchiani, Aussois 2010 4

  5. Track Capacity Constraints: • no overtaking between stations (allowed only within stations) • min time between consecutive departures from each station • min time between consecutive arrivals at each station OUTPUT : • “Adjusted” non-conflicting timetables with maximum total profit: Train Adjustments: • shift departure time from initial station • stretch stopping time at intermediate stations ∑ Train Profit: π − φ − ϕ ( shift ) ( stretch ) j j j ij ij i Ideal profit Arbitrary monotone functions 5 If profit is null or negative cancel the train

  6. Representation on Time-Space Graph Initial Arcs source Travel Arcs BO Departure Nodes Station Arcs Arrival Nodes MO Departure Nodes Arrival Nodes PC Departure Nodes Ending Arcs Arrival Nodes MI sink time (1 minute discretization) Ideal profit and Shift Train Timetable Path cost on initial arcs 6 Train Profit Path Profit Stretch cost on station arcs

  7. ILP formulation Model without track capacity constraints x binary variable associated with ∑ ∑ r r ∈ max p x R arc r r ∈ ∈ j j T r R ∑ ≤ ∈ x 1 , j T auxiliary variables for the r + safeness operational constraints: ∈ δ σ r ( ) j ∑ ∑ = ∈ ∈ σ τ j ∈ x x , j T , v V \ { , } y v , v V r r − + ∈ δ ∈ δ r ( v ) r ( v ) j j ∑ ∈ , ∈ = ∈ ∈ σ τ j j z , j T v V z x , j T , v V \ { , } jv r jv − ∈ δ r ( v ) j ∑ = ∈ σ τ at most one path for y z , v V \ { , } v jv each train ∈ ∈ j j T : v V ≥ ∈ x 0 , r R binary r V. Cacchiani, Aussois 2010 7

  8. Example Δ < p w w , ( w , w ) d ( h ) 1 2 1 2 w1 w2 station h u2 u1 station i Δ < p u u , ( u , u ) a ( h ) 1 2 1 2 V. Cacchiani, Aussois 2010 8

  9. ILP formulation arrival constraints ∑ ≤ ∈ ∈ y 1 , i S , u U ( i ) u 1 ∈ p p u U ( i ) : u u u 1 2 Δ = f u u , ( u , u ) a ( i ) 2 1 1 2 first arrival node minimum headway earliest arrival between compatible with u1 consecutive arrivals departure constraints ∑ ≤ ∈ ∈ y 1 , i S , w W ( i ) 1 w ∈ p p w W ( i ) : w w w 1 2 Δ = f w w , ( w , w ) d ( i ) 2 1 1 2 minimum headway first departure node earliest departure between consecutive compatible with w1 departures V. Cacchiani, Aussois 2010 9

  10. Example w1 w2 Δ Δ < min{ ( w , w ), ( w , w )} d ( h ) 1 2 2 1 Δ Δ < min{ ( v , v ), ( v , v )} a ( h ) 1 2 2 1 p p p w w v v 1 2 2 1 v2 v1 w1 w2 w3 w4 station i v3 v4 v1 v2 station h θ + + = θ + f w w , ( w ) t a ( i ) ( w ) t Δ = f w w , ( w , w ) d ( h ) 4 2 1 j 4 k 3 1 2 3 V. Cacchiani, Aussois 2010 10

  11. ILP formulation overtaking constraints ∑ ∑ + ≤ z z 1 , jw kw ∈ ∈ j k I p p I p p w W ( h ) V : w w w w W ( h ) V : w w w 1 3 2 4 ∈ ≥ ∈ ∈ j k I I j , k T , t t , w W ( h ) V , w W ( h ) V j k 1 2 earliest departure earliest departure z jw z 1 , such that incompatible kw for train j for train k 2 Δ Δ < min{ ( w , w ), ( w , w )} d ( h ) 1 2 2 1 first departure node first departure node Δ Δ < compatible with w2 min{ ( v , v ), ( v , v )} a ( h ) compatible with w1 1 2 2 1 p p p w w v v Δ = f 1 2 2 1 w w , ( w , w ) d ( h ) 3 1 2 3 θ + + = θ + f w w , ( w ) t a ( i ) ( w ) t 4 2 1 j 4 k V. Cacchiani, Aussois 2010 11

  12. Robust Train Timetabling Problem Same setting as before BUT aims at avoiding delay propagation Delay propagation Buffer Time V. Cacchiani, Aussois 2010 12

  13. Robust Train Timetabling Problem In the planning phase, insert buffer times that can be used to absorb possible delays occurring at an operational level The nominal objective function ( efficiency ) must be taken into account as well Long Buffer Time V. Cacchiani, Aussois 2010 13

  14. Robust Train Timetabling Problem source Initial Arcs Travel Arcs BO Departure Nodes Station Arcs Arrival Nodes MO Departure Nodes Buffer Times Arrival Nodes PC Departure Nodes Ending Arcs Arrival Nodes MI sink time (1 minute discretization) V. Cacchiani, Aussois 2010 14

  15. Robust Train Timetabling Problem ∑ ∑ ∑ ∑ + j max p x F b x r r r r ∈ ∈ ∈ ∈ j j j T j T r R r R Efficiency Buffer Times Track capacity constraints are relaxed in a Lagrangian way. The Lagrangian relaxed problem calls for a set of paths for the trains, each having maximum Lagrangian profit (given by the sum of the original profits for the arcs in the path including the weights for the buffer times, minus the sum of the penalties assigned to the nodes visited by the path). V. Cacchiani, Aussois 2010 15

  16. Robust Train Timetabling Problem Heuristic Algorithm A Lagrangian-based heuristic algorithm is developed, in a subgradient framework Local search procedures are used to improve the solution found Validation Method A simulation tool is used to test the robustness of the heuristic solution Given a TTP solution, it considers different realistic external delay scenarios and, assuming that all the trains in the solution have to be scheduled and all train precedences are fixed, adapts the solution to make it feasible with the given external delays, evaluating the resulting cumulative delay. V. Cacchiani, Aussois 2010 16

  17. Computational Experiments Set of real-world instances of the Italian Railways. Weights of the buffer times that change through the iterations (firstly push efficiency and afterwards robustness). Weights of the buffer times that change along the path of each train. − λ − − i ( 1 e )( len ( h ) i ) λ = 3 We consider It is observed by Kroon et al. (2007) that buffers that are placed too early are not very useful (since the probability to face any delay at this early position is very small). V. Cacchiani, Aussois 2010 17

  18. Computational Experiments Instance Number of Nominal Nominal Time Robust Robust Time trains solution Cumulative (sec) solution Cumulative (sec) (efficiency) delay (efficiency) delay Ch-Ro 41 5567 39181 462 5561 35724 1890 5559 35667 5550 35403 Md-Mi 100 9316 17026 566 9276 14458 2577 9253 14256 9074 14172 Md-Mi 200 18542 37365 1830 18259 36475 5819 18023 32784 17604 28816 Md-Mi 300 24638 45145 3479 24346 42944 10851 24195 42677 23999 40114 Md-Mi 400 27259 53059 5227 27131 50866 14099 26759 48314 26581 47404 Ch-Mi 194 20816 3068 519 20787 2987 1451 20630 2982 20602 2879 V. Cacchiani, Aussois 2010 18

  19. Comparison with the approach by Fischetti, Salvagnin and Zanette (2009) (FSZ) Fast Approaches to Improve the Robustness of a Railway Timetable They propose an event-based model (by adapting the Periodic Event Scheduling Problem for the periodic case), and investigate different approaches to get robust solutions: stochastic models and a light robustness approach. Apply the Validation Method to get the cumulative delay. V. Cacchiani, Aussois 2010 19

  20. Computational Experiments Instance Number Robust Robust Time Robust Robust Time of trains solution Cumulative (sec) solution Cumulative (sec) (efficiency) delay FSZ delay FSZ Ch-Ro 41 5561 35724 1890 5512 37332 14862 Md-Mi 100 9276 14458 2577 9209 16683 14966 Md-Mi 200 18259 36475 5819 18437 36376 16230 Md-Mi 300 24346 42944 10851 23313 45465 17879 Md-Mi 400 27131 50866 14099 27170 52202 19627 Ch-Mi 194 20787 2987 1451 20041 3328 14919 V. Cacchiani, Aussois 2010 20
