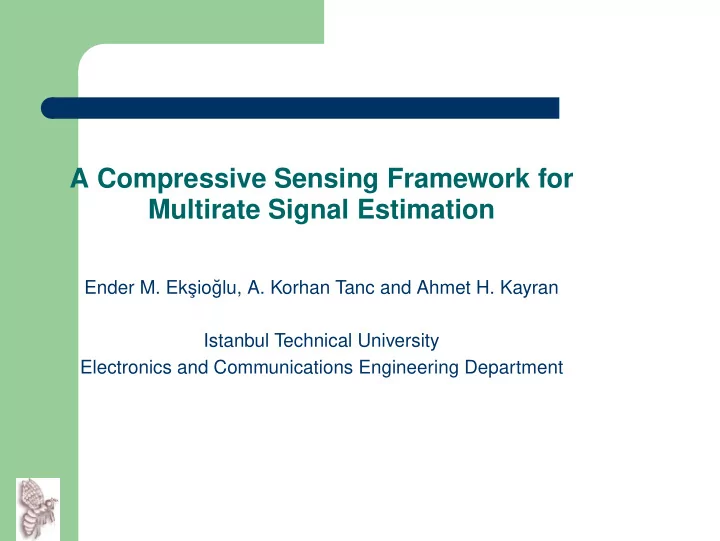

A Compressive Sensing Framework for Multirate Signal Estimation Ender M. Ek¸ sio˘ glu, A. Korhan Tanc and Ahmet H. Kayran Istanbul Technical University Electronics and Communications Engineering Department
