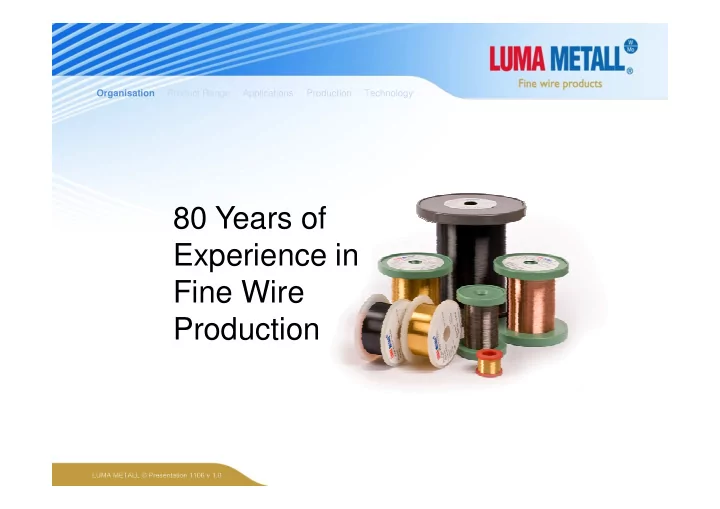

80 Years of Experience in Experience in Fine Wire Production - PowerPoint PPT Presentation

Organisation Product Range Applications Production Technology 80 Years of Experience in Experience in Fine Wire Production

Organisation Product Range Applications Production Technology Company information • Head office and manufacturing in Kalmar, Sweden. • American owned. • Started 1930 as Lumalampan AB. • Became Luma Metall AB 1994. • Precious metal plating technologies and wire drawing.

Organisation Product Range Applications Production Technology Head office • Sales department • • Development Development • Administration • Business Management

Organisation Product Range Applications Production Technology Product range Wire material for Diameter range bare wire Diameter range plated wire redrawing and plating TUNGSTEN TUNGSTEN 4-500 μm (0.16 – 19.6 mils) 4-500 μm (0.16 – 19.6 mils) 5-200 μm (0.2 – 7.9 mils) 5-200 μm (0.2 – 7.9 mils) TUNGSTEN /RHENIUM 3% 4-500 μm (0.16 – 19.6 mils) 5-200 μm (0.2 – 7.9 mils) MOLYBDENUM 10-500 μm (0.4 – 19.6 mils) 15-200 μm (0.6 – 7.9 mils)

Organisation Product Range Applications Production Technology Product range Wire material for Diameter range Diameter range plating only bare wire plated wire COPPER COPPER No redrawing No redrawing 50-300 μm (1.96 – 11.8 mils) 50-300 μm (1.96 – 11.8 mils) BERYLLIUM COPPER No redrawing 50-300 μm (1.96 – 11.8 mils) STAINLESS STEEL No redrawing 50-300 μm (1.96 – 11.8 mils) BRASS No redrawing 50-300 μm (1.96 – 11.8 mils) SILVER No redrawing 50-300 μm (1.96 – 11.8 mils)

Organisation Product Range Applications Production Technology Applications • Gold-plated wire • Conductors / special cables / connectors • Printing • Antennas • Technical research • Medical (wire guided balloon dilators)

Organisation Product Range Applications Production Technology Applications • Non-plated wire • Automotive • Strings for music instruments • Integrated circuit testing • Lighting

Organisation Product Range Applications Production Technology Wire production • Wire drawing • • Straightening Straightening • Cleaning • Plating • Spooling

Organisation Product Range Applications Production Technology Delivery • Shipping worldwide to about 40 countries • Secure, quick and cost-effective door-to-door courier service • Transportation time is generally 1-3 days by airfreight • Products are well packed for transport by air or sea

Organisation Product Range Applications Production Technology Environmental management • Scrubber system for cleaning of plating atmosphere • Cleaning and re-use of water from the wire cleaning process • Filtration and re-use of potassium hydroxide from the wire cleaning process

Organisation Product Range Applications Production Technology Thank you for your attention
