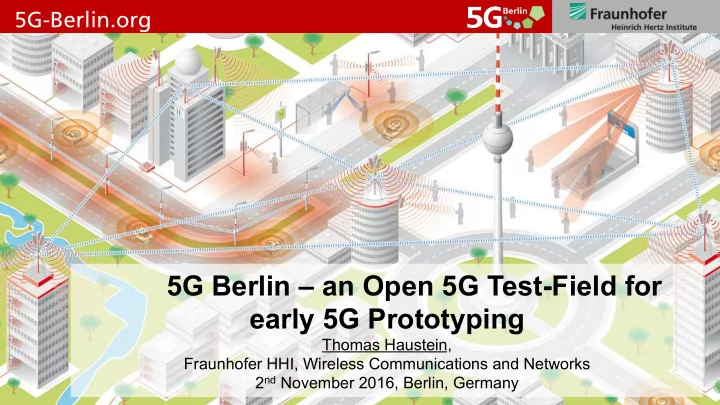

5G Berlin an Open 5G Test-Field for early 5G Prototyping Thomas - PowerPoint PPT Presentation

Oct 14, 2023 •39 likes •149 views

5G-Berlin.org 5G Berlin an Open 5G Test-Field for early 5G Prototyping Thomas Haustein, Fraunhofer HHI, Wireless Communications and Networks 2 nd November 2016, Berlin, Germany 5G Berlin a Collaborative Research Initiative 5G

  1. 5G-Berlin.org 5G Berlin – an Open 5G Test-Field for early 5G Prototyping Thomas Haustein, Fraunhofer HHI, Wireless Communications and Networks 2 nd November 2016, Berlin, Germany

  2. 5G Berlin – a Collaborative Research Initiative 5G –Access, -Core & Xhaul Technology to be tested in one Place 5G Berlin contributes in the global research arena being a place to have 5G related researchers join their effort, interact across disciplinary borders and test latest real world setup. technologies, system components and applications in a Join 5G Research www.5GBerlin.org info@5Gberlin.org OUR TESTBEDS Fraunhofer HHI Fraunhofer FOKUS Dr.-Ing. Thomas Haustein Dr .-Ing. Thomas Haustein Prof. Dr. Thomas Magedanz info@open5Gaccess.com info@open5Gcore.net

  3. 5G Berlin – Technologies and e2e Testing Berlin5GWeek, Germany 02.11.2016 Page 3

  4. Selection of associated 5G projects 5G Projects Berlin5GWeek, Germany 02.11.2016 Page 4

  5. EU / Japan: 5G- MiEdge – New Challenges Berlin5GWeek, Germany 02.11.2016 Page 5

  6. 5G-MiEdge: 5G Technology Components 5G-MiEdge - Millimeter-Wave Edge Cloud as an Enabler for 5G Ecosystem

  7. Overall Vision of 5G- MiEdge Berlin5GWeek, Germany 02.11.2016 Page 7

  8. Massive MIMO Proof of Concept A new Level of Merging Simulations & Prototyping § Signal processing on standard desktop or server platforms with 40 GbE SDR connectivity § Different deployment scenarios § Processing of Key Performance Indicators on Intel CPUs Vendor-independent prototype for § Comparison to 3GPP simulation Massive-MIMO-in-the-loop evaluations. results and use cases Berlin5GWeek, Germany 02.11.2016 Page 8

  9. Lab: SDR DoA Estimation using M-MIMO eNB with up to 64-Antenna Elements - @ 3.5 GHz center frequency, 20 MHz FDD-LTE carrier - Live user tracking of UE1 and UE2 - Calculation of downlink sum throughput LTE reference signals UE1 M-MIMO SDR module with 8 TRx § 4x AD9361 SoC, 12-bit ADC/DAC, 56 MHz BW § 70MHz – 6 GHz, phase-locked up to 4 GHz § Xilinx Zynq XC72045 § QSFP+: 4x 12 Gb digital I/O, CPRI, I/Q compress. Berlin5GWeek, Germany 02.11.2016 Page 9 § MicroTCA

  10. Impressions from Outdoor Measurements Berlin5GWeek, Germany 02.11.2016 Page 10

  11. 5G Berlin – Contacts Dr.-Ing. Thomas Haustein thomas.haustein@hhi.fraunhofer.de info@5Gberlin.de url: www.5GBerlin.de Fraunhofer Heinrich Hertz Institute Berlin, Germany open5Gaccess thomas.haustein@hhi.fraunhofer.de open5Gphotonics ronald.freund@hhi.fraunhofer.de open5Gcore, openSDN, open5Gmtc thomas.magedanz@fokus.fraunhofer.de
