343H: Honors AI Lecture 26: More applications 4/29/2014 Kristen - PowerPoint PPT Presentation

343H: Honors AI Lecture 26: More applications 4/29/2014 Kristen Grauman UT Austin This week Tournament Wed night (tomorrow) 7 pm Well meet here Submit final agent by tonight Otherwise well take your last qualifying entry

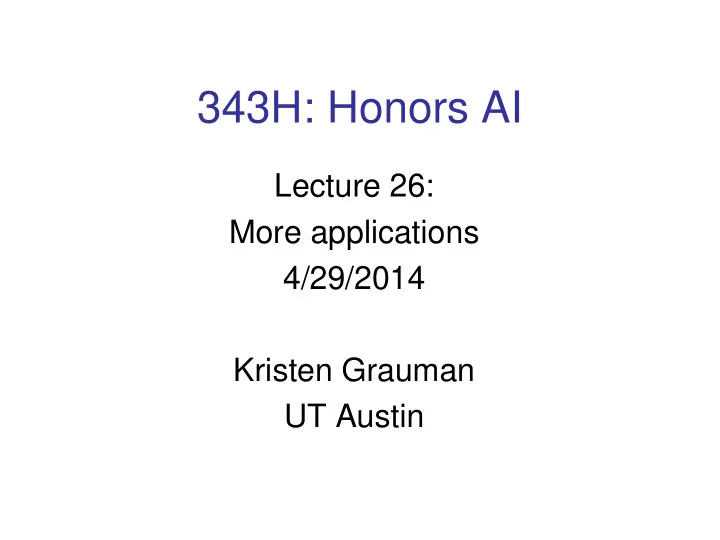

  1. 343H: Honors AI Lecture 26: More applications 4/29/2014 Kristen Grauman UT Austin

  2. This week  Tournament Wed night (tomorrow) 7 pm  We’ll meet here  Submit final agent by tonight  Otherwise we’ll take your last qualifying entry  Class Thursday  Course wrap-up, exam details, tournament recap/awards, surveys

  3. Last time  Neural networks  Visual recognition  Face detection  Gender recognition  Boosting  Multi-class SVMs  Classifier cascades

  4. Today  Deep learning for image recognition  Body pose estimation from decision forests  Non-parametric scene recognition

  5. How many computers to identify a cat? [Le, Ng, Dean, et al. 2012]

  6. Perceptron Slide credit: Dan Klein and Pieter Abbeel

  7. Two-layer neural network Slide credit: Dan Klein and Pieter Abbeel

  8. N-layer neural network Slide credit: Dan Klein and Pieter Abbeel

  9. Auto-encoder (sketch) Slide credit: Dan Klein and Pieter Abbeel

  10. Training procedure: stacked auto-encoder  Auto-encoder  Layer 1 = “compressed” version of input layer  Stacked auto-encoder  For every image, make a compressed image (=layer 1 response to image)  Learn Layer 2 by using compressed images as input, and as output to be predicted  Repeat similarly for Layer 3, 4, etc.  Some details left out  Typically in between layers responses get agglomerated from several neurons (“pooling” / “complex cells”) Slide credit: Dan Klein and Pieter Abbeel

  11. Final result: trained neural network Slide credit: Dan Klein and Pieter Abbeel

  12. Jamie Shotton, Andrew Fitzgibbon, Mat Cook, Toby Sharp, Mark Finocchio, Richard Moore, Alex Kipman, Andrew Blake CVPR 2011

  13. image window Toy example: centred at x distinguish left ( L ) and right ( R ) f ( I, x ; Δ 1 ) > θ 1 sides of the body no yes f ( I, x ; Δ 2 ) > θ 2 P( c ) no yes L R P( c ) P( c ) L R L R

  14. [Breiman et al. 84] for all Q n = (I, x) P n ( c ) pixels body part c f ( I, x ; Δ n ) > θ n n no yes P l ( c ) reduce P r ( c ) entropy r l c c Take ( Δ , θ ) that maximises Goal: drive entropy information gain: at leaf nodes Δ𝐹 = − 𝑅 l 𝐹(Q l ) − 𝑅 r 𝐹(Q r ) to zero 𝑅 𝑜 𝑅 𝑜

  15. [Amit & Geman 97] [Breiman 01] [Geurts et al. 06] (𝐽, x) (𝐽, x) tree 1 tree T ……… P T ( c ) P 1 ( c ) c c  Trained on different random subset of images  “bagging” helps avoid over -fitting 𝑈 𝑄 𝑑 𝐽, x = 1 𝑈 𝑄 𝑢 (𝑑|𝐽, x)  Average tree posteriors 𝑢=1

  16.  Define 3D world space density: 1 2 3D coord pixel of i th pixel weight 3D coord bandwidth pixel index i inferred depth at 3. hypothesize i th pixel probability body joints  Mean shift for mode detection …

  17. Mean shift Search window Center of mass Mean Shift vector Slide by Y. Ukrainitz & B. Sarel

  18. Mean shift clustering • Cluster: all data points in the attraction basin of a mode • Attraction basin: the region for which all trajectories lead to the same mode Slide by Y. Ukrainitz & B. Sarel

  19. Nearest Neighbor classification • Assign label of nearest training data point to each test data point Black = negative Novel test example Red = positive Closest to a positive example from the training set, so classify it as positive. from Duda et al. Voronoi partitioning of feature space for 2-category 2D data

  20. K-Nearest Neighbors classification • For a new point, find the k closest points from training data • Labels of the k points “vote” to classify k = 5 Black = negative If query lands here, the 5 Red = positive NN consist of 3 negatives and 2 positives, so we classify it as negative. Source: D. Lowe

  21. 6+ million geotagged photos by 109,788 photographers Annotated by Flickr users

  22. Global texture: capturing the “Gist” of the scene Capture global image properties while keeping some spatial information Gist descriptor Oliva & Torralba IJCV 2001, Torralba et al. CVPR 2003

  23. [Hays and Efros. im2gps : Estimating Geographic Information from a Single Image. CVPR 2008.]

  24. The Importance of Data [Hays and Efros. im2gps : Estimating Geographic Information from a Single Image. CVPR 2008.]

  25. Recap  Deep learning for image recognition  Body pose estimation from decision forests  Non-parametric scene recognition  Visual recognition tasks with supervised classification  Variety of features and models  Training data quality and/or quantity essential
