3-coloring triangle-free planar graphs Bernard Lidick y Iowa - PowerPoint PPT Presentation

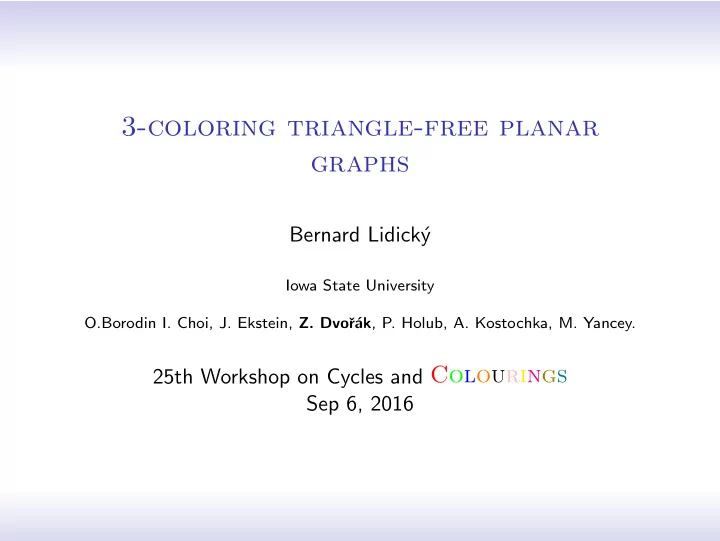

3-coloring triangle-free planar graphs Bernard Lidick y Iowa State University O.Borodin I. Choi, J. Ekstein, Z. Dvo r ak , P. Holub, A. Kostochka, M. Yancey. Colourings 25th Workshop on Cycles and Sep 6, 2016 Coloring of a graph


  1. 3-coloring triangle-free planar graphs Bernard Lidick´ y Iowa State University O.Borodin I. Choi, J. Ekstein, Z. Dvoˇ r´ ak , P. Holub, A. Kostochka, M. Yancey. Colourings 25th Workshop on Cycles and Sep 6, 2016

  2. Coloring of a graph Definition A (proper) coloring of a graph G is a mapping ϕ : V ( G ) → C such that for every uv ∈ E ( G ) : ϕ ( u ) � = ϕ ( v ). G is k-colorable if there is a (proper) coloring of G with | C | = k . 2

  3. Coloring of a graph Definition A (proper) coloring of a graph G is a mapping ϕ : V ( G ) → C such that for every uv ∈ E ( G ) : ϕ ( u ) � = ϕ ( v ). G is k-colorable if there is a (proper) coloring of G with | C | = k . 2

  4. Definition of 4 -critical graph Problem: How do we efficiently describe graphs that are not 3-colorable? What are obstacles for 3-coloring? A graph G is a 4 -critical graph if G is not 3-colorable but every H ⊂ G is 3-colorable. Useful as a minimal counterexample. 3

  5. Definition of 4 -critical graph Problem: How do we efficiently describe graphs that are not 3-colorable? What are obstacles for 3-coloring? A graph G is a 4 -critical graph if G is not 3-colorable but every H ⊂ G is 3-colorable. Useful as a minimal counterexample. 3

  6. Definition of 4 -critical graph Problem: How do we efficiently describe graphs that are not 3-colorable? What are obstacles for 3-coloring? A graph G is a 4 -critical graph if G is not 3-colorable but every H ⊂ G is 3-colorable. Useful as a minimal counterexample. 3

  7. Definition of 4 -critical graph Problem: How do we efficiently describe graphs that are not 3-colorable? What are obstacles for 3-coloring? A graph G is a 4 -critical graph if G is not 3-colorable but every H ⊂ G is 3-colorable. Useful as a minimal counterexample. 3

  8. Gr¨ otzsch’s Theorem Theorem (Appel, Haken ’77) Every planar graph is 4 -colorable. Theorem (Gr¨ otzsch ’59) Every triangle-free planar graph is 3 -colorable. 4

  9. Outline • Proof of Gr¨ otzsch’s Theorem • Easy improvements • Precolored faces • Few triangles • Precolored vertices 5

  10. Proof of Gr¨ otzsch’s Theorem - main tool Theorem (Kostochka and Yancey ’14) If G is a 4 -critical graph, then | E ( G ) | ≥ 5 | V ( G ) | − 2 . 3 We write this as 3 | E ( G ) | ≥ 5 | V ( G ) | − 2. 4 -critical graphs must have “many” edges G does not have to be planar 6

  11. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) v 4 v 3 v 1 v 2 Case 2: G contains no 4-faces 7

  12. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) v 4 v 3 v 1 v 2 Case 2: G contains no 4-faces 7

  13. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) v 4 v 1 v 3 v 2 Case 2: G contains no 4-faces 7

  14. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) v 4 v 3 v 1 v 2 Case 2: G contains no 4-faces 7

  15. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) v 4 v 3 v 1 v 2 Case 2: G contains no 4-faces 7

  16. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) v 4 v 1 v 3 v 2 Case 2: G contains no 4-faces 7

  17. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 v 4 x 1 v 1 v 3 v 2 Case 2: G contains no 4-faces 7

  18. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 v 4 x 1 v 1 v 3 v 2 Case 2: G contains no 4-faces 7

  19. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 v 4 v 3 x 1 v 1 v 2 Case 2: G contains no 4-faces 7

  20. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 y 2 v 3 x 1 v 4 v 2 y 1 v 1 Case 2: G contains no 4-faces 7

  21. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 y 2 v 3 v 4 x 1 y 1 v 2 v 1 Case 2: G contains no 4-faces 7

  22. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 y 2 v 4 v 3 x 1 y 1 v 1 v 2 Case 2: G contains no 4-faces 7

  23. Proof of Gr¨ otzsch’s Theorem (by K-Y) G a minimal counterexample - plane, triangle-free, 4-critical. Case 1: G contains a 4-face (try to 3-color G ) x 2 y 2 v 4 v 3 x 1 y 1 v 1 v 2 Case 2: G contains no 4-faces | E ( G ) | = e , | V ( G ) | = v , | F ( G ) | = f . • v + f = e − 2 by Euler’s formula • 5 v − 10 ≥ 3 e (no 3-,4-faces) • 3 e ≥ 5 v − 2 (every 4-critical graph) 7

  24. Theorem (Gr¨ otzsch ’59) Every planar triangle-free graph is 3 -colorable. The last inequalities have a gap: • 5 v − 10 ≥ 3 e (no 3-,4-faces) • 3 e ≥ 5 v − 2 (every 4-critical graph) 8

  25. Plus extra edge Theorem (Aksenov ’77; Jensen, Thomassen ’00) If H can be obtained from a triangle-free planar graph by adding an edge h, then H is 3 -colorable. h 9

  26. Plus extra edge Theorem (Aksenov ’77; Jensen, Thomassen ’00) If H can be obtained from a triangle-free planar graph by adding an edge h, then H is 3 -colorable. h Simple proof (Borodin, Kostochka, L., Yancey 2014). Tight K 4 9

  27. Plus extra vertex Theorem (Jensen, Thomassen ’00) If H can be obtained from a triangle-free planar graph by adding a vertex v of degree 3 , then H is 3 -colorable. v 10

  28. Plus extra vertex Theorem (Borodin, Kostochka, L. , Yancey ’14) If H can be obtained from a triangle-free planar graph by adding a vertex v of degree 4 , then H is 3 -colorable. v (and the proof is simple, tight by 5-wheel) 10

  29. Precoloring Theorem (Gr¨ otzsch ’59) Let G be a triangle-free plane graph and F be the outer face of G of length at most 5 . Then each 3 -coloring of F can be extended to a 3 -coloring of G. G G 11

  30. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face 2 1 G 1 2 Case 2: F is a 5-face 12

  31. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 v G G 1 2 H Case 2: F is a 5-face 12

  32. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H Case 2: F is a 5-face 12

  33. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H 3 1 G 1 2 Case 2: F is a 5-face 12

  34. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H 3 1 G G H 1 2 Case 2: F is a 5-face 12

  35. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H 3 1 3 1 G G H G H 1 2 1 2 Case 2: F is a 5-face 12

  36. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H 3 1 3 1 G G H G H 1 2 1 2 Case 2: F is a 5-face 1 2 3 G 2 3 12

  37. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H 3 1 3 1 G G H G H 1 2 1 2 Case 2: F is a 5-face 1 2 3 v G G 2 3 H 12

  38. Simple proof If G is a triangle-free plane graph, F is a precolored external 4-face or 5-face, then the precoloring of F extends. Case 1: F is a 4-face H is 3-colorable 2 1 2 1 v 3 G G G 1 2 1 2 H H 3 1 3 1 G G H G H 1 2 1 2 Case 2: F is a 5-face 1 1 2 2 3 3 v 1 G G G 2 3 2 3 H H 12

  39. Precolored faces G is a plane triangle-free graph with a face bounded by a cycle C • if | C | ≤ 5, any precoloring of C extends • if | C | = 6, any precoloring of C extends unless G contains 1 2 3 3 2 1 by Gimbel, Thomassen ’97 13
