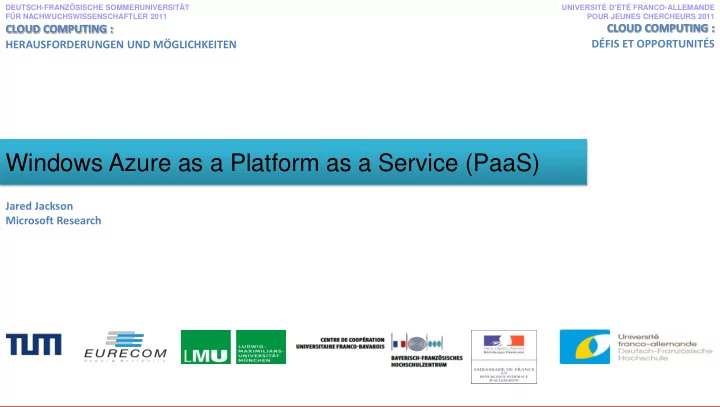

Windows Azure as a Platform as a Service (PaaS) 17.7. 22.7. 2011 - - PowerPoint PPT Presentation

DEUTSCH-FRANZÖSISCHE SOMMERUNIVERSITÄT FÜR NACHWUCHSWISSENSCHAFTLER 2011 UNIVERSITÉ D’ÉTÉ FRANCO-ALLEMANDE POUR JEUNES CHERCHEURS 2011

CLOUD COMPUTING : DÉFIS ET OPPORTUNITÉS CLOUD COMPUTING : HERAUSFORDERUNGEN UND MÖGLICHKEITEN

17.7. – 22.7. 2011

Windows Azure as a Platform as a Service (PaaS)

Jared Jackson Microsoft Research

Before we begin – Some Results

Vanilla 23% Chocolate 13% Strawberry 10% Coffee 3% Banana 3% Pistachio 7% Mango 3% Amarena 3% Malaga 3% Cherry 3% Tiramisu 3% Stratiatella 10% Cheescake 3% Cookies and Cream 3% Walnut 3% Cinamon 3%

Favorite Ice Cream

Vanilla 33% Chocolate 11% Strawberry 5% Coffee 2% Cherry 2% Cookies and Cream 4% Butter Pecan 7% Neapolitan 4% Chocolate Chip 4% Other 29%

Ice Cream Consumption Source: International Ice Cream Association (makeicecream.com)

Windows Azure Overview

4

Web Application Model Comparison

Machines Running IIS / ASP.NET Machines Running Windows Services Machines Running SQL Server Ad Hoc Application Model

5

Web Application Model Comparison

Machines Running IIS / ASP.NET Machines Running Windows Services Machines Running SQL Server Ad Hoc Application Model Web Role Instances Worker Role Instances Azure Storage Blob / Queue / Table SQL Azure Windows Azure Application Model

Key Components

Fabric Controller

• Manages hardware and virtual machines for service

Compute

• Web Roles
• Web application front end
• Worker Roles
• Utility compute
• VM Roles
• Custom compute role;
• You own and customize the VM

Storage

• Blobs
• Binary objects
• Tables
• Entity storage
• Queues
• Role coordination
• SQL Azure
• SQL in the cloud

Key Components

Fabric Controller

• Think of it as an automated IT department
• “Cloud Layer” on top of:
• Windows Server 2008
• A custom version of Hyper-V called the Windows Azure Hypervisor
• Allows for automated management of virtual machines

Key Components

Fabric Controller

• Think of it as an automated IT department
• “Cloud Layer” on top of:
• Windows Server 2008
• A custom version of Hyper-V called the Windows Azure Hypervisor
• Allows for automated management of virtual machines
• It’s job is to provision, deploy, monitor, and maintain applications in data centers
• Applications have a “shape” and a “configuration”.
• The configuration definition describes the shape of a service
• Role types
• Role VM sizes
• External and internal endpoints
• Local storage
• The configuration settings configures a service
• Instance count
• Storage keys
• Application-specific settings

Key Components

Fabric Controller

• Manages “nodes” and “edges” in the “fabric” (the hardware)
• Power-on automation devices
• Routers / Switches
• Hardware load balancers
• Physical servers
• Virtual servers
• State transitions
• Current State
• Goal State
• Does what is needed to reach and maintain the goal state
• It’s a perfect IT employee!
• Never sleeps
• Doesn’t ever ask for raise
• Always does what you tell it to do in configuration definition and settings

Creating a New Project

Windows Azure Compute

Key Components – Compute

Web Roles Web Front End

• Cloud web server
• Web pages
• Web services

You can create the following types:

• ASP.NET web roles
• ASP.NET MVC 2 web roles
• WCF service web roles
• Worker roles
• CGI-based web roles

Key Components – Compute

Worker Roles

• Utility compute
• Windows Server 2008
• Background processing
• Each role can define an amount of local storage.
• Protected space on the local drive, considered volatile storage.
• May communicate with outside services
• Azure Storage
• SQL Azure
• Other Web services
• Can expose external and internal endpoints

Suggested Application Model

Using queues for reliable messaging

Scalable, Fault Tolerant Applications

Queues are the application glue

• Decouple parts of application, easier to scale independently;
• Resource allocation, different priority queues and backend servers
• Mask faults in worker roles (reliable messaging).

Key Components – Compute

VM Roles

• Customized Role
• You own the box
• How it works:
• Download “Guest OS” to Server 2008 Hyper-V
• Customize the OS as you need to
• Upload the differences VHD
• Azure runs your VM role using
• Base OS
• Differences VHD

Application Hosting

‘Grokking’ the service model

• Imagine white-boarding out your service architecture with boxes for nodes and arrows

describing how they communicate

• The service model is the same diagram written down in a declarative format
• You give the Fabric the service model and the binaries that go with each of those nodes
• The Fabric can provision, deploy and manage that diagram for you
• Find hardware home
• Copy and launch your app binaries
• Monitor your app and the hardware
• In case of failure, take action. Perhaps even relocate your app
• At all times, the ‘diagram’ stays whole

Automated Service Management

Provide code + service model

• Platform identifies and allocates resources, deploys the service, manages

service health

• Configuration is handled by two files

ServiceDefinition.csdef ServiceConfiguration.cscfg

Service Definition

Service Configuration

GUI

Double click on Role Name in Azure Project

Deploying to the cloud

• We can deploy from the portal or from script
• VS builds two files.
• Encrypted package of your code
• Your config file
• You must create an Azure account, then a service, and then

you deploy your code.

• Can take up to 20 minutes
• (which is better than six months)

Service Management API

• REST based API to manage your services
• X509-certs for authentication
• Lets you create, delete, change, upgrade, swap,….
• Lots of community and MSFT-built tools around the API
• Easy to roll your own

The Secret Sauce – The Fabric

The Fabric is the ‘brain’ behind Windows Azure.

• 1. Process service model
• 1. Determine resource requirements
• 2. Create role images
• 2. Allocate resources
• 3. Prepare nodes
• 1. Place role images on nodes
• 2. Configure settings
• 3. Start roles
• 4. Configure load balancers
• 5. Maintain service health
• 1. If role fails, restart the role, based on policy
• 2. If node fails, migrate the role, based on policy

Storage

Durable Storage, At Massive Scale

Blob

• Massive files e.g. videos, logs

Drive

• Use standard file system APIs

Tables

• Non-relational, but with few scale limits
• Use SQL Azure for relational data

Queues

• Facilitate loosely-coupled, reliable, systems

Blob Features and Functions

• Store Large Objects (up to 1TB in size)
• Can be served through Windows

Azure CDN service

• Standard REST Interface
• PutBlob
• Inserts a new blob, overwrites the existing blob
• GetBlob
• Get whole blob or a specific range
• DeleteBlob
• CopyBlob
• SnapshotBlob
• LeaseBlob

Two Types of Blobs Under the Hood

• Block Blob
• Targeted at streaming

workloads

• Each blob consists of a

sequence of blocks

• Each block is identified by a Block ID
• Size limit 200GB per blob
• Page Blob
• Targeted at random read/write

workloads

• Each blob consists of an array
• f pages
• Each page is identified by its offset

from the start of the blob

• Size limit 1TB per blob

Windows Azure Drive

• Provides a durable NTFS volume for Windows Azure

applications to use

• Use existing NTFS APIs to access a durable drive
• Durability and survival of data on application failover
• Enables migrating existing NTFS applications to

the cloud

• A Windows Azure Drive is a Page Blob
• Example, mount Page Blob as X:\
• http://<accountname>.blob.core.windows.net/<containername>/<blobname>
• All writes to drive are made durable to the Page Blob
• Drive made durable through standard Page Blob replication
• Drive persists even when not mounted as a Page Blob

Windows Azure Tables

• Provides Structured Storage
• Massively Scalable Tables
• Billions of entities (rows) and TBs of data
• Can use thousands of servers as traffic grows
• Highly Available & Durable
• Data is replicated several times
• Familiar and Easy to use API
• WCF Data Services and OData
• .NET classes and LINQ
• REST – with any platform or language

Windows Azure Queues

• Queue are performance efficient,

highly available and provide reliable message delivery

• Simple, asynchronous work dispatch
• Programming semantics ensure that a

message can be processed at least

• nce
• Access is provided via REST

Storage Partitioning

Understanding partitioning is key to understanding performance

• Different for each data type (blobs, entities, queues)

Every data object has a partition key

• A partition can be served by a single server
• System load balances partitions based on traffic pattern
• Controls entity locality

Partition key is unit of scale

• Load balancing can take a few minutes to kick in
• Can take a couple of seconds for partition to be available on a different

server

System load balances

• Use exponential backoff on “Server Busy”
• Our system load balances to meet your traffic needs
• Single partition limits have been reached

Server Busy

Partition Keys In Each Abstraction

• Entities w/ same PartitionKey value served from same partition

Entities – TableName + PartitionKey

PartitionKey (CustomerId) RowKey (RowKind) Name CreditCardNumber OrderTotal

1 Customer-John Smith John Smith xxxx-xxxx-xxxx-xxxx 1 Order – 1 $35.12 2 Customer-Bill Johnson Bill Johnson xxxx-xxxx-xxxx-xxxx 2 Order – 3 $10.00

• Every blob and its snapshots are in a single partition

Blobs – Container name + Blob name

• All messages for a single queue belong to the same partition

Messages – Queue Name

Container Name Blob Name image annarbor/bighouse.jpg image foxborough/gillette.jpg video annarbor/bighouse.jpg

Queue Message

jobs Message1 jobs Message2 workflow Message1

Scalability Targets

Storage Account

• Capacity – Up to 100 TBs
• Transactions – Up to a few thousand requests per second
• Bandwidth – Up to a few hundred megabytes per second

Single Queue/Table Partition

• Up to 500 transactions per second

To go above these numbers, partition between multiple storage accounts and partitions When limit is hit, app will see ‘503 server busy’: applications should implement exponential backoff Single Blob Partition

• Throughput up to 60 MB/s

PartitionKey (Category) RowKey (Title) Timestamp ReleaseDate

Action

Fast & Furious … 2009

Action

The Bourne Ultimatum … 2007

…

… … …

Animation

Open Season 2 … 2009

Animation

The Ant Bully … 2006 PartitionKey (Category) RowKey (Title) Timestamp ReleaseDate

Comedy

Office Space … 1999

…

… … …

SciFi

X-Men Origins: Wolverine … 2009

…

… … …

War

Defiance … 2008 PartitionKey (Category) RowKey (Title) Timestamp ReleaseDate Action Fast & Furious … 2009 Action The Bourne Ultimatum … 2007 … … … … Animation Open Season 2 … 2009 Animation The Ant Bully … 2006 … … … … Comedy Office Space … 1999 … … … … SciFi X-Men Origins: Wolverine … 2009 … … … … War Defiance … 2008

Partitions and Partition Ranges

Key Selection: Things to Consider

• Distribute load as much as possible
• Hot partitions can be load balanced
• PartitionKey is critical for scalability

See http://www.microsoftpdc.com/2009/SVC09 and http://azurescope.cloudapp.net for more information

• Avoid frequent large scans
• Parallelize queries
• Point queries are most efficient
• Transactions across a single partition
• Transaction semantics & Reduce round trips

Scalability Query Efficiency & Speed Entity group transactions

Expect Continuation Tokens – Seriously!

Maximum of 1000 rows in a response At the end of partition range boundary

Maximum of 1000 rows in a response At the end of partition range boundary Maximum of 5 seconds to execute the query

Tables Recap

• Efficient for frequently used queries
• Supports batch transactions
• Distributes load

Select PartitionKey and RowKey that help scale Avoid “Append only” patterns Always Handle continuation tokens “OR” predicates are not optimized Implement back-off strategy for retries

• Distribute by using a hash etc. as prefix
• Expect continuation tokens for range queries
• Execute the queries that form the “OR” predicates as separate queries
• Server busy
• Load balance partitions to meet traffic needs
• Load on single partition has exceeded the limits

WCF Data Services

• Use a new context for each logical operation
• AddObject/AttachTo can throw exception if entity is already being tracked
• Point query throws an exception if resource does not exist. Use

IgnoreResourceNotFoundException

Queues

Their Unique Role in Building Reliable, Scalable Applications

• Want roles that work closely together, but are not bound together.
• Tight coupling leads to brittleness
• This can aid in scaling and performance
• A queue can hold an unlimited number of messages
• Messages must be serializable as XML
• Limited to 8KB in size
• Commonly use the work ticket pattern
• Why not simply use a table?

Queue Terminology

Message Lifecycle

Queue Msg 1 Msg 2 Msg 3 Msg 4 Worker Role Worker Role PutMessage Web Role GetMessage (Timeout) RemoveMessage Msg 2 Msg 1 Worker Role Msg 2

POST http://myaccount.queue.core.windows.net/myqueue/messages

HTTP/1.1 200 OK Transfer-Encoding: chunked Content-Type: application/xml Date: Tue, 09 Dec 2008 21:04:30 GMT Server: Nephos Queue Service Version 1.0 Microsoft-HTTPAPI/2.0

<?xml version="1.0" encoding="utf-8"?> <QueueMessagesList> <QueueMessage> <MessageId>5974b586-0df3-4e2d-ad0c-18e3892bfca2</MessageId> <InsertionTime>Mon, 22 Sep 2008 23:29:20 GMT</InsertionTime> <ExpirationTime>Mon, 29 Sep 2008 23:29:20 GMT</ExpirationTime> <PopReceipt>YzQ4Yzg1MDIGM0MDFiZDAwYzEw</PopReceipt> <TimeNextVisible>Tue, 23 Sep 2008 05:29:20GMT</TimeNextVisible> <MessageText>PHRlc3Q+dG...dGVzdD4=</MessageText> </QueueMessage> </QueueMessagesList> DELETE http://myaccount.queue.core.windows.net/myqueue/messages/messageid?popreceipt=YzQ4Yzg1MDI GM0MDFiZDAwYzEw

Truncated Exponential Back Off Polling

• Consider a backoff

polling approach

• Each empty poll

increases interval by 2x

• A successful sets the

interval back to 1.

44

2

1

1

1

C1 C2

Removing Poison Messages

1

1

2

1

3 4

Producers Consumers

P2 P1 3

• 2. GetMessage(Q, 30 s)  msg 2
• 1. GetMessage(Q, 30 s)  msg 1

1

1

2

1

1 2

45

C1 C2

Removing Poison Messages

3

4

Producers Consumers

P2 P1 1

1

2

1

• 2. GetMessage(Q, 30 s)  msg 2
• 3. C2 consumed msg 2
• 4. DeleteMessage(Q, msg 2)
• 7. GetMessage(Q, 30 s)  msg 1
• 1. GetMessage(Q, 30 s)  msg 1
• 5. C1 crashed

1

1

2

1

• 6. msg1 visible 30 s after Dequeue

3 1

2

1

1

1

2

46

C1 C2

Removing Poison Messages

3

4

Producers Consumers

P2 P1 1

2

• 2. Dequeue(Q, 30 sec)  msg 2
• 3. C2 consumed msg 2
• 4. Delete(Q, msg 2)
• 7. Dequeue(Q, 30 sec)  msg 1
• 8. C2 crashed
• 1. Dequeue(Q, 30 sec)  msg 1
• 5. C1 crashed
• 10. C1 restarted
• 11. Dequeue(Q, 30 sec)  msg 1
• 12. DequeueCount > 2
• 13. Delete (Q, msg1)

1

2

• 6. msg1 visible 30s after Dequeue
• 9. msg1 visible 30s after Dequeue

3 1

3

1

2

1

3

Queues Recap

• No need to deal with failures

Make message processing idempotent

• Invisible messages result in out of order

Do not rely on order

• Enforce threshold on message’s dequeue count

Use Dequeue count to remove poison messages

• Messages > 8KB
• Batch messages
• Garbage collect orphaned blobs
• Dynamically increase/reduce workers

Use blob to store message data with reference in message Use message count to scale

• No need to deal with failures
• Invisible messages result in out of order
• Enforce threshold on message’s dequeue count
• Dynamically increase/reduce workers

Windows Azure Storage Takeaways

Blobs Drives Tables Queues

http://blogs.msdn.com/windowsazurestorage/ http://azurescope.cloudapp.net

49

A Quick Exercise

…Then let’s look at some code and some tools

50

Code – AccountInformation.cs

public class AccountInformation { private static string storageKey = “tHiSiSnOtMyKeY"; private static string accountName = "jjstore"; private static StorageCredentialsAccountAndKey credentials; internal static StorageCredentialsAccountAndKey Credentials { get { if (credentials == null) credentials = new StorageCredentialsAccountAndKey(accountName, storageKey); return credentials; } } } }

51

Code – BlobHelper.cs

public class BlobHelper { private static string defaultContainerName = "school"; private CloudBlobClient client = null; private CloudBlobContainer container = null; private void InitContainer() { if (client == null) client = new CloudStorageAccount(AccountInformation.Credentials, false).CreateCloudBlobClient(); container = client.GetContainerReference(defaultContainerName); container.CreateIfNotExist(); BlobContainerPermissions permissions = container.GetPermissions(); permissions.PublicAccess = BlobContainerPublicAccessType.Container; container.SetPermissions(permissions); } }

52

Code – BlobHelper.cs

public void WriteFileToBlob(string filePath) { if (client == null || container == null) InitContainer(); FileInfo file = new FileInfo(filePath); CloudBlob blob = container.GetBlobReference(file.Name); blob.Properties.ContentType = GetContentType(file.Extension); blob.UploadFile(file.FullName); // Or if you want to write a string replace the last line with: // blob.UploadText(someString); // And make sure you set the content type to the appropriate MIME type (e.g. “text/plain”) }

53

Code – BlobHelper.cs

public string GetBlobText(string blobName) { if (client == null || container == null) InitContainer(); CloudBlob blob = container.GetBlobReference(blobName); try { return blob.DownloadText(); } catch (Exception) { // The blob probably does not exist or there is no connection available return null; } }

54

Application Code - Blobs

private void SaveToCloudButton_Click(object sender, RoutedEventArgs e) { StringBuilder buff = new StringBuilder(); buff.AppendLine("LastName,FirstName,Email,Birthday,NativeLanguage,FavoriteIceCream,YearsInPhD,Graduated"); foreach (AttendeeEntity attendee in attendees) { buff.AppendLine(attendee.ToCsvString()); } blobHelper.WriteStringToBlob("SummerSchoolAttendees.txt", buff.ToString()); }

The blob is now available at: http://<AccountName>.blob.core.windows.net/<ContainerName>/<BlobName> Or in this case: http://jjstore.blob.core.windows.net/school/SummerSchoolAttendees.txt

55

Code - TableEntities

using Microsoft.WindowsAzure.StorageClient; public class AttendeeEntity : TableServiceEntity { public string FirstName { get; set; } public string LastName { get; set; } public string Email { get; set; } public DateTime Birthday { get; set; } public string FavoriteIceCream { get; set; } public int YearsInPhD { get; set; } public bool Graduated { get; set; } … }

56

Code - TableEntities

public void UpdateFrom(AttendeeEntity other) { FirstName = other.FirstName; LastName = other.LastName; Email = other.Email; Birthday = other.Birthday; FavoriteIceCream = other.FavoriteIceCream; YearsInPhD = other.YearsInPhD; Graduated = other.Graduated; UpdateKeys(); } public void UpdateKeys() { PartitionKey = "SummerSchool"; RowKey = Email; }

57

Code – TableHelper.cs

public class TableHelper { private CloudTableClient client = null; private TableServiceContext context = null; private Dictionary<string,AttendeeEntity> allAttendees = null; private string tableName = "Attendees"; private CloudTableClient Client { get { if (client == null) client = new CloudStorageAccount(AccountInformation.Credentials, false).CreateCloudTableClient(); return client; } } private TableServiceContext Context { get { if (context == null) context = Client.GetDataServiceContext(); return context; } } }

58

Code – TableHelper.cs

private void ReadAllAttendees() { allAttendees = new Dictionary<string, AttendeeEntity>(); CloudTableQuery<AttendeeEntity> query = Context.CreateQuery<AttendeeEntity>(tableName).AsTableServiceQuery(); try { foreach (AttendeeEntity attendee in query) { allAttendees[attendee.Email] = attendee; } } catch (Exception) { // No entries in table - or other exception } }

59

Code – TableHelper.cs

public void DeleteAttendee(string email) { if (allAttendees == null) ReadAllAttendees(); if (!allAttendees.ContainsKey(email)) return; AttendeeEntity attendee = allAttendees[email]; // Delete from the cloud table Context.DeleteObject(attendee); Context.SaveChanges(); // Delete from the memory cache allAttendees.Remove(email); }

60

Code – TableHelper.cs

public AttendeeEntity GetAttendee(string email) { if (allAttendees == null) ReadAllAttendees(); if (allAttendees.ContainsKey(email)) return allAttendees[email]; return null; }

Remember that this only works for tables (or queries on tables) that easily fit in memory This is one of many design patterns for working with tables

61

Pseudo Code – TableHelper.cs

public void UpdateAttendees(List<AttendeeEntity> updatedAttendees) { foreach (AttendeeEntity attendee in updatedAttendees) { UpdateAttendee(attendee, false); } Context.SaveChanges(SaveChangesOptions.Batch); } public void UpdateAttendee(AttendeeEntity attendee) { UpdateAttendee(attendee, true); } private void UpdateAttendee(AttendeeEntity attendee, bool saveChanges) { if (allAttendees.ContainsKey(attendee.Email)) { AttendeeEntity existingAttendee = allAttendees[attendee.Email]; existingAttendee.UpdateFrom(attendee); Context.UpdateObject(existingAttendee); } else { Context.AddObject(tableName, attendee); } if (saveChanges) Context.SaveChanges(); }

62

Application Code – Cloud Tables

private void SaveButton_Click(object sender, RoutedEventArgs e) { // Write to table tableHelper.UpdateAttendees(attendees); }

That’s it! Now your tables are accessible using REST service calls or any cloud storage tool.

63

Tools – Fiddler2

Best Practices

Picking the Right VM Size

• Having the correct VM size can make a big difference in costs
• Fundamental choice – larger, fewer VMs vs. many smaller instances
• If you scale better than linear across cores, larger VMs could save you money
• Pretty rare to see linear scaling across 8 cores.
• More instances may provide better uptime and reliability (more failures

needed to take your service down)

• Only real right answer – experiment with multiple sizes and instance counts

in order to measure and find what is ideal for you

Using Your VM to the Maximum

Remember:

• 1 role instance == 1 VM running Windows.
• 1 role instance != one specific task for your code
• You’re paying for the entire VM so why not use it?
• Common mistake – split up code into multiple roles, each not using up CPU.
• Balance between using up CPU vs. having free capacity in times of need.
• Multiple ways to use your CPU to the fullest

Exploiting Concurrency

• Spin up additional processes, each with a specific task or as a unit of

concurrency.

• May not be ideal if number of active processes exceeds number of cores
• Use multithreading aggressively
• In networking code, correct usage of NT IO Completion Ports will let the

kernel schedule the precise number of threads

• In .NET 4, use the Task Parallel Library
• Data parallelism
• Task parallelism

Finding Good Code Neighbors

• Typically code falls into one or more of these categories:
• Find code that is intensive with different resources to live together
• Example: distributed network caches are typically network- and memory-

intensive; they may be a good neighbor for storage IO-intensive code

Memory Intensive CPU Intensive Network IO Intensive Storage IO Intensive

Scaling Appropriately

• Monitor your application and make sure you’re scaled appropriately (not over-scaled).
• Spinning VMs up and down automatically is good at large scale.
• Remember that VMs take a few minutes to come up and cost ~$3 a day (give or take) to

keep running.

• Being too aggressive in spinning down VMs can result in poor user experience.
• Trade-off between risk of failure/poor user experience due to not having excess

capacity and the costs of having idling VMs.

Performance Cost

Storage Costs

• Understand an application’s storage profile and how storage

billing works

• Make service choices based on your app profile
• E.g. SQL Azure has a flat fee while Windows Azure Tables charges per transaction.
• Service choice can make a big cost difference based on your app profile
• Caching and compressing. They help a lot with storage costs.

Saving Bandwidth Costs

Bandwidth costs are a huge part of any popular web app’s billing profile Sending fewer things over the wire often means getting fewer things from storage Saving bandwidth costs often lead to savings in

• ther places

Sending fewer things means your VM has time to do other tasks

All of these tips have the side benefit of improving your web app’s performance and user experience

Compressing Content

• 1. Gzip all output content
• All modern browsers can decompress on the fly.
• Compared to Compress, Gzip has much better

compression and freedom from patented algorithms 2.Tradeoff compute costs for storage size 3.Minimize image sizes

• Use Portable Network Graphics (PNGs)
• Crush your PNGs
• Strip needless metadata
• Make all PNGs palette PNGs

Uncompressed Content

Compressed Content

Gzip Minify JavaScript Minify CCS Minify Images

Best Practices Summary

Doing ‘less’ is the key to saving costs Measure everything Know your application profile in and out

Research Examples in the Cloud

…on another set of slides

Map Reduce on Azure

• Elastic MapReduce on Amazon Web Services has traditionally

been the only option for Map Reduce jobs in the web

• Hadoop implementation
• Hadoop has a long history and has been improved for stability
• Originally Designed for Cluster Systems
• Microsoft Research this week is announcing a project code

named Daytona for Map Reduce jobs on Azure

• Designed from the start to use cloud primitives
• Built-in fault tolerance
• REST based interface for writing your own clients

76

Project Daytona - Map Reduce on Azure

http://research.microsoft.com/en-us/projects/azure/daytona.aspx

77

Questions and Discussion…

Thank you for hosting me at the Summer School

BLAST (Basic Local Alignment Search Tool)

• The most important software in bioinformatics
• Identify similarity between bio-sequences

Computationally intensive

• Large number of pairwise alignment operations
• A BLAST running can take 700 ~ 1000 CPU hours
• Sequence databases growing exponentially
• GenBank doubled in size in about 15 months.

It is easy to parallelize BLAST

• Segment the input
• Segment processing (querying) is pleasingly parallel
• Segment the database (e.g., mpiBLAST)
• Needs special result reduction processing

Large volume data

• A normal Blast database can be as large as 10GB
• 100 nodes means the peak storage bandwidth could reach to 1TB
• The output of BLAST is usually 10-100x larger than the input

• Parallel BLAST engine on Azure
• Query-segmentation data-parallel pattern
• split the input sequences
• query partitions in parallel
• merge results together when done
• Follows the general suggested application model
• Web Role + Queue + Worker
• With three special considerations
• Batch job management
• Task parallelism on an elastic Cloud

Wei Lu, Jared Jackson, and Roger Barga, AzureBlast: A Case Study of Developing Science Applications on the Cloud, in Proceedings of the 1st Workshop

• n Scientific Cloud Computing (Science Cloud 2010), Association for Computing Machinery, Inc., 21 June 2010

A simple Split/Join pattern Leverage multi-core of one instance

• argument “–a” of NCBI-BLAST
• 1,2,4,8 for small, middle, large, and extra large instance size

Task granularity

• Large partition  load imbalance
• Small partition  unnecessary overheads
• NCBI-BLAST overhead
• Data transferring overhead.

Best Practice: test runs to profiling and set size to mitigate the overhead

Value of visibilityTimeout for each BLAST task,

• Essentially an estimate of the task run time.
• too small  repeated computation;
• too large  unnecessary long period of waiting time in case of the instance failure.

Best Practice:

• Estimate the value based on the number of pair-bases in the partition and test-runs
• Watch out for the 2-hour maximum limitation

BLAST task Splitting task BLAST task BLAST task BLAST task … Merging Task

Task size vs. Performance

• Benefit of the warm cache effect
• 100 sequences per partition is the best

choice Instance size vs. Performance

• Super-linear speedup with larger size

worker instances

• Primarily due to the memory capability.

Task Size/Instance Size vs. Cost

• Extra-large instance generated the best

and the most economical throughput

• Fully utilize the resource

Web Portal Web Service Job registration Job Scheduler Worker Worker Worker Global dispatch queue Web Role Azure Table Job Management Role Azure Blob Database updating Role … Scaling Engine Blast databases, temporary data, etc.) Job Registry NCBI databases

BLAST task Splitting task BLAST task BLAST task BLAST task … Merging Task

ASP.NET program hosted by a web role instance

• Submit jobs
• Track job’s status and logs

Authentication/Authorization based on Live ID The accepted job is stored into the job registry table

• Fault tolerance, avoid in-memory states

Web Portal Web Service Job registration Job Scheduler

Job Portal

Scaling Engine

Job Registry

• R. palustris as a platform for H2 production

Eric Shadt, SAGE Sam Phattarasukol Harwood Lab, UW

Blasted ~5,000 proteins (700K sequences)

• Against all NCBI non-redundant proteins: completed in 30 min
• Against ~5,000 proteins from another strain: completed in less than 30 sec

AzureBLAST significantly saved computing time…

Discovering Homologs

• Discover the interrelationships of known protein sequences

“All against All” query

• The database is also the input query
• The protein database is large (4.2 GB size)
• Totally 9,865,668 sequences to be queried
• Theoretically, 100 billion sequence comparisons!

Performance estimation

• Based on the sampling-running on one extra-large Azure instance
• Would require 3,216,731 minutes (6.1 years) on one desktop

One of biggest BLAST jobs as far as we know

• This scale of experiments usually are infeasible to most scientists

• Allocated a total of ~4000 instances
• 475 extra-large VMs (8 cores per VM), four datacenters, US (2), Western and North Europe
• 8 deployments of AzureBLAST
• Each deployment has its own co-located storage service
• Divide 10 million sequences into multiple segments
• Each will be submitted to one deployment as one job for execution
• Each segment consists of smaller partitions
• When load imbalances, redistribute the load manually

5 62 6 2 6 2 6 2 6 2 5 62

• Total size of the output result is ~230GB
• The number of total hits is 1,764,579,487
• Started at March 25th, the last task completed on April 8th (10 days compute)
• But based our estimates, real working instance time should be 6~8 day
• Look into log data to analyze what took place…

5 62 6 2 6 2 6 2 6 2 5 62

A normal log record should be Otherwise, something is wrong (e.g., task failed to complete)

3/31/2010 6:14 RD00155D3611B0 Executing the task 251523... 3/31/2010 6:25 RD00155D3611B0 Execution of task 251523 is done, it took 10.9mins 3/31/2010 6:25 RD00155D3611B0 Executing the task 251553... 3/31/2010 6:44 RD00155D3611B0 Execution of task 251553 is done, it took 19.3mins 3/31/2010 6:44 RD00155D3611B0 Executing the task 251600... 3/31/2010 7:02 RD00155D3611B0 Execution of task 251600 is done, it took 17.27 mins 3/31/2010 8:22 RD00155D3611B0 Executing the task 251774... 3/31/2010 9:50 RD00155D3611B0 Executing the task 251895... 3/31/2010 11:12 RD00155D3611B0 Execution of task 251895 is done, it took 82 mins

North Europe Data Center, totally 34,256 tasks processed

All 62 compute nodes lost tasks and then came back in a group. This is an Update domain

~30 mins ~ 6 nodes in one group

35 Nodes experience blob writing failure at same time

West Europe Datacenter; 30,976 tasks are completed, and job was killed

A reasonable guess: the Fault Domain is working

MODISAzure : Computing Evapotranspiration (ET) in The Cloud

You never miss the water till the well has run dry

Irish Proverb

ET = Water volume evapotranspired (m3 s-1 m-2) Δ = Rate of change of saturation specific humidity with air temperature.(Pa K-1) λv = Latent heat of vaporization (J/g) Rn = Net radiation (W m-2) cp = Specific heat capacity of air (J kg-1 K-1) ρa = dry air density (kg m-3) δq = vapor pressure deficit (Pa) ga = Conductivity of air (inverse of ra) (m s-1) gs = Conductivity of plant stoma, air (inverse of rs) (m s-1) γ = Psychrometric constant (γ ≈ 66 Pa K-1)

Estimating resistance/conductivity across a catchment can be tricky

• Lots of inputs: big data reduction
• Some of the inputs are not so simple

𝐹𝑈 = ∆𝑆𝑜 + 𝜍𝑏 𝑑𝑞 𝜀𝑟 𝑕𝑏 (∆ + 𝛿 1 + 𝑕𝑏 𝑕𝑡 )𝜇𝜑

Penman-Monteith (1964)

Evapotranspiration (ET) is the release of water to the atmosphere by evaporation from

• pen water bodies and transpiration, or evaporation through plant membranes, by plants.

NASA MODIS imagery source archives 5 TB (600K files) FLUXNET curated sensor dataset (30GB, 960 files) FLUXNET curated field dataset 2 KB (1 file) NCEP/NCAR ~100MB (4K files) Vegetative clumping ~5MB (1file) Climate classification ~1MB (1file) 20 US year = 1 global year

Data collection (map) stage

• Downloads requested input tiles

from NASA ftp sites

• Includes geospatial lookup for

non-sinusoidal tiles that will contribute to a reprojected sinusoidal tile

Reprojection (map) stage

• Converts source tile(s) to

intermediate result sinusoidal tiles

• Simple nearest neighbor or spline

algorithms

Derivation reduction stage

• First stage visible to scientist
• Computes ET in our initial use

Analysis reduction stage

• Optional second stage visible to

scientist

• Enables production of science

analysis artifacts such as maps, tables, virtual sensors

Reduction #1 Queue Source Metadata

AzureMODIS Service Web Role Portal

Request Queue Scientific Results Download

Data Collection Stage Source Imagery Download Sites . . .

Reprojection Queue Reduction #2 Queue Download Queue

Scientists Science results Analysis Reduction Stage Derivation Reduction Stage Reprojection Stage

http://research.microsoft.com/en-us/projects/azure/azuremodis.aspx

• ModisAzure Service is the Web

Role front door

• Receives all user requests
• Queues request to appropriate

Download, Reprojection, or Reduction Job Queue

• Service Monitor is a dedicated

Worker Role

• Parses all job requests into tasks –

recoverable units of work

• Execution status of all jobs and

tasks persisted in Tables

<PipelineStage> Request

…

<PipelineStage>JobStatus Persist <PipelineStage>Job Queue MODISAzure Service (Web Role) Service Monitor (Worker Role) Parse & Persist <PipelineStage>TaskStatus

…

Dispatch <PipelineStage>Task Queue

All work actually done by a Worker Role

• Sandboxes science or other

executable

• Marshalls all storage from/to Azure

blob storage to/from local Azure Worker instance files

Service Monitor (Worker Role) Parse & Persist <PipelineStage>TaskStatus GenericWorker (Worker Role)

…

…

Dispatch <PipelineStage>Task Queue

…

<Input>Data Storage

• Dequeues tasks created by the

Service Monitor

• Retries failed tasks 3 times
• Maintains all task status

Reprojection Request

…

Service Monitor (Worker Role) ReprojectionJobStatus Persist Parse & Persist ReprojectionTaskStatus GenericWorker (Worker Role)

…

Job Queue

…

Dispatch Task Queue Points to

…

ScanTimeList SwathGranuleMeta Reprojection Data Storage

Each entity specifies a single reprojection job request Each entity specifies a single reprojection task (i.e. a single tile) Query this table to get geo-metadata (e.g. boundaries) for each swath tile Query this table to get the list of satellite scan times that cover a target tile

Swath Source Data Storage

• Computational costs

driven by data scale and need to run reduction multiple times

• Storage costs driven by

data scale and 6 month project duration

• Small with respect to

the people costs even at graduate student rates !

Reduction #1 Queue Source Metadata Request Queue Scientific Results Download

Data Collection Stage Source Imagery Download Sites . . .

Reprojection Queue Reduction #2 Queue Download Queue

Scientists Analysis Reduction Stage Derivation Reduction Stage Reprojection Stage 400-500 GB 60K files 10 MB/sec 11 hours <10 workers $50 upload $450 storage 400 GB 45K files 3500 hours 20-100 workers 5-7 GB 5.5K files 1800 hours 20-100 workers <10 GB ~1K files 1800 hours 20-100 workers $420 cpu $60 download $216 cpu $1 download $6 storage $216 cpu $2 download $9 storage AzureMODIS Service Web Role Portal Total: $1420

• Clouds are the largest scale computer centers ever constructed and have the

potential to be important to both large and small scale science problems.

• Equally import they can increase participation in research, providing needed

resources to users/communities without ready access.

• Clouds suitable for “loosely coupled” data parallel applications, and can

support many interesting “programming patterns”, but tightly coupled low- latency applications do not perform optimally on clouds today.

• Provide valuable fault tolerance and scalability abstractions
• Clouds as amplifier for familiar client tools and on premise compute.
• Clouds services to support research provide considerable leverage for both

individual researchers and entire communities of researchers.
