Weekly DUNE SP Detector Integration Engineering Meeting Slides 11/06/18 Kyle Zeug Solid model goals, strategy and methods NS Section Four Corner Detail EW Section Four Corner Detail TPC Solid Model: Goals Verify the

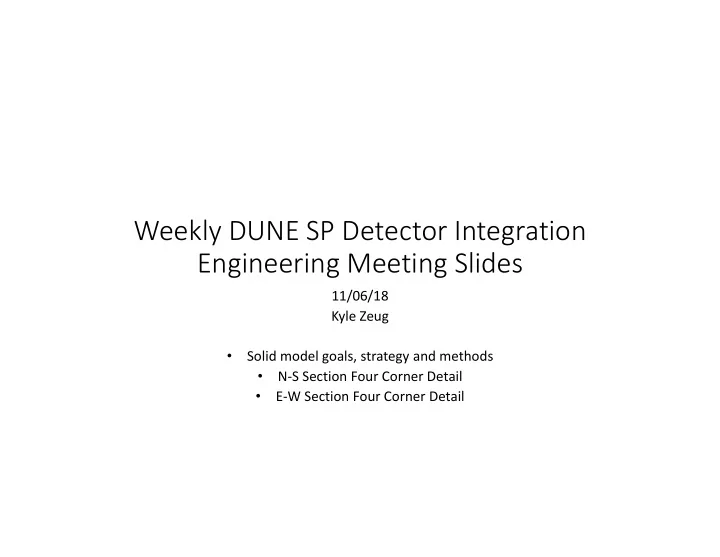

  1. Weekly DUNE SP Detector Integration Engineering Meeting Slides 11/06/18 Kyle Zeug • Solid model goals, strategy and methods • N‐S Section Four Corner Detail • E‐W Section Four Corner Detail

  2. TPC Solid Model: Goals • Verify the TPC meets all requirements from the science community • Driver of interface drawings • Understand changes and additions so they can be implemented as designs become final • Single source for tracking detailed design of assemblies from all organizations • Identify and correct fit and clearance issues prior to cutting material • Maintain an appropriate level of detail that is specific to integration and installation. File size and processing time must not be prohibitive

  3. TPC Solid Model: Strategy • Begin with defined bounds of the cryostat • TPC installation will occur at the warm state and the TPC model reflects this • Add TPC components as designs progress and become available • Update TPC components as designs progress • Constraints are created in a manner that is consistent with component installation

  4. TPC Solid Model: Strategy • Constraints are added if they can be backed up by sound engineering judgement • The reference dimension tool allows notes to be added at undefined locations. Examples: • Row of APA stack assemblies distance to cryostat. (note end walls are not currently included in the model) • Service floor distance to vertical piping • The intent is to limit assumptions • As definition is added undefined reference dimensions will be removed

  5. TPC Solid Model: Methods • To keep file size and processing time reasonable one cell of the TPC will be modeled with higher detail • Repeating cells will be represented by models with less detail • Features that are critical to installation and integration must be shown. Examples: • SHV on APA stack assembly • Latches

  6. Corner Details: End to End Upper Right Upper Left Lower Left Lower Right

  7. End to End: Upper Left

  8. End to End: Upper Right

  9. End to End: Lower Right

  10. End to End: Lower Left

  11. End to End: Oblique Left

  12. End to End: Oblique Lower Left

  13. Corner Details: Side to Side Upper Left Upper Right Lower Left Lower Right

  14. Side to Side: Upper Left

  15. Side to Side: Upper Right

  16. Side to Side: Lower Right

  17. Side to Side: Lower Left

  18. Other Thoughts • Inside dimension between top and bottom field cage profiles = 12,100mm • CPA top to bottom hinge = 11,947.3mm
