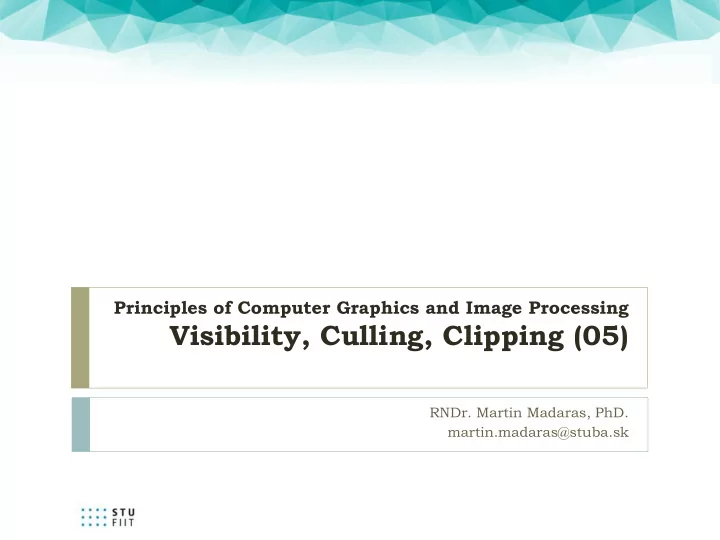

SLIDE 1
Principles of Computer Graphics and Image Processing
Visibility, Culling, Clipping (05)
- RNDr. Martin Madaras, PhD.
martin.madaras@stuba.sk
2
Visibility, Culling, Clipping (05) RNDr. Martin Madaras, PhD. - - PowerPoint PPT Presentation
Visibility, Culling, Clipping (05) RNDr. Martin Madaras, PhD. - - PowerPoint PPT Presentation
Principles of Computer Graphics and Image Processing Visibility, Culling, Clipping (05) RNDr. Martin Madaras, PhD. martin.madaras@stuba.sk Overview Clipping Point Clipping Line Clipping Polygon Clipping Hidden Surface Removal
SLIDE 2
SLIDE 3
3D rendering pipeline
3
3D polygons Modeling Transformation Lighting Viewing Transformation Projection Transformation Clipping Scan Conversion 2D Image
1
Rasterization (05)
Clip polygons outside of camera’s view
SLIDE 4
4
- Ask questions, please!!!
- Be communicative
- www.slido.com #PPGSO05
- More active you are, the better for you!
How the lectures should look like #1
SLIDE 5
2D rendering pipeline
5
2D geometry Clipping Viewport Transformation Scan Conversion 2D Image
Clip and remove geometry outside of the
window
Transform from screen coordinates to image
coordinates
Fill pixels on the screen
SLIDE 6
2D rendering pipeline
6
2D geometry Clipping Viewport Transformation Scan Conversion 2D Image
Clip and remove geometry outside of the
window
Transform from screen coordinates to image
coordinates
Fill pixels on the screen
SLIDE 7
7
Avoid drawing parts of primitives outside window
Window defines part of scene being viewed Must draw geometric primitives only inside window
Screen Coordinates
Clipping
SLIDE 8
8
Avoid drawing parts of primitives outside window
Window defines part of scene being viewed Must draw geometric primitives only inside window
Clipping
SLIDE 9
9
Avoid drawing parts of primitives outside window
Points, Lines, Polygons, Circles etc.
Clipping
SLIDE 10
10
Is point (x,y) inside clip window ?
Point Clipping
SLIDE 11
11
Find the part of a line inside the clip window Before Clipping
Line Clipping
SLIDE 12
12
Find the part of a line inside the clip window After Clipping
Line Clipping
SLIDE 13
13
Use simple test to classify easy cases first Danny Cohen, Ivan Sutherland 1967
Cohen-Shutherland Line Clipping
SLIDE 14
14
Classify lines quickly by AND of bit codes representing
regions of two endpoints (test for 0)
Cohen-Shutherland Line Clipping
SLIDE 15
15
Classify lines quickly by AND of bit codes representing
regions of two endpoints (test for 0)
Cohen-Shutherland Line Clipping
SLIDE 16
16
Classify lines quickly by AND of bit codes representing
regions of two endpoints (test for 0)
Cohen-Shutherland Line Clipping
SLIDE 17
17
Compute intersections with window boundary for
remaining lines
Cohen-Shutherland Line Clipping
SLIDE 18
18
Intersect with boundary determined by the bits of the
non zero point
Cohen-Shutherland Line Clipping
SLIDE 19
19
Create new point on the boundary
Cohen-Shutherland Line Clipping
SLIDE 20
20
Check using the AND operation again
Cohen-Shutherland Line Clipping
SLIDE 21
21
Do the same for the next line
Cohen-Shutherland Line Clipping
SLIDE 22
22
Clip using the boundary determined by P7
Cohen-Shutherland Line Clipping
SLIDE 23
23
Clip using the boundary determined by P7
Cohen-Shutherland Line Clipping
SLIDE 24
24
Clip using the boundary determined by P8
Cohen-Shutherland Line Clipping
SLIDE 25
25
Test the line again using AND
Cohen-Shutherland Line Clipping
SLIDE 26
26
Again for the last line
Cohen-Shutherland Line Clipping
SLIDE 27
27
P9 AND P10 no longer zero
Cohen-Shutherland Line Clipping
SLIDE 28
28
Final result
Cohen-Shutherland Line Clipping
SLIDE 29
29
Find the part of a polygon inside the clip window? Before Clipping
Polygon Clipping
SLIDE 30
30
Find the part of a polygon inside the clip window? After Clipping
Polygon Clipping
SLIDE 31
31
Clip to each window boundary one at a time
Sutherland–Hodgman Clipping
SLIDE 32
32
Clip to each window boundary one at a time
Sutherland–Hodgman Clipping
SLIDE 33
33
Clip to each window boundary one at a time
Sutherland–Hodgman Clipping
SLIDE 34
34
Clip to each window boundary one at a time
Sutherland–Hodgman Clipping
SLIDE 35
35
Clip to each window boundary one at a time
Sutherland–Hodgman Clipping
SLIDE 36
36
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 37
37
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 38
38
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 39
39
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 40
40
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 41
41
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 42
42
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 43
43
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 44
44
Do inside test for each point in sequence Insert new points when crossing the boundary Remove points outside of boundary
Clipping to a Boundary
SLIDE 45
2D rendering pipeline
45
2D geometry Clipping Viewport Transformation Scan Conversion 2D Image
Clip and remove geometry outside of the
window
Transform from screen coordinates to image
coordinates
Fill pixels on the screen
SLIDE 46
46
Window to viewport mapping
Viewport Transformation
SLIDE 47
47
Clipping
Point Clipping Line Clipping Polygon Clipping
Hidden Surface Removal
Overview
SLIDE 48
48
wireframe model front faces silhouette visible faces, edges
Visibility
SLIDE 49
49
Surfaces may be back-facing Surfaces may be occluded Surfaces may overlap in the image plane Surfaces may intersect
Motivation
SLIDE 50
3D rendering pipeline
50
3D polygons Modeling Transformation Lighting Viewing Transformation Projection Transformation Clipping Scan Conversion 2D Image
1
Somewhere here we have to determine
which objects are visible and which are hidden
SLIDE 51
51
Clipping
Point Clipping Line Clipping Polygon Clipping
Hidden Surface Removal
Basic algorithms for HSR
SLIDE 52
52
Get rid of objects that are surely not visible Frustum culling Occlusion culling Back-face culling
Optimizing visibility
SLIDE 53
53
6 planes
Inside = visible volume
Is a point is inside? Object
bounding box
Speed up
Frustum culling
SLIDE 54
54
Some objects are fully occluded by others Spatial relations between objects Portals, occlusion culling Realtime rendering
Occlusion culling
SLIDE 55
55
Which object faces are visible? Remember normal vector (face orientation)
Back-face culling
SLIDE 56
56
Some parts of the scene
are not visible from some
- ther parts of the scene
Portal culling
SLIDE 57
57
Optimizing visibility
SLIDE 58
58
Back-face culling Depth sort Z-Buffer
Basic algorithms for HSR
SLIDE 59
59
How do we test back-facing polygons ? Dot product the normal and view direction
Back-face culling
𝑂•V > 0
SLIDE 60
60
Normal
Cross product of surface tangent vectors Length normalized to 1
Surface Normals
SLIDE 61
61
Dot product the normal and view direction Fragment normals can be interpolated from vertex normals
Vertex / Fragment Normals
SLIDE 62
3D rendering pipeline
62
3D polygons Modeling Transformation Lighting Viewing Transformation Projection Transformation Clipping Scan Conversion 2D Image
1
Back-face culling Remove all polygons that are back-facing
SLIDE 63
63
“Painter’s algorithm” Sort surfaces by maximum depth Draw surfaces in back to front order
Depth sort
SLIDE 64
64
Sort faces in a back-to-front order, render New pixels over-write
- ld pixels
Painter’s algorithm
SLIDE 65
65
Intersecting faces Cyclically overlapping faces Redundant rendering
Painter’s algorithm problems
SLIDE 66
3D rendering pipeline
66
3D polygons Modeling Transformation Lighting Viewing Transformation Projection Transformation Clipping Scan Conversion 2D Image
1
Sorting is often O(n log n) Usually software only Mostly using BSP-trees
Depth sort
SLIDE 67
67
Warnock algorithm
subdivide screen into a quadtree until
whole cell empty or whole cell inside polygons
Reversed painter’s algorithm
paint front-to-back and paint only empty areas
Z-buffer
remember z-value for each pixel and only paint when new z is
higher
Other algorithms
SLIDE 68
68
Also known as depth buffering Stores closest depth of objects for every pixel
Draw only pixels with less depth Depths are interpolated between vertices
Z-Buffer
SLIDE 69
69
works in screen space z-buffer w×h
for each 0≤x≤w,0≤y≤h: z-buffer[x,y] ←
zmin for each face: rasterize it into pixels {x,y,z} for each face’s pixel (x,y,z): if z > z-buffer[x,y] then : z-buffer[x,y] ← z and screen[x,y] ← face color
Z-Buffer
SLIDE 70
70
GPU support precision issues might occur z-buffer test before per-pixel-lighting or pixel shading
saves a lot of redundant work
memory demands (width×height×precision)
can be reduced by scanline (width×1×precision)
Z-buffer pros and cons
SLIDE 71
71
Z-Buffer
SLIDE 72
3D rendering pipeline
72
3D polygons Modeling Transformation Lighting Viewing Transformation Projection Transformation Clipping Scan Conversion 2D Image
1
Sorting not needed Excellent for hardware Requires additional memory to store
the depth values
Subject to aliasing Z-Buffer
SLIDE 73
73
Can be solved in different ways
Painter’s algorithm / Depth sort
Binary space partitioning (BSP) Warnock algorithm (Quadtree)
Z-buffering Raycasting / Raytracing
Visibility
SLIDE 74
74
Viewing-frustum culling Back-face culling Contribution culling (LoD) Occlusion culling
Potentially visible set (PVS) Portal rendering
Culling
SLIDE 75
75
T extures and Mappings
Next Week
SLIDE 76
76
Acknowledgements
Thanks to all the people, whose work is shown here and whose
slides were used as a material for creation of these slides:
Matej Novotný, GSVM lectures at FMFI UK Peter Drahoš, PPGSO lectures at FIIT STU
