Unit 16 Computer Organization and Instruction Sets 16.2 You Can - PowerPoint PPT Presentation

16.1 Unit 16 Computer Organization and Instruction Sets 16.2 You Can Do That Cloud & Distributed Computing Scripting & (CyberPhysical, Databases, Data Networked Interfaces Mining,etc.) Applications Applications SW (AI,

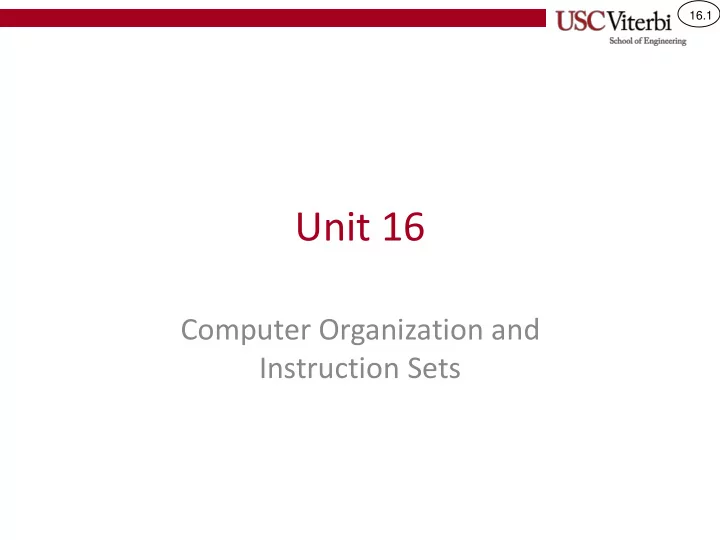

  1. 16.1 Unit 16 Computer Organization and Instruction Sets

  2. 16.2 You Can Do That… Cloud & Distributed Computing Scripting & (CyberPhysical, Databases, Data Networked Interfaces Mining,etc.) Applications Applications SW (AI, Robotics, Graphics, Mobile) Applications C / C++ / Java Systems & Networking OS Libraries (Embedded Systems, Networks) Assembly / Machine Code Processor / Memory / I/O Architecture (Processor & Embedded HW) Functional Units (Registers, Adders, Muxes) Where we will head now… HW Logic Gates Devices & Integrated Circuits (Semiconductors & Fabrication) Transistors Voltage / Currents

  3. 16.3 Motivation • Now that you have some understanding… – Of how hardware is designed and works – Of how software can be used to control hardware • We will look at how to improve efficiency of computer systems and software so that… – …we can start to understand why HW companies create the structures they do (multicore processors) – …we can begin to intelligently take advantage of the capabilities the HW gives us – …we can start to understand why SW companies deal with some of the issues they do (efficiencies, etc.)

  4. 16.4 Computer Organization • Three primary sets of components – Processor – Memory – I/O (everything else) • Tell us where things live? – Running code – Compiled program (not running) – Circuitry to execute code – Source code file – Data variables – Data for the pixels being displayed on your screen

  5. 16.5 Input / Output • Processor performs reads and writes to communicate with I/O devices just as it does with memory – I/O devices have locations (i.e. registers ) that contain data that the processor can access – These registers are assigned unique addresses just like memory Processor Memory 0 … 3FF A D C Video Interface 800 FE may FE 800 FE signify a WRITE … white dot at 01 a particular location ‘a’ = 61 hex Keyboard in ASCII Interface This could just as easily be the command and data register from 400 61 the LCD shield… Or the PORT/DDR registers.

  6. 16.6 Processor • 3 Primary Components inside a processor – ALU – Registers – Control Circuitry • Connects to memory and I/O via address , data , and control buses ( bus = group of wires) Bus Processor Memory Addr 0 1 2 Data 3 4 5 Control 6

  7. 16.7 Arithmetic and Logic Unit (ALU) • Executes arithmetic operations like addition and subtraction along with logical operations (AND, OR, etc.) Processor Memory Addr 0 op. 1 ALU 2 ADD, out in1 SUB, Data 3 AND, 4 in2 OR 5 Control 6

  8. 16.8 Registers • Some are for general use by software – Registers provide fast, temporary storage locations within the processor (to avoid having to read/write slow memory) • Others are required for specific purposes to ensure proper operation of the hardware Processor Memory PC Addr 0 op. 1 ALU 2 ADD, out in1 SUB, Data 3 AND, 4 in2 OR 5 R0-R15 Control 6

  9. 16.9 General Purpose Registers • Registers available to software instructions for use by the programmer/compiler • Instructions use these registers as inputs (source locations) and outputs (destination locations) Processor Memory PC Addr 0 op. 1 ALU 2 ADD, out in1 SUB, Data 3 AND, 4 in2 OR 5 R0-R15 Control 6

  10. 16.10 What if we didn’t have registers? • Example w/o registers: F = (X+Y) – (X*Y) – Requires an ADD instruction, MULtiply instruction, and SUBtract Instruction – w/o registers • ADD: Load X and Y from memory, store result to memory • MUL: Load X and Y again from mem., store result to memory • SUB: Load results from ADD and MUL and store result to memory • 9 memory accesses Processor Memory PC Addr 0 X op. 1 Y ALU 2 ADD, out in1 SUB, Data 3 F AND, 4 in2 OR 5 R0-R15 Control 6

  11. 16.11 What if we have registers? • Example w/ registers: F = (X+Y) – (X*Y) – Load X and Y into registers – ADD: R0 + R1 and store result in R2 – MUL: R0 * R1 and store result in R3 – SUB: R2 – R3 and store result in R4 – Store R4 back to memory – 3 total memory access Processor Memory PC Addr 0 X op. 1 Y ALU 2 X ADD, out in1 SUB, Y Data 3 F AND, 4 in2 OR 5 R0-R15 Control 6

  12. 16.12 Other Registers • Some bookkeeping information is needed to make the processor operate correctly • Example: Program Counter (PC) – Recall that the processor must fetch instructions from memory before decoding and executing them – PC register holds the address of the currently executing instruction Processor Memory PC Addr 0 op. 1 ALU 2 ADD, out in1 SUB, Data 3 AND, 4 in2 OR 5 R0-R15 Control 6

  13. 16.13 Fetching an Instruction • To fetch an instruction – PC contains the address of the instruction – The value in the PC is placed on the address bus and the memory is told to read – The PC is incremented, and the process is repeated for the next instruction Processor Memory PC = Addr = 0 0 PC Addr 0 inst. 1 op. 1 inst. 2 ALU Data = inst.1 machine code 2 inst. 3 ADD, out in1 SUB, Data 3 inst. 4 AND, 4 inst. 5 in2 OR Control = Read … R0-R15 Control FF

  14. 16.14 Fetching an Instruction • To fetch an instruction – PC contains the address of the instruction – The value in the PC is placed on the address bus and the memory is told to read – The PC is incremented, and the process is repeated for the next instruction Processor Memory PC = Addr = 1 1 PC Addr 0 inst. 1 op. 1 inst. 2 ALU Data = inst.2 machine code 2 inst. 3 ADD, out in1 SUB, Data 3 inst. 4 AND, 4 inst. 5 in2 OR Control = Read … R0-R15 Control FF

  15. 16.15 Control Circuitry • Control circuitry is used to decode the instruction and then generate the necessary signals to complete its execution • Controls the ALU • Selects registers to be used as source and destination locations (using muxes) Processor Memory 0 PC Addr Control 0 inst. 1 op. 1 inst. 2 ALU 2 inst. 3 ADD, out in1 SUB, Data 3 inst. 4 AND, 4 inst. 5 in2 OR … R0-R15 Control FF

  16. 16.16 Control Circuitry • Assume 0x0201 is machine code for an ADD instruction of R2 = R0 + R1 • Control Logic will… – select the registers (R0 and R1) – tell the ALU to add – select the destination register (R2) Processor Memory 0 0 PC Addr Control 0 0201 ADD 1 inst. 2 0201 2 inst. 3 out ALU in1 Data 3 inst. 4 ADD 4 inst. 5 in2 … R0-R15 Control FF

  17. 16.17 INSTRUCTION SETS

  18. 16.18 INSTRUCTION SET OVERVIEW

  19. 16.19 Instruction Sets • Defines the software interface of the processor and memory system • Instruction set is the vocabulary the HW processor can understand and the SW is composed with – Usually the compiler is the one that translates the software • Most assembly/machine instructions fall into one of three categories – Arithmetic/Logic – Data Transfer (to and from memory) – Control (branch, subroutine call, etc.)

  20. 16.20 Instruction Set Architecture (ISA) • 2 approaches – CISC = Complex instruction set computer • Large, rich vocabulary • More work per instruction, slower clock cycle – RISC = Reduced instruction set computer • Small, basic, but sufficient vocabulary • Less work per instruction, faster clock cycle • Usually a simple and small set of instructions with regular format facilitates building faster processors

  21. 16.21 Historical Instruction Format Options • Instruction sets limit the number of operands used in an instruction due to… – To limit the complexity of the hardware – So that when an instruction is coded to binary it can fit in a certain # of bits • Different instruction sets specify these differently – 3 operand instruction set (ARM, PPC) -> (32-bit processors) • Usually all 3 operands in registers • Format: ADD DST, SRC1, SRC2 (DST = SRC1 + SRC2) – 2 operand instructions (Intel / Motorola 68K) • Second operand doubles as source and destination • Format: ADD SRC1, S2/D (S2/D = SRC1 + S2/D) – 1 operand instructions (Low-End Embedded, Java Virtual Machine) • Implicit operand to every instruction usually known as the Accumulator (or ACC) register • Format: ADD SRC1 (ACC = ACC + SRC1) – 0 operand instructions / stack architecture • Push operands on a stack: PUSH X, PUSH Y • ALU operation: ADD (Implicitly adds top two items on stack: X + Y & replaces them with the sum)

  22. 16.22 General Instruction Format Issues • Consider the high-level code – F = X + Y – Z – G = A + B • Simple embedded computers often use single operand format – Smaller data size (8-bit or 16-bit machines) means limited instruction size • Modern, high performance processors (Intel, ARM) use 2- and 3-operand formats Three-Operand Two-Operand Single-Operand Stack Arch. ADD F,X,Y MOVE F,X LOAD X PUSH Z SUB F,F,Z ADD F,Y ADD Y PUSH Y ADD G,A,B SUB F,Z SUB Z SUB MOVE G,A STORE F PUSH X ADD G,B LOAD A ADD ADD B POP F STORE G (+) More natural (+) Smaller size to program style encode each instruction (+) Smaller instruction count
