THRUST VECTOR Embrace Opportunity, Create Reality Western Sydney - PowerPoint PPT Presentation

THRUST VECTOR Embrace Opportunity, Create Reality Western Sydney Regional Competition, Engineering Presentation THRUST VECTOR Embrace Opportunity, Create Reality CAD SELECTION OF CAD SOFTWARE OnShape Cloud Based, Everyone Can Access

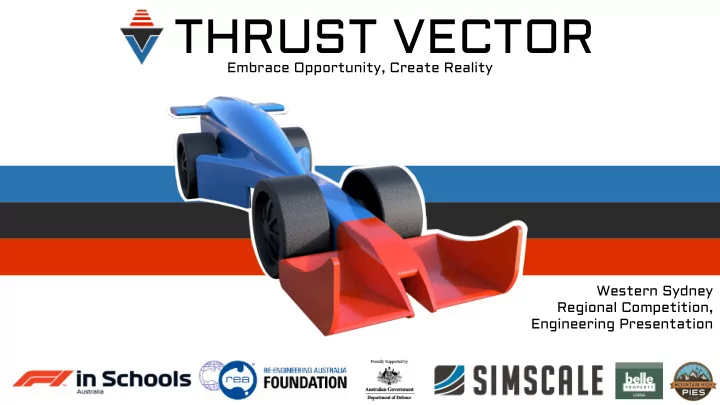

  1. THRUST VECTOR Embrace Opportunity, Create Reality Western Sydney Regional Competition, Engineering Presentation

  2. THRUST VECTOR Embrace Opportunity, Create Reality CAD

  3. SELECTION OF CAD SOFTWARE ➔ OnShape ➔ Cloud Based, Everyone Can Access It ➔ Powerful Parametric Modelling ➔ Compatible With Other Programs ➔ Quality STL And STEP Exporting ➔ Automatic Saving ➔ Mobile Versions

  4. CAR DESIGN REQUIREMENTS ➔ Easily Assembled ➔ Lightweight ➔ Aerodynamically Streamlined ➔ Reduce Rolling Resistance ➔ Reduce Skin Friction ➔ Reduce The Low Pressure Void ➔ Comply With Regulations

  5. CAD APPLICATION ➔ 2D Sketches- With Dimensions/Constraints ➔ 3D Geometry - Extrudes, Revolves, Lofts ➔ Refinement - Fillets And Chamfers

  6. CAD APPLICATION ➔ Assemblies - Mate Connections, Orientation, Exploded Views ➔ Technical Drawings - Labelling, Formatting ➔ Rendering - Material, Lighting, Size

  7. CAD ORGANISATION ➔ Named Tabs & Workspaces ➔ Version Control ➔ Shared With Team Members & Teacher ➔ All Can Access Up To Date Files

  8. CAD BASED ANALYSIS ➔ Regulations Checks ➔ Volume/Mass Checks ➔ Virtual Cargo Placement ➔ Computational Fluid Dynamics

  9. CAD BASED ANALYSIS - CFD ➔ SimScale ➔ Works Directly With OnShape ➔ Justified Breaking Regulation T4.3 ➔ TVC2 had 0.575 newtons of drag, while TVC4 had 0.344 newtons of drag.

  10. THRUST VECTOR Embrace Opportunity, Create Reality CAM

  11. SELECTION OF CAM SOFTWARE ➔ Deskproto ➔ Produces G-Code Using STL Files ➔ Compatible With All CAD Programs ➔ Works With Multiple Types Of CNC Machines

  12. APPLICATION OF CAM/CNC ➔ Use Of A Machining Support Block ➔ Top/Underside Cutting ➔ Cut Along X Axis ➔ Took Off 2mm Per Pass ➔ Roughing Set To 0 ➔ Expanded Border To Make Sure The Edges Were Machined ➔ Roughly 30 Minutes Per Side

  13. CAR BODY MANUFACTURING ➔ Used Custom Jig ➔ Fitted Block To Jig ➔ Wedged Wood & Plastic To Stop Block Rotation ➔ Manually Position Cutter To Origin ➔ Load G-Code ➔ Start ➔ Repeat Above For Other Side ➔ Collect Rear Wings ➔ Glue On Rear Wings

  14. FRONT WING MANUFACTURING ➔ 3D Printing ➔ Load STL Into Software ➔ Configure Print Settings To 5% Fill Density & Export ➔ Transfer To Printer Via SD ➔ Begun Printing With ABS ➔ Warped & Ruined Print ➔ Used PLA Instead

  15. OTHER MANUFACTURING ➔ Cut Carbon Fibre Axles ➔ Put On Tether Line Guides ➔ Inserted Grommets ➔ Wheels Glued Onto Axles ➔ Sanded Sprues Off Wheels ➔ Constantly Weighed Cars ➔ Checked Cars With Manufacturing Tools We Produced

  16. TOLERANCING/QUALITY CONTROL ➔ CAD Design Accounted For Error ➔ Check Regulations Before Manufacturing ➔ Collaboration Between Design & Manufacturing Engineers ➔ Select Block With Most Optimum Mass ➔ Constantly Weighed Car ➔ Check Deskproto For Errors ➔ Check 3D Printing Software For Errors ➔ Run ‘Air Test’ Of Beginning Of CNC Process

  17. SURFACE FINISH ➔ Hand Sanding, To Remove Machining Marks ➔ Wood Filler, To Fill Dents & Divots ➔ Spray Putty/Primer, For Smooth Finish ➔ 2-4 Coats Of Paint, For Desired Finish & Mass

  18. THRUST VECTOR Embrace Opportunity, Create Reality Western Sydney Regional Competition, Engineering Presentation
