+ TEAK Traveling Engineering Activity Kits Heat Transfer Picture - PowerPoint PPT Presentation

Oct 26, 2022 •285 likes •368 views

+ TEAK Traveling Engineering Activity Kits Heat Transfer Picture Presentation + Conduction Conduction is heat transfer through direct contact. + Convection Convection is heat transfer between a solid object and the liquid or gas

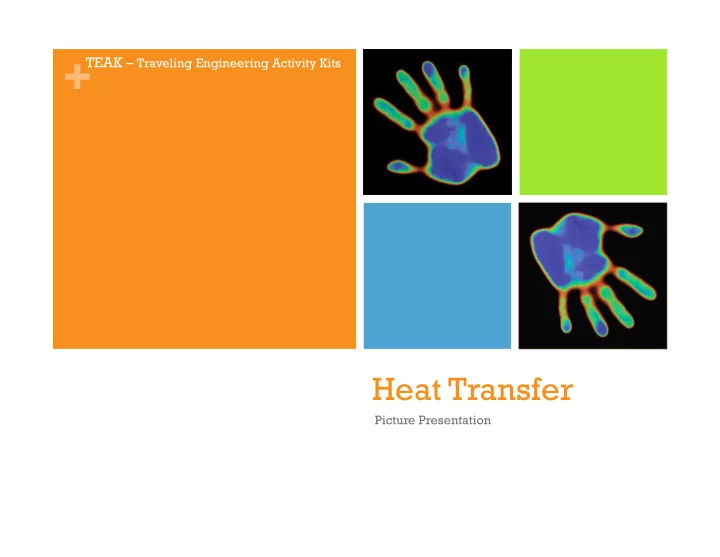

  1. + TEAK – Traveling Engineering Activity Kits Heat Transfer Picture Presentation

  2. + Conduction  Conduction is heat transfer through direct contact.

  3. + Convection  Convection is heat transfer between a solid object and the liquid or gas that is passing by it. FORCED NATURAL

  4. + Radiation  Radiation is heat transfer in the form of electromagnetic waves that carry energy from one object to another.

  5. + Thermal Infrared Images A thermal infrared image of a ball before (L) and after (R) being bounced. A thermal infrared image of a hair dryer and a fluorescent light bulb.

  6. + Thermal Infrared Images Notice the hot tip of the pencil. A thermal infrared image of a pencil after being sharpened (L) and of hot brakes in a car (R).

  7. + Resources  http://images.brighthub.com/A3/9/ A391B25B4C25166E2A4F5035DD0DE91AC6204D88_small.jpg  http://www.goodlifeinnovations.com/userfiles/Image/Good%20Life %20Innovations/Liquid%20Crystal%20sheet.jpg  http://purpletrail.com/partytrail/wp-content/uploads/2009/05/roasting- marshmallows1.jpg  http://www.energyquest.ca.gov/story/images/chap01_convection.gif  http://www.physics.arizona.edu/~thews/reu/convection1.bmp  http://www.aviationweather.ws/page024-1.jpg  http://www.uoguelph.ca/geology/geol2250/glossary/HTML%20files/ convection.jpg  http://www.wyckoffschools.org/eisenhower/teachers/chen/images/3-14.jpg  http://www.beodom.com/assets/images/blog/principles-thermal-insulation/ heat-transmittance-means.jpg
