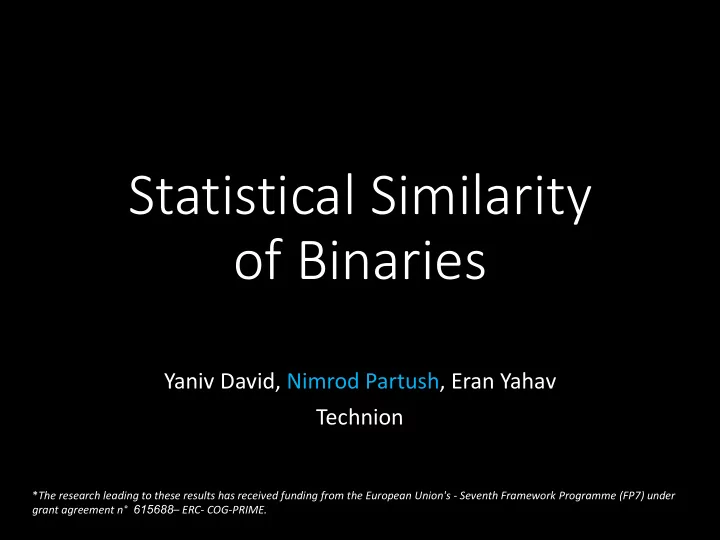

Statistical Similarity of Binaries Yaniv David, Nimrod Partush, Eran Yahav Technion * The research leading to these results has received funding from the European Union's - Seventh Framework Programme (FP7) under grant agreement n° 615688 – ERC- COG-PRIME.

Outline • Motivation • Introduction • Inspiration • Our Approach • Evaluation • Summary • Questions? • Demo

Motivation Network time RedHat ’ s Linux distribution protocol ( ntpd ) Apple ’ s OSX ’ s 5900x switches (table source: https://queue.acm.org/detail.cfm?id=2717320)

Challenge: Finding Similar Procedures shr eax, 8 mov r9, 13h ? lea r14d, [r12+13h] mov r12, rbx mov r13, rbx add rbp, 3 ≈ lea rcx, [r13+3] mov rsi, rbp mov [r13+1], al lea rdi, [r12+3] mov [r13+2], r12b mov [r12+2], bl mov rdi, rcx lea r13d, [rcx+r9] shr eax, 8 Heartbleed, gcc v.4.9 -03 Heartbleed, clang v.3.5 -03

Semantic Similarity Wish List • Precise - avoid false positives • Flexible – find similiarities across • Different compiler versions • Different compiler vendors • Different versions of the same code • Limitation: Use only stripped binary form

t q1 q2 Images courtesy of Irani et al.

Similarity by Composition • Irani et. al. [2006] • image1 is similar to a image2 if you can compose image1 from the segments of image2 • Segments can be transformed • rotated, scaled, translated • Segments of (statistical) significance, give more evidence • black background should be much less accounted for less similar similar

Statistical Similarity of Binaries • Apply the same idea to binaries: procedures are similar if they share functionally equivalent, non-trivial, segments • equivalent = allow for semantic preserving transformations: register allocation, instruction selection, etc. • non-trivial = account for the statistical significance of each segment  shr eax, 8  lea r14d, [r12+13h] mov r13, rbx  lea rcx, [r13+3] less similar mov [r13+1], al similar mov [r13+2], r12b mov rdi, rcx mov r9, 13h mov rsi, 14h 𝑢 : Heartbleed, gcc v.4.9 -03 mov r12, rbx mov rdi, rcx  add rbp, 3 shr eax, 8   mov rsi, rbp mov ecx, r13 lea rdi, [r12+3] add esi, 1h mov [r12+2], bl xor ebx, ebx lea r13d, [rcx+r9] test eax, eax  shr eax, 8 jl short loc_22F4 𝑟 1 : Coreutils, gcc v.4.9 -03 𝑟 2 : Heartbleed, clang v.3.5 -03

Similarity of Binaries: 3 Step Recipe  shr eax, 8  lea r14d, [r12+13h] mov r13, rbx  lea rcx, [r13+3] mov [r13+1], al 1. Decomposition mov [r13+2], r12b mov rdi, rcx Heartbleed, gcc v.4.9 -03 Heartbleed, gcc v.4.9 -03 mov r13, rbx  lea rcx, [r13+3] ≈ ? 2. Pairwise Semantic Similarity mov r12, rbx  lea rdi, [r12+3] Heartbleed, clang v.3.5 -03  shr eax, 8 mov r13, rbx  lea rcx, [r13+3] 3. Statistical  shr eax, 8 mov r12, rbx Similarity  lea rdi, [r12+3] Evidence  shr eax, 8 CORPUS

Step 1 - Procedure Decomposition • Decompose procedure into comparable units • Strand - the set of instructions required to compute a certain variable ’ s value • Get all strands by applying program slicing on the basic-block level until all variables are covered 10

Step 1 - Procedure Decomposition shr eax, 8 v1 = rbx lea r14d, [r12+13h] r13 = v1 mov r13, rbx  lea rcx, [r13+3] v2 = r13 + 3 BAP + mov [r13+1], al v3 = int_to_ptr(v2) Smack + mov [r13+2], r12b rcx = v3 mov rdi, rcx Slice Heartbleed, gcc v.4.9 -03 Strand 3

Step 2 – Pairwise Semantic Similairity v1 = rbx ? v1 = rbx r13 = v1 r12 = v1 ≈ v2 = r13 + 3 v2 = r12 + 3 v3 = int_to_ptr(v2) v3 = int_to_ptr(v2) rcx = v3 rdi = v3 Heartbleed, gcc v.4.9 -03 Heartbleed, clang v.3.5 -03 Strand 3 Strand 3 Sure!

Step 2 – Pairwise Semantic Similairity v1 = 13h v1 = r12 r9 = v1 v2 = 13h + v1 v2 = rbx ? v3 = int_to_ptr(v2) v3 = v2 + v3 ≈ r14 = v3 v4 = int_to_ptr(v3) v4 = 18h r13 = v4 rsi = v4 v5 = v1 + 5 v5 = v4 + v3 rsi = v5 rax = v5 v6 = v5 + v4 rax = v6 Heartbleed, gcc v.4.9 -03 Heartbleed, clang v.3.5 -03 Strand 6 Strand 11 :(

Step 2 – Pairwise Semantic Similairity assume r12 q == rbx t v1 t = 13h v1 q = r12 q r9 t = v1 t v2 q = 13h + v1 q v2 t = rbx t v3 q = int_to_ptr(v2 q ) v3 t = v2 t + v3 t r14 q = v3 q v4 t = int_to_ptr(v3 t ) v4 q = 18h r13 t = v4 t rsi q = v4 q v5 t = v1 t + 5 v5 q = v4 q + v3 q rsi t = v5 t rax q = v5 q v6 t = v5 t + v4 t rax t = v6 assert v1 q ==v2 t , v2 q ==v3 t , v3 q ==v4 t , r14 q ==r13 t v4 q ==v5 t , rsi q ==rsi t ,v5 q ==v6 t , rax q ==rax t

Step 2 - Quantify Semantic Similarity ● Use the percentage of variables from 𝑡 𝑟 that have an equivalent counterpart in 𝑡 𝑢 to define probabilities ○ VCP(𝑡 𝑟 , 𝑡 𝑢 ) = Variable Containment Proportion ○ under the best matching ○ an assymetric measure ○ Pr(𝑡 𝑟 |𝑡 𝑢 ) = probability that 𝑡 𝑟 is input-output equivalent to 𝑡 𝑢 ○ sigmoid function over VCP

Step 3 – Statistical Evidence ● Define a Local Evidence Score to quantify the statistical significance of matching each strand ● Pr(𝑡 𝑟 |𝐼 0 ) - randomly finding a matching for 𝑡 𝑟 “ in the wild ” ○ Average value of Pr(𝑡 𝑟 |𝑡 𝑢 ) over the entire corpus 𝑡 𝑢 ∈ 𝑢 ∈ 𝐷𝑝𝑠𝑞𝑣𝑡 max 𝑡 𝑢 ∈𝑢 Pr(𝑡 𝑟 |𝑡 𝑢 ) 𝑀𝐹𝑇 𝑡 𝑟 |𝑢 = log Pr(𝑡 𝑟 |𝐼 0 )

Step 3 - Global Similarity • Procedures are similar if one can be composed using non-trivial, significantly similar parts of the other 𝐻𝐹𝑇 𝑟|𝑢 = ෍ 𝑀𝐹𝑇(𝑡 𝑟 |𝑢) 𝑡 𝑟 ∈𝑟

Evaluation ● Corpus ● Real-world code packages ● open-ssl, bash, qemu, wget, ws-snmp, ffmpeg, coreutils ● 1500 procedures picked at random ● Compiled with clang 3.{4,5} , gcc 4.{6,8,9} and icc {14,15} ● Spanning across product versions ● e.g . openssl-1.0.1{e,f,g} ● Queries ● Focused on vulnerabilities (for motivation ’ s sake) ● Verified with randomly picked procedures.

Results • Low low FP rate • Crucial to the vulnerability search scenario Vulnerability False Positives 1 0 Heartbleed 2 3 Shellshock 3 0 Venom 4 19 Clobberin' Time 5 0 Shellshock #2 6 1 ws-snmp 7 0 wget 8 ffmpeg 0 • Previous methods fail at cross-{version,compiler} scenario or produce too many FPs • Due to syntactic or sampling based methods.

Results 20 Finding Heartbleed

Results All v. All comparison 21

Summary • Challenging scenario • Finding similarity cross-{compiler, version} in stripped binaries • Clear motivation • Funding vulnerable code, detecting clones, etc. • A fully semantic approach that is yet feasible • Accuracy achieved with statistical framework • Applied to real-world code • Publicly available prototype

More Similarity Work in Our Group Code Similarity via Natural Language Descriptions In progress https://github.com/tech-srl/ Code Similarity by Composition PLDI ’ 16 PRIME Estimating Types in Stripped Binaries POPL ’ 16 TRACY DIZY Data-Driven Disjunctive Abstraction VMCAI ’ 16 Like2Drops Abstract Differencing via Speculative Correlation OOPSLA ’ 14 Abstract Semantic Differencing SAS ’ 13 Semantic Code Search in Binaries PLDI ’ 14 Abstract domain of symbolic automata SAS ’ 13 https://www.codota.com Synthesis from partial programs OOPSLA ’ 12 Meital Ben Sinai Yaniv David Omer Katz Hila Peleg Sharon Shoham Shir Yadid Eran Yahav

Questions?

Demo www.BinSim.com
