Statistical markers of pathologies from the brain at rest Ga el - PowerPoint PPT Presentation

Statistical markers of pathologies from the brain at rest Ga el Varoquaux Probing variations of the mind Psychiatry is defined by symptoms Diagnostic and Statistical Manual of Mental Disorders No known physio-pathology; Autism = ?

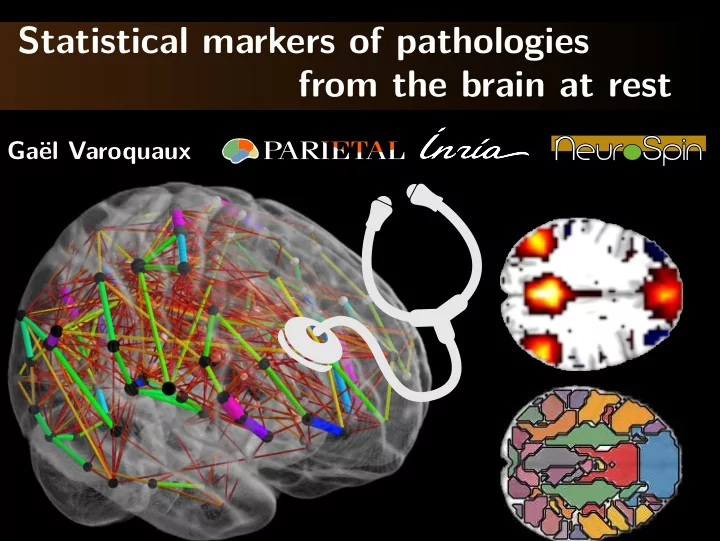

  1. Statistical markers of pathologies from the brain at rest Ga¨ el Varoquaux

  2. Probing variations of the mind Psychiatry is defined by symptoms Diagnostic and Statistical Manual of Mental Disorders No known physio-pathology; Autism = ? Asperger Need quantitative phenotypes of brain function G Varoquaux 2

  3. Probing variations of the mind Psychiatry is defined by symptoms Diagnostic and Statistical Manual of Mental Disorders No known physio-pathology; Autism = ? Asperger Need quantitative phenotypes of brain function Population imaging with rest fMRI UK Biobank [Miller... 2016] Easy to set up reproducibly Suitable for diminished patients Connectivity captures traits G Varoquaux 2

  4. Functional connectomes: brain graphs No salient features in rest fMRI G Varoquaux 3

  5. Functional connectomes: brain graphs Define functional regions [Varoquaux and Craddock 2013] G Varoquaux 3

  6. Functional connectomes: brain graphs Define functional regions Learn interactions [Varoquaux and Craddock 2013] G Varoquaux 3

  7. Functional connectomes: brain graphs Define functional regions Learn interactions Detect differences [Varoquaux and Craddock 2013] G Varoquaux 3

  8. Outline 1 Functional regions 2 The connectome matrix 3 Biomarkers of autism G Varoquaux 4

  9. 1 Functional regions Need functional regions for nodes Bad choice of regions gives wrong graph properties [Smith... 2011] ⇒ Spatial analysis G Varoquaux 5

  10. 1 Functional regions Available “on the market” anatomical atlases, functional atlases, region-extraction methods G Varoquaux 5

  11. 1 Functional regions Atlases based on anatomy Clustering tools Models based on linear decompositions G Varoquaux 5

  12. 1 Anatomical atlases Anatomical atlases do not resolve functional structures AAL Harvard Oxford Default mode network: most stable network at rest G Varoquaux 6

  13. 1 Clustering approaches Group together voxels with similar time courses ... ... ... ... ... G Varoquaux 7

  14. 1 Clustering approaches K-Means Fast No spatial constraint (smooth the data) Related to [Yeo... 2011] Normalized cuts [Craddock... 2012] Slow Spatial constraints Very geometrical Ward clustering Very fast (even with many clusters) Spatial constraints G Varoquaux 8

  15. 1 Clustering approaches [Thirion... 2014] K-Means Fast No spatial constraint (smooth the data) Model selection: empirical results Related to [Yeo... 2011] Based on cluster stability and fit to data Normalized cuts Large number of clusters: Ward [Craddock... 2012] Slow Spatial constraints Small number of clusters: Kmeans Very geometrical [Thirion... 2014] Ward clustering Very fast (even with many clusters) Spatial constraints G Varoquaux 8

  16. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses G Varoquaux 9

  17. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Language G Varoquaux 9

  18. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Audio G Varoquaux 9

  19. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Visual G Varoquaux 9

  20. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Dorsal Att. G Varoquaux 9

  21. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Motor G Varoquaux 9

  22. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Salience G Varoquaux 9

  23. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Ventral Att. G Varoquaux 9

  24. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Parietal G Varoquaux 9

  25. 1 Mixture models: linear decompositions Working hypothesis / model : Observing linear mixtures of networks at rest Time courses Observe a mixture How to unmix networks? G Varoquaux 9

  26. 1 Spatial modes: ICA decomposition voxels voxels voxels time time time = E · S N Y + 25 Decomposing time series into: covarying spatial maps, S uncorrelated residuals, N p ICA: minimize mutual information across S [Kiviniemi 2003, Beckmann 2005, Varoquaux 2010] G Varoquaux 10

  27. 1 Spatial modes: ICA decomposition voxels voxels voxels time time time = E · S N Y + 25 Decomposing time series into: covarying spatial maps, S uncorrelated residuals, N p ICA: minimize mutual information across S [Kiviniemi 2003, Beckmann 2005, Varoquaux 2010] G Varoquaux 10

  28. 1 Spatial modes: ICA decomposition voxels voxels voxels time time time = E · S N Y + 25 Decomposing time series into: covarying spatial maps, S uncorrelated residuals, N Sparse decompositions: sparse penalty on maps [Kiviniemi 2003, Beckmann 2005, Varoquaux 2010] G Varoquaux 10

  29. 1 ICA versus sparse decompositions ICA 1. Select signal of interest 2. Select “maximaly independent” ICs Sparse decomposition 2 E , ˆ ˆ � � � � S = argmin � Y − E S 2 + λ � S � � � � � � � � � 1 � S , E Penalization: sparse maps Data fit Joint estimation of signal space + components G Varoquaux 11

  30. 1 From group to subject networks MSDL Multi-Subject Dictionary Learning � � � Y s − E s S sT � 2 Fro + µ � S s − S � 2 � argmin + λ Ω( S ) Fro E s , S s , S subjects Data fit Subject Penalization: variability inject structure [Varoquaux... 2011, Abraham... 2013] G Varoquaux 12

  31. 1 From group to subject networks MSDL Create a region-forming penalty: Original Clustering Total-variationg Multi-Subject Dictionary Learning � � � Y s − E s S sT � 2 Fro + µ � S s − S � 2 � argmin + λ Ω( S ) Fro E s , S s , S subjects Data fit Subject Penalization: variability inject structure [Varoquaux... 2011, Abraham... 2013] G Varoquaux 12

  32. 1 From group to subject networks MSDL Create a region-forming penalty: Original Clustering Total-variationg Multi-Subject Dictionary Learning � � TV- ℓ 1 penalty: � w � 1 + TV ( w ) � Y s − E s S sT � 2 Fro + µ � S s − S � 2 � No gain in TV argmin + λ Ω( S ) Fro E s , S s , S sparse and smooth regions subjects Gain in TV Data fit Subject Penalization: and l 1 TV � = “piecewise constant” variability inject structure [Gramfort... 2013] [Varoquaux... 2011, Abraham... 2013] G Varoquaux 12

  33. Visual and motor system White matter Functional network Vascular system Inner nuclei Downloadable from Parietal webpage http://team.inria.fr/parietal

  34. Brain parcellations Group ICA MSDL Ward K-Means [Abraham... 2013]

  35. Brain parcellations Group ICA MSDL Ward K-Means [Abraham... 2013]

  36. Brain parcellations Group ICA MSDL Ward K-Means [Abraham... 2013]

  37. Functional regions Craddock Smith 2009 Abraham 2013 Ward AAL ICAs 2011 Ncuts TV-MSDL Harvard- High model K-Means Varoquaux Yeo 2011 Oxford order ICA 2011 Smooth- MSDL G Varoquaux 15

  38. Functional regions Craddock Smith 2009 Abraham 2013 Ward AAL ICAs 2011 Ncuts TV-MSDL Harvard- High model K-Means Varoquaux Yeo 2011 Oxford order ICA 2011 Smooth- MSDL G Varoquaux 15

  39. 2 The connectome matrix How to capture and represent interactions? G Varoquaux 16

  40. 2 Data processing induces structure Small-world : “ The friends of my friends are my friends ” Correlation : If A and B are very correlated, and C is correlated with A , C is also correlated with B ⇒ Thresholded correlations are small-world [Zalesky... 2012] Need careful statistics G Varoquaux 17

  41. 2 From correlations to connectomes Threshold? How to check that we are not throwing out the baby with the bath water G Varoquaux 18

  42. 2 From correlations to connectomes No models without controlling goodness of fit Descriptive statistics are hard to compare Threshold? How to check that we are not throwing out the baby with the bath water G Varoquaux 18

  43. 2 Probabilistic model for interactions Simplest data generating process = multivariate normal: 2 X T Σ − 1 X | Σ − 1 | e − 1 � P ( X ) ∝ Model parametrized by inverse covariance matrix, K = Σ − 1 : conditional covariances Goodness of fit: likelihood of observed covariance ˆ Σ in model Σ L ( ˆ Σ | K ) = log | K | − trace( ˆ Σ K ) G Varoquaux 19

  44. 2 Correlations: observations and indirect effects Observations Direct connections Correlation Partial correlation 1 1 2 2 0 0 3 3 4 4 Covariance: Inverse covariance: scaled by variance scaled by partial variance G Varoquaux 20

  45. 2 Correlations: observations and indirect effects Observations Direct connections Correlation Partial correlation G Varoquaux 20
