Security, IAM AWS sh shared red res espon ponsib sibility - PowerPoint PPT Presentation

Security, IAM AWS sh shared red res espon ponsib sibility ility mo model el Portland State University CS 430P/530 Internet, Web & Cloud Systems Cloud ud se security urity In this course, security "in-the-cloud" via

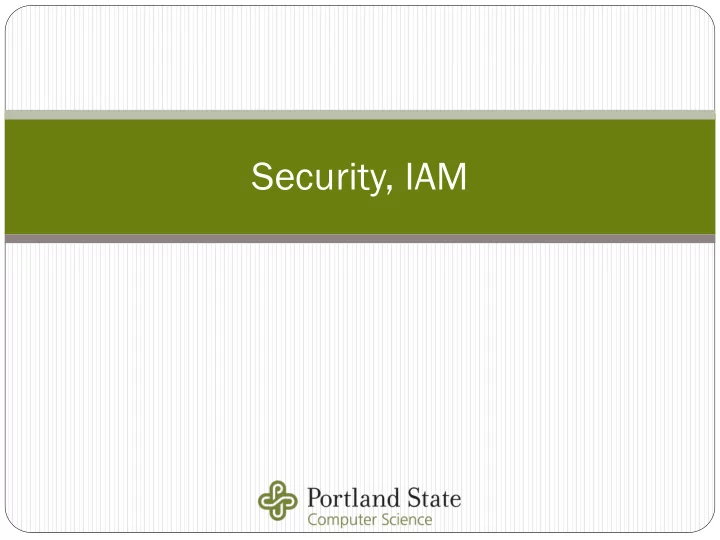

  1. Security, IAM

  2. AWS sh shared red res espon ponsib sibility ility mo model el Portland State University CS 430P/530 Internet, Web & Cloud Systems

  3. Cloud ud se security urity  In this course, security "in-the-cloud" via  IAM (Identity and Access Management)  Controlling access to resources by developers, operations team, accounting  Network security groups  Won't cover security within your application  Still must secure the individual applications and systems running in the cloud  See CS 495/595: Web Security Portland State University CS 430P/530 Internet, Web & Cloud Systems

  4. IAM (Identity and Access Management)

  5. Identity entity (Auth uthentica entication tion)  Validating users and applications  For users, done via  What you know  Password, security questions  What you have  Hardware token (U2F, WebAuthN)  Phone  Who you are  UAF or mobile authentication app with fingerprint sensor or FaceID  Where you are  IP address  Geographic location  For applications  (e.g. external web application, internal web application, database)  What you have  API keys, service-account keys (which must be kept safe!)  Where you are  IP address (VPC) Portland State University CS 430P/530 Internet, Web & Cloud Systems

  6. Access cess Managemen nagement t (Aut uthorization) orization)  Policy to set which users are allowed which actions on which objects Portland State University CS 430P/530 Internet, Web & Cloud Systems

  7. Types pes of access ccess ma manag nagement ement po policies icies  Discretionary Access Control  Object owner decides  Linux model of owner setting coarse permissions on user, group, other  Mandatory Access Control  System or administrator decides  Mandated in high-security environments (e.g. government) Portland State University CS 430P/530 Internet, Web & Cloud Systems

  8. Types pes of access ccess ma manag nagement ement po policies icies  Role-Based Access Control (system decides based on user role)  Role determines set of privileges afforded for access  Examples  IT admin  Software developer  Billing administrator  Third-party integrator  Partner users  End-users  Partner applications  Apply principle of least privilege (ideally)  Ensure the minimal level of access that a task or user needs  Must apply regardless of the type of policy Portland State University CS 430P/530 Internet, Web & Cloud Systems

  9. Access cess ma manag nagement ement via a IAM  Based on Role-based Access control  Action permissions assigned by role  IAM policy determines who can do what action to which resource  Particular identities or membershops  Google account/group, service account  Assigned to primitive pre-defined roles with permissions (or given individual permissions)  Curated roles so you do not need to roll your own  Owner (create, destroy, assign access, read, write, deploy)  Editor (read, write, deploy)  Reader (read-only)  Billing administrator (manage billing)  On specified resources that include  Virtual machines, network, database instances  Cloud storage buckets (gs ://…)  BigQuery stores  Projects Portland State University CS 430P/530 Internet, Web & Cloud Systems

  10. GC GCP P exa xample ple https://cloud.google.com/compute/docs/access/iam https://cloud.google.com/compute/docs/access/iam-permissions Portland State University CS 430P/530 Internet, Web & Cloud Systems

  11. Ex Example: ple: Compu pute e En Engi gine ne Instan stance ceAdmin dmin Who? What resources? What actions? Portland State University CS 430P/530 Internet, Web & Cloud Systems

  12. Ser ervice vice acco ccounts unts  Specific to Google Cloud  Provides identity for software/applications  Allows authenticated access based on a shared secret key  Service account identified via e-mail address that includes Project ID  Must restrict permissions per-account (least privilege) so that account compromise does not compromise entire project  Example  Service account level-ssh@handy-compass-212520.iam.gserviceaccount.com with role Cloud Datastore Viewer and Logs Viewer Portland State University CS 430P/530 Internet, Web & Cloud Systems

  13.  Can issue service account key to authenticate as a specific service account from console  Google manages keys for certain services automatically (AppEngine, ComputeEngine)  Must keep keys secure! Portland State University CS 430P/530 Internet, Web & Cloud Systems

  14.  Can associate service account directly to a resource (without a key)  VM run associated with service account's role Portland State University CS 430P/530 Internet, Web & Cloud Systems

  15. Caution! ution!  GCP credentials and keys should be protected at all times  Audit Github, Bitbucket, Dockerhub, web  Crawlers continuously looking for credentials on public repositories  Immediately regenerate keys if exposed Portland State University CS 430P/530 Internet, Web & Cloud Systems

  16. IAM M roles es  Users and accounts originally given roles (owner, editor, reader) with fixed permissions  But, each resource must have highly granular control over access to properly secure resources (e.g. many permissions)  Examples  e-Commerce site with a crashing bug  Developer wants to access logs is given reader access to instance  Can read logs to do job  But can also access all personally identifiable information of the site’s users!  Continuous integration tool used in DevOps is given editor access to deploy updates  Can update code, but also modify storage buckets, compute instances, and network configuration!  Must assign permissions at a granular level Portland State University CS 430P/530 Internet, Web & Cloud Systems

  17. IAM M comple plexity xity  Granular access control leads to thousands of permissions and complex policies  Organized via a hierarchy to ease management burden  Implement inheritance of permissions where higher-level permissions trump lower ones  Set permissions across all projects at once  Set permissions of resources (i.e. 1000s of VMs/buckets in project) at once  Command-line scripting, configuration management via commercial tools Portland State University CS 430P/530 Internet, Web & Cloud Systems

  18. Hierar erarchical chical ma manag nagement ement Portland State University CS 430P/530 Internet, Web & Cloud Systems

  19. Network security in the cloud

  20. Netw etwor ork-la layer er se security urity  Access control based on network address and transport layer port  Done via security groups (AWS and GCP)  Host-based firewall rules (similar to Linux iptables, but defined at project-level) Portland State University CS 430P/530 Internet, Web & Cloud Systems

  21. Ex Example: ple: Secu ecurity rity Gr Groups ups in AWS Portland State University CS 430P/530 Internet, Web & Cloud Systems

  22. VPCs  Virtual private clouds  Restrict access to only internal connections  AWS  Support for NATs between private nodes and the public Internet  GCP  CloudNAT and support multiple interfaces Portland State University CS 430P/530 Internet, Web & Cloud Systems

  23. Billing

  24. Bi Billing lling  Throughout the term, to get a feel for what costs money, check detailed billing Portland State University CS 430P/530 Internet, Web & Cloud Systems

  25. Portland State University CS 430P/530 Internet, Web & Cloud Systems

  26. View w sp spen ending: ding: Bi Billing=>R lling=>Repor eports ts  Group by Product on the right  Then view below graph to see consumption per product Portland State University CS 430P/530 Internet, Web & Cloud Systems

  27. Bi Billing lling sa sadness dness  Don't be like… Portland State University CS 430P/530 Internet, Web & Cloud Systems

  28. Bu Budge get t al alerts ts: : Bi Bill lling=>Budge ng=>Budgets ts & Ale Alerts ts  Set a budget of $15/month  Alert on 50%, 80%, 90% so you get a warning on over- expenditures Portland State University CS 430P/530 Internet, Web & Cloud Systems
