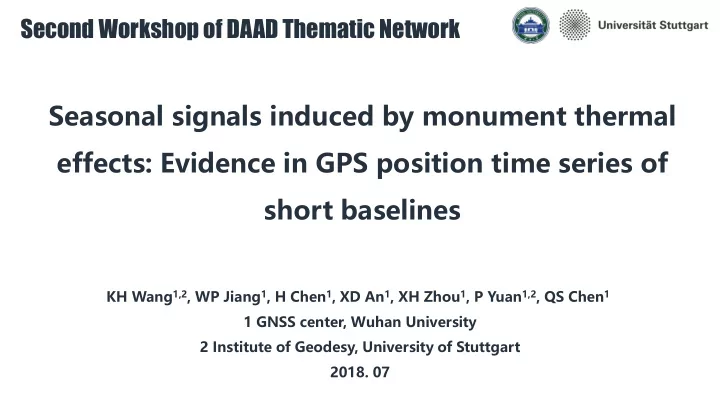

Second Workshop of DAAD Thematic Network Seasonal signals induced by monument thermal effects: Evidence in GPS position time series of short baselines KH Wang 1,2 , WP Jiang 1 , H Chen 1 , XD An 1 , XH Zhou 1 , P Yuan 1,2 , QS Chen 1 1 GNSS


  1. Second Workshop of DAAD Thematic Network Seasonal signals induced by monument thermal effects: Evidence in GPS position time series of short baselines KH Wang 1,2 , WP Jiang 1 , H Chen 1 , XD An 1 , XH Zhou 1 , P Yuan 1,2 , QS Chen 1 1 GNSS center, Wuhan University 2 Institute of Geodesy, University of Stuttgart 2018. 07

  2. Content 1 Background 2 Data processing 3 GPS baseline time series 4 The origins of seasonal signals 5 Conclusion 2

  3. What is the origin of seasonal signals in GPS position time series ?  The origins can be divided into two categories: ⚫ Artificial/spurious variations ✓ GPS systematic (orbits, draconitic year) ✓ Reference frame ✓ Mis-modeling errors (HOI, multipath, PCV) ✓ Aliasing of daily/subdaily signal ✓ ......  Partial erased by applying proper processing strategy and models 3

  4. What is the origin of seasonal signals in GPS position time series ?  The origins can be divided into two categories: ⚫ Real site/monument motions ✓ Tides (solid, ocean, atmospheric) ✓ Loadings (non-tidal ocean and atm. , CWSL ) ✓ Monument thermal effect ✓ Bedrock thermal effect (thermal loading) Related to temperature ✓ … variation  CANOT BE ELIMINATED! It should be well modeled and quantified. 4

  5. How to deal with the seasonal signal in GPS position time series ?  Mathematic model (Bogusz and Klos, 2016): Chandler period Tropical year cycle ( 365.2days ) GPS draconitic cycle ( 356.1days )  Good fit in shape, but it is hard to explain the signals by known geophysical process. 5

  6. How to deal with the seasonal signal in GPS position time series ?  Geophysical models: corrected and removed from GPS observations IGS stations with RMS reduced after corrections (Xu et al., 2017) ✓ ATML (atmospheric pressure, 5-15 mm) ✓ NTOL (ocean bottom pressure, <5 mm) ✓ CWSL (mass storage, >10 mm) Limited precision compared to GPS  There are still >30% of the annual variations CANNOT be explained by known contributors in the global scale.  One of the possible sources is thermal effect of monument (TEM). 6

  7. What is the problem in the recent analysis of TEM ?  The thermal signal will be overwhelmed by loading signals, which can bias the quantitative results The correction by thermal effect Level 3 Level 0 Level 1 Level 2  Current models of TEM are still imperfect to explain the rest of the seasonal signal in GPS position time series 7

  8. What do we do ?  Analysis based on GPS short-baseline time series: ⚫ GPS systematic errors: mostly differenced ⚫ Large-scale geophysical effects: identical ⚫ Errors related to reference frame: not exist ⚫ Time series: high-precision, stable GPS short-baseline adopted  The remaining: signal by site-specific effects such as TEM, other mis-modeling errors and noise. 8

  9. Content 1 Introduction 2 Data processing 3 GPS baseline time series 4 The origins of seasonal signals 5 Conclusion 9

  10.  Selection of GPS short-baselines ⚫ monument height difference >5 m: Enlarge the thermo-induced signal ⚫ baseline length <1100 m and elevation difference <120 m: ⚫ IGS stations with continuous observations of 2-14 years ⚫ An approximate zero-baseline with identical monument for comparison ③ ① Test ④ Group ② Control Group ⑤ ⑥ 10 10

  11.  Selection of GPS short-baselines Tab.2 GPS baseline information Monument Length Diff. Lon. Lat. Common Station (m) E b . (m) (deg) (deg) Height c Type d Dataset Base TCMS a Roof 1.9 SM 6 0 121.0 24.8 2005.001-2014.365 TNML Roof 2.1 SM ZIMJ a Roof 4.0 CP 14 5.1 7.5 46.9 2003.001-2010.295 ZIMM Bedrock 10.7 SM JOZ2 a Roof 3.5 CP 83 11.1 21.0 52.1 2002.295-2016.239 JOZE Bedrock 16.5 CP Experimental group HERT a Roof 5.5 CP 136 6.9 0.3 50.9 2003.078-2016.239 HERS Bedrock 12.0 SM OBE2 a Roof 4.5 CP 268 3.5 11.3 48.1 2003.160-2005.129 OBET Roof 10.0 CP MCM4 a Bedrock 0.1 CP 1100 117.9 166.7 -77.8 2002.169-2016.239 CRAR Roof 7.5 SM REYK a Roof 13.5 CP Control Group 1 0 338.0 64.1 2000.001-2007.261 REYZ Roof 13.5 CP 11 11

  12.  GPS data processing strategies and GPS time series pre-processing ⚫ remove outliers: an absolute ⚫ baseline processing with GAMIT tolerance of 0.01 m and 0.015m ⚫ 30s sampling interval ⚫ L1_ONLY (LC_AUTCLN for MCCR) from the median for the horizontal and vertical component or formal ⚫ daily solutions by Kalman-filter errors >0.1 m for any component ⚫ elevation cutoff of 15 ° ⚫ remove accidental errors beyond ⚫ final precise satellite orbits from IGS threshold of 4δ ⚫ zenith tropospheric delay: not estimated except for MCCR ⚫ moving average over 15 days (estimated every 2 hour) 12 12

  13. Content 1 Introduction 2 Data processing 3 GPS baseline time series 4 The origins of seasonal signals 5 Conclusion 13 13

  14.  Linear trend and residual RMS of each short-baseline Tab.3 Linear Trend and Residual RMS Estimates of Each Short-baseline ⚫ There are apparent trends in the time series, even for the short-baselines! ⚫ The distance of MCCR located in the Antarctica is closing by 0.7 mm/yr 14 14

  15.  De-trended time series of GPS short-baselines (1) GPS short-baseline TCTN (length: 6 m) GPS short-baseline ZIZI (length: 14 m) 15 15

  16.  De-trended time series of GPS short-baselines (2) GPS short-baseline JOJO (length: 83 m) GPS short-baseline HEHE (length: 136 m) 16 16

  17.  De-trended time series of GPS short-baselines (3) GPS short-baseline OBOB (length: 268 m) GPS short-baseline MCCR (length: 1100 m) 17 17

  18.  De-trended time series of GPS short-baselines (4) Almost all of the components of the GPS short-baselines with apparent monument height difference exhibit strong annual oscillation , the time series reach to extremum in January during the winter or in July during the summer GPS short-baseline RERE (length: <1m) 18 18

  19.  Spectral analysis Power spectral density (PSD) values for each component of the baselines. PSD values for the N and E component are isolated by adopting appropriate scale factors. ⚫ all with annual cycle (except RERE), semiannual occurs on partial components 19 19

  20.  Seasonal signals Tab.5 Amplitudes and phases estimates Annual Annual Annual Annual Semiannual Semiannual Temperature Temperature Baseline Amplitude Phase Amplitude Phase Variation Phase y = a × t + b + A 1 cos(2 p × t + j 1 ) + A 2 cos(4 p × t + j 2 ) + e (mm) (degree) (mm) (degree) ( ℃ ) (degree) N 0.42 ± 0.03 146 ± 4* 0.05 ± 0.02 -19 ± 23 E 0.35 ± 0.03 171 ± 5* 0.04 ± 0.02 -25 ± 27 TCTN 7.0 ± 0.1 152 ± 1 U 0.13 ± 0.02 74 ± 9 0.00 ± 0.00 - L 0.45 ± 0.04 155 ± 5* - - ⚫ Max A.A. : 1.86 ± 0.17 mm N 1.04 ± 0.13 174 ± 7* 0.24 ± 0.13 -50 ± 24 E 0.63 ± 0.10 174 ± 8* 0.34 ± 0.08 -30 ± 13 ZIZI 9.5 ± 0.2 162 ± 1 Median: 0.64 ± 0.13mm U 1.04 ± 0.20 166 ± 11 0.20 ± 0.14 26 ± 40 L 0.11 ± 0.14 172 ± 8* - - N 0.29 ± 0.10 134 ± 19 0.14 ± 0.44 -39 ± 35 ⚫ Max SA.A. : 0.71 ± 0.14 mm E 0.39 ± 0.16 160 ± 24* 0.12 ± 0.12 -32 ± 57 JOJO 11.3 ± 0.2 165 ± 1 U 1.86 ± 0.17 170 ± 5* 0.97 ± 0.25 -46 ± 15 Median: 0.12 ± 0.14mm L 0.41 ± 0.15 178 ± 17 - - N 0.40 ± 0.06 142 ± 8 0.04 ± 0.18 50 ± 45 E 0.96 ± 0.07 173 ± 4* 0.11 ± 0.06 -42 ± 30 ⚫ 78% (14/18) are in phase ( ± 15 ° ) HEHE 5.4 ± 1.9 167 ± 21 U 0.41 ± 0.06 194 ± 6 * 0.14 ± 0.04 -22 ± 17 L 0.92 ± 0.05 168 ± 2 - - with local temperature N 1.17 ± 0.13 155 ± 6* 0.43 ± 0.13 -6 ± 22 E 1.18 ± 0.12 175 ± 6* 0.48 ± 0.12 -24 ± 14 OBOB 10.2 ± 0.5 162 ± 3 U 0.65 ± 0.16 155 ± 14 0.28 ± 0.15 -22 ± 14 ⚫ negligible amplitude for L 1.86 ± 0.13 165 ± 8 - - N 0.59 ± 0.03 346 ± 3* 0.05 ± 0.06 -7 ± 39 baseline RERE E 1.32 ± 0.07 355 ± 3 0.39 ± 0.07 47 ± 10 357 ± 1 MCCR 16.4 ± 0.3 U 1.62 ± 0.14 358 ± 5* 0.71 ± 0.14 -10 ± 12 (South) L 0.73 ± 0.08 349 ± 3* - - N 0.14 ± 0.10 10 ± 39 0.12 ± 0.21 -6 ± 43 E 0.10 ± 0.18 44 ± 11 0.12 ± 0.16 -32 ± 81 RERE 5.8 ± 0.2 161 ± 2 U 0.28 ± 0.19 83 ± 37 0.15 ± 0.24 -42 ± 27 20 20 L 0.08 ± 0.09 149 ± 29 - -

  21.  Time-correlated noise ⚫ FN: flicker + white noise ⚫ RW: random-walk + white noise ⚫ PL: power-law + white noise ⚫ FNRW: flicker + random-walk + white noise ⚫ BPPL: band-pass-filtered+ power-law + white noise ⚫ BPRW: band-pass-filtered+ random-walk + white noise ⚫ FOGMRW: first-order Gauss-Marcov + random-walk + white noise 21 21

  22.  The ONM (Optimal Noise Model) for the stochastic process ⚫ CATS software package v3.1.2 FN RW larger (S.D.P . Williams) MLE value ⚫ MLE method from Langbein [2004] Model A PL FNRW threshold of 2.6 Model B BPPL BPRW threshold of 2.6 Model C FOGMRW threshold of 2.6 The Optimal Noise The procedure of choosing the ONM 22 22
