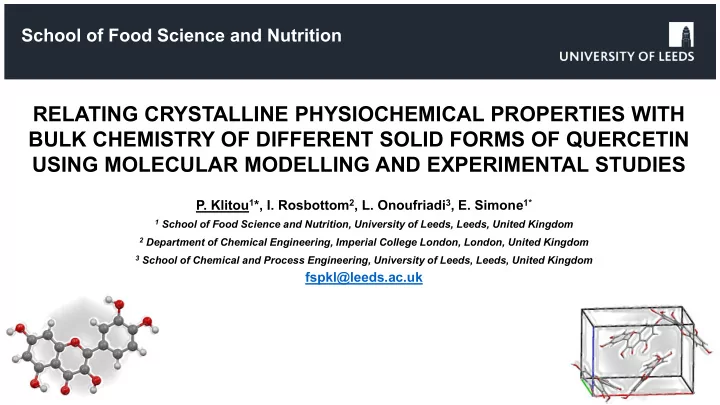

School of Food Science and Nutrition RELATING CRYSTALLINE PHYSIOCHEMICAL PROPERTIES WITH BULK CHEMISTRY OF DIFFERENT SOLID FORMS OF QUERCETIN USING MOLECULAR MODELLING AND EXPERIMENTAL STUDIES P. Klitou 1 *, I. Rosbottom 2 , L. Onoufriadi 3 , E.


  1. School of Food Science and Nutrition RELATING CRYSTALLINE PHYSIOCHEMICAL PROPERTIES WITH BULK CHEMISTRY OF DIFFERENT SOLID FORMS OF QUERCETIN USING MOLECULAR MODELLING AND EXPERIMENTAL STUDIES P. Klitou 1 *, I. Rosbottom 2 , L. Onoufriadi 3 , E. Simone 1* 1 School of Food Science and Nutrition, University of Leeds, Leeds, United Kingdom 2 Department of Chemical Engineering, Imperial College London, London, United Kingdom 3 School of Chemical and Process Engineering, University of Leeds, Leeds, United Kingdom fspkl@leeds.ac.uk 1

  2. Overview  Introduction • Crystals & Solvates • Quercetin & Molecular Modelling • Aims  Methodology • Molecular Modelling • Experimental Validation  Results and Discussion • Bulk intrinsic synthons & Conformational Analysis • Experimental Validation  Conclusions and future developments 2

  3. Introduction Crystals & Solvates:  A crystal is a solid material in which the molecules are packed in a regular repeating three- dimensional array to give long range order . Quercetin dihydrate crystal  Solvates (eg. hydrates ): contain both the host molecule (eg. quercetin) and solvent molecule(s) (specifically water for hydrates) incorporated in the crystal lattice structure.  Different solvates exhibit different physiochemical properties , such as solubility, surface chemistry, Quercetin (host) molecule stability and bioavailability. Water (solvent) molecules The crystal structure of quercetin dihydrate 3

  4. Introduction Quercetin :  Naturally occurring flavonoid. Quercetin molecule (red-  Found in many fruits and vegetables. oxygen, grey-carbon, white-  Vast range of health benefits. hydrogen)  Used in nutraceutical industry.  Exists as anhydrous , monohydrate, dihydrate structure , and a DMSO solvate. SPINACH 4.1 Molecular Modelling: PEARS 4.5 ROMAINE LETTUCE 4.5  Enables the prediction of physiochemical RED APPLES 4.7 properties of crystals through analysis of BLUEBERRIES 5.1 the intermolecular interactions . KALE 7.7 GREEN HOT PEPPERS 15  Requires the crystallographic structure and CRANBERRIES 15 molecular arrangement obtained from X- WHITE ONIONS 21 Ray Diffraction data. RED ONIONS 33 ELDERBERRIES 42 Quercetin Content (mg/100g edible portion) 4

  5. Introduction Aims:  Use molecular modelling to examine the structures and explore the bulk intrinsic synthons (intermolecular interactions) of quercetin structures.  Predict physiochemical properties , specifically stability , and understand why the molecules take a specific path to crystal structure during crystallization.  Understand how the presence, type and number of solvent molecule(s) (water or DMSO) in the lattice affects the structure , packing and conformation of quercetin and hence the physiochemical properties.  Validate molecular modelling calculations experimentally . 5

  6. Methodology Molecular Modelling techniques: Experimental techniques:  Crystallographic information files obtained from  Variable Temperature Powder Cambridge Structural Database ( CSD ). X-ray Diffraction (VT-PXRD)  Thermogravimetric Analysis  Habit 98 software , a coupled with Differential Central synthonic modelling tool, unit Scanning Calorimetry was used to predict the cell (TGA/DSC) strength, directivity and dispersive nature of intermolecular interactions Sphere in the crystal structures, of 30Å using Momany force-field. radius Calculation of intermolecular interactions in Habit 98 Refcodes:  CCDC Mercury software was used to obtain visualizations Quercetin anhydrous: NAFZEC of molecular and crystal packing for the three structures. Quercetin monohydrate: AKIJEK 6 Quercetin dihydrate: FEFBEX

  7. Results: Bulk Synthons – QA, QMH, QDH Quercetin anhydrous (QA) Quercetin monohydrate (QMH) Quercetin dihydrate (QDH) Crystallization + 1H 2 O + 2H 2 O Torsion angle = 1.3 ° Torsion angle = 7.0 ° Torsion angle = 32 ° More planar conformation, More planar conformation, Less planar conformation, close packing close packing less closely packed π - π stacking interactions π - π stacking interactions Mostly H-bonds and polar interactions H-bonds only between Q-W No π - π stacking H-bonds both between Q-Q and Q-W Degree of hydration  H-bonding more satisfied by interaction with incorporated water molecules  more planar conformation  Contribution of π - π stacking interactions increases  QDH has higher relative stability : smaller amount of de-solvation and conformational rearrangement during crystallization from aqueous solvent 7 Panayiotis Klitou, Ian Rosbottom, Elena Simone, Crystal Growth & Design 2019 19 (8), 4774-4783

  8. Results: Bulk Synthons – QDMSO Quercetin – DMSO solvate (QDMSO) Crystallization Several π - π stacking interactions in 70%(w/w) DMSO 30%(w/w) water solvent  Torsion angle = 31 ° Less closely packed compared to QDH & QMH, bulkier size of DMSO molecule  High contribution of quercetin-solvent interactions (45.1%) similar to that of QDH (45.9%) to total lattice energy. H-bonding between Q-Q  Higher contribution of H-bonds and dipole-dipole interactions to total lattice energy (39.2%) compared to all other quercetin structures (<10.9%). H-bonding between Q-DMSO  Quercetin-solvent H-bonds in QDMSO stronger in energy compared to Q-solvent in QMH and QDH. 8

  9. Results: DSC-TGA 120 1.0 De-solvation Melting Decomposition QDH 0.5  De-solvation onset 100 Mass 0.0 temperature: Heat flow Heat Flow (Wg-1) 80 -0.5 QDH: 94.9 ± 2.7 °C Mass (%) -1.0 60 QDMSO: 135.9 ± 2.8 °C -1.5 QDMSO is more heat stable! 40 -2.0 Onset: 94.9 °C  Observed weight change for -2.5 Weight change: -10.0% 20 QDH (-10.0%) and QDMSO (- -3.0 Onset: 315.8 °C Onset: 330.0 °C Heat flow: -300.3 Jg -1 0 -3.5 26.4%) match theoretical 0 50 100 150 200 250 300 350 400 450 500 550 600 weight loss for dehydration. Temperature (°C)  Dehydration of QDMSO 120 0.5 De-solvation Melting Decomposition QDMSO exhibits a shoulder at a higher 0.0 100 Mass temperature  DMSO solvent -0.5 Heat Flow (Wg-1) Heat Flow 80 molecules lost in consecutive -1.0 Mass (%) steps. 60 -1.5  Melting and decomposition 40 -2.0 Onset: 135.9 °C occur at very similar Weight change: -26.4% 20 -2.5 temperatures. Onset: 317.1 °C Onset: 331.1 °C Heat flow: -165.2 Jg -1 0 -3.0 0 50 100 150 200 250 300 350 400 450 500 550 600 Temperature (°C)

  10. Results: VT-PXRD QDH 25°C  QDH: 140°C Stable between 25-70 °C 120°C Phase transition at 100 °C Intensity 110°C  dehydration  QDMSO: 100°C Stable between 25-120 °C 70°C Phase transition at 120 °C 25°C  de-solvation. 5 10 15 20 25 30 35 40 45 50 QDMSO 2θ  Dehydrated & de-solvated 25°C structures are identical. 180 °C  Higher thermal stability of QDMSO related to 140°C Intensity stronger hydrogen 120°C bonding network in 100°C lattice. 80°C 35°C 5 10 15 20 25 30 35 40 45 50 2 θ

  11. Conclusion and Future Work  As the degree of hydration increases: o H-bonding more satisfied by water molecules o Contribution of π - π stacking interactions increases due to more planar quercetin molecule  Experimental validation confirms QDMSO to have higher thermal stability than QDH – Higher contribution and stronger H-bonding in QDMSO.  Synthonic modelling as a predictive tool to relate crystal structure to product properties leading to more efficient product formulation and faster development.  Future work involves experimental validation of surface chemistry of the different forms. 11

  12. School of Food Science and Nutrition Acknowledgements Synthonic Modeling of Quercetin and Its Hydrates: Explaining Crystallization  Dr Elena Simone & Professor Megan Povey Behavior in Terms of Molecular  Dr Ian Rosbottom Conformation and Crystal Packing  School of Food Science and Nutrition for Panayiotis Klitou, Ian Rosbottom, Elena Simone funding this doctoral project Crystal Growth & Design 2019 19 (8), 4774-4783 DOI: 10.1021/acs.cgd.9b00650 12
