Regional Superparametrization of OpenIFS by 3D LES Gijs van den - PowerPoint PPT Presentation

Regional Superparametrization of OpenIFS by 3D LES Gijs van den Oord (NLeSC), Fredrik Jansson (CWI), Inti Pelupessy (NLeSC), Pier Siebesma (TU Delft, KNMI), Daan Crommelin (CWI) ICCS2019: MMS Motivation DNS LES LAM GCM Resolved

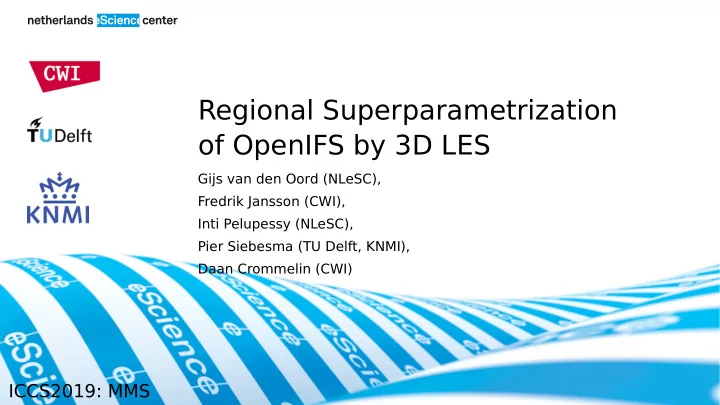

  1. Regional Superparametrization of OpenIFS by 3D LES Gijs van den Oord (NLeSC), Fredrik Jansson (CWI), Inti Pelupessy (NLeSC), Pier Siebesma (TU Delft, KNMI), Daan Crommelin (CWI) ICCS2019: MMS

  2. Motivation DNS LES LAM GCM Resolved convection & Physics Grey Zone clouds parametrizations ICCS2019: MMS

  3. Superparametrizing OpenIFS by DALES Dutch Atmospheric Large Eddy Simulation (DALES) ICCS2019: MMS

  4. Coupling method: Grabowski scheme Forcing upon local LES models due to large-scale dynamics Tendencies within the GCM due to locally resolved physics ICCS2019: MMS

  5. Regional superparametrization ● Beware not to double-count physics tendencies ● Extremely unbalanced cost between grid point physics ● Surface fmuxes and roughness lengths transferred from GCM→ LES ICCS2019: MMS

  6. Implementation in OMUSE ICCS2019: MMS

  7. Cabauw case ➔ OpenIFS: ● T511 (~40 km), ● 91 layers ➔ DALES: ● 42 models ● 200 m, 200 x 200 ● 160 layers, up to 4 km ICCS2019: MMS

  8. Cabauw case ICCS2019: MMS

  9. Cabauw case Liquid water profjles difger signifjcantly from original OpenIFS and ERA-5. Advected liquid water converted to vapour near edges of SP-region ICCS2019: MMS

  10. Cabauw case Development of cumulus is better captured by the LES ICCS2019: MMS

  11. Cabauw case: cloud cover bias Cloud cover underestimated in SP domain: advecting liquid water directly is impossible! ICCS2019: MMS

  12. Liquid water problem DALES OpenIFS Total humidity prognostic, liquid water and Liquid water and water vapor separately water vapor diagostic: prognostic, total humidity diagnostic Grabowski scheme ‘smears out’ humidity fmuctuations, converting liquid water to water vapour ICCS2019: MMS

  13. Performance ● Load balancing remains a problem due to adaptive DALES time step & thermodynamics ● Speedup can be achieved by smaller LES domains and mean-state acceleration ICCS2019: MMS

  14. Summary ● Superparametrization of OpenIFS by 3D LES technically working. No feedback yet of rain and surface and radiation still in GCM. ● Cumulus evolution improved in testcase above Cabauw. Evolution of BL height seems in line with observations. ● Our SP setup blocks advection of liquid water: developing strategies to stimulation variance. More validation and verifjcation needed. ● Computational burden high and unbalanced due to DALES adaptive time step → technically hard problem to solve... ICCS2019: MMS

  15. Aknowledgements ● ECMWF for support on OpenIFS, ERA-5, and use of compute infrastructure. ● DALES community for support on DALES. ● Cloudnet and Cesar observatory for observational data. ICCS2019: MMS

  16. Superparameterization Grabowski, W. W.: An Improved Framework for Superparameterization, J. Atmos. Sci., 61, 1940– References 1952, 2004 Khairoutdinov, M., et al: Simulations of the F . Jansson et al: Regional superparameterization in a Atmospheric General Circulation Using a Cloud- global circulation model using large-eddy simulations, Resolving Model as a Superparameterization of submitted to JAMES, 2019 Physical Processes, J. Atmos. Sci, 62, 2136–2154, Code on GitHub 2005. https://github.com/CloudResolvingClimateModeling/sp- Narenpitak, P ., et al: Cloud and circulation feedbacks coupler in a near-global aquaplanet cloud-resolving model, JAMES, 9, 1069–1090, 2017. OMUSE Acceleration Pelupessy, I., et al: The Oceanographic Multipurpose Software Environment (OMUSE v1.0), GMD, 10, 3167– Parishani, H., et al: T oward low-cloud-permitting cloud 3187, 2017. superparameterization with explicit boundary layer turbulence, JAMES, 9, 1542–1571, 2017. DALES Xing, Y ., et al: New Effjcient Sparse Space-Time Heus, T., et al: Formulation of the Dutch Atmospheric Algorithms for Superparameterization on Mesoscales, Large-Eddy Simulation (DALES) and overview of its Monthly Weather Review, 137, 4307–4324, 2009. applications, GMD, 3, 415–444, 2010. Jones, C. R., et al: Mean-state acceleration of cloud- resolving models and large eddy simulations, JAMES, 7, 1643–1660, 2015
