Microalgae biomass growth and lipid production using primary treated wastewater Eirini F. Barkonikou, AndrianaF. Aravantinou, and Ioannis D. Manariotis Environmental Engineering Laboratory Department of Civil Engineering Introduction -

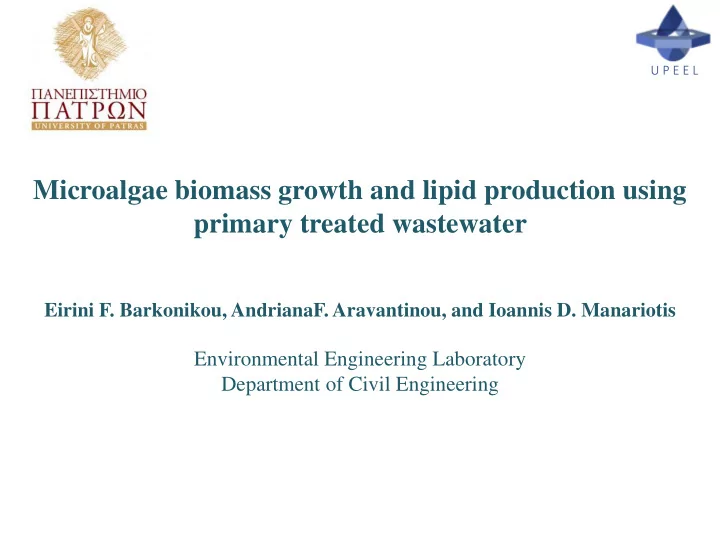

  1. Microalgae biomass growth and lipid production using primary treated wastewater Eirini F. Barkonikou, AndrianaF. Aravantinou, and Ioannis D. Manariotis Environmental Engineering Laboratory Department of Civil Engineering

  2. • Introduction - Microalgae & Wastewater treatmen t • Materials and Methods • Results - Biomass production - Nutrients removal - Lipid production • Conclusions

  3. The aim of this study was to evaluate the algal production in a laboratory scale open pond using as a feedstock primary treated wastewater. To further improve the nutrient removal from wastewater and to investigate the potential production of biomass as as renewable energy source.

  4. Introduction  Microalgae and wastewater treatment:  Natural treatment systems (sewage lagoons/sewage farms, stabilization ponds, other algal reactors). The first farm for the treatment of sewage with algae was reported in late 1800s in Berlin.  Wastewater treatment with algae offers important advantages: • low capital and operation cost • low energy requirements • contribution to reduction of CO 2 emissions • use of algal biomass as fertilizer or fuel source • great potential for algae to be used as biofuels.

  5. Introduction The selection of microalgae for potential biofuel production should take into  consideration the: - high algal cell density, - high lipids content, - but also their presence and survival in wastewater. What does affect algal growth?   Nutrients concentration, especially P and N  Aeration rate  Light conditions  Temperature  CO 2 CO2  pH

  6. In UPEEL  Identification of suitable species and cultivation system  Determination of microalgae growth rates Aravantinou et al. (2013). Bioresource Technology , 147 (130-134).

  7. In UPEEL (University of Patras, Environmental Engineering Laboratory)  Culture optimization  Short-term toxicity of nanoparticles on microalgae growth Aravantinou et al . (2015). Ecotoxicology and Environmental Safety.  Microalgae harvesting Vergini et al . (2016) Journal of Applied Phycology  Scale-up Aravantinou et al . (2016) Environmental Processes

  8. Six sets of experiments were conducted with primary treated wastewater in batch and continuous operating mode. The culture was exposed to artificial light 100 μ mol/m 2 s. In the last set the radiation intensity was set to 200 μ mol/m 2 s. Phase Operation mode Flow rate HRT (days) 1 Batch - - 2 Fill and draw 1 L/d 30 3 Continuous 1 L/d 30 4 Batch - - 5* Batch - - 6** Continuous 1 L/d 30 -3 . * Addition of PO 4 **Radiation intensity: 200 μ mol/m 2 s. 8

  9. Experimental conditions Investigating parameters - Laboratory- scale open pond: - Operation mode: Batch, Fill and Draw 50x50x25 cm (LxWxH) Continuous - Pre-cultured cells and secondary treated - Flow rate/ Hydraulic Retention Time wastewater - Photosynthetic radiation intensity: 100, 200 μmol·m -2 ·s -1 - Working volume: 30 L - Temperature: 21 ± 2 ο C - Wastewater: Primary effluent - Photoperiod: 12 h: 12 h (dark: light) - Air supply: 2 L/min - Operation period: 14 to 33 d

  10. Parameter Method Biomass - Gravimetric method, Total suspended solids - Absorbance (750 nm) - Chl-a (APHA et al., 1998) - Turbidity (NTU) Total - N Method 2,6- dimethylphenol (ISO 7890/1) Nitrates Ion Chromatography (APHA et al., 1998) Total - P Persulfate digestion and ascorbic acid method (APHA et al., 1998) Phosphates Ion Chromatography (APHA et al., 1998) COD Method 410.4 ( O’ Dell, 1993) Soluble non-purgeable organic TOC analyzer (APHA et al., 1998) carbon pH pH-meter Lipid extraction Method of Folch et al. (1957)

  11. Biomass concentration The growth rate of algae was affected by light intensity.  The maximum biomass concentration of 449 mg/L was observed under continuous  mode and high radiation intensity in phase 6. Although the light intensity is an important factor in algae growth, the nutrient  concentration, which was fed in the pond, is more important for algae growth. Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase 6 Mode Batch Fill & Draw Continuous Batch Batch Continuous 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 200 μ mol/m 2 s Primary treated wastewater Radiation

  12. Nitrates Microalgae can assimilate a significant amount of nutrients in excess of the  immediate metabolic needs. The nitrate removal was satisfactory, and the maximum decrease of nitrates  concentration (76%) was observed the same day with the external addition of phosphorus on day 14 (Phase 5). Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase 6 Mode Batch Fill & Draw Continuous Batch Batch Continuous 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 200 μ mol/m 2 s Radiation Primary treated wastewater

  13. Phosphates Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase 6 Mode Batch Fill & Draw Continuous Batch Batch Continuous Radiation 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 200 μ mol/m 2 s Primary treated wastewater Phosphates as well as nitrates are essential  nutrients for biomass growth. Phosphates concentration in the influent  ranged from 0.60 to 1.57 mg P/L and in the effluent their concentration was almost zero, implying the complete removal of phosphates.

  14. Lipid content The lipid content was affected by the influent nutrient concentration, and higher  values were observed with low nitrates concentration in the influent. Nutrients removal and the impact of nutrients concentration on the lipid content  of algal cells is an essential step before the scale-up of biomass and lipid production by microalgae. Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase 6 Mode Batch Fill & Draw Continuous Batch Batch Continuous 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 100 μ mol/m 2 s 200 μ mol/m 2 s Radiation Primary treated wastewater

  15.  The algal production was satisfactory in a laboratory open pond, which was fed with primary treated wastewater.  Microalgal growth was affected by phosphates concentration and irradiation intensity.  The efficiency of microalgae to remove nitrates and phosphates was satisfactory, and reached removals of 76 and almost 100%, respectively.  Finally, the highest lipid content was 15% when the microalgae faced starvation conditions.

  16.  Scale-up of ponds with microalgae species with higher lipid content i.e. Scenedesmus rubescens.  Cultivation of high lipid microalgae in outdoor ponds for wastewater treatment.  Investigation of low-cost harvesting method for microalgae biomass (magnetic microparticles, electrocoagulation, flocculation etc.)  Long-term impact of nanoparticles on microalgae cultures.

  17. Th Thank k you for r your r attention tention !!! !!
