Power Rack Oven Bringing the oven to the 21 st century. - PowerPoint PPT Presentation

Power Rack Oven Bringing the oven to the 21 st century. Yellow B TWO AXIS MOVEMENT Yellow B TWO AXIS MOVEMENT Vertical Adjustment Yellow B TWO AXIS MOVEMENT Horizontal Actuation Vertical Adjustment

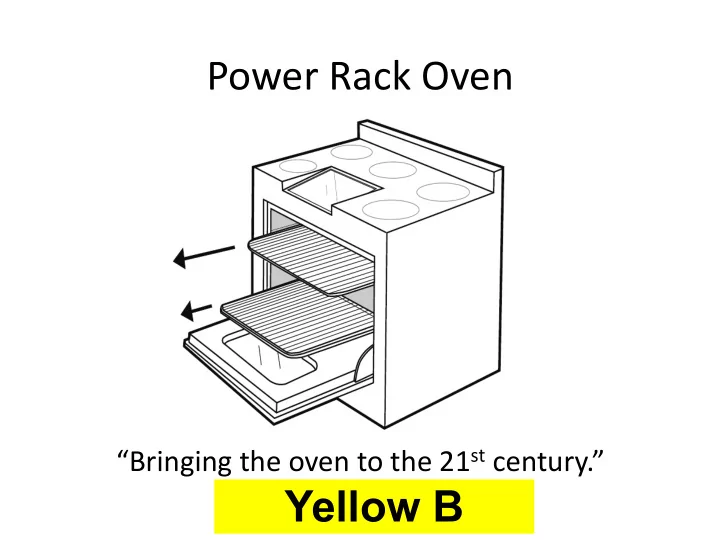

  1. Power ¡Rack ¡Oven “Bringing ¡the ¡oven ¡to ¡the ¡21 st ¡century.” Yellow B

  2. TWO AXIS MOVEMENT Yellow B

  3. TWO AXIS MOVEMENT Vertical Adjustment Yellow B

  4. TWO AXIS MOVEMENT Horizontal Actuation Vertical Adjustment Yellow B

  5. VERTICAL DISPLACEMENT  Lead screw driven.  Allows for wide range of heights. Threaded  Provides appropriate power. Mount  Simple to operate.  Uses existing technologies. Drive Motor Lead Screw Yellow B

  6. HORIZONTAL DISPLACEMENT  System of rollers  Powered rollers “drive” rack.  Provide stability from torques. Drive Motor Rack Rollers Yellow B

  7. CONSIDERATIONS  Cooking volume with mechanical systems.  Manipulating orientations to maximize work area.  Coupling of horizontal/vertical displacements.  Ensuring secure fastening of elements.  Visualizing insulation constraints. Yellow B

  8. LESSONS LEARNED  Able to fit components within traditional limits.  Household sized cookware still fit.  Room lost to horizontal mechanism.  Rollers:  Optimally should not be cantilevered.  Need way to ensure consistent application of driving.  Lead screws:  Four lead screws lead to over-constrained.  Possibility of jamming. Yellow B

  9. MARKET RELEVANCE  Existing problems:  Oven safety.  Oven accessibility.  Estimated $3 billion (US) market.  Our product will satisfy oven needs and more. Yellow B

  10. BENCHMARKING ANALYSIS Oven Gripper Easy-slide Rotisserie Power Rack Features Motorized Rack Vertical Adjustment Cooking Volume Accessibility Safety Cost Best Better Fair Not applicable Yellow B

  11. MOVING FORWARD  Thermal expansion of mechanical elements.  Insulation of drive systems.  Ensuring final system can support cooking loads.  Derive method for better horizontal actuation. Yellow B
