Multi-Contact Compliant Motion Control for Robotic Manipulators - PowerPoint PPT Presentation

Multi-Contact Compliant Motion Control for Robotic Manipulators Jaeheung Park , Rui Cortesao , Oussama Khatib System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works Stanford AI

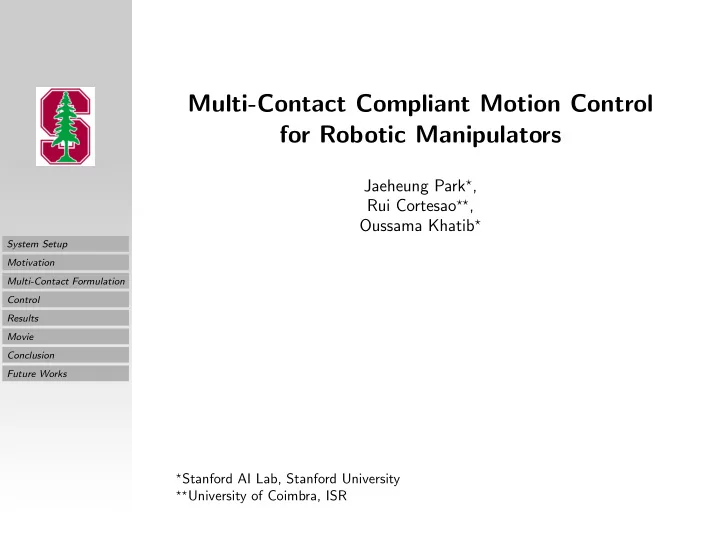

  1. Multi-Contact Compliant Motion Control for Robotic Manipulators Jaeheung Park ⋆ , Rui Cortesao ⋆⋆ , Oussama Khatib ⋆ System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works ⋆ Stanford AI Lab, Stanford University ⋆⋆ University of Coimbra, ISR

  2. 1. System Setup System Setup Motivation Multi-Contact Formulation Control Results Movie • PUMA560 Conclusion Future Works • Two contacts with vertical board and horizontal table

  3. 2. Motivation Multi-Contact Formulation • Our previous work 1 developed a general multi-contact model, which cannot be described by the Raibert-Craig model. 2 • Extend the framework by modeling the stiffness of the environment. System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works

  4. 2. Motivation Multi-Contact Formulation • Our previous work 1 developed a general multi-contact model, which cannot be described by the Raibert-Craig model. 2 • Extend the framework by modeling the stiffness of the environment. System Setup Force Control Motivation A modified Kalman estimation(AOB) is well suited for our system. Multi-Contact Formulation Control • Uncertain input torque - additional input error state. Results Movie • Varying measurement noise - on-line variance calculation. Conclusion Future Works 1 Roy Featherstone, Stef Sonck Tiebaut, and Oussama Khatib. A general contact model for dynamically decoupled force/motion control, 1999. 2 Raibert, M. H., and Craig, J. J. Hybrid Position/Force Control of Manipulators, ASME Jnl. Dynamic Systems, Measurement & Control, 1981

  5. 3. Multi-Contact Formulation Multi-Contact model f c = Nα � n � � = N Operational Point n × � � l n � : magnitude of α � l System Setup contact force Motivation Contact Point Multi-Contact Formulation Control Results Movie Conclusion Future Works

  6. 3. Multi-Contact Formulation Multi-Contact model f c = Nα � n � � = N Operational Point n × � � l � n : magnitude of α � l System Setup contact force Motivation Contact Point Multi-Contact Formulation Control Projection Matrices Results Movie = Ω f f Conclusion f c Future Works = Ω m ϑ ϑ t ϑ velocity of the operational point f force at the operational point N spans contact normal space

  7. 4. Control Motion Control µ o + ˆ ˆ p o f ∗ t Ω m q f ⋆ F comm Γ J T Σ Λ o Σ Robot f c f ∗ c Ω f ˆ f c System Setup Motivation Multi-Contact Formulation Force Control Control Results Movie Equations of Motion with Operational Space Formulation Conclusion Future Works Λ o ( x ) ˙ ϑ + µ o ( x, ϑ ) + p o ( x ) + f c = F, p o ( x ) + ˆ f ⋆ = com + ˆ µ o ( x, ϑ ) + ˆ F f c f ⋆ = Λ o Ω m f ∗ t + Λ o Ω f f ∗ c . com

  8. Force control With equations of motion in Contact Normal Space ˙ Ω f f ⋆ = ϑ c c System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works

  9. Force control With equations of motion in Contact Normal Space ˙ Ω f f ⋆ = ϑ c c and a spring model ˙ f c,i = k s,i ϑ c,i , System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works

  10. Force control With equations of motion in Contact Normal Space ˙ Ω f f ⋆ = ϑ c c and a spring model ˙ f c,i = k s,i ϑ c,i , System Setup The system transfer function can be derived as Motivation Multi-Contact Formulation G ( s ) = k s,i e − sT d Control s ( s + K 2 ) . Results Movie system input delay T d Conclusion additional damping Future Works K 2

  11. Force control Design f c,d r k f c L 1 G ( s ) Σ Σ - - p k ˆ L r Observer System Setup ˆ x k Motivation Multi-Contact Formulation Control Results L r a full state feedback gain obtained by Pole Placement Method Movie L 1 a scaling factor to compute reference input Conclusion Future Works f c contact force desired contact force f c,d reference input r k ˆ state estimate x k ˆ input error estimate p k

  12. Noise Variance( R k ) Estimation • The discrete time first order high-pass filter α f ( z ) = G f ( z ) α ( z ) , G f ( z ) the filter with a zero at 3[Hz] and a pole at 60[Hz] α ( z ) the measured contact force for each contact force space System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works

  13. Noise Variance( R k ) Estimation • The discrete time first order high-pass filter α f ( z ) = G f ( z ) α ( z ) , G f ( z ) the filter with a zero at 3[Hz] and a pole at 60[Hz] α ( z ) the measured contact force for each contact force space System Setup • The estimation of the measurement noise, ˆ R ( t i ) Motivation Multi-Contact Formulation i R ( t i ) = 1 Control ˆ � α f ] T } , { [ α f ( t j ) − ¯ α f ][ α f ( t j ) − ¯ Results N j = i − N +1 Movie Conclusion where ¯ α f is the mean of the filtered force over a time window. Future Works • 50 samples have been used in the experiments.

  14. 5. Results System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works Experiment for Analysis

  15. Measured and Estimated forces in contact with the table. (a) Measured force of the first contact. z direction. System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works (b) Estimated force of the first contact. z direction.

  16. Measured and Estimated forces in contact with the vertical board. System Setup Motivation (a) Measured force of the second contact. y direction. Multi-Contact Formulation Control Results Movie Conclusion Future Works (b) Estimated force of the second contact. y direction.

  17. Noise Variance Estimations. System Setup Motivation (a) Noise Covariance Estimation for the first contact force. Multi-Contact Formulation Control Results Movie Conclusion Future Works (b) Noise Covariance Estimation for the second contact force.

  18. Wrist translational motion in x direction. System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works

  19. 6. Movie System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works Linear/Angular Motion with Contacts ( 90/120 degree )

  20. System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works Without/With online calculation of Noise Variance, R k

  21. 7. Conclusion Multi-Contact Formulation • Extend our previous work(multi-contact motion/force control for rigid contact) to deal with compliant contact. • This new formulation sets up dynamic equation for contact force control. System Setup Force Control Motivation Multi-Contact Formulation • Apply a modified Kalman filter estimator(AOBs). Control Results • On-line noise Estimation. Movie Conclusion Future Works

  22. 8. Future Work • More experiments with different stiffness environment. • Implement on-line stiffness estimation strategy. • Multi-contact with multi-link. System Setup Motivation Multi-Contact Formulation Control Results Movie Conclusion Future Works
