Mobicents 2.0 The Open Source Communication Platform DERUELLE Jean JBoss, by Red Hat 138 AGENDA > VoIP Introduction > VoIP Basics > Mobicents 2.0 Overview SIP Servlets Server JAIN SLEE Server Media Server

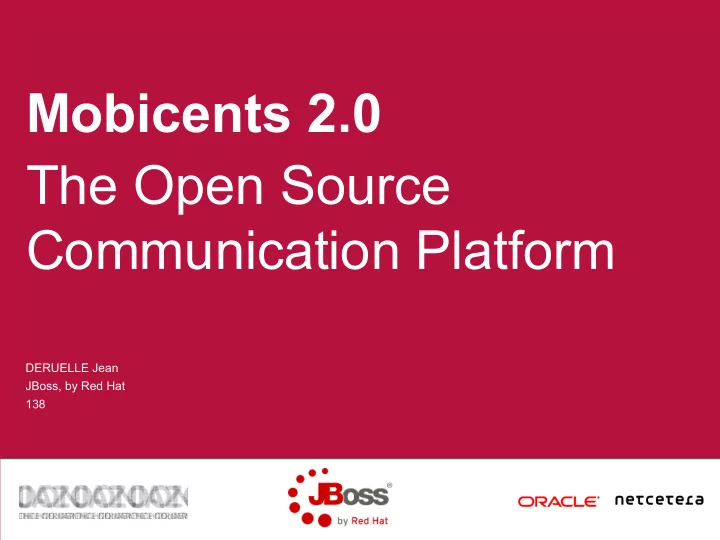

  1. Mobicents 2.0 The Open Source Communication Platform DERUELLE Jean JBoss, by Red Hat 138

  2. AGENDA > VoIP Introduction > VoIP Basics > Mobicents 2.0 Overview – SIP Servlets Server – JAIN SLEE Server – Media Server – SIP Presence Service – Diameter 2

  3. VoIP Introduction

  4. Introduction > Voice over Internet Protocol ? – Voice communications over IP networks – Not limited to voice anymore > Converged VoIP & Web Applications? – Converged service was serving VoIP and traditional packet-switched networks. – Now mixing traditional internet applications such as the web. 4

  5. VoIP Applications > Home Security > Location Based Services > Event Notification by Phone, SMS and IM > Conferencing > IT System Monitoring > Web Integration for Convergence > Customer Relationship Management > Banking The Sky Is The Limit! 5

  6. Home Security 6

  7. Location Based Services 7

  8. Interactive Voice Response 8

  9. Conferencing 9

  10. Web Integration for convergence 10

  11. CRM Integration 11

  12. Banking 12

  13. The Sky Is The Limit ! 13

  14. VoIP Basics

  15. VoIP Call > SIP – Negotiates RTP parameters (through SDP) – Authentication > RTP – carries audio stream in small packets 15

  16. SIP Call Flow 16

  17. Session Initiation Protocol > Similar to HTTP – Plain Text protocol – Request/Response Based > Sample request: INVITE sip:darth-vader@jazoon.com SIP/2.0 Via: SIP/2.0/UDP pc33.jboss.com;branch=z9hG4bKkjshdyff To: « Anakin » <sip:darth-vader@jazoon.com> From: « Jean » <sip:jean@jboss.com>;tag=88sja8x Call-ID: 987asjd97y7atg (like a Web Session ID) CSeq: 986759 INVITE ... <SDP> 17

  18. SIP - Requests > INVITE – make a call > CANCEL – cancel a call > BYE – end a call > SUBSCRIBE – to subscribe SIP events, such as buddy status update > REGISTER – submit your contact info to the server > MESSAGE – send a text (or other) message > OPTIONS – query capabilities 18

  19. SDP – Session Description Protocol > Describing multimedia session v=0 o=sender 123456 654321 IN IP4 127.0.0.1 s=A conversation c=IN IP4 127.0.0.1 t=0 0 m=audio 7078 RTP/AVP 111 110 0 8 3 101 a=rtpmap:0 PCMU/8000/1 a=rtpmap:8 PCMA/8000/1 a=rtpmap:3 GSM/8000/1 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-11 19

  20. Mobicents Overview

  21. Mobicents 2.0 Overview > JBoss is the only vendor supporting both JSLEE and SIP Servlets 21

  22. Mobicents Deployment Scenario 22

  23. Market Segments > Big mobile and landline telecoms adopting IP/IMS infrastructure (performance, HA, service exposure) > Call centers (HA, UI convenience, BPM) > Classic web applications (easy development) – Web shopping and customer service – Social, banking, security, etc > Enterprises (integration, customization) – PBX and unified communications – Office application integration 23

  24. Mobicents SIP Servlets

  25. SIP Servlets in Java EE Architecture 25

  26. Focus of SIP Servlets > Converged HTTP and SIP Applications > (Mobicents-specific beyond JSR-289) – Media – playback, record, conferencing, IVR, TTS and others, JSR 309 support (JSR 309) Diameter – Base, Sh, Ro, Rf – – Tooling - JBCP Developer Studio SIP Servlets Plugin Integrated with Rich Web UI frameworks for Desktop-like experience – support for Ajax – and Comet-enabled frameworks – Seam, Richfaces, GWT, Tomcat AIO, Jruby/Rails – Telco Frameworks - - Seam Telco Framework, Seam Telco Framework, Jruby Torquebox Telco Framework, Echarts For Sip Servlets Framework, JAIN SLEE Interoperability Patterns > Need anything else? It's on a case-by-case basis, but JAIN SLEE is the general solution. 26

  27. Production Features > IMS & Diameter support > Congestion Control Concurrency Control > Enterprise Monitoring with JBoss ON (Sip Servlets Plugin) > HA Support > SIP Load Balancer bundled with JBCP SIP Servlets – IP Load Balancer support with Red Hat Cluster Suite or any other IP LB – SIP Session & Application Session Clustering nicely integrated with existing HTTP clustering – – Fine-grained control replication options Support for Mid Call Failover with bundled SIP LB or early dialog with IP LB – Support for Converged Failover with apache http + Mod_jk – 27

  28. Mobicents JAIN SLEE

  29. JAIN SLEE - Concepts > Geared towards Telco > SLEE = Service Logic Execution Environment – High throughput, low latency event processing – High performing platform for event driven applications > Asynchronous & Event Orientated > Network Abstraction Layer 29

  30. JAIN SLEE Example 30

  31. Mobicents JAIN SLEE Server > Integrated Java EE + JAIN SLEE environment > Network abstraction layer - SIP, XMPP, Diameter, Media/MGCP, HTTP, SMPP > Tooling - JBCP Developer Studio JAI N SLEE Plugin > Enterprise Monitoring with JBoss ON (JAIN SLEE Plugin) > High Performance and High Availibility 31

  32. Mobicents Media Server

  33. Mobicents Media Server > Handles Media processing to Deliver competitive, complete, best-of-breed, high quality media gateway > Provides a Component model, very flexible Phone SIP RTP #1 SIP Servlets / Mobicents JAIN SLEE MGCP Media Server Container Phone RTP SIP #2 33

  34. Architecture Ann(ouncement) Endpoint: Allows playback for announcements in wav files. > Interactive Voice Response: Allows playback for announcements and tones, listen for DTMF events or > voice messages. Allows recording. Conference Bridge: provide access to a specific conference where calls are mixed. > Packet Relay: specific form of conference bridge with only two sockets > SS7 endpoints for interface with legacy networks > Custom Endpoint : Flexibility to define your own media path > Pure Java Implementation > Control the Media Server – MGCP, JSR-309 API (uses MGCP under the covers) > 34

  35. Features > Media control – MGCP (RFC 3435), Java Media Control API(JSR-309) > Supported Media Files – Media files *.wav (G711, GSM, PCM), *.spx(SPEEX), *.gsm > Media bearing/Audi Codecs – RTP formats: G711, G729, GSM, SPEEX, PCM 16bit 8-44kHz (Mono/Stereo) > Video – any ISO Based format (.3GPP, ...), H263 > SS7 support - ISUP : Signaling and Voice, INAP, MAP, CAMEL > Text To Speech > DTMF Recognition > Performance – 200 Full Duplex connections: CPU usage less than 15% and maximum jitter less than 6ms 35

  36. Mobicents SIP Presence

  37. SIP Presence Service PUBLISH SUBSCRIBE > Provides presence / NOTIFY functionalities to SIP-based networks using standards developed by the IETF, OMA, 3GPP and the ETSI 37

  38. Implementation 38

  39. Mobicents Diameter

  40. Mobicents Diameter Architecture 40

  41. Features > Core Stack : Own fork of JDiameter open source stack – Multiplexer + Customizable Validator (message validation) + Customizable Dictionnary – (provide dictionnary of AVP to applications) Interfaces > – Base : responsible for managing connection between peers and provide basic Authentication, Accounting and Session Management – Sh (Client/Server) : managing User Data in HSS CCA: enable credit session management, and convey sufficient information for – applications to perform charging activities. Ro/Rf : Online/Offline charging – Cx/Dx : interaction between SIP IMS Proxies and HSS – > Example applications (both for JSLEE and J2EE) Base and Mobicents SIP Servlets Event Call Charging – – Sh (Client/Server) and OpenIMS Integration Ro/Rf example – Enterprise Monitoring with JBoss ON (Diameter Plugin) > 41

  42. Demo
