Magnalaces Team Sherlock Ohms (B102-1) Noah Burchell, Blake - PowerPoint PPT Presentation

Mar 03, 2023 •6 likes •86 views

Magnalaces Team Sherlock Ohms (B102-1) Noah Burchell, Blake Grindstaff, Megan Wilson EF 152 Spring 2018 April 3, 2018 Marketing Video Customer Requirements and Product Selection Target audience Variety of disabilities that limit

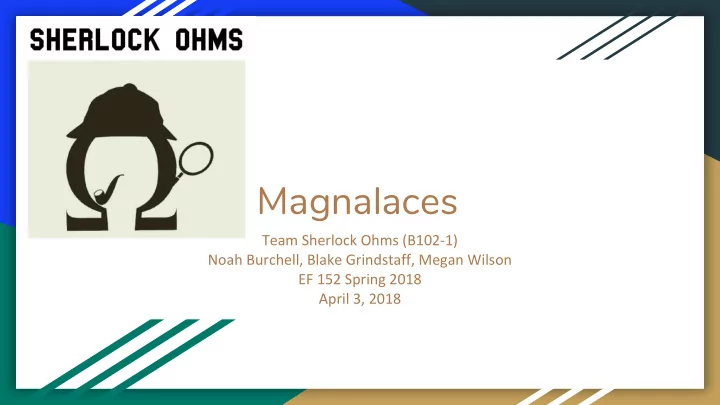

  1. Magnalaces Team Sherlock Ohms (B102-1) Noah Burchell, Blake Grindstaff, Megan Wilson EF 152 Spring 2018 April 3, 2018

  2. Marketing Video

  3. Customer Requirements and Product Selection ● Target audience ○ Variety of disabilities that limit mobility ○ parkinson’s , arthritis, dyspraxia, spina bifida, and others ● We chose this product because: ○ It affects a variety of disabilities. ○ It was realistic to build given constraints. ○ It is cost-effective. ○ It allowed opportunities to customize and improve products that are similar. ● Customer ○ Trevanda Allison: a special education teacher whose students could use product

  4. Conceptual Design ● Initial Design: ○ Plastic lace holders on top of shoe ○ Elastic cords on top of plastic piece to tighten laces ■ Attached to laces at each eye ○ Parts to aid with easy removal are placed next to ankle ○ Created a curved shape to fit arch of a foot ● Second Iteration: ○ Moved part to aid with easy removal to top of design ○ Moved piece to tighten laces behind loops ● Third Iteration ○ Removed curve from design and added foam for more secure fit

  5. Actual Design ● 3D-Printed design ● Pieces attached with epoxy ● Design covered with fabric for even finish ● Felt bumpers on the bottom for comfort and arch support

  6. Cost and Time Estimates COST Time To Build Labor Costs Buttons: $0.20 / piece *2 = $0.40 Printing: 2.5 hrs $15.00 / hr Magnets: $3.75 / piece * 4 = $15.00 TOTAL: 2.5 hrs Total Cost to Build Fabric = $0.30 Capacity $21.55 / set Felt Bumpers: $0.22 1 part / printer * 16 working printers Cost / 1000 units: TOTAL: $15.92 TOTAL: 16 parts/2.5 hrs = 6.4 parts / hr $1592 Projected Cost: $23.00 / set Zubits Cost: $24.50 for clips and zubits Cost Reduction: $1.50

  7. Customer Feedback and Results ● Could you use a variety of colors to match shoes? ○ We said that it could be made smaller if we locate smaller magnets, and a variety of fabrics could be utilized to match shoes. ● How heavy is it, and does it add much weight to the foot? ○ Devices are very lightweight. ● Would you add velcro to the side for shoelace security? ○ We would cut the excess lace off, or offer shoelaces of the correct length. ● Does the shoe move around and or does the magnalace come loose? ○ Shoes are very secure with Magnalaces added, and have to be removed with intentional force if the handles are not used. ● Customer said it was a beneficial product that would definitely help those who need it.

  8. Conclusions ● Improvements: ○ Smaller magnets for smaller overall design ○ More discreet design for product ○ More accurate CAD of design ● Conclusion ○ Product functions as intended ○ Product would be beneficial for people with fine motor disabilities ○ We are satisfied with our design.
