LHCb Online System VELO/BGV Slice Detector VELO ECal HCal Muon - PowerPoint PPT Presentation

Oct 27, 2022 •305 likes •348 views

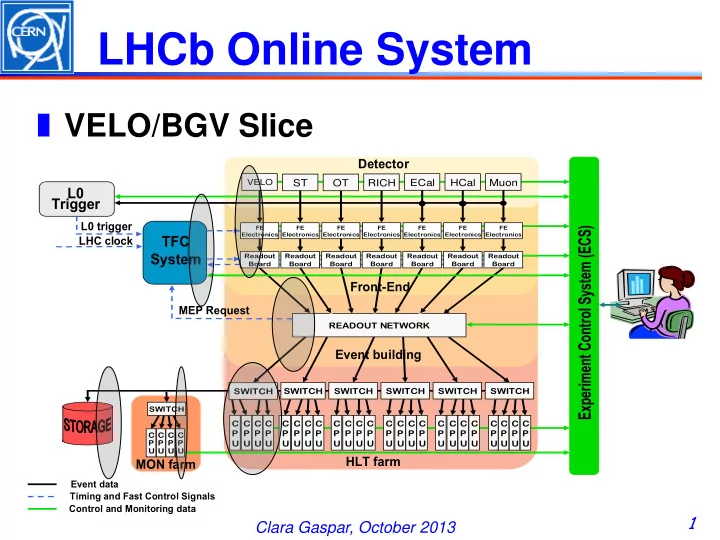

LHCb Online System VELO/BGV Slice Detector VELO ECal HCal Muon ST OT RICH L0 Trigger L0 trigger FE FE FE FE FE FE FE Experiment Control System (ECS) Electronics Electronics Electronics Electronics Electronics Electronics

  1. LHCb Online System ❚ VELO/BGV Slice Detector VELO ECal HCal Muon ST OT RICH L0 Trigger L0 trigger FE FE FE FE FE FE FE Experiment Control System (ECS) Electronics Electronics Electronics Electronics Electronics Electronics Electronics TFC LHC clock System Readout Readout Readout Readout Readout Readout Readout Board Board Board Board Board Board Board Front-End MEP Request READOUT NETWORK Event building SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH SWITCH C C C C C C C C C C C C C C C C C C C C C C C C P P P P P P P P P P P P P P P P P P P P P P P P C C C C P P P P U U U U U U U U U U U U U U U U U U U U U U U U U U U U HLT farm MON farm Event data Timing and Fast Control Signals Control and Monitoring data 1 Clara Gaspar, October 2013

  2. BGV Control System ❚ Architecture CMW BGV Status & Alarms Commands BGV BGV BGV TFC HLT Storage DCS HV DAQ WinCC-OA (PVSS) Power Timing Farm Supplies (Odin) BGV BGV BGV BGV FEE RO TEMP LV Hybrids ELMBs Power Tell1s Control Boards Supplies Etc. 2 Clara Gaspar, October 2013

  3. BGV Operation ❚ Standard LHCb Sub-detector User Interface ❚ BGV will have the same (TDET -> BGV) ❚ Gives access to control all levels below: ❙ Electronics ❙ Power supplies ❙ TFC, Farm, etc. 3 Clara Gaspar, October 2013
