LBNF - Structural Discussion Dimitar MLADENOV - CERN EP/NU LBNF - PowerPoint PPT Presentation

LBNF - Structural Discussion Dimitar MLADENOV - CERN EP/NU LBNF Cryostat Slab and Final design workshop Fermilab, 10-11 April 2018 LBNF - Weight summary Steel Structure: 3000 T (this includes: Steel profiles, steel plate, insulation and

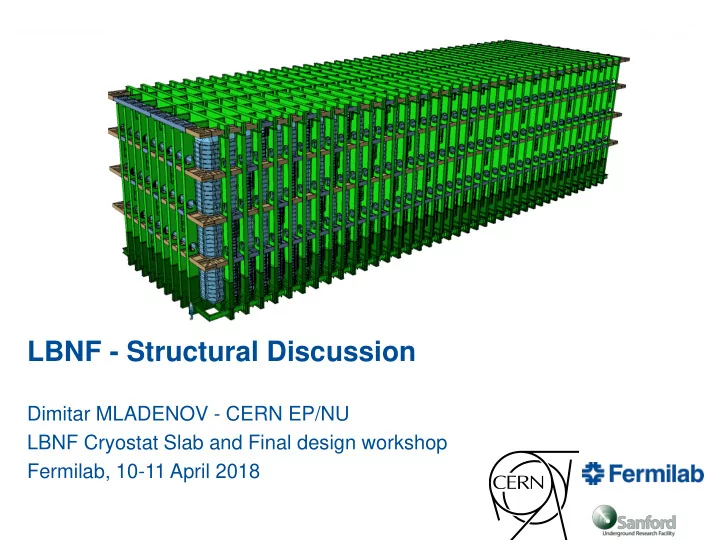

  1. LBNF - Structural Discussion Dimitar MLADENOV - CERN EP/NU LBNF Cryostat Slab and Final design workshop Fermilab, 10-11 April 2018

  2. LBNF - Weight summary ❖ Steel Structure: 3’000 T (this includes: Steel profiles, steel plate, insulation and membrane) • Steel profiles & Steel plate: 2’500 T • Insulation and membrane: 500 T ❖ LAr: 18’000 T (full no gas) ❖ Detector wet weight: unknown ❖ Detector services: unknown Total: 21’000 T (excluding a detector and services on the roof) Floor load case The total surface of beams in contact with the concrete: 450m 2 Load under the beams: 21’000T / 450m 2 = 47 T/m 2 CERN NP LBNF

  3. LBNF – Floor point loads 96 x 2.25 MN CERN NP LBNF

  4. LBNF – Floor point loads CERN NP LBNF

  5. LBNF – Floor point loads - SP CERN NP LBNF

  6. LBNF – Floor point loads - DP CERN NP LBNF

  7. LBNF – Beam load 500 T/m2 (5 MPa) FINAL ! CERN NP LBNF

  8. LBNF – Leveling screw point loads 3T on 100mm x 100mm pads 3 MPa CERN NP LBNF Total number of screws per cryostat: ~300

  9. LBNF – Grouting under beams G10 coming with the beam 1. Leveling 2. Wooden Formwork 3. Pour the concrete 4. Wait to dry 5. Remove the wood CERN NP LBNF

  10. LBNF – Grouting under beams 4. Remove the bolts CERN NP LBNF

  11. LBNF – Deflections and movements of cryostat on concrete slabs Sliding of the primary structure on rigid floor CERN NP LBNF

  12. LBNF – Deflections and movements of cryostat on concrete slabs Floor Conditions CERN NP LBNF

  13. LBNF – Test Pieces CERN NP LBNF
