In Instructions Each team is required to use only this template - PowerPoint PPT Presentation

In Instructions Each team is required to use only this template Points mentioned on each slides are suggested items that could be discussed over this presentation. Team can choose appropriate topics relevant to their design. Points

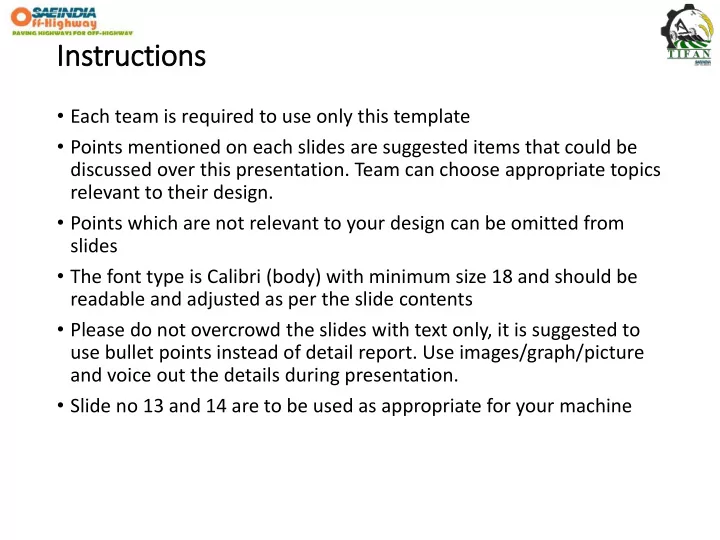

  1. In Instructions • Each team is required to use only this template • Points mentioned on each slides are suggested items that could be discussed over this presentation. Team can choose appropriate topics relevant to their design. • Points which are not relevant to your design can be omitted from slides • The font type is Calibri (body) with minimum size 18 and should be readable and adjusted as per the slide contents • Please do not overcrowd the slides with text only, it is suggested to use bullet points instead of detail report. Use images/graph/picture and voice out the details during presentation. • Slide no 13 and 14 are to be used as appropriate for your machine

  2. Overall Technical Specifications - Machine  Machine type : 2W/4W  Overall dimensions (L x B x H) (mm):  Static Ground Clearance (mm):  Machine Weight (including all fluids) (kg):  Wheel base (if applicable) (mm): Image  Wheel Track Width (mm):  CG Location (X,Y & Z) from machine mid plane and wheel Centre:  Max. speed (kmph):  Working width(m) &Working depth(m):  Calculated Volume of material handled (m3/sec):  Differentiating feature,USP of machine, if any 2/19/2018 2

  3. Machine frame/Chassis Design  Calculations for bending strength  CAE analysis of frame ,suggested analysis in • Longitudinal torsion • Vertical bending • Transverse bending  G Force calculations FEA images/ Actual validation Image, if any  Calculations of maximum stress (Von- Misses/Principal)  Calculation of maximum deflections  Factor of safety calculations  Engine mount calculations  Ergonomics considerations 2/19/2018 3

  4. Design of Digging System  Design of blades  Blade Geometry  Draft Calculations  Share blade rake angle Actual  Width of harvesting Image  Depth of harvesting  Throat clearance estimation 2/19/2018 4

  5. Design of Separating system  Type of system  Length /Width of conveyor  Speed of operation calculation  Material handling capacity calculation Actual Image  Spacing of cleaning elements  Power consumption calculation 2/19/2018 5

  6. Design of Windowing System  Type of system  Length / Width  Speed of operation calculation  Output of onion Actual Image 2/19/2018 6

  7. Design of Power Transmission Systems  Various Gear ratios calculation  Travel speed calculations for given tire size  Tractive effort, drawbar pull calculations  Brake calculations for stopping distance, weight transfer etc. Actual Image  Achievable gradability calculations  Power flow diagram  Design/Selection of belt /chain drives for various units 2/19/2018 7

  8. Steering System Design  Type of steering system  Toe in/out  Ackerman % (if applicable)  Turning radius Actual  KPI, Camber, Caster, scrub radius etc. Image 2/19/2018 8

  9. Project Management  Project plan of complete machine development from Virtual event till main event  Assignment of task and responsibilities in team  Identification of critical paths and action taken Image/Project plan 2/19/2018 9

  10. Design Failure Mode & Effect Analysis (DFMEA) Modified RPN after action Probability Detection Potential Potential Severity Potential Current RPN Item/Function Failure effects of causes of design Actual action implemented mode failure failure control 2/19/2018 10

  11. Design Validation Plan (DVP) • List down all the actual validation tests conducted on actual machine 2/19/2018 11

  12. College Workshop Facilities • In-house workshop facilities where Proto type made • Test field availability Actual Images of work 2/19/2018 12

  13. Customizable slide 1 for team  Team can present any new/unique design feature here  Innovation* Image * Feature shown up here must be implemented on the main TIFAN prototype machine with images. 2/19/2018 13

  14. Customizable slide 2 for team Team can utilize this slide as per their wisdom to present any thing which other wise is limited due to no of slides 2/19/2018 14
