How We Built Tools That Scale to Millions of Lines of Code Eugene - PowerPoint PPT Presentation

How We Built Tools That Scale to Millions of Lines of Code Eugene Burmako Twitter, Inc. 6/20/2018 About me Founder of Scala macros, Scalameta and Rsc Member of the Scala Improvement Process committee PhD from Martin Oderskys lab

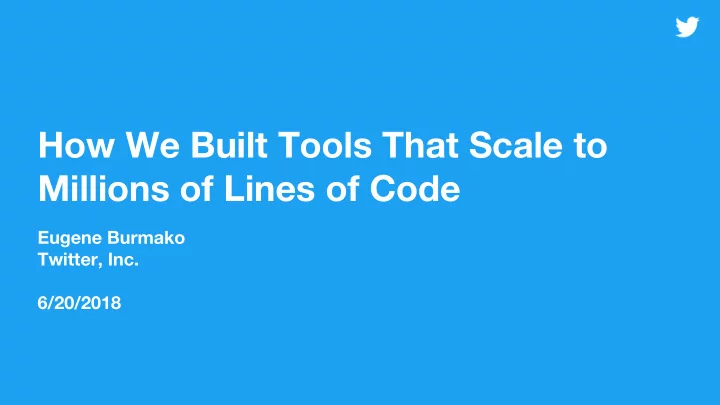

  1. How We Built Tools That Scale to Millions of Lines of Code Eugene Burmako Twitter, Inc. 6/20/2018

  2. About me Founder of Scala macros, Scalameta and Rsc ● Member of the Scala Improvement Process committee ● PhD from Martin Odersky’s lab at EPFL (2011-2016) ● Tech lead of the Advanced Scala Tools team at Twitter (2017-present) ● 2

  3. Credits 3

  4. Core contributors Advanced Scala Tools team at Twitter: Eugene Burmako ● Shane Delmore ● Uma Srinivasan ● 4

  5. Early adopters Build team ● Continuous Integration team ● Code Review team ● Core Data Libraries team ● Core Systems Libraries team ● Other folks at Twitter ● 5

  6. 6

  7. Problem statement 7

  8. Huge codebase (ca. 2017) ~2^25 lines of human-written code ● ~2^16 targets ● 8

  9. Need for semantic tooling (ca. 2017) Not enough to treat programs like text ● Need to understand semantics: ● What does this identifier resolve to? ○ What are all the usages of this definition? ○ What is the type of this expression? ○ Etc etc. ○ 9

  10. Prioritized user asks (ca. 2017) Code browsing ● Code review ● Code evolution ● 10

  11. State of semantic tooling (ca. 2017) Code browsing = IDEs, but IDEs couldn't load entire Twitter source ● Code review = Phabricator, which didn’t have Scala integration ● Code evolution = scala-refactoring, which didn’t have a maintainer ● Also, several proprietary solutions with varied Scala support ● 11

  12. Advanced Scala Tools team Founded in June 2017 ● Mission: “Raise the bar on what is possible for an effective Scala ● development environment both at Twitter and in the Scala community” Roadmap: improve code browsing, code review and code evolution in the ● Twitter development workflow 12

  13. Existing semantic APIs 13

  14. Existing semantic APIs (ca. 2017) Scala compiler internals ● Scala.reflect (thin wrapper over compiler internals) ● ScalaSignatures (serialization format for compiler internals) ● 14

  15. Blocker #1: Learning curve Compiler internals span dozens of modules and thousands of methods ● Complicated data model and arcane preconditions for the APIs ● I did a PhD in Scalac internals, but still can’t make sense of all that ● 15

  16. Blocker #2: Scarce documentation Scala requires an extensive semantic API ● This requires lots and lots of documentation ● Even for scala.reflect, the documentation is significantly lagging behind ● 16

  17. Blocker #3: Compiler instance Compiler internals require a compiler instance ● This means poor performance even for simple operations like “Go to ● definition” or “Find all usages” Tools that use Scala compiler internals either roll their own indexer or ● accept the limitations 17

  18. Future semantic APIs 18

  19. Future semantic APIs (ca. 2020) Scala.reflect is based on Scala compiler internals, so it was discarded ● Meet Tasty - serialization format for Dotty compiler internals ● Used in Dotty IDE and the upcoming Dotty macro system ● 19

  20. library/src/scala/tasty/Tasty.scala abstract class Tasty { ... // DefDef type DefDef <: Definition implicit def defDefClassTag: ClassTag[DefDef] val DefDef: DefDefExtractor ... } 20

  21. library/src/scala/tasty/Universe.scala trait Universe { val tasty: Tasty implicit val context: tasty.Context } object Universe { implicit def compilationUniverse: Universe = throw new Exception("Not in inline macro.") } 21

  22. compiler/.../CompilationUniverse.scala import dotty.tools.dotc.core.Contexts.Context class CompilationUniverse(val context: Context) extends scala.tasty.Universe { val tasty: TastyImpl.type = TastyImpl } 22

  23. Summary In its current form, Tasty looks very similar to scala.reflect, but ● reimplemented for Dotty Still based on compiler internals ● Still underdocumented ● Still requires a compiler instance ● 23

  24. Rolling our own semantic APIs 24

  25. Scalameta (ca. 2013) Open-source metaprogramming library ● Created almost 5 years ago during my time at EPFL ● Focused on tool writers ● 25

  26. Scalameta (ca. 2018) More than 10 projects ● More than 10000 commits ● More than 200 contributors ● Funded by Twitter and Scala Center ● 26

  27. SemanticDB Data model for semantic information about programs ● Focused on what tool writers need from the compiler... ● ...not on what is convenient to expose in the compiler ● Collaboration between Eugene Burmako (a compiler writer) and Ólafur Páll ● Geirsson (a tool writer) 27

  28. Interchange format message TextDocument { Schema schema = 1; string uri = 2; string text = 3; Language language = 10; repeated SymbolInformation symbols = 5; repeated SymbolOccurrence occurrences = 6; repeated Diagnostic diagnostics = 7; repeated Synthetic synthetics = 8; } 28

  29. Example object Test { def main(args: Array[String]): Unit = { println("hello world") } } 29

  30. Workflow $ scalac -Xplugin:our/plugin.jar Test.scala // Alternatively: metac Test.scala $ find . ./META-INF ./META-INF/Test.scala.semanticdb ./Test.scala 30

  31. Payload $ xxd META-INF/semanticdb/Test.scala.semanticdb 00000000: 0ae4 0408 0312 0a54 6573 742e 7363 616c .......Test.scal 00000010: 611a 596f 626a 6563 7420 5465 7374 207b a.Yobject Test { 00000020: 0a20 2064 6566 206d 6169 6e28 6172 6773 . def main(args 00000030: 3a20 4172 7261 795b 5374 7269 6e67 5d29 : Array[String]) 00000040: 3a20 556e 6974 203d 207b 0a20 2020 2070 : Unit = {. p 00000050: 7269 6e74 6c6e 2822 6865 6c6c 6f20 776f rintln("hello wo 00000060: 726c 6422 290a 2020 7d0a 7d0a 2a5b 0a1a rld"). }.}.*[.. 00000070: 5f65 6d70 7479 5f2e 5465 7374 2e6d 6169 _empty_.Test.mai 00000080: 6e28 292e 2861 7267 7329 1808 2a04 6172 n().(args)..*.ar ... 31

  32. Payload $ metap . Summary: Schema => SemanticDB v3 Uri => Test.scala Text => non-empty Language => Scala Symbols => 3 entries Occurrences => 7 entries 32

  33. Symbols _empty_.Test. => final object Test extends AnyRef { +1 decls } _empty_.Test.main(). => method main(args: Array[String]): Unit _empty_.Test.main().(args) => param args: Array[String] 33

  34. Occurrences [0:7..0:11): Test <= _empty_.Test. [1:6..1:10): main <= _empty_.Test.main(). [1:11..1:15): args <= _empty_.Test.main().(args) [1:17..1:22): Array => scala.Array# [1:23..1:29): String => scala.Predef.String# [1:33..1:37): Unit => scala.Unit# [2:4..2:11): println => scala.Predef.println(+1). 34

  35. To learn more Check out “SemanticDB for Scala developer tools” by Ólafur Páll ● Geirsson (ScalaSphere 2018) Detailed examples of SemanticDB payloads ● Introduction to CLI utilities to work with SemanticDB ● Overview of existing tools based on SemanticDB ● 35

  36. Rolling our own semantic tools 36

  37. Opensource tools Metadoc (code browsing) ● Metals (code browsing and interactive development) ● Scalafix (code linting and refactoring) ● Developed by Ólafur Páll Geirsson and a community of opensource contributors based on Scalameta 37

  38. Company-wide semantic index SemanticDB doesn’t require a compiler instance ● Therefore can be made extremely fast even on huge codebases ● SQLite indexes take ~500Mb per 1Mloc and provide ~10ms query times ● Using different storage technology at Twitter, with similar characteristics ● 38

  39. Company-wide language server Experimental LSP implementation backed by the semantic index ● Implements textDocument/definition and textDocument/references ● 39

  40. Code browsing Experimental Intellij IDEA plugin with custom “Go to definition” and “Find ● references” powered by the company-wide language server Finally, an IDE that can handle the entire Twitter source ● 40

  41. Code review Upstream improvements to DiffusionExternalSymbolsSource to take ● source positions into account Experimental implementation of a symbol source powered by the ● company-wide language server 41

  42. Code evolution Upstream Scalafix, closely following cutting edge milestone builds ● Distributed Scalafix to run code rewrites across the entire Twitter source ● To learn more, check out “Scalafix @ Twitter scale” by Uma Srinivasan ● (Typelevel Summit Boston 2018) 42

  43. Summary 43

  44. Summary Advanced Scala Tools team was founded to improve code browsing, ● code review and code evolution in the Twitter development workflow We use SemanticDB - an opensource interchange format for semantic ● information developed by Eugene Burmako and Ólafur Páll Geirsson We have implemented experimental improvements to multiple areas of ● interest, integrating opensource and closed-source solutions 44

  45. We are hiring! Are you interested in compilers and developer tools? ● Are you ready to get your hands dirty to make things happen? ● Drop Eugene Burmako an email: eburmako@twitter.com ● 45
