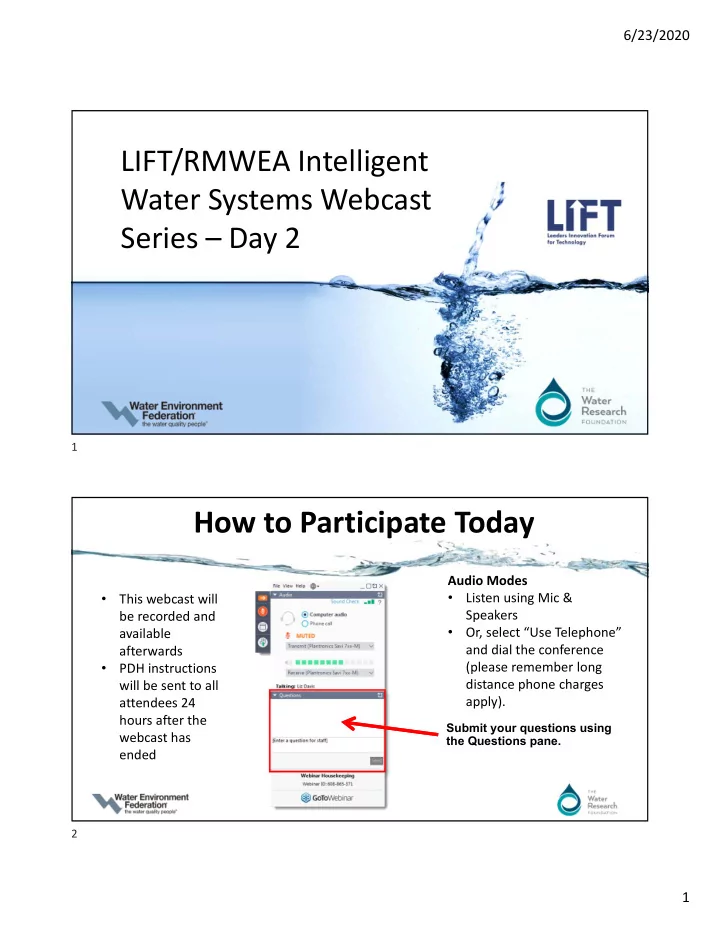

6/23/2020 LIFT/RMWEA Intelligent Water Systems Webcast Series – Day 2 1 How to Participate Today Audio Modes • • Listen using Mic & This webcast will Speakers be recorded and • Or, select “Use Telephone” available and dial the conference afterwards • (please remember long PDH instructions distance phone charges will be sent to all apply). attendees 24 hours after the Submit your questions using webcast has the Questions pane. ended 2 1

6/23/2020 Webcast and Workshop Organizers Webcast and Workshop Chairs Abigail Antolovich, Denver Water Tanja Rauch‐Williams, Carollo Engineers Steering Committee Members Ben Stanford ‐ Hazen and Sawyer Charles Bott ‐ HRSD Jim McQuarrie ‐ Metro Wastewater Reclamation District Fidan Karimova, Aaron Fisher, Christobel Ferguson ‐ LIFT Morgan Brown, Barry Liner, Lisa MacFadden – WEF Walter Graf, David Morroni, Stephanie Fevig, Frank Blaha, Mary Smith ‐ WRF Erica Bailey ‐ City of Raleigh 3 Today’s Presentations • Where are intelligent water systems going in the future; smart water networks, Ken Thompson, Jacobs • The Journey of Transforming Information Technology to Digital Solutions, Ting Lu, Clean Water Services • Case Illustrations of Predictive Operations at Resource Recovery Facilities, Kate Newhart, Metro Wastewater Reclamation District; Ali Gagnon, HRSD; Jeff Sparks, HRSD; Katya Bilyk, Hazen and Sawyer; Erika Bailey, Raleigh Water • Implementing Cloud‐Based Process Management at a Small Water/Wastewater Utility, Barbara Biggs, Roxborough Sanitation District • The Role of Digital Twins in our Water Sector, Gigi Karmous‐Edwards, Karmous‐Edwards Digital Consulting • Data as a Service and other IWS transformations: Learning from Data Scientists and Outside the Water Industry, Meena Sankaran, Ketos 4 2

6/23/2020 Where are intelligent water systems going in the future; smart water networks Lift/RMWEA Intelligent Systems Webinar Thursday, June 18, 2020 Ken Thompson, Jacobs Engineering Group 5 The Digital Water Utility AKA: • Smart Water Grid • Smart Water Utility • Intelligent Water Utility • Intelligent Water System • Data Driven Water Utility Aligns with the “Digital Organization” in other industries • Overlays data collection, information creation, and insight to improve efficiency and decision making 6 6 3

6/23/2020 Characteristics of a Digital Water Utility • Strategy & Vision: The approach and foresight for development of a digital water utility • Data Management: How data are collected, quality and security is maintained, its transmission to proper points of analysis • Analytics & Information Use: Methods used for analysis of the data to produce useful, actionable information and the ways that information is used within the organization • Integration & Interoperability: Whether systems managing the information are integrated across the organization and the information is available in a timely manner to all members of the organization who can make use of that information • Workforce & Asset Management: The way information is being used to optimize the workforce and manage assets across the asset lifecycle • Resiliency: The way the utility uses the information to enhance resiliency 7 7 Current Water Utility Water utilities have often introduced digital systems such as: • Advanced metering infrastructure (AMI) • Customer information system (CIS) • Computerized maintenance management systems (CMMS) • Geographic Information Systems (GIS) • Laboratory information management systems (LIMS) • Operational optimization tools • Supervisory control and data acquisition (SCADA) system • Enterprise asset management system (EAMS) • Surveillance and Reponses System (SRS) • Any other applications? These rarely share information, producing separate outputs 8 8 4

6/23/2020 Digital Water Utility Information Architecture AMI CIS CMMS Timely information is Integration available to fulfill GIS and Analytics business needs LIMS Descriptive Predictive SCADA Prescriptive EAMS SRS 9 9 Applying Smart H2O in Realtime • Data challenges facing water utilities 90% 87% 90% Can Data 13% Process Big Utilization Data in Realtime • The value of now – There is certain information whose value decays exponentially over time . Perform realtime analytics on data to provide realtime intelligence 10 10 5

6/23/2020 Real‐time Dashboard 11 11 Digital Expectations • Benefits of implementing smart water solutions 97% 90% 10% Predict Optimize 3% Operations System Failure • Digital twin – Definition: A digital replica of physical assets , processes and systems that can be used for synthetic data generation, prediction , optimization through scenario analysis 12 12 6

6/23/2020 Wastewater treatment plant operational resiliency • 2017 plant failure, led to multi‐week, multi‐million recovery effort – Power failure cascaded into multiple issues – Operators did not respond correctly to the initial failures • Use a digital twin to develop operational scenarios • Develop operator training “flight simulator” – Link digital twin to DCS to provide realistic situational training 13 The Digital Water Utility Maturity Framework • Framework was an outcome of WRF project PFA 04714 – “Intelligent Water Networks Summit and Workshops” • Tailored to water and wastewater utilities • Operational Units and Functions • Used for benchmarking 14 14 7

6/23/2020 The Digital Water Utility Maturity Levels • Level 0: Baseline. The level before any significant steps are taken toward implementing digitization. • Level 1: Initiating. Exploring the options, developing a strategy, and conducting isolated pilots to test technology and processes. • Level 2: Enabling. Having a clear utility‐wide strategy and investing in pilots based on the strategy. • Level 3. Integrating. Merging technologies and processes across the utility and demonstrating cross‐functional measurable benefits. • Level 4: Optimizing. Fusing information across the utility and potentially beyond the utility (e.g., customers, regulators) to increase measurable benefits. • Level 5: Pioneering. Innovating as an industry leader. 15 15 Categories for Assessment • Strategy & Vision: The approach and foresight for development of a digital water utility • Data Management: How data are collected, quality and security is maintained, its transmission to proper points of analysis • Analytics & Information Use: Methods used for analysis of the data to produce useful, actionable information and the ways that information is used within the organization • Integration & Interoperability: Whether systems managing the information are integrated across the organization and the information is available in a timely manner to all members of the organization who can make use of that information • Workforce & Asset Management: The way information is being used to optimize the workforce and manage assets across the asset lifecycle • Resiliency: The way the utility uses the information to enhance resiliency 16 16 8

6/23/2020 Maturity Assessent Results 17 17 Conclusions • Digital Transformation is journey and will not happen overnight • Developing a Digital Utility Strategy is critical first step • Document the “As Is” and map out the “Future” System Architecture before investing in single point solutions • Interoperability is essential for a robust and well integrated digital utility • Data is valuable – Don’t overlook data ownership during the transformation to a digital utility 18 9

6/23/2020 Thank You 19 The Journey of Transforming Information Technology to Digital Solutions Ting Lu, Ph.D., P.E. Business Practice Leader ‐ Digital Solutions Clean Water Services 20 10

6/23/2020 Beautiful clean water for today and tomorrow 21 The Services We Provide • Water Resource Recovery • Surface Water Management • River Flow Management • Watershed Restoration 22 11

6/23/2020 23 Monitoring Station Plant Effluent Hach Flow Releases, Flow USGS & WIMS (SCADA, Withdrawals, Dam Level, OWRD Sites Other Process) Tributary Flow – Sharepoint AxioWorks Integration Product Flow Portal High Level SQL Server Staging Python Process – Architecture Database Retrieval, Flow Calculations, Update of GIS Dynamic Data – ArcGIS Feature Service Map in Portal End For ArcGIS Users Static Data (e.g. Streams, Boundaries) – ArcGIS Mapping Services 24 12

6/23/2020 25 Results • Automated data gathering and production • Seamless sharing • Automated & ad hoc analysis • Holistic and informed decision making 26 13

6/23/2020 EnviroDIY Water Quality Sensors Open‐source data‐loggers & radios $10 $5 Solar Panel $25 $10‐35 EnviroDIY Mayfly Microprocessor & Accessories Cell Phone or Datalogger Radio Modules (vary depending on need) Total = + + $60 $30‐90 $30‐60 $140‐$220 Based on Arduino platform, collaboration with LimnoTech 27 Leverage bare‐wire Commercial Sensors Decagon, Sensorex, Vaisala, Keller America, Apogee, Campbell Soil moisture, conductivity, redox, CO 2 , water depth, oxygen, turbidity, CTD 28 14
