Hit disambiguation with SpacePointSolver Robert Sulej (FNAL/NCBJ) - PowerPoint PPT Presentation

Hit disambiguation with SpacePointSolver Robert Sulej (FNAL/NCBJ) Motivation: FD hit disambiguation takes significant CPU time in ProtoDUNE events It is also source of inefficiency for 2D clustering and 3D tracking high cosmic

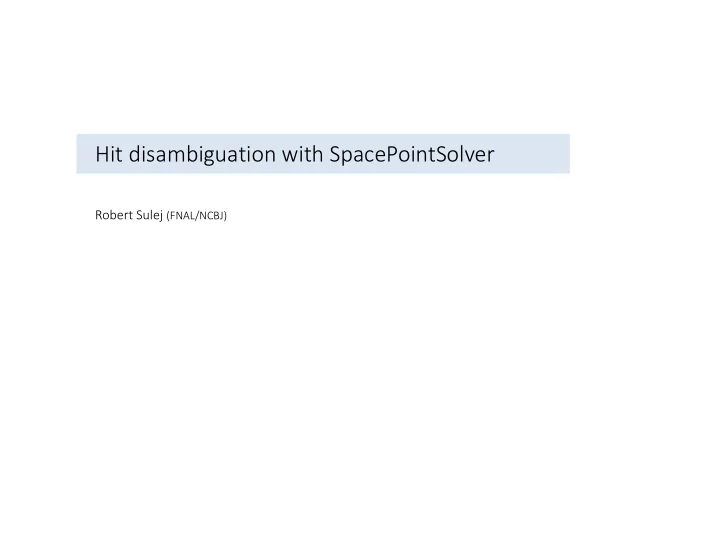

  1. Hit disambiguation with SpacePointSolver Robert Sulej (FNAL/NCBJ)

  2. Motivation: • FD hit disambiguation takes significant CPU time in ProtoDUNE events • It is also source of inefficiency for 2D clustering and 3D tracking  high cosmic background: ~100k hits/event, ~70 long and crossing tracks • Try SpacePointSolver for matching objects between planes  start with hits  continue with higer level objects (make PMA faster) Implementation • SpacePointSolver running out of the box • Chris made all needed functionality during Physics Week • Disambiguation module:  use hits associated to 3D points as a first reliable source of hit-wire segment association  resolve remaining hits by associations made for hits in close neighborhood  put leftovers on the first / copy to all allowed wire segments / or drop them

  3. Space Point Solver „top”: XZ linecluster+PMA tracks, linecluster+PMA tracks, SpacePoints: red dots EM hits in black „ side ”: YZ, here is is th the real work rk 2D planes 3D orthogonal views • several points per collection hit for isochronous tracks, points fixed at wire crossings • not yet easy solution for everything, but very promissing for object associations

  4. ProtoDUNE event full event beam particle

  5. ProtoDUNE event based on SpacePointSolver FD disambiguation

  6. ProtoDUNE: efficiency (only 80 events for today..) FD disambiguation SpacePointSolver based FD disambiguation SpacePointSolver based hit disambiguation cosmic tracks reconstruction (linecluster+PMA)

  7. FD disambiguation =============================================================================================================================== TimeTracker printout (sec) Min Avg Max Median RMS nEvts =============================================================================================================================== Full event 371.099 485.6 671.889 485.951 89.7228 10 ------------------------------------------------------------------------------------------------------------------------------- source:RootInput(read) 0.00150542 0.00749291 0.013159 0.00716321 0.00362402 10 reco:rns:RandomNumberSaver 0.000124089 0.000325715 0.00111477 0.000186478 0.000298859 10 reco:caldata:DataPrepModule 6.15812 6.47112 7.39641 6.3202 0.361649 10 reco:gaushit:GausHitFinder 66.4812 83.4614 108.815 79.2166 12.9027 10 reco:hitfd:HitFinder35t 81.61 140.864 214.102 139.619 38.5684 10 reco:linecluster:LineCluster 1.60251 2.42541 4.14429 2.09614 0.796788 10 reco:emtrkmichelid:EmTrackMichelId 58.98 77.3793 126.822 73.8296 17.7905 10 reco:pmtrack:PMAlgTrackMaker 110.32 157.531 239.801 156.531 34.7789 10 reco:TriggerResults:TriggerResultInserter 6.748e-05 0.000118975 0.000204649 0.000109778 4.69442e-05 10 end_path:out1:RootOutput 8.684e-06 5.39718e-05 0.000126547 4.2725e-05 3.95037e-05 10 end_path:out1:RootOutput(write) 13.4487 17.4583 19.3223 18.384 1.85881 10 =============================================================================================================================== MemoryTracker summary (base-10 MB units used) Peak virtual memory usage (VmPeak) : 5026.18 MB Peak resident set size usage (VmHWM): 3443.03 MB Disambiguation using SpacePointSolver =============================================================================================================================== TimeTracker printout (sec) Min Avg Max Median RMS nEvts =============================================================================================================================== Full event 212.642 357.662 590.977 355.582 72.6383 40 ------------------------------------------------------------------------------------------------------------------------------- source:RootInput(read) 0.0034384 0.114365 0.2583 0.125503 0.0728791 40 reco:rns:RandomNumberSaver 0.000109423 0.000192507 0.000670115 0.000152965 0.000116677 40 reco:caldata:DataPrepModule 6.16531 6.56659 7.29999 6.53068 0.212751 40 reco:gaushit:GausHitFinder 42.6205 68.8812 103.278 68.7188 14.1731 40 reco:reco3d:SpacePointSolver 2.56435 6.25848 17.9495 5.33037 3.58018 40 reco:hitpdune:DisambigFromSpacePoints 1.79104 3.75687 6.93505 3.64876 1.2662 40 reco:linecluster:LineCluster 1.13328 2.52352 5.04337 2.50412 0.705175 40 reco:emtrkmichelid:EmTrackMichelId 57.1505 86.7008 143.323 81.129 18.5098 40 reco:pmtrack:PMAlgTrackMaker 90.1119 167.591 301.552 161.914 41.2546 40 reco:TriggerResults:TriggerResultInserter 5.0288e-05 0.000317919 0.0014757 0.000117304 0.000430709 40 end_path:out1:RootOutput 1.7469e-05 5.00584e-05 0.000333773 2.59585e-05 6.67579e-05 40 end_path:out1:RootOutput(write) 10.7917 15.2677 19.1317 15.2177 2.02879 40 =============================================================================================================================== MemoryTracker summary (base-10 MB units used) Peak virtual memory usage (VmPeak) : 6491.93 MB Peak resident set size usage (VmHWM): 4928.82 MB

  8. DUNE FD: not that good with a simple approach based on SpacePointSolver FD disambiguation

  9. DUNE FD: not that good with a simple approach

  10. Summary • Christmass gift for ProtoDUNE: faster and better • Now in ProtoDUNE SP standard reco, will run it in MCC10 • Not sure why so poor in FD  standard disambiguation tuned very well and not a slow part of the chain – good  …but also no visible failures in eye-scanning of SpacePointSolver based hits (while efficiency histo says ~10% incorrect) • Next: implement clusters scorring in PMA • Seems that many other algorithms can use SpacePointSolver as a seed/hint. • Dealing with noisy/bad channels may be a good idea before ProtoDUNE data
