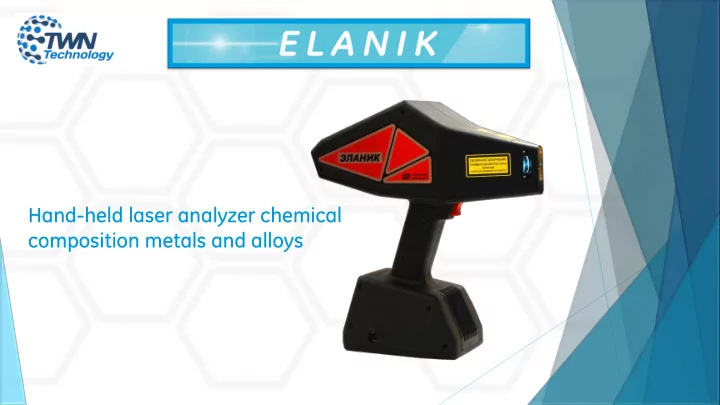

Hand-held laser analyzer chemical composition metals and alloys
Elemental Laser AN ANalyzer Ivan Kuratev Estonia +372 63 46310 Russia +7 499 380-62-92 Ivan Kuratev, doctor of physics and mathematics, author of Kazakhstan +7 717 269-58-22 more than 100 scientific articles and inventions in the field of Belarus +375 17 388-20-31 laser technology. info@twn-technology.com www.twn-technology.com
How d does L LIBS tech chnology work? The surface of the sample is irradiated with a pulsed laser, resulting in a sufficient specific power to vaporize the material to form a plasma. Estonia +372 63 46310 As the plasma cools, the electrons knocked out of the atoms recombine with atoms, emitting waves in the Russia UV, optical and infrared ranges. Built-in spectrometer analyzes emitted light. +7 499 380-62-92 The built-in spectrometer analyzes emitted light by measuring wavelength and intensity (amount) of light. Kazakhstan +7 717 269-58-22 The built-in software compares the spectral lines of known wavelengths in order to determine which Belarus elements are present and, using the built-in calibration system, quantifies the element concentration by line intensity. +375 17 388-20-31 info@twn-technology.com www.twn-technology.com
The advantages of L Laser analyzer ELANIK: Analysis of alloying elements, including C (carbon) without the use of inert gases. Built-in in camera – convenient for analyzing a specific location on the sample. The ability to measure small samples: the scope of analysis is less than 0.3 mm. Automatic recognition of of the alloy without user intervention. Built-in in grade – automatic determination of the alloy grade according to the results of the analysis. High accuracy of of the results is achieved by averaging over several points. Automatic storage of of measurement data in the built-in memory up to 100,000 measurements. High reliability – does not contain elements that require replacement or maintenance. Power: from mains 220V or rechargeable Li-ion batteries. Defining element: Estonia Base List o of measured elements for the speci cified base +372 63 46310 Russia Fe Fe C, Al, Si, Ti, V, Cr, Mn, Co, Ni, Cu, Zr, Nb, Mo, W, Mg +7 499 380-62-92 Al Al Be, Mg, Si, Ti, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Sn, Sb, Pb (Li, B, Ca, Cd, Co, V, Sc – on Kazakhstan demand) +7 717 269-58-22 Cu Cu Be, Mg, Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Zn, Zr, Sn, Pb Belarus +375 17 388-20-31 Ti Ti Al, Si, V, Cr, Mn, Fe, Zr, Mo, Sn (C- on demand) info@twn-technology.com Ni Ni Mg, Al, Si, Ti, V, Cr, Mn, Fe, Co, Cu, Nb, Mo www.twn-technology.com Another On additional request basis
Main tech chnica cal ch charact cteristics cs Method of analysis LIBS Radiation source pulsed YAG laser Class 3В from mains 220V Power or rechargeable Li-ion batteries, 2 PCs. Display resistive, with a diagonal of 5" Data storage built-in flash memory, 64 GB Data transmission USB Overall dimensions, LxHxW, 298 х 316 х 106 mm Weight, kg 2,3 Operating conditions: ambient temperature, ° C - from +5 to +40 (no thermic cover) Estonia +372 63 46310 Russia - relative humidity at from -20 to +40 (with thermic cover) t=25 ° C, %, not more +7 499 380-62-92 90 Kazakhstan Dust and moisture protection +7 717 269-58-22 IP54 Belarus class +375 17 388-20-31 info@twn-technology.com www.twn-technology.com
The ca calcu culation of t the ca carbon equivalent (CE) The calculation formula can be selected by the consumer when ordering. The default formula is Dearden and O`Neill, recommended by the International Institute of welding (IIW) СЕ (IIW) = C C + Mn Mn/6 + ( (Cr + M Mo + V V)/5 + (Cu + N Ni)/15 and the following scale to assess weldability: Estonia +372 63 46310 Russia +7 499 380-62-92 Kazakhstan +7 717 269-58-22 Belarus +375 17 388-20-31 info@twn-technology.com www.twn-technology.com
Example of measurement result The display shows: alloy type alloy grade (3 closest to the measured chemical composition) equivalent carbon content chemical composition of the sample the absolute RSD for the measured points (if the measurement was taken at several points) camera view of the burning spot Estonia measurement number (the result is +372 63 46310 automatically saved and stored in the Russia instrument memory) +7 499 380-62-92 Kazakhstan +7 717 269-58-22 Belarus +375 17 388-20-31 info@twn-technology.com www.twn-technology.com
CERTIFICATES Laser analyzer ELANIK is included in the register of measuring instruments of Russia, Belarus and Kazakhstan Estonia +372 63 46310 Russia +7 499 380-62-92 Kazakhstan +7 717 269-58-22 Belarus +375 17 388-20-31 info@twn-technology.com www.twn-technology.com
