Spectroscopy and Imaging from X-Ray to NIR H + P Spectroscopy Spectrometers CCD Cameras Our product families of spectrometers span the hard X-Ray to NIR for spectroscopy and imaging applications. Configurations will align with applications

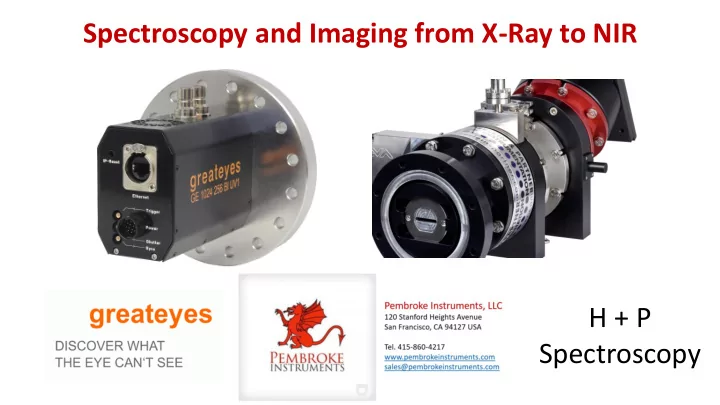

  1. Spectroscopy and Imaging from X-Ray to NIR H + P Spectroscopy

  2. Spectrometers CCD Cameras Our product families of spectrometers span the hard X-Ray to NIR for spectroscopy and imaging applications. Configurations will align with applications needing vacuum flanges and complete in vacuo requirements.

  3. Technology + Flat-field imaging technology + Direct imaging of the source: 20x higher signal strength + Wide wavelength coverage with single grating + Turn-key system + Modular and compact setup

  4. easyLIGHT compact cost-effective spectrometer ▪ Normal-incidence spectrometer ▪ Monochromator functionality ▪ Spectral coverage 80 – 300 nm and 30 – 150 nm ▪ Variable entrance and exit slits, optionally motorized

  5. maxLIGHT high-efficiency slit-less spectrometer for 1-200nm spectral range • Direct source imaging for 20x signal strength • High degree of customization • Wide range of adaptations: • non-magnetic instruments • EMP-protection • in-chamber solutions • special housing geometries • UHV configurations

  6. maxLIGHT pro high-efficiency slit-less spectrometer and integrated beam profiler • Direct source imaging • Automated mode switching • Spectral range 2 – 200nm • High degree of customization • Complete XUV beam characterization

  7. CCD Cameras for Scientific Cameras and Inspection Systems

  8. ● High quantum efficiency from NIR to X-ray ● Low readout noise ● Deep cooling ● High dynamic range ● Compact design ● Broad portfolio ● Customized solutions Scientific high-performance CCD cameras → More than 50 different cameras for X -Ray, EUV, UV, VIS and NIR applications → Pixel arrays: 1024 × 128/256/1024, 2048 × 512/2048, and 4096 × 4096 → Read noise of 2.4e - , Cooling down to -100°C, 16/18 bit ADC 8

  9. Advantages of greateyes cameras ● Wide portfolio of >50 different camera models ● Unmatched noise performance ● Very attractive cost-performance structure ● Great flexibility: sensor plane position, tilted sensor, … ● Small camera footprint (integration into small systems) ● Customer Service (fast response, small repair fees) ● Constant innovation and improvement of products 9

  10. Scientific CCD Camera Portfolio ALEX – EUV / X-Ray ELSE - NIR / VIS / UV CHARLIE - EUV & X-Ray ALEX - VIS / UV / X-Ray ➔ window flange series ➔ vacuum flange series ➔ in-vacuum series ➔ wafer-scale cameras ➔ vacuum head ➔ more than 15 models ➔ more than 10 models ➔ more than 20 models 10

  11. Customized EUV and Soft X-Ray Cameras: In-Vacuum Series ► modification on customer demand ► modification of adapter flange for integrating in ► modification of chiller connections to dif ► modification of electrical connections ► customized position of focal plane relative to flange & 11

  12. New: Scientific SuperResolution Cameras ► New class of scientific cameras ► Innovative product ► Patented technology ► Sub-pixel resolution ► Available for all greateyes cameras from NIR to X-ray 12

  13. New: ALEXi – CCD Detector with Vacuum flange ► 18bit Dynamic Range ► -100C TE Cooling ► USB3 & GigE ► up to 98% QE ► Sensors for NIR to X-ray Range ► Compact Design 13

  14. New: ALEXi – 4kx4k Large Area CCD Detector with Vacuum flange ► Large Detection Area ► 18bit Dynamic Range ► USB3 & GigE ► High QE Sensor Options (<98%) ► Low Noise Electronics ► User selectable Gain 14

  15. Thank you! • For sales and technical support within the USA please contact Pembroke Instruments at • sales@pembrokeinstruments.com 15
