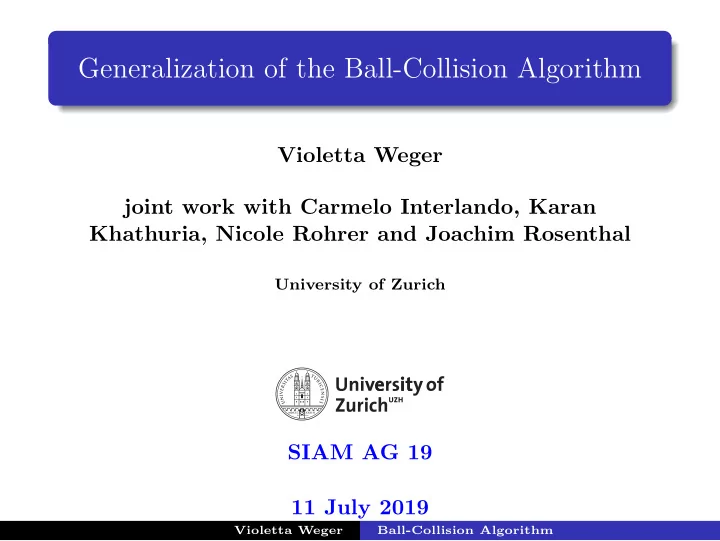

Generalization of the Ball-Collision Algorithm Violetta Weger joint work with Carmelo Interlando, Karan Khathuria, Nicole Rohrer and Joachim Rosenthal University of Zurich SIAM AG 19 11 July 2019 Violetta Weger Ball-Collision Algorithm
Outline 1 Motivation 2 Introduction 3 Prange’s Algorithm 4 Improvements overview 5 Ball-collision Algorithm 6 New directions 7 Comparison of Complexities 8 Open questions Violetta Weger Ball-Collision Algorithm
Motivation Proposing a code-based cryptosystem Structural Attacks Nonstructural Attacks Have to consider Information Set Decoding (ISD) Violetta Weger Ball-Collision Algorithm
Motivation Proposing a code-based cryptosystem Structural Attacks Nonstructural Attacks Have to consider Information Set Decoding (ISD) Violetta Weger Ball-Collision Algorithm
ISD algorithms and syndome decoding problem 1978 Berlekamp, McEliece and van Tilborg: Decoding a random linear code is NP-complete Problem (Syndrome decoding problem) Given a parity check matrix H of a (binary) code of length n and dimension k and a syndrome s : s = Hx ⊺ ∈ F n − k 2 and the error correction capacity t , we want to find e ∈ F n 2 of weight t such that s = He ⊺ . Violetta Weger Ball-Collision Algorithm
ISD algorithms and syndome decoding problem • Syndrome decoding problem is equivalent to the decoding problem and Problem (Decoding problem) Given a generator matrix G of a (binary) code of length n and dimension k and a corrupted codeword c : c = mG + e ∈ F n 2 and the error correction capacity t , we want to find e ∈ F n 2 of weight t . • equivalent to finding a minimum weight codeword, since in C + { 0 , c } the error vector e is now the minimum weight codeword. Violetta Weger Ball-Collision Algorithm
Informationset Notation Let c ∈ F n q and A ∈ F k × n , let S ⊂ { 1 , . . . , n } , then we denote by q c S the restriction of c to the entries indexed by S and by A S the columns of A indexed by S . For a code C ⊂ F n q , we denote by C S = { c S | c ∈ C} . Definition (Informationset) Let C ⊂ F n q be a code of dimension k . If I ⊂ { 1 , . . . , n } of size k is such that | C | = | C I | , then we call I an information set of C . Violetta Weger Ball-Collision Algorithm
Informationset Notation Let c ∈ F n q and A ∈ F k × n , let S ⊂ { 1 , . . . , n } , then we denote by q c S the restriction of c to the entries indexed by S and by A S the columns of A indexed by S . For a code C ⊂ F n q , we denote by C S = { c S | c ∈ C} . Definition (Informationset) Let C ⊂ F n q be a code of dimension k . If I ⊂ { 1 , . . . , n } of size k is such that | C | = | C I | , then we call I an information set of C . Violetta Weger Ball-Collision Algorithm
Informationset Definition (Informationset) Let G be the k × n generator matrix of C . If I ⊂ { 1 , . . . , n } of size k is such that G I is invertible, then I is an informationset of C . Definition (Informationset) Let H be the n − k × n parity check matrix of C . If I ⊂ { 1 , . . . , n } of size k is such that H I c is invertible, then I is an informationset of C . Violetta Weger Ball-Collision Algorithm
Informationset Definition (Informationset) Let G be the k × n generator matrix of C . If I ⊂ { 1 , . . . , n } of size k is such that G I is invertible, then I is an informationset of C . Definition (Informationset) Let H be the n − k × n parity check matrix of C . If I ⊂ { 1 , . . . , n } of size k is such that H I c is invertible, then I is an informationset of C . Violetta Weger Ball-Collision Algorithm
Prange’s algorithm 1962 Prange proposes the first ISD algorithm. Assumption: All t errors occur outside of the information set. Input: H ∈ F n − k × n , s ∈ F n − k , t ∈ N 2 2 2 , wt ( e ) = t and He ⊺ = s . Output: e ∈ F n 1 Choose an information set I ⊂ { 1 , . . . , n } of size k . 2 Find an invertible matrix U ∈ F n − k × n − k such that 2 ( UH ) I = A and ( UH ) I c = Id n − k . 3 If wt ( Us ) = t , then e I = 0 and e I c = Us . 4 Else start over. Violetta Weger Ball-Collision Algorithm
Prange’s algorithm 1 Choose an information set I ⊂ { 1 , . . . , n } of size k . Let us assume for simplicity that I = { 1 , . . . , k } . Violetta Weger Ball-Collision Algorithm
Prange’s algorithm 1 Choose an information set I ⊂ { 1 , . . . , n } of size k . 2 Find an invertible matrix U ∈ F n − k × n − k such that 2 ( UH ) I = A and ( UH ) I c = Id n − k . Let us assume for simplicity that I = { 1 , . . . , k } . � � UH = A Id n − k , hence � � 0 � UHe ⊺ = � A Id n − k = Us. e I c Violetta Weger Ball-Collision Algorithm
Prange’s algorithm 1 Choose an information set I ⊂ { 1 , . . . , n } of size k . 2 Find an invertible matrix U ∈ F n − k × n − k such that 2 ( UH ) I = A and ( UH ) I c = Id n − k . 3 If wt ( Us ) = t , then e I = 0 and e I c = Us . Let us assume for simplicity that I = { 1 , . . . , k } . � � UH = A Id n − k , hence � � 0 � UHe ⊺ = � A Id n − k = Us. e I c From which we get the condition e I c = Us . Violetta Weger Ball-Collision Algorithm
Prange’s algorithm The cost of an ISD algorithm is given by the product of the cost of one iteration, inverted success probability = average number of iterations needed. The success probability is given by the weight distribution of the error vector. Example (Success probability of Prange’s algorithm) � − 1 � n − k �� n . t t Violetta Weger Ball-Collision Algorithm
Prange’s algorithm The cost of an ISD algorithm is given by the product of the cost of one iteration, inverted success probability = average number of iterations needed. The success probability is given by the weight distribution of the error vector. Example (Success probability of Prange’s algorithm) � − 1 � n − k �� n . t t Violetta Weger Ball-Collision Algorithm
Prange’s algorithm The cost of an ISD algorithm is given by the product of the cost of one iteration, inverted success probability = average number of iterations needed. The success probability is given by the weight distribution of the error vector. Example (Success probability of Prange’s algorithm) � − 1 � n − k �� n . t t Violetta Weger Ball-Collision Algorithm
Improvements Overview Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm 1 Choose an information set I . Let us assume for simplicity that I = { 1 , . . . , k } . Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm 1 Choose an information set I . 2 Partition I into X 1 and X 2 . Let us assume for simplicity that I = { 1 , . . . , k } . Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm 1 Choose an information set I . 2 Partition I into X 1 and X 2 . 3 Partition Y into Y 1 , Y 2 , Y 3 . Let us assume for simplicity that I = { 1 , . . . , k } . Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm 1 Choose an information set I . 2 Partition I into X 1 and X 2 . 3 Partition Y into Y 1 , Y 2 , Y 3 . 4 Bring H in systematic form. � e 1 � A 1 � s 1 � Id ℓ 1 + ℓ 2 0 UHe ⊺ = = e 2 = Us. A 2 0 Id ℓ 3 s 2 e 3 We get the conditions A 1 e 1 + e 2 = s 1 , A 2 e 1 + e 3 = s 2 . Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm 1 Choose an information set I . 2 Partition I into X 1 and X 2 . 3 Partition Y into Y 1 , Y 2 , Y 3 . 4 Bring H in systematic form. � e 1 � A 1 � s 1 � Id ℓ 1 + ℓ 2 0 UHe ⊺ = = e 2 = Us. A 2 0 Id ℓ 3 s 2 e 3 We get the conditions A 1 e 1 + e 2 = s 1 , A 2 e 1 + e 3 = s 2 . Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm Conditions: A 1 e 1 + e 2 = s 1 , A 2 e 1 + e 3 = s 2 . Assumptions: a e 1 has support in I = X 1 ∪ X 2 and weight 2 v b e 2 has support in Y 1 ∪ Y 2 and weight 2 w c e 3 has support in Y 3 and weight t − 2 v − 2 w Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm a e 1 has support in I = X 1 ∪ X 2 and weight 2 v Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm a e 1 has support in I = X 1 ∪ X 2 and weight 2 v b e 2 has support in Y 1 ∪ Y 2 and weight 2 w Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm A 1 e 1 + e 2 = s 1 , (1) A 2 e 1 + e 3 = s 2 . (2) For condition (1): go through all choices of e 1 and e 2 and check with collision if (1) is satisfied. For condition (2): define e 3 = s 2 − A 2 e 1 and check if e 3 has weight t − 2 v − 2 w . Violetta Weger Ball-Collision Algorithm
Ball-collision Algorithm Success probability: �� n − k − ℓ � − 1 � ⌊ k/ 2 ⌋ �� ⌈ k/ 2 ⌉ �� ⌊ ℓ/ 2 ⌋ �� ⌈ ℓ/ 2 ⌉ �� n . v v w w n − 2 v − 2 w t Violetta Weger Ball-Collision Algorithm
New directions Idea of overlapping sets: 2009 Finiasz and Sendrier: X 1 and X 2 can overlap 2012 Becker, Joux, May and Meurer: can add redundant errors in the overlap Violetta Weger Ball-Collision Algorithm
New directions New parameters: α overlap-ratio δ amount of redundant errors 2009 Finiasz and Sendrier: α = 1 / 2 , δ = 0 2012 BJMM: α = 1 / 2 , δ > 0 Violetta Weger Ball-Collision Algorithm
