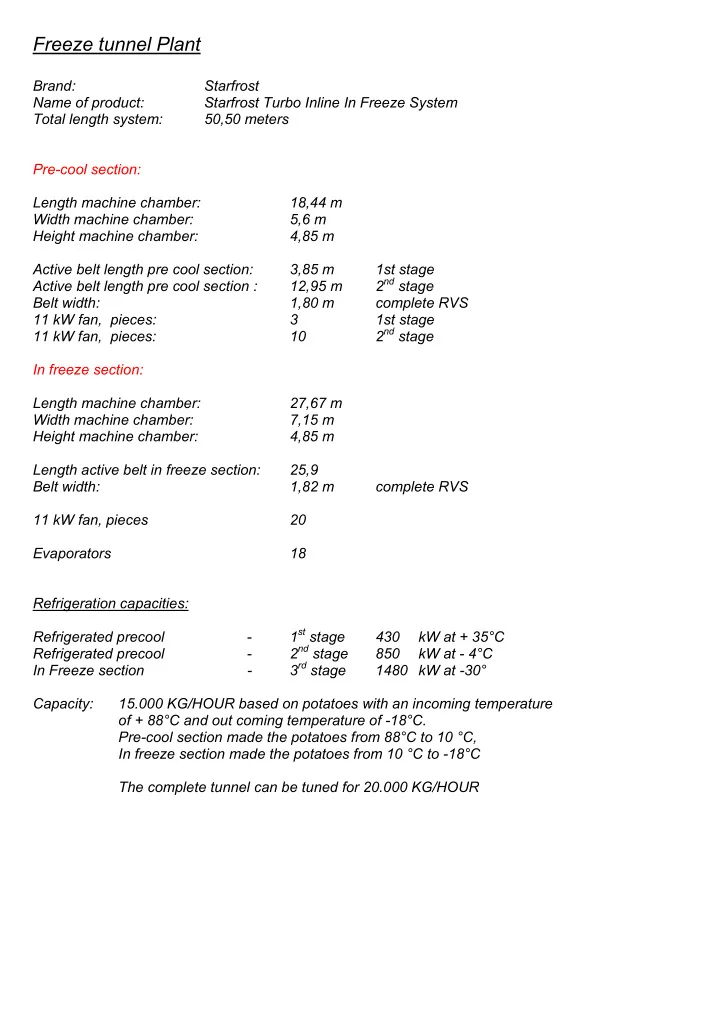

Freeze tunnel Plant Brand: Starfrost Name of product: Starfrost Turbo Inline In Freeze System Total length system: 50,50 meters Pre-cool section: Length machine chamber: 18,44 m Width machine chamber: 5,6 m Height machine chamber: 4,85 m Active belt length pre cool section: 3,85 m 1st stage 2 nd stage Active belt length pre cool section : 12,95 m Belt width: 1,80 m complete RVS 11 kW fan, pieces: 3 1st stage 2 nd stage 11 kW fan, pieces: 10 In freeze section: Length machine chamber: 27,67 m Width machine chamber: 7,15 m Height machine chamber: 4,85 m Length active belt in freeze section: 25,9 Belt width: 1,82 m complete RVS 11 kW fan, pieces 20 Evaporators 18 Refrigeration capacities: 1 st stage Refrigerated precool - 430 kW at + 35°C 2 nd stage Refrigerated precool - 850 kW at - 4°C 3 rd stage In Freeze section - 1480 kW at -30° Capacity: 15.000 KG/HOUR based on potatoes with an incoming temperature of + 88°C and out coming temperature of -18°C. Pre-cool section made the potatoes from 88°C to 10 °C, In freeze section made the potatoes from 10 °C to -18°C The complete tunnel can be tuned for 20.000 KG/HOUR

ALL the screw compressor units for the freeze tunnel are provided with: � Isolating valves on suction and delivery sides � Non return valves � Suction filter � Oil separator with immersion heater and level gauges � Water-cooled oil cooler � Main oil pump � Electric motor � Base frame � Security valve Product code: 2005-0 Brand: Howden Type: mk4b/WRV255/165.36/CN jh0633 Refrigerent: R 22 Capacity: 726 kW at -33/-4°C °C and kW info: Absorbed power: 151 kW Elektromotor: Brand: Leroy Somer Type: PLS 315m-t Nr: 138924 kd 001 kW: 200 Y.o.b: IP: Rpm: 2006-0 Product code: Brand: Howden Type: mk4b/wrv204/165.36/861 CN jh0632 Refrigerent: R 22 Year: Capacity: 868 kW at -5/+ 34°C °C and kW info: Absorbed power: 202 kW Electromotor: Brand: Leroy Somer Type: Pls 315 l-t Nr: 132546hg002 kW: 250 Y.o.b: IP: Rpm:

Product code: 2007-0 Brand: Howden Type: mk4b/wrv204/16536/87 CN jh0632 Refrigerent: R 22 Year: Capacity: °C and kW info: Absorbed power: Elektromotor: Brand: Leroy Somer Type: Pls 315-l-t nr: 147017mk001 kW: 250 Y.o.b: IP: Rpm: Product code: 2008-0 Brand: Howden Type: mk4b/wrv255/16536/601 CN jh0632 Refrigerent: R 22 Year: Capacity: °C and kW info: Absorbed power: Elektromotor: Brand: Schorch Type: Kn5317m-av014-051 kW: 200 Y.o.b: IP: 23 Rpm: 2960 Product code: 2009-0 Brand: Mycom Type: F8 WB SN 831177 Refrigerent: R 22 Year: Capacity: 437 kW at -5/+34°C °C and kW info: Absorbed: 102 kW Elektromotor: Brand: Schorch Type: kn7315m-cb014 kW: 132 Y.o.B: 1993 Ip: 23 Rpm: 985

Product code: 2010-0 Brand: Mycom Type: 12.4 b SN 124b 15.9 Refrigerent: R 22 Year: Remarks: With head cooling! Capacity: 245 kW at -33/+34°C °C and kW info: Absorbed: 122 kW Elektromotor: Brand: Crampton Type: MD315 L kW: 150 kW Y.o.b: Ip: Rpm: 980 Product code: 2011-0 Brand: Mycom Type: 12.4 b / SN 124b 161 Refrigerent: R 22 Year: Capacity: Absorbed: °C and kW info: Elektromotor: Brand: Type: SA-WE ake 314-6 kW: 132 Ip: 23 Rpm: 975 Product code: 2012-0 Brand: Mycom Type: f8bm2 / SN 15072 Refrigerent: R 22 Year: Capacity: °C and kW info: Absorbed: Elektromotor: Brand: Type: Fem AHE 314-5 kW: 132 Ip: Rpm: 975 Product code: 2013-0 Brand: Mycom Type: Fm 160l-l / Sn 8310388 Refrigerent: R 22 Year: Capacity: °C and kW info: Absorbed: Electomotor: Brand: Type: kW: 132 Ip:

� Included: Various Switch Panels BALTIMORE EVAPORATING CONDENSOR TYPE: VXC-650 KW: 971
