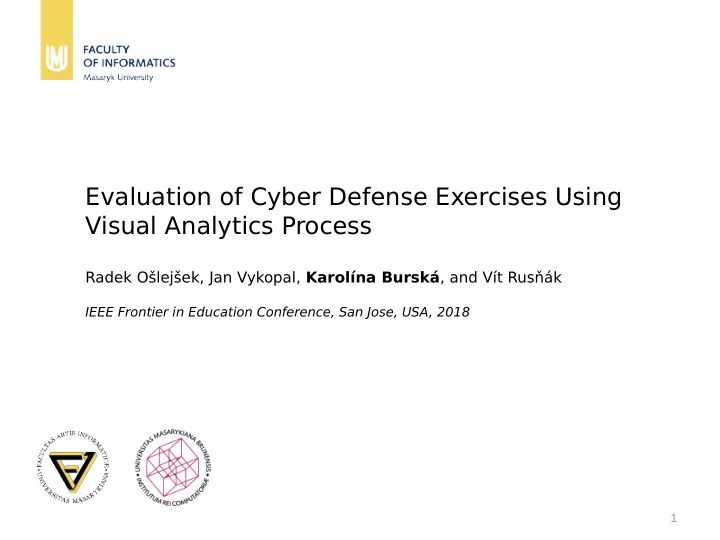

Evaluation of Cyber Defense Exercises Using Visual Analytics Process Radek Ošlejšek, Jan Vykopal, Karolína Burská , and Vít Rusňák IEEE Frontier in Education Conference, San Jose, USA, 2018 1

KYPO Cyber Range Cloud-based “simulator” of computer networks So powerful that we can organize cyber defense exercises, CDXs Extreme use case – Comprehensive training for IT professionals – Realism, difficulty (2 days), work under stress, ... – Protection of complex critical infrastructure by Blue teams – Escalated attacks of a Red team – … but the preparation and organization is a nightmare :-( IEEE Frontier in Education Conference, San Jose, USA, 2018 2

Cyber Defense Exercises – Current Problems New scenarios are designed from scratch No transfer of knowledge and experience between (changing) – organizers The lack of situational awareness Monitoring the infrastructure, providing insight, ... – The lack of analytical tools Evaluation of scenarios, improving their impact on learners – Reason: too many involved people, non-formalized processes, changing data, – unclear objectives => a lot of ad-hoc preparation and manual work . IEEE Frontier in Education Conference, San Jose, USA, 2018 3

L e a o r b n j i e n IEEE Frontier in Education Conference, San Jose, USA, 2018 Green T Cyber Defense Exercises – Life Cycle c g Blue T White T t Red T i a v n B e Check Do Plan Adjust s d a c t k r a g eams eam i r n o eam eam i u n n g d s t o r y A. Preparation S c e i n n j a e r c i t o s t a s k s a n d S c e d n e a t r a i i o l s t e c h n i c S a c l o r i n g d e s i S g a n n months d b o x d H e p a l c o k y a m t h e o n n t S c e t n w a e r a i o k i n a n g d s a n d S b a o n x d b o x d e p l o y m e D n r t y r u n e x e c u F e t i e o d n b a c k i n B. Dry run c o r p a week o F r a a m t i i o l i n a r i z a t i o n p e r i o A d c t u a C. Execution l e x e r c i H s e o e t v w days a a l u s h a u t i p o n W o t r e k a s m h o s p f o r B l I u n e t e l e r n a D. Evaluation r a n l e l e d weeks s s o n s 4

Our Goal To clarify data, processes, and requirements ● Systematically support organizers in their tasks by means of ● interactive visualizations integrated into the cyber range IEEE Frontier in Education Conference, San Jose, USA, 2018 5

Approach: Using a Visual Analytics Process Knowledge generation model by Sacha et al. Hypothesis-driven model extending the model of Keim et al. (the – computer part) with hierarchically connected human loops Classification of IEEE Frontier in Education Conference, San Jose, USA, 2018 6

Analytical Goals (Classification of Hypotheses) G1: Evaluation of exercise and its parameters To make an exercise useful and to keep learners motivated to finish it. – Hypotheses related to scenario difficulty, learners’ confidence and – satisfaction, learners’ skills, and other qualitative aspects G2: Behavioral analysis of learners To reveal relevant facts about the motivation of learners, learning – impact, their level of knowledge, etc. Hypothesis related to the study of the behavior of learners during an – exercise. G3: Runtime situational awareness We can consider situational awareness as a process of making simple – runtime hypotheses in the users’ mind. IEEE Frontier in Education Conference, San Jose, USA, 2018 7

Classification of Data Scenario-specific data Configuration data defined by organizers usually in the preparation – phase Division of learners to teams, network topology, penalties, ... – Exercise runtime data A system-generated data gathered and stored during the execution – phase of an exercise. Obtained penalty points by individual teams, ... – Evaluation data User-generated data providing qualitative information – Post-exercise surveys, online feedback data, notes of organizers, ... – IEEE Frontier in Education Conference, San Jose, USA, 2018 8

Classification of Visualizations Exercise infrastructure view Monitoring of services and infrastructure (G3 – situational awareness – and G2 – behavioral analysis). Visual insight into the exercise progression Primary visualizations for G3 – situational awareness. Moreover, online – validation of exercise parameters (G1 – exercise evaluation) Interactive feedback visualizations Interactive = learners provides comments, ranks events, etc. This data – is used by organizers to reveal inappropriate exercise parameters (G1 – exercise evaluation) and to collect behavioral data (G2 – behavioral analysis) IEEE Frontier in Education Conference, San Jose, USA, 2018 9

Model Can be as simple as descriptive statistics or as complex as a ● data mining algorithms Statistical models are used extensively for CDX ● Utilization of advanced models is exceptional and ad-hoc just ● because of missing conceptual solution to repeated analytical tasks IEEE Frontier in Education Conference, San Jose, USA, 2018 10

Case Study Hypothesis: ● The participants improve their skills – Data ● Data from scoring and auditing systems – Pre- and post-exercise questionnaires – Model ● Descriptive statistics – Visualizations ● Feedback visualization – Statistical visualizations – IEEE Frontier in Education Conference, San Jose, USA, 2018 11

Exploration Loop: Actions and Findings For the hypothesis “The participants improve their skills” Actions: Organizers: Data definition, configuration of data sources (sub- – systems) and dashboards (visualizations), evaluation Learners: Filling questionnaires, interaction with the cyber range and – the feedback visualization Findings: Majority of the learners confirmed they learned new skills or re-shaped – existing ones. Some learners did not learn anything new. – Some others admitted the lack of necessary skills. – IEEE Frontier in Education Conference, San Jose, USA, 2018 12

Insight and Knowledge For the hypothesis “The participants improve their skills” Insight: Fairly confirmed. Individual learners would be affected by their skills – and skills of teammates . A novel ways of prerequisite testing are desired. New hypotheses hypotheses have been derived: – The difficulty of the exercise was adequate for learners ● Learners form well-balanced teams ● Knowledge: Knowledge is a “justified insight”. In our case study, it is necessary to – repeat the exercise so that we get data of more participants IEEE Frontier in Education Conference, San Jose, USA, 2018 13

Conclusion We proved the applicability of VA process on complex cyber ● defense exercises We proposed a basic classification for hypotheses, data, ● models, and visualizations and their mapping to CDX life cycle Applying the VA process to the organization of cyber defense ● exercise enabled us to Rethink the organizational and analytical processes in the – hypothesis-driven way Identify current limits in the automation and systematic support of – important processes in our cyber range Structure our know-how so that it would be possible to build a – formalized knowledge and share it across organizers IEEE Frontier in Education Conference, San Jose, USA, 2018 14
