EE595 Capstone Design Presentations Friday, Dec 14 EMS-E250 - PowerPoint PPT Presentation

EE595 Capstone Design Presentations Friday, Dec 14 EMS-E250 Presentations Team 5: 8:30 10:20AM Supertherm Temp Controlled Food Carrier Michael Maher, Matthew Klabunde, Derrick Markowski Team 4: 10:30 12:20PM Bluetooth Power

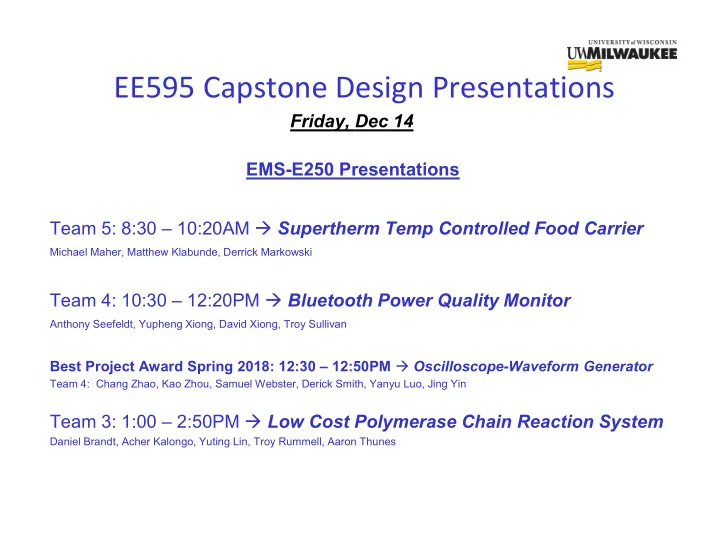

  1. EE595 Capstone Design Presentations Friday, Dec 14 EMS-E250 Presentations Team 5: 8:30 – 10:20AM  Supertherm Temp Controlled Food Carrier Michael Maher, Matthew Klabunde, Derrick Markowski Team 4: 10:30 – 12:20PM  Bluetooth Power Quality Monitor Anthony Seefeldt, Yupheng Xiong, David Xiong, Troy Sullivan Best Project Award Spring 2018: 12:30 – 12:50PM  Oscilloscope-Waveform Generator Team 4: Chang Zhao, Kao Zhou, Samuel Webster, Derick Smith, Yanyu Luo, Jing Yin Team 3: 1:00 – 2:50PM  Low Cost Polymerase Chain Reaction System Daniel Brandt, Acher Kalongo, Yuting Lin, Troy Rummell, Aaron Thunes

  2. EE595 Capstone Design Presentations Friday, Dec 14 EMS-E237 Presentations Team 2: 8:30 – 10:20AM  Low Noise Dimmer Alexander Schauer, Joshua Kirsch, Alex Grams, Andrew Steinert Team 1: 10:30 – 12:20PM  Safety Fan Kash Mielotz, Avery Smith, Sabrina Wolf, Eddy Kalongo Best Project Award (E250): 12:30 – 12:50PM  Oscilloscope-Waveform Generator Spring 2018 Team 4: Chang Zhao, Kao Zhou, Samuel Webster, Derick Smith, Yanyu Luo, Jing Yin

  3. Page 1 Team #1 Kash Mielotz Avery Smith Safety Fan Sabrina Wolf Eddy Kalongo

  4. Page 2  Product Purpose:  The product is made for injury prevention. It contains special features such as 3-speed drive and a purely electrical hard brake controlled by a proximity sensor.  Feature 1:  Hard Brake (Safety function to stop the fan that is controlled by a proximity sensor) Safety Fan  Feature 2:  Timer (Timer, increments of 15mins up to 4hours max runtime on Description timer)  Feature 3:  3 speeds (Low, Medium, High)  Market:  Indoor use made for North America

  5.  Cost: Page 3  Sales Price: $149.99  Component Cost: $75.00, Assembly & Test Costs: $15.00  Environment :  Indoor Use  Operating Temp Range: (0°C to 70°C)  Operating Humidity Range: (0% to 100%)  Power Input(s): Safed  Residential AC Power: 102-132 VAC @ 800mA Max Safety Fan  Major Functions, Quantities Measured, Displayed:  Functions: Key Requirements  On, Off, Variable Speed, Preset Timer, Temperature – Dependent Mode, Proximity Hard Brake  Quantities :  Temperature( 0°F-100°F) Accuracy:(+/-0.5°F)  Time (Timer: increments of 15mins up to 4hours max)  Displayed:  Fan Speed: Low, Medium, High  Temperature  Time & Preset Timer

  6. Page 4 Block Diagram

  7. EE-595 Budget Polymerase Chain Reaction (PCR) Machine Team 3 Brandt, Dan Kalongo, Acher Lin, Yuting Rummell, Troy Pictures of PCR machine taken by Aaron Thunes. PCR machine property of Dr McBride's Microbiology Thunes, Aaron lab – UW Milwaukee Lapham Hall N302 - 1 -

  8. EE-595 Budget Polymerase Chain Reaction (PCR) Machine Description • Purpose of Product – PCR (polymerase chain reaction) is a test microbiologists run to amplify DNA samples. A PCR Machine exposes DNA samples to a programmable thermal chamber to perform this test. • Feature 1 – Low cost • Feature 2 – Portable rugged design • Feature 3 – User friendly computer interface • Global Market (Targeting University microbiology & remote infectious disease laboratories) - 2 -

  9. EE-595 Budget Polymerase Chain Reaction (PCR) Machine Key Requirements • Cost • Sales Price: $800, Component Cost: $400, Assembly & Test Costs: $150 • Environment • Indoor, Dry, Stationary, (rugged design for non-operational portability) • Operating Temp Range: 10°C - 40°C (50°F - 104°F) [Microbiology lab environment] • Operating Humidity Range: 40% – 60% [Microbiology lab environment] • Power Input(s) • Indoor AC Power: 102 – 132 VAC (57 – 63 Hz) @ 10 A Max • Major Functions, Quantities Measured, Displayed • Function: On, Off, Program, Testing, Standby (sample cool down – post testing) • Quantity: Time and Temperature • Time Range: 0 – 999 sec, Accuracy: 1 sec • Temperature Range: 10°C - 110°C (50°F - 230°F) Control Accuracy: +/- 1 °C, Sensing Accuracy: +/- 1°C, Resolution: +/-1 °C, • Serial Communication Type USB 2.0 - 3 -

  10. Budget Polymerase Chain Reaction (PCR) Machine Block Diagram - 4 -

  11. Power Quality Monitoring System Yupheng Xiong David Xiong Anthony Seefeldt Troy Sullivan 15 https://www.shutterstock.com/image-vector/sinewave-icon-black-color- https://www.istockphoto.com/photo/black-smartphone-template- https://learn.sparkfun.com/tutorials/bluetooth-basics/all circle-1055335040?src=uefB3LbyfaxRzWtZ2eRsWA-1-0 gm842965818-137729187

  12. Power Quality Monitoring System Monitor your Electrical System on your Smartphone! Watch Operating Voltage, Current, and Power draw in Realtime! Detect fault conditions such as breaker trips, brownouts, and overvoltage! View all the information from your smartphone via Bluetooth! *For US Market only 16

  13. Power Quality Monitor oring System Specifications • Cost • Sales Price: $400, Component Cost: $120, Assembly & Test Costs: $20 • Environment • For indoor and outdoor (enclosed) applications • Operating Temp Range: Functions from –20°C (-4°F) to 55°C (131°F) • Operating Humidity Range: Up to 95% • Power Input(s) • Residential AC Power: 102VAC to 135VAC • Major Functions, Quantities Measured, Displayed • Measure AC Line Voltage @ +-1% Accuracy • Measure AC Line Current @ +-1% Accuracy • Display Power Consumption • Display Power Factor of System • Voltage Sag detection • Undercurrent detection 17 • Bluetooth Connectivity

  14. Power Quality Monitoring System Block Diagram Block Ownerships: Block 1 – Yupheng X. Block 2 – David X. 18 Block 3 – Anthony S. Block 4 – Troy S.

  15. Team 5 - SuperTherm Michael Maher - Matthew Klabunde - Derrick Markowski From Walmart.com

  16. Product Description ● A consumer targeted, solar and battery powered, cooling and heating container. ○ Keeps food and drinks cool all day outside or overnight on battery power. ○ Runs on solar, car outlet, and battery power, no need to be close to an outlet.

  17. Key Requirements ● Cost Sales Price: $200, Component Cost: $100, Assembly & Test Costs: ○ $50 ● Environment Indoor, Outdoor, Stationary, Mobile ○ Operating Temp Range: -30 to 50 deg. C ○ Operating Humidity Range: 0 to 100% ○ ● Power Input(s) Battery Power: 12V AGM VRLA Battery ○ Other Power Input: 12V Solar Panel - 12V Car Outlet ○ 6 Hour Run Time on Battery Power ○ ● Major Functions, Quantities Measured, Displayed Functions: Hot, Cold, User Adjustable, Off ○ Hot Temperature: 38 ± 2 deg. C ○ Cold Temperature: 2 ± 2 deg. C ○ User Adjustable Temperature Range: 2 ± 2 deg. C to 38 ± 2 deg. C ○ Quantities Measured: Temperature - 0 to 40 deg. C at ±.75 deg. C ○ Accuracy

  18. Block Diagram
