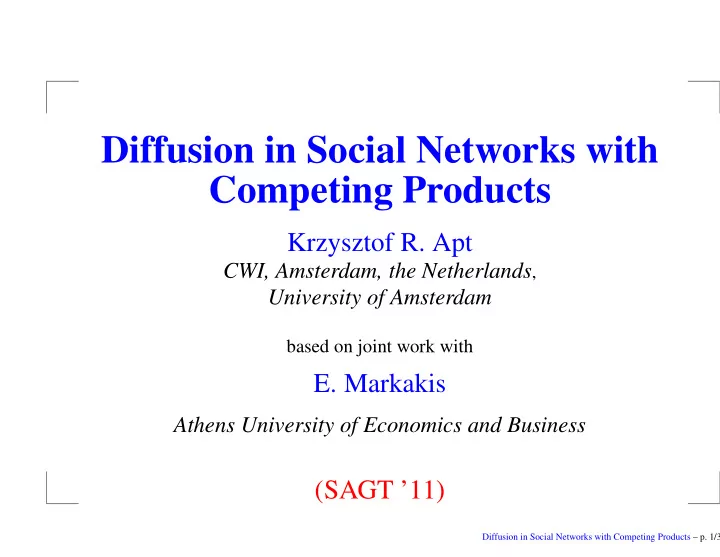

Diffusion in Social Networks with Competing Products Krzysztof R. Apt CWI, Amsterdam, the Netherlands , University of Amsterdam based on joint work with E. Markakis Athens University of Economics and Business (SAGT ’11) Diffusion in Social Networks with Competing Products – p. 1/36

Social Networks Facebook, Hyves, LinkedIn, Nasza Klasa (Our Class), ... Diffusion in Social Networks with Competing Products – p. 2/36

But also ... An area with links to sociology (spread of patterns of social behaviour) economics (effects of advertising, emergence of ‘bubbles’ in financial markets, ... ), epidemiology (epidemics), computer science (complexity analysis), mathematics (graph theory). Diffusion in Social Networks with Competing Products – p. 3/36

Example 1 (From D. Easley and J. Kleinberg, 2010). Spread of the tuberculosis outbreak. Diffusion in Social Networks with Competing Products – p. 4/36

Example 2 (From D. Easley and J. Kleinberg, 2010). Pattern of e-mail communication among 436 employees of HP Research Lab. Diffusion in Social Networks with Competing Products – p. 5/36

Example 3 (From D. Easley and J. Kleinberg, 2010). Collaboration of mathematicians centered on Paul Erd˝ os. Drawing by Ron Graham. Diffusion in Social Networks with Competing Products – p. 6/36

Books C. P . Chamley. Rational herds: Economic models of social learning. Cambridge University Press, 2004. S. Goyal. Connections: An introduction to the economics of networks. Princeton University Press, 2007. F . Vega-Redondo. Complex Social Networks. Cambridge University Press, 2007. M. Jackson. Social and Economic Networks. Princeton University Press, Princeton, 2008. D. Easley and J. Kleinberg. Networks, Crowds, and Markets. Cambridge University Press, 2010. M. Newman. Networks: An Introduction. Oxford University Press, 2010. Diffusion in Social Networks with Competing Products – p. 7/36

Our Model Assumptions Weighted directed graph G = ( V , E ) , w i j ∈ [ 0 , 1 ] : weight of edge ( i , j ) , N ( i ) : neighbours of i (nodes from which there is an incoming edge to i ), For each node i such that N ( i ) � = / 0 , ∑ j ∈ N ( i ) w ji ≤ 1 , Threshold function θ : V → ( 0 , 1 ] , Finite set P of products. Social network: ( G , P , p , θ ) , where p : V → P ( P ) , with each p ( i ) non-empty. Diffusion in Social Networks with Competing Products – p. 8/36

Relation to Other Models Hebb’s model of learning. Learning in networks of neurons: thresholds change. SIR epidemiological model. S (susceptible), I (infectious), R (recovered). Each node has two states: infected or not. Threshold: probability of infection. Hopfield net (artificial neural network). Model of associative memory. Units have only two values: 0 and 1. Diffusion in Social Networks with Competing Products – p. 9/36

Reduction Relations → : a binary relation on social networks, → ∗ : reflexive, transitive closure of → . Reduction sequence p → ∗ p ′ is maximal if for no p ′′ , p ′ → p ′′ . Assume an initial social network p . p ′ is reachable (from p ) if p → ∗ p ′ , p ′ is unavoidable (from p ) if for all maximal sequences of reductions p → ∗ p ′′ , it holds that p ′ = p ′′ , p has a unique outcome if some social network is unavoidable from p . Diffusion in Social Networks with Competing Products – p. 10/36

Specific Reduction Relation p 1 → p 2 if p 2 � = p 1 , if p 2 ( i ) � = p 1 ( i ) , then | p 1 ( i ) | ≥ 2 ( i had a choice in p 1 ), for some t ∈ p 1 ( i ) p 2 ( i ) = { t } ( i made a choice in p 2 ), ∑ w ji ≥ θ ( i ) j ∈ N ( i ) | p 1 ( j )= { t } (upon influence of its neighbours). If N ( i ) = / 0 , then for all t ∈ p 1 ( i ) , p 2 ( i ) = { t } is allowed. Diffusion in Social Networks with Competing Products – p. 11/36

Adopting a Product Node i in a social network p adopted product t if p ( i ) = { t } , can adopt product t if t ∈ p ( i ) ∧ | p ( i ) | ≥ 2 ∧ 0 ∨ ∑ j ∈ N ( i ) | p ( j )= { t } w ji ≥ θ ( i )) . ( N ( i ) = / Diffusion in Social Networks with Competing Products – p. 12/36

Comments A node with no neighbours can adopt any product that is a possible choice for it. p 1 → p 2 holds if any node that adopted a product in p 2 either adopted it in p 1 or could adopt it in p 1 , at least one node could adopt a product in p 1 and adopted it in p 2 , the nodes that did not adopt a product in p 2 did not change their product sets. Social network is equitable if each weight w j , i = 1 | N ( i ) | . In equitable social networks ∑ j ∈ N ( i ) | p ( j )= { t } w ji ≥ θ ( i ) if at least the fraction θ ( i ) of N ( i ) adopted in p product t . Diffusion in Social Networks with Competing Products – p. 13/36

Example 1 Diffusion in Social Networks with Competing Products – p. 14/36

Example 1 θ ( b ) ≤ 1 2 . Then the network in which each i � = a adopts t 2 is reachable, though not unavoidable. θ ( b ) > 1 2 . Then the network in which each i � = a adopts t 2 is not reachable, the initial network has a unique outcome, node c adopts t 2 iff θ ( c ) ≤ 1 2 . Diffusion in Social Networks with Competing Products – p. 15/36

Example 2 Diffusion in Social Networks with Competing Products – p. 16/36

Example 2 Final networks: θ ( b ) ≤ 1 3 ∧ θ ( c ) ≤ 1 : ( p ( b ) = { t 1 }∨ p ( b ) = { t 2 } ) ∧ 2 ( p ( c ) = { t 1 }∨ p ( c ) = { t 2 } ) θ ( b ) ≤ 1 3 ∧ θ ( c ) > 1 : ( p ( b ) = { t 1 } ∧ p ( c ) = P ) ∨ 2 ( p ( b ) = p ( c ) = { t 2 } ) 3 < θ ( b ) ≤ 2 3 ∧ θ ( c ) ≤ 1 : p ( b ) = p ( c ) = { t 2 } 1 2 3 < θ ( b ) ∧ θ ( c ) > 1 : p ( b ) = p ( c ) = P 1 2 3 < θ ( b ) ∧ θ ( c ) ≤ 1 : p ( b ) = P ∧ p ( c ) = { t 2 } 2 2 Diffusion in Social Networks with Competing Products – p. 17/36

Informal Examples Mobile phones It is cheaper to choose the provider of our friends. Secondary schools Children prefer to choose a school which their friends will choose, as well. Discussions preceding voting in a club Preferences announced by some members before elections may influence the votes cast by their friends. Common characteristics: Small number of choices (in comparison with the number of agents), Outcome of the adoption process does not need to be unique. Diffusion in Social Networks with Competing Products – p. 18/36

Three Questions Determine when specific product will possibly be adopted by all nodes, a specific product will necessarily be adopted by all nodes, the adoption process of the products will yield a unique outcome. Diffusion in Social Networks with Competing Products – p. 19/36

Reachable Outcomes (1) Definition Weighted directed graph is θ -well-structured if for some level : V → N for all i such that N ( i ) � = / 0 ∑ w ji ≥ θ ( i ) . j ∈ N ( i ) | level ( j ) < level ( i ) Example (all weights 1 / 2 , θ ( i ) = 1 / 2 ) Diffusion in Social Networks with Competing Products – p. 20/36

Reachable Outcomes (2) Given ( G , P , p , θ ) and t ∈ P . G p , t : weighted directed graph obtained by removing from G all edges to nodes i with p ( i ) = { t } . So in G p , t for all such nodes i , N ( i ) = / 0 . Theorem 1 Assume ( G , P , p , θ ) and a product top ∈ P . A social network ( G , P , [ top ] , θ ) is reachable iff for all i , top ∈ p ( i ) , G p , top is θ -well-structured. Diffusion in Social Networks with Competing Products – p. 21/36

Reachable Outcomes (3) Lemma Assume a weighted directed graph G and θ . One can decide in O ( n 2 ) time whether G is θ -well-structured. Algorithm Assign level 0 to all nodes with in-degree 0 . If no such node exists, then output No. At step i , assign level i to each node for which the θ -well-structuredness condition holds when considering only its neighbours with assigned levels 0 ,..., i − 1 . If by iterating all nodes are assigned a level, then output Yes and otherwise output No. Corollary Assume ( G , P , p , θ ) and a product top ∈ P . One can decide in O ( n 2 ) time whether ( G , P , [ top ] , θ ) is reachable. Diffusion in Social Networks with Competing Products – p. 22/36

Unavoidable Outcomes (1) Theorem 2 Assume ( G , P , p , θ ) and a product top ∈ P . A social network ( G , P , [ top ] , θ ) is unavoidable iff for all i , if N ( i ) = / 0 , then p ( i ) = { top } , for all i , top ∈ p ( i ) , G p , top is θ -well-structured. Corollary Assume ( G , P , p , θ ) and a product top ∈ P . There is an O ( n 2 ) time algorithm that determines whether the social network ( G , P , [ top ] , θ ) is unavoidable. Diffusion in Social Networks with Competing Products – p. 23/36

Unique Outcomes (1) Node i can switch in p ′ given p if i adopted in p ′ a product t and for some t ′ � = t t ′ ∈ p ( i ) ∧ ∑ j ∈ N ( i ) | p ′ ( j )= { t ′ } w ji ≥ θ ( i ) . p ′ is ambivalent given p if a node can adopt more than one product or can switch in p ′ given p . Contraction sequence: the unique reduction sequence p → ∗ p ′ such that each of its reduction steps is fast, either p → ∗ p ′ is maximal or p ′ is the first network in p → ∗ p ′ that is ambivalent given p . Diffusion in Social Networks with Competing Products – p. 24/36
