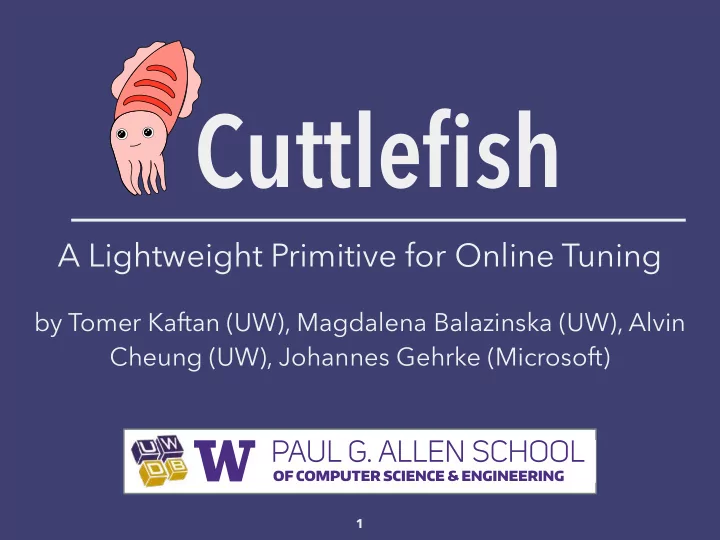

SLIDE 1

A Lightweight Primitive for Online Tuning

Cuttlefish

by Tomer Kaftan (UW), Magdalena Balazinska (UW), Alvin Cheung (UW), Johannes Gehrke (Microsoft)

1

SLIDE 2

Logical Operators have multiple physical Operators… The system should automatically choose!

SLIDE 3

Logical Operators have multiple physical Operators… The system should automatically choose!

SLIDE 4

(Some) Prior Work on Query Optimization

3

SLIDE 5

(Some) Prior Work on Query Optimization

Static Query Optimizers
cardinality & selectivity estimation , heuristics, cost

models

3

SLIDE 6

(Some) Prior Work on Query Optimization

Static Query Optimizers
cardinality & selectivity estimation , heuristics, cost

models

Adaptive Query Optimization
Query re-optimization (update cardinality &

selectivity estimates)

Adaptive operators (scans, aggregates, etc.)
Eddies & adaptive tuple routing (operator

reordering)

3

SLIDE 7

These work great, BUT…

4

SLIDE 8

These work great, BUT…

Designing good query optimizers takes time!

4

SLIDE 9

These work great, BUT…

Designing good query optimizers takes time!
Requires deep knowledge of the operators and significant

development effort

4

SLIDE 10

These work great, BUT…

Designing good query optimizers takes time!
Requires deep knowledge of the operators and significant

development effort

Spark SQL took 2 years to go from heuristics-based
ptimization to cost-based optimization! [1]

4

[1] http://databricks.com/blog/2017/08/31/cost-based-optimizer-in-apache-spark-2- 2.html

SLIDE 11

These work great, BUT…

Designing good query optimizers takes time!
Requires deep knowledge of the operators and significant

development effort

Spark SQL took 2 years to go from heuristics-based
ptimization to cost-based optimization! [1]
Existing adaptive approaches just push the development
verhead to physical execution

4

[1] http://databricks.com/blog/2017/08/31/cost-based-optimizer-in-apache-spark-2- 2.html

SLIDE 12

These work great, BUT…

Designing good query optimizers takes time!
Requires deep knowledge of the operators and significant

development effort

Spark SQL took 2 years to go from heuristics-based
ptimization to cost-based optimization! [1]
Existing adaptive approaches just push the development
verhead to physical execution
Modern data processing applications involve diverse,

sophisticated operators, not just relational operators!

4

[1] http://databricks.com/blog/2017/08/31/cost-based-optimizer-in-apache-spark-2- 2.html

SLIDE 13

Motivating Workload

5

SLIDE 14

Motivating Workload

“A Cuttlefish pretending to be a rock”

5

*Image Sourced from https://www.flickr.com/photos/silkebaron/32001215104

SLIDE 15

Motivating Workload

“A Cuttlefish pretending to be a rock”

5

Generate Training Data from:

etc.

*Image Sourced from https://www.flickr.com/photos/silkebaron/32001215104

SLIDE 16

Motivating Workload

6

CNN

HTML Data

Train a caption- generating model

Output Model Conv RNN

Repeat

Regex Join

Images

Filter

Generate Training Labels

...

Conv

*caption-generating model portion of the logical plan inspired by: Xu et al. Show, Attend and Tell: Neural Image Caption Generation with Visual Attention. ICML 2015

SLIDE 17

Motivating Workload

6

CNN

HTML Data

Train a caption- generating model

Output Model Conv RNN

Repeat

Regex Join

Images

Filter

Generate Training Labels

...

Conv

*caption-generating model portion of the logical plan inspired by: Xu et al. Show, Attend and Tell: Neural Image Caption Generation with Visual Attention. ICML 2015

Diverse, sophisticated operators, with multiple physical alternatives!

SLIDE 18

Example Operator: Convolution

7

SLIDE 19

Example Operator: Convolution

7

Tested 3 convolution algorithms on 8000 Flickr images

SLIDE 20

Can we optimize without a full-fledged optimizer?

8

SLIDE 21

Prior Work: Tuning Black-box Operators

9

SLIDE 22

Prior Work: Tuning Black-box Operators

Offline Autotuning
Searches through arbitrary physical plan spaces
Requires representative workloads
Offline training time

9

SLIDE 23

Prior Work: Tuning Black-box Operators

Offline Autotuning
Searches through arbitrary physical plan spaces
Requires representative workloads
Offline training time
Micro Adaptivity in Vectorwise
Reinforcement learning chooses physical flavors
f black-box vectorized operators
Limited to vectorized operators, does not explore

multi-core settings

9

SLIDE 24

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

Cuttlefish: A Lightweight Primitive for Online Tuning

10

CNN

HTML Data

Train a caption- generating model

Output Model Conv RNN

Repeat

Regex Join

Images

Filter

Generate Training Labels

...

Conv

SLIDE 25

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

Cuttlefish: A Lightweight Primitive for Online Tuning

10

CNN

HTML Data

Train a caption- generating model

Output Model Conv RNN

Repeat

Regex Join

Images

Filter

Generate Training Labels

...

Conv

SLIDE 26 Tuner Lifecycle Choose Execute Observe Nest. Loop Mat. Mult Sort FFT Lib 2 Lib 3 Lib 4 Lib 1 HTML Data

Join

Output Model Tuner Filter

Regex

Images RNN

Repeat CNN

Nest. Loop Mat. Mult FFT ... Tuner Hash Tuner Tuner

Conv Conv

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

11

Cuttlefish: A Lightweight Primitive for Online Tuning

SLIDE 27 Tuner Lifecycle Choose Execute Observe Nest. Loop Mat. Mult Sort FFT Lib 2 Lib 3 Lib 4 Lib 1 HTML Data

Join

Output Model Tuner Filter

Regex

Images RNN

Repeat CNN

Nest. Loop Mat. Mult FFT ... Tuner Hash Tuner Tuner

Conv Conv

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

Developer maps tuning rounds to the execution model of each operator:

11

Cuttlefish: A Lightweight Primitive for Online Tuning

SLIDE 28 Tuner Lifecycle Choose Execute Observe Nest. Loop Mat. Mult Sort FFT Lib 2 Lib 3 Lib 4 Lib 1 HTML Data

Join

Output Model Tuner Filter

Regex

Images RNN

Repeat CNN

Nest. Loop Mat. Mult FFT ... Tuner Hash Tuner Tuner

Conv Conv

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

Developer maps tuning rounds to the execution model of each operator:

Regex: One round per HTML Doc

11

Cuttlefish: A Lightweight Primitive for Online Tuning

SLIDE 29 Tuner Lifecycle Choose Execute Observe Nest. Loop Mat. Mult Sort FFT Lib 2 Lib 3 Lib 4 Lib 1 HTML Data

Join

Output Model Tuner Filter

Regex

Images RNN

Repeat CNN

Nest. Loop Mat. Mult FFT ... Tuner Hash Tuner Tuner

Conv Conv

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

Developer maps tuning rounds to the execution model of each operator:

Regex: One round per HTML Doc
Convolve: One round per image

11

Cuttlefish: A Lightweight Primitive for Online Tuning

SLIDE 30 Tuner Lifecycle Choose Execute Observe Nest. Loop Mat. Mult Sort FFT Lib 2 Lib 3 Lib 4 Lib 1 HTML Data

Join

Output Model Tuner Filter

Regex

Images RNN

Repeat CNN

Nest. Loop Mat. Mult FFT ... Tuner Hash Tuner Tuner

Conv Conv

Workload developer (or the query optimizer) inserts calls to Cuttlefish’s API to pick physical operators during execution

Developer maps tuning rounds to the execution model of each operator:

Regex: One round per HTML Doc
Convolve: One round per image
Parallel Distributed Join: One round per partition

11

Cuttlefish: A Lightweight Primitive for Online Tuning

SLIDE 31

Cuttlefish

12

I. Problem & Motivation

II. The Cuttlefish API
III. Bandit-based Online Tuning
IV. Distributed Tuning Approach
V. Contextual Tuning
VI. Handling Nonstationary Settings

VII.Other Operators VIII.Conclusion

SLIDE 32

The Cuttlefish Primitive

13

SLIDE 33

1. Construct a tuner (from a set of choices)

The Cuttlefish Primitive

13

SLIDE 34

1. Construct a tuner (from a set of choices)
2. Tuner.choose (pick one of the choices)

The Cuttlefish Primitive

13

SLIDE 35

1. Construct a tuner (from a set of choices)
2. Tuner.choose (pick one of the choices)
3. Tuner.observe (observe a reward for a choice)

The Cuttlefish Primitive

13

SLIDE 36

1. Construct a tuner (from a set of choices)
2. Tuner.choose (pick one of the choices)
3. Tuner.observe (observe a reward for a choice)

Cuttlefish tuners maximize the total reward after multiple choose-observe tuning rounds

The Cuttlefish Primitive

13

SLIDE 37

Tuning Convolution with Cuttlefish

14

convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 38

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 39

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 40

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 41

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 42

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 43

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 44

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 45

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

14

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 46

Cuttlefish

15

I. Problem & Motivation

II. The Cuttlefish API

III.Bandit-based Online Tuning

IV. Distributed Tuning Approach
V. Contextual Tuning
VI. Handling Nonstationary Settings

VII.Other Operators VIII.Conclusion

SLIDE 47

Approach: Tuning

16

SLIDE 48

Multi-armed Bandit Problem

Approach: Tuning

16

SLIDE 49

K possible choices (called arms)

Multi-armed Bandit Problem

Approach: Tuning

16

SLIDE 50

K possible choices (called arms)
Arms have unknown reward distributions

Multi-armed Bandit Problem

Approach: Tuning

16

SLIDE 51

K possible choices (called arms)
Arms have unknown reward distributions
At each round: select an Arm and observe a reward

Multi-armed Bandit Problem

Approach: Tuning

16

SLIDE 52

K possible choices (called arms)
Arms have unknown reward distributions
At each round: select an Arm and observe a reward

Multi-armed Bandit Problem

Goal: Maximize Cumulative Reward

(by balancing exploration & exploitation)

Approach: Tuning

16

SLIDE 53

22

SLIDE 61

Thompson Sampling

Gaussian runtimes with initially unknown means and variances

22

SLIDE 62

Thompson Sampling

Gaussian runtimes with initially unknown means and variances
Belief distributions form t-distributions
Depend only on sample mean, variance, count

22

SLIDE 63

Thompson Sampling

Gaussian runtimes with initially unknown means and variances
Belief distributions form t-distributions
Depend only on sample mean, variance, count
No meta-parameters, yet works well for diverse operators

22

SLIDE 64

Thompson Sampling

Gaussian runtimes with initially unknown means and variances
Belief distributions form t-distributions
Depend only on sample mean, variance, count
No meta-parameters, yet works well for diverse operators
Constant memory overhead, 0.03 ms per tuning round

22

SLIDE 65

Convolution Evaluation

23

SLIDE 66

Convolution Evaluation

Prototype in Apache Spark

23

SLIDE 67

Convolution Evaluation

Prototype in Apache Spark
Tune between three convolution algorithms (Nested Loops, FFT, or

Matrix Multiply)

Reward: -1*elapsedTime (maximizes throughput)

23

SLIDE 68

Convolution Evaluation

Prototype in Apache Spark
Tune between three convolution algorithms (Nested Loops, FFT, or

Matrix Multiply)

Reward: -1*elapsedTime (maximizes throughput)
Convolve 8000 Flickr images with sets of filters (~32gb)
Vary number & size of filters

23

SLIDE 69

Convolution Evaluation

Prototype in Apache Spark
Tune between three convolution algorithms (Nested Loops, FFT, or

Matrix Multiply)

Reward: -1*elapsedTime (maximizes throughput)
Convolve 8000 Flickr images with sets of filters (~32gb)
Vary number & size of filters
Run on an 8-node (AWS EC2 4-core r3.xlarge) cluster.
32 total cores, ~252 images per core

23

SLIDE 70

Convolution Evaluation

Prototype in Apache Spark
Tune between three convolution algorithms (Nested Loops, FFT, or

Matrix Multiply)

Reward: -1*elapsedTime (maximizes throughput)
Convolve 8000 Flickr images with sets of filters (~32gb)
Vary number & size of filters
Run on an 8-node (AWS EC2 4-core r3.xlarge) cluster.
32 total cores, ~252 images per core
*Very* compute intensive
(Some configs up to 45 min on a single node)

23

SLIDE 71

Convolution Results

24

Relative throughput normalized against the highest-throughput algorithm

SLIDE 72

Convolution Results

24

Relative throughput normalized against the highest-throughput algorithm

SLIDE 73

Convolution Results

24

Relative throughput normalized against the highest-throughput algorithm

SLIDE 74

Cuttlefish

25

I. Problem & Motivation

II. The Cuttlefish API
III. Bandit-based Online Tuning
IV. Distributed Tuning Approach
V. Contextual Tuning
VI. Handling Nonstationary Settings

VII.Other Operators VIII.Conclusion

SLIDE 75

Challenges in Distributed Tuning

26

SLIDE 76

Challenges in Distributed Tuning

1. Choosing and observing occur throughout a cluster
To maximize learning, need to communicate

26

SLIDE 77

Challenges in Distributed Tuning

1. Choosing and observing occur throughout a cluster
To maximize learning, need to communicate
2. Synchronization & communication overheads

26

SLIDE 78

Challenges in Distributed Tuning

1. Choosing and observing occur throughout a cluster
To maximize learning, need to communicate
2. Synchronization & communication overheads
3. Feedback delay
How many times is `choose’ called before an

earlier reward is observed?

Fortunately, theoretically sound to have delays

26

SLIDE 79

Distributed Tuning Approach

…

Local State Thread 1

Worker 1 Model Store

Non-local State Local State

Non-local State Thread 2 Thread 3 Worker 2: Local State Local State Thread 1

Worker 2

Non-local State Thread 2 Thread 3 Worker 1: Local State *On Master or a Parameter Server*

When choosing: aggregate local & non-local state

SLIDE 87

Distributed Tuning Approach

28

…

Local State Thread 1

Worker 1 Model Store

Non-local State Local State

Non-local State Thread 2 Thread 3 Worker 2: Local State Local State Thread 1

Worker 2

Non-local State Thread 2 Thread 3 Worker 1: Local State *On Master or a Parameter Server*

When choosing: aggregate local & non-local state
When observing: update the local state

SLIDE 88

Distributed Tuning Approach

28

…

Local State Thread 1

Worker 1 Model Store

Non-local State Local State

Non-local State Thread 2 Thread 3 Worker 2: Local State Local State Thread 1

Worker 2

Non-local State Thread 2 Thread 3 Worker 1: Local State *On Master or a Parameter Server*

When choosing: aggregate local & non-local state
When observing: update the local state
Model store aggregates non-local state

SLIDE 89

Results with Distributed Approach

29

Relative throughput normalized against the highest-throughput algorithm

SLIDE 90

Results with Distributed Approach

30

Throughput normalized against an ideal oracle that always picks the fastest algorithm

SLIDE 91

Results with Distributed Approach

30

Throughput normalized against an ideal oracle that always picks the fastest algorithm

SLIDE 92

Cuttlefish

31

I. Problem & Motivation

II. The Cuttlefish API
III. Bandit-based Online Tuning
IV. Distributed Tuning Approach
V. Contextual Tuning (by learning cost models)
VI. Handling Nonstationary Settings

VII.Other Operators VIII.Conclusion

SLIDE 93

Contextual Tuning

32

SLIDE 94

Contextual Tuning

Best physical operator for each round may depend
n current context
e.g. convolution performance depends on the

image & filter dimensions

32

SLIDE 95

Contextual Tuning

Best physical operator for each round may depend
n current context
e.g. convolution performance depends on the

image & filter dimensions

Users may know important context features
e.g. from the asymptotic algorithmic complexity

32

SLIDE 96

Contextual Tuning

Best physical operator for each round may depend
n current context
e.g. convolution performance depends on the

image & filter dimensions

Users may know important context features
e.g. from the asymptotic algorithmic complexity
Users can specify context in Tuner.choose

32

SLIDE 97

Contextual Tuning Algorithm

33

SLIDE 98

Contextual Tuning Algorithm

Linear contextual Thompson sampling learns a linear

model that maps features to rewards

33

SLIDE 99

Contextual Tuning Algorithm

Linear contextual Thompson sampling learns a linear

model that maps features to rewards

Feature Normalization & Regularization
Increased robustness towards feature choices

33

SLIDE 100

Contextual Tuning Algorithm

Linear contextual Thompson sampling learns a linear

model that maps features to rewards

Feature Normalization & Regularization
Increased robustness towards feature choices
Effectively learns a cost model

33

SLIDE 101

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … for image, filters in convolutions: start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

34

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose() tuner.observe(token, reward)

SLIDE 102

Tuning Convolution with Cuttlefish

def loopConvolve(image, filters): … def fftConvolve(image, filters): … def mmConvolve(image, filters): … def getDimensions(image, filters): … for image, filters in convolutions: context = getDimensions(image, filters) start = now() result = convolve(image, filters) elapsedTime = now() - start reward = computeReward(elapsedTime)

utput result

35

tuner = Tuner([loopConvolve, fftConvolve, mmConvolve]) convolve, token = tuner.choose(context) tuner.observe(token, reward) context

SLIDE 103

Contextual Convolution Results

36

Throughput normalized against an ideal oracle that always picks the fastest algorithm

SLIDE 104

Cuttlefish

37

I. Problem & Motivation

II. The Cuttlefish API
III. Bandit-based Online Tuning
IV. Distributed Tuning Approach
V. Contextual Tuning

VI.Handling Nonstationary Settings VII.Other Operators VIII.Conclusion

SLIDE 105

Nonstationary Settings

38

SLIDE 106

Nonstationary Settings

Runtimes may drift over time, or differ across nodes
heterogenous cluster, changing resource availabilities,

data properties varying throughout the workload, etc.

E.g. web crawl data and images may be stored sorted

by website. This could correlate with performance

38

SLIDE 107

Nonstationary Settings

Runtimes may drift over time, or differ across nodes
heterogenous cluster, changing resource availabilities,

data properties varying throughout the workload, etc.

E.g. web crawl data and images may be stored sorted

by website. This could correlate with performance

We might not be capturing sufficient context!

38

SLIDE 108

Nonstationary Settings

Runtimes may drift over time, or differ across nodes
heterogenous cluster, changing resource availabilities,

data properties varying throughout the workload, etc.

E.g. web crawl data and images may be stored sorted

by website. This could correlate with performance

We might not be capturing sufficient context!
Standard multi-armed bandit techniques fail

38

SLIDE 109

Nonstationary Settings

39

SLIDE 110

Nonstationary Settings

Prior work: dynamic bandit approaches
Sliding windows, discounting older observations, reset on

change detection, etc.

Good for dealing with changes over time

39

SLIDE 111

Nonstationary Settings

Prior work: dynamic bandit approaches
Sliding windows, discounting older observations, reset on

change detection, etc.

Good for dealing with changes over time
Prior work: bandit clustering approaches
identify & share learning among agents solving similar

bandit problems

Good for dealing with differences between cores

39

SLIDE 112

Nonstationary Settings

Prior work: dynamic bandit approaches
Sliding windows, discounting older observations, reset on

change detection, etc.

Good for dealing with changes over time
Prior work: bandit clustering approaches
identify & share learning among agents solving similar

bandit problems

Good for dealing with differences between cores
Need dynamic bandit clustering where agents’ underlying

problems may change over time!

39

SLIDE 113

Possible Solution

40

Observations Agents (core or machine)

SLIDE 114

43

Throughput normalized against an ideal oracle that always picks the fastest algorithm

SLIDE 121

Cuttlefish

44

I. Problem & Motivation

II. The Cuttlefish API
III. Bandit-based Online Tuning
IV. Distributed Tuning Approach
V. Contextual Tuning
VI. Handling Nonstationary Settings

VII.Other Operators VIII.Conclusion

SLIDE 122

Regex Operator

45

SLIDE 123

Regex Operator

45

Tune between four regular expression searching libraries
Built-in Java Regex and 3 third-party libraries

SLIDE 124

Regex Operator

45

Tune between four regular expression searching libraries
Built-in Java Regex and 3 third-party libraries
Search through 256k Common Crawl docs (~30gb uncompressed)
one tuning round per doc

SLIDE 125

Regex Operator

45

Tune between four regular expression searching libraries
Built-in Java Regex and 3 third-party libraries
Search through 256k Common Crawl docs (~30gb uncompressed)
one tuning round per doc
Test 8 Regexes sourced from regex-sharing website RegExr
Match hyperlinks, trigrams, valid emails, color codes, etc.

SLIDE 126

Regex Operator

45

Tune between four regular expression searching libraries
Built-in Java Regex and 3 third-party libraries
Search through 256k Common Crawl docs (~30gb uncompressed)
one tuning round per doc
Test 8 Regexes sourced from regex-sharing website RegExr
Match hyperlinks, trigrams, valid emails, color codes, etc.
Multiple of orders of magnitude variation in performance
Email validation regex w/ built-in java utilities takes 33μs to process

the fastest document, but over 1000s for the slowest document

SLIDE 127

Regex Operator

45

Tune between four regular expression searching libraries
Built-in Java Regex and 3 third-party libraries
Search through 256k Common Crawl docs (~30gb uncompressed)
one tuning round per doc
Test 8 Regexes sourced from regex-sharing website RegExr
Match hyperlinks, trigrams, valid emails, color codes, etc.
Multiple of orders of magnitude variation in performance
Email validation regex w/ built-in java utilities takes 33μs to process

the fastest document, but over 1000s for the slowest document

8-node (AWS EC2 4-core r3.xlarge) cluster

SLIDE 128

Regex Results

46

Note: Y-axis is Log-scale

SLIDE 129

Distributed Parallel Join Operator

47

SLIDE 130

Distributed Parallel Join Operator

47

Hash-partition relations according to join attributes

SLIDE 131

Distributed Parallel Join Operator

47

Hash-partition relations according to join attributes
On each partition, pick a local hash join or a local sort-merge join

SLIDE 132

Distributed Parallel Join Operator

47

Hash-partition relations according to join attributes
On each partition, pick a local hash join or a local sort-merge join
Rewards capture total join time
measure from when joins begin until result iterators are fully consumed

SLIDE 133

Distributed Parallel Join Operator

47

Hash-partition relations according to join attributes
On each partition, pick a local hash join or a local sort-merge join
Rewards capture total join time
measure from when joins begin until result iterators are fully consumed
Set as Spark SQL 2.2’s join for all equijoins too large to broadcast
No heuristics and cost models in the query optimizer, falls back on

explicit configurations (defaults to global sort-merge join)

SLIDE 134

Distributed Parallel Join Operator

47

Hash-partition relations according to join attributes
On each partition, pick a local hash join or a local sort-merge join
Rewards capture total join time
measure from when joins begin until result iterators are fully consumed
Set as Spark SQL 2.2’s join for all equijoins too large to broadcast
No heuristics and cost models in the query optimizer, falls back on

explicit configurations (defaults to global sort-merge join)

Test on TPC-DS benchmark (scale factor 200)

SLIDE 135

Distributed Parallel Join Operator

47

Hash-partition relations according to join attributes
On each partition, pick a local hash join or a local sort-merge join
Rewards capture total join time
measure from when joins begin until result iterators are fully consumed
Set as Spark SQL 2.2’s join for all equijoins too large to broadcast
No heuristics and cost models in the query optimizer, falls back on

explicit configurations (defaults to global sort-merge join)

Test on TPC-DS benchmark (scale factor 200)
Configure queries to use 512 shuffle / join partitions

SLIDE 136

Join Results (Query Throughput)

48

SLIDE 137

Join Results (Query Throughput)

48

But, requires exploration & provides no ‘special ordering’ benefits

SLIDE 138

Cuttlefish join usually faster (Join throughput graphs even more dramatic)

Join Results (Query Throughput)

48

But, requires exploration & provides no ‘special ordering’ benefits

SLIDE 139

Cuttlefish

49

I. Problem & Motivation

II. The Cuttlefish API
III. Bandit-based Online Tuning
IV. Distributed Tuning Approach
V. Contextual Tuning
VI. Handling Nonstationary Settings

VII.Other Operators VIII.Conclusion

SLIDE 140

Cuttlefish

50

A simple, flexible API for online tuning
Thompson-sampling based tuning algorithms
Supports contextual tuning (learns cost models)
Distributed learning between workers
Adapts to nonstationary workloads
Prototyped in Apache Spark & successfully tunes

convolution, regex, and join operators
