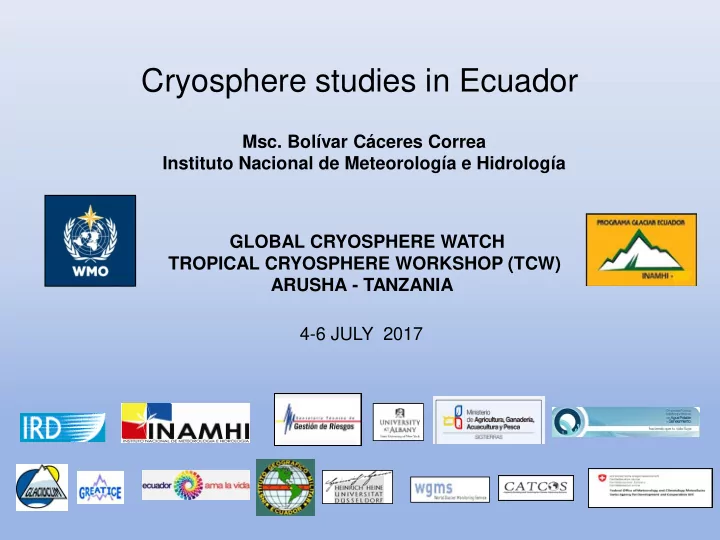

Cryosphere studies in Ecuador Msc. Bolívar Cáceres Correa Instituto Nacional de Meteorología e Hidrología GLOBAL CRYOSPHERE WATCH TROPICAL CRYOSPHERE WORKSHOP (TCW) ARUSHA - TANZANIA 4-6 JULY 2017

Latin American Network for study of select Glacieres

Antizana 15 α (0°28’S) - Ecuador • 5760-4800 m.a.s.l. 0.66 km 2 • • 2.0 km lenght • ELA 0 : 5116 m AAR 0 : 72 % • 1995  present…. • • WGMS • ORE

MASS BALANCE MEASUREMENTS Snow accumulation (pits) ACCUMULATION AREA Equilibrium line Rain Ablation area Mass transference: Thickness , superficial speed Terminus Energy balance Length evolution Pits (density snow /ice , thickness) Stakes (ablation, speed) Hydrological station Standard device for glacier Total rain gauge ( snow/rain) monitoring over the Tropical Andes Automatic wheather station (AWS)

Mass balance annual structuring Location of equilibrium line altitude (ELA) Mass balance average over Glaciar 15 Antisana 551 mm we Eqilibrium line altitud placed in average 5125 m.a.s.l. Accunulation area ratio average AAR 0 for Glacier 15 of Antisana corresponds 63% of the total glacier coverage (21 years ) Cáceres et.al. 2016

METEOROLOGICAL S STATIONS GLACIER 15-GLACIER 12 SAMAE-2 (INAMHI)-GLACIER 12 ORE-GLACIOCLIM-IRD-INAMHI AWS-INAMHI-PARAMO AWS-INAMHI – GLACIER 12

National Glacier Inventory Cordillera Occidental ( Western Cordillera) Area (Km 2 ) Mountain Glacier tongues Source Iliniza 2 0,4 Cáceres , 2010 Carihuayrazo 9 0,3 Cáceres , 2010 Chimborazo 22 11,8 Cáceres , 2010 12,5 Cordillera Oriental ( Eastern Cordillera) Area (Km 2 ) Mountain Glacier tongues Source Cayambe 20 12,0 Cáceres , 2010 Antisana 17 15,3 Cáceres , 2010 Cotopaxi 19 14,8 Cáceres , 2010 Altar 6 5,9 Cáceres , 2010 48,1 The total ice coverage for 1997 was 60.6 km 2

National Glacier inventory by 2006 Cordillera Occidental ( Western Cordillera) Area (Km 2 ) Mountain Glacier tongues Source Iliniza 2 0,3 Cáceres , 2010 Carihuayrazo 2 0,2 Cáceres , 2010 Chimborazo 22 9,4 Cáceres , 2010 10,0 Cordillera Oriental ( Eastern Cordillera) Area (Km 2 ) Mountain Glacier tongues Source Cayambe 20 9,3 Cáceres , 2010 Antisana 17 12,2 Cáceres , 2010 Cotopaxi 19 11,8 Cáceres , 2010 Altar 6 4,6 Cáceres , 2010 38,0 The total ice coverage by 2006 was 48 km 2 mm Cáceres B., 2010 National glacier inventory will be updated by B. Cáceres by the end of 2017, work in progress

Cotopaxi evaluation 2015-2016 Source : IGM-Ecuador Source : Cáceres 2016 – IGM-Ecuador

Cotopaxi glacier evolution 1977-2016 Cáceres B. , 2016-2017

Chimborazo evaluation 1962-2016 Cáceres B,. 2016

Carihuayrazo evolution 1956-2010 Reduction 78,2% Cáceres B. , 2015 Disapear 2018

Publications http://wgms.ch/glacierapp/

Mass balance estimation for a segment of Quito Glacier (Traub) 2010-2017 Ing. Msc. Bolívar Cáceres

Main programs that was made for INAMHI in relation with Cryosphere “Program a Glaciares Ecuador “ Instituto Nacional de Meteorología e Hidrología (INAMHI), in the way. Ecuador (continental) level. Glaciological mesearum ents in Antisana,Cotopaxi,Chimborazo,Carihuayrazo – in the way ; Altar,Cayambe in progress. “Program a Glaciológico Antártico Ecuatoriano ” Instituto Nacional de Meteorología e Hidrología (INAMHI) – Instituto Antártico Ecuatoriano (INAE) . Shetland Island- Antartic Peninsula – Greenwich Island; Pedro Vicente Maldonado Base . Glaciological measurem ents (2010-2017) “ MONI TOREO DE GLACI ARES TROPI CALES ANDI NOS EN UN CONTEXTO DE CAMBI O CLI MÁTI CO “ in the way, regional level (Colombia,Ecuador,Perú, Bolivia) Cooperation Interam erican Developem ent Bank (IDB) – Instituto Nacional de meteorología e hidrología (INAMHI)… … … … … .. Placed in Chimborazo and Carihuayrazo . “Glacioclim “ in the way. Cooperation IRD ( Institute pour Resercher and development –France) -Instituto Nacional de Meteorología e Hidrología (INAMHI). Glaciological work in Antisana (15 Alpha an Los Crespos). Support the operation and maintenance of Antisana 15 station and glaciological measurem ents. “CATCOS ( phase 2 ) – Capacity building and Tw inning for clim ate observing system ” ,recently completed. Reinforced field work in Antisana 15 Alpha by four years. Cooperation Meteoswiss- INAMHI.

Thank you for your attention
